JV3-160SP Yellow head printing full open

[polishdan]

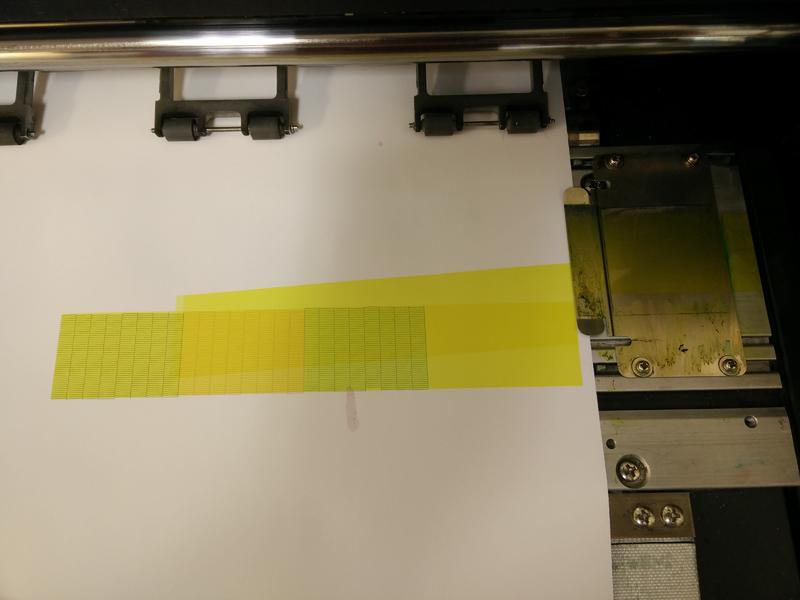

So we've replaced all four heads on our JV3-160SP trying to resurrect her from the dead. Got ink flowing but then this happened with a test print.

Anyone know what the problem could be? The yellow is firing at full blast—even off the page.



[TomZ]

check your negative pressure



[polishdan]

check your negative pressure

Replacing the slider board did the trick. Upon closer inspection of the older board, noticed some areas that had burned out.
