JV33 Main Board QUESTION

Discussion in 'Mimaki' started by Vinylman, Nov 23, 2016.

  1. Vinylman

    Vinylman Very Active Member

    1,057
    6
    38
    Aug 15, 2005
    Berlin Center, Ohio
    I have tested my JV33 main board.

    Found TP8 was below specs.

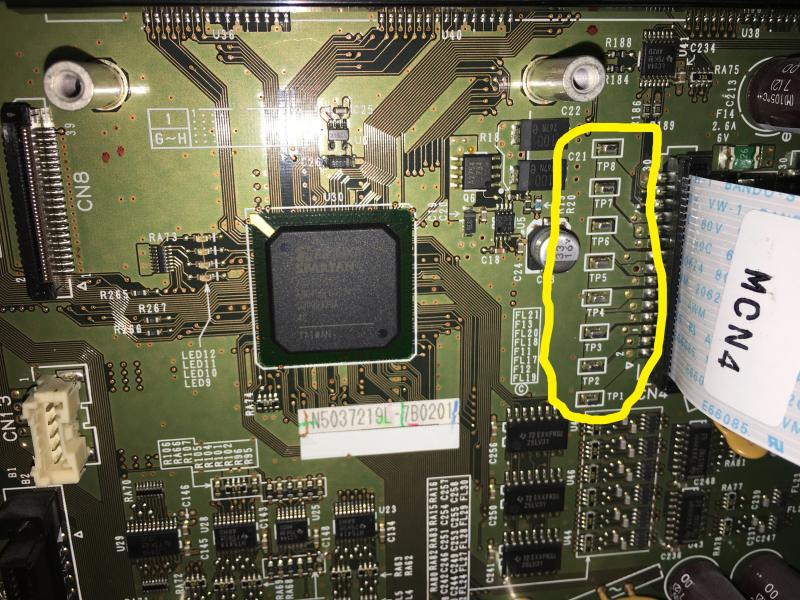

    Does anyone know exactly what the components are called that are soldered on the main board areas TP1-TP8?

    They are extremely small components, and even under high magnification I can not find any markings.

    ANYONE? know what these are called, and where I might get replacement parts?

    Thanks and have a HAPPY THANKSGIVING.


    Attached Files:

  2. netsol

    netsol Very Active Member

    1,022
    151
    63
    Apr 26, 2016
    englishtown, nj
    they appear to be a row of small capacitors. tp just means test point (the place where you make a measurement). neither the test point or the capacitor is the defective part that needs to be replaced.

    what is the voltage at tp8? what is it supposed to be?
    do you have a schematic diagram?

    andy

  3. Vinylman

    Vinylman Very Active Member

    1,057
    6
    38
    Aug 15, 2005
    Berlin Center, Ohio
    Andy:
    According to the test procedures outlined from Mimaki, these "capacitors"? as you refer to them do NOT carry voltage. They are to fall into a very narrow range of OHMs. 17ohms to 18ohms. no more no less OR they should be problematic.

    I have not been able to locate a specific schematic. THAT would be very helpful.

    Any other ideas?

  4. netsol

    netsol Very Active Member

    1,022
    151
    63
    Apr 26, 2016
    englishtown, nj
    my mistake

    in surface mount components, it is hard t tell a resistor from a capacitor.

    there are a number of places to purchase this sort of thing. digikey, newark electronics and many others.


  5. netsol

    netsol Very Active Member

    1,022
    151
    63
    Apr 26, 2016
    englishtown, nj
    pm me later or call me on my cell.
    732 789 3576

    get me up to speed on this and we can find the parts on friday. i am still a little confused
