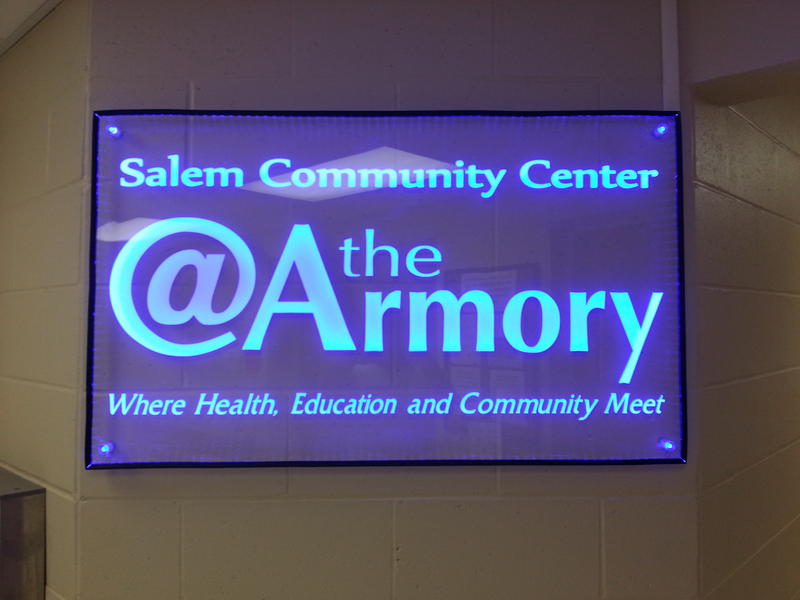

Latest edge lit project...

Discussion in 'LEDs and Neon' started by ActionGraphics, Jun 12, 2015.

  1. ActionGraphics

    ActionGraphics Member

    91
    7
    8
    Apr 2, 2015
    Salem, MO
    [​IMG]


    Attached Files:

    Tags:
  2. rjssigns

    rjssigns Major Contributor

    4,923
    432
    83
    Jun 4, 2007
    Home Office
    Nice. Are you blasting or routing the letters?

  3. iSign

    iSign Major Contributor

    13,027
    31
    48
    Nov 29, 2003
    Kahului, Maui
    ...or a good sized laser?

  4. ActionGraphics

    ActionGraphics Member

    91
    7
    8
    Apr 2, 2015
    Salem, MO
    well, i'll tell you a secret if you promise not to tell anyone, lol.

    It's cut vinyl...

  5. Ultimate13

    Ultimate13 Member

    136
    11
    18
    Feb 23, 2015
    Orange County, CA
    Looks great! Awesome idea. We've been using etched vinyl for years, never knew it would react this way to the light though.

  6. knucklehead

    knucklehead Active Member

    629
    0
    0
    Sep 24, 2007
    Sweet!

  7. jfiscus

    jfiscus Map Wraster

    3,099
    206
    63
    Apr 2, 2009
    Cincinnati, OH
    Care to make a tutorial on how to do this?
    I've never tried edge lighting and this looks like a great new product to sell!

  8. ActionGraphics

    ActionGraphics Member

    91
    7
    8
    Apr 2, 2015
    Salem, MO

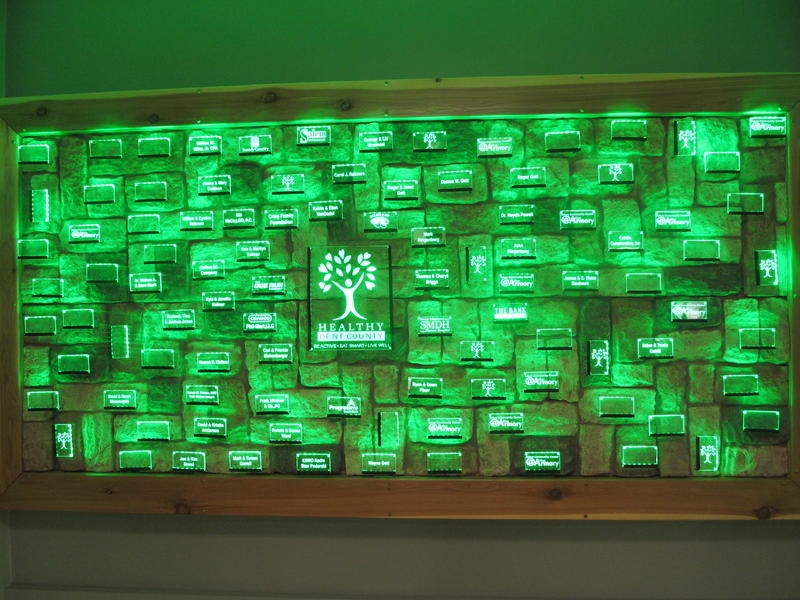

    I have a number of edge lit signs out there. They are simple in concept, but can be a little tricky. I have a local college ordering a sponsor wall like this one (I did for the same customer who ordered the blue one above). I'll make a video when I start working on that one.

    [​IMG]


    Attached Files:

  9. heyskull

    heyskull Very Active Member

    1,652
    14
    38
    Sep 2, 2007
    UK
    I would like a tutorial on this also.

    Looks spectacular

    SC

  10. topsignsusa

    topsignsusa New Member

    1
    0
    0
    May 11, 2015
    This looks great. Very nice job on both signs. I too would like to learn more about the components and how you're putting them together.

  11. medavez

    medavez New Member

    17
    0
    1
    May 30, 2015
    NJ
    Hey Action--did you ever get around to making that video?

    Would love to see how you brought this together, especially the Salem Armory Center piece.

    Thanks!

  12. Starter

    Starter Member

    155
    31
    28
    Mar 20, 2013
    Halifax NS
    Wow! Very nice work indeed. Looks awesome. I'm going to go tinker with some acrylic and etch now :)
    Thank you.

  13. bold_will_hold

    bold_will_hold Member

    41
    5
    8
    May 9, 2015
    Philadelphia, PA
    For those that are interested I found this video. There is a load more on youtube but this was the best so far. The OP sign pictured looks like acrylic with black trim cap to contain the led strips, mounted with standoffs right to the wall. I am assuming the wiring is behind the white channel to the upper right side of the sign, possible power supply tucked away in drop ceiling. My only question is how do you handle the customer being able to turn the sign on/off. Remote LEDs? [video=youtube;SaG-NQ64540]https://www.youtube.com/watch?v=SaG-NQ64540[/video]

  14. jfiscus

    jfiscus Map Wraster

    3,099
    206
    63
    Apr 2, 2009
    Cincinnati, OH
    I saw this one also, but it lacks any info. https://www.youtube.com/watch?v=p8gj01VZQqA
    I would just put a hidden button switch on the side of the sign. I'm going to have to try this now.

  15. bold_will_hold

    bold_will_hold Member

    41
    5
    8
    May 9, 2015
    Philadelphia, PA
    This one is pretty good. I am currently quoting a project like this. So I have been doing alittle research.

    [video=youtube;4kuaH3EHeSg]https://www.youtube.com/watch?v=4kuaH3EHeSg[/video]

  16. T_K

    T_K Member

    404
    30
    28
    May 23, 2016
    Georgetown, TX
    From the picture, I'm assuming you applied the vinyl to the back side of the sign in order to give it that appearance. Am I correct?

  17. Gene@mpls

    Gene@mpls Very Active Member

    1,987
    82
    48
    Jun 17, 2003
    Blaine, Mn
    That Klus extrusion is an elegant solution, but kinda expensive- $60 for a meter. I have been machining my own from oak but I would love to find a ready made extrusion... perhaps not quite so elegant/$. Has anyone seen anything similar for .22 acrylic? Thanks Gene

  18. ActionGraphics

    ActionGraphics Member

    91
    7
    8
    Apr 2, 2015
    Salem, MO
    Sorry for the absence and the lack of the video. Kinda fell off the edge of the earth for a while. I'll try to get you guys some info soon. Yes, reverse cut white vinyl applied to the back. Way cheaper than a laser and pops just as well.

  19. ActionGraphics

    ActionGraphics Member

    91
    7
    8
    Apr 2, 2015
    Salem, MO
    No remote. The power supply in the drop ceiling is powered from a standard wall switch.
