Linear calibration Roland VP540?

Discussion in 'Roland' started by purevs, Jun 20, 2012.

  1. purevs

    purevs New Member

    8
    0
    0
    Jun 1, 2012
    Hi,

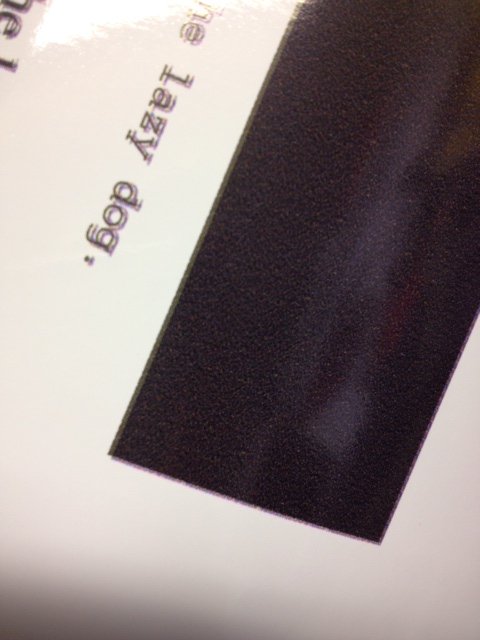

    I have just fitted a new print head, but now it prints out of line, i have done as many test prints and settings as i can, but i get stuck when i find the Linear calib. menu, nothing happens, i think. I have had a large empty box print, but no numbers etc to make adjustments, basically i want help fixing the problems shown in my picture.......

    Many thanks..


    Attached Files:

    Tags:
  2. CS-SignSupply

    CS-SignSupply Very Active Member

    You need a tech. Head alignments... Bias/vertical/horizontal/bi-directional and more......

  3. odhisteve

    odhisteve New Member

    5
    0
    1
    May 10, 2012
    kenya
    linear calibration vp 540

    well i think this error that occur to all printer that have encoder strip, it has noting to do with the head replacement. all you have to do is clean the encoder strip and the encoder reader. the encoder reader is located on the carriage unit,and you have to remove it so cleaning is easier. when putting it back just make sure the encoder strip passes between its groove not touching either sides. i know this will certainly sort you problem.

  4. Northern Design

    Northern Design Northern Design Graphics

    82
    2
    8
    Jan 1, 2009
    seattle
    Linear calibration is done in service mode and is NOT the encoder strip

  5. Jack Knight1979

    Jack Knight1979 Very Active Member

    1,078
    0
    36
    Jan 23, 2008
    Maine
    :goodpost:

  6. 34Ford

    34Ford Member

    133
    0
    0
    Nov 10, 2005
    You need to enter the service mode and also download the service manual for your printer.
    The manual explains how to align the heads.
