Metal ADA signs - where to get? better alternatives?

Discussion in 'General Signmaking Topics' started by nolanola, Jun 23, 2020.

  1. nolanola

    nolanola Member

    269
    10
    18
    Sep 24, 2014
    New Orleans
    Hello All -
    We are replacing some signs for a boutique hotel.

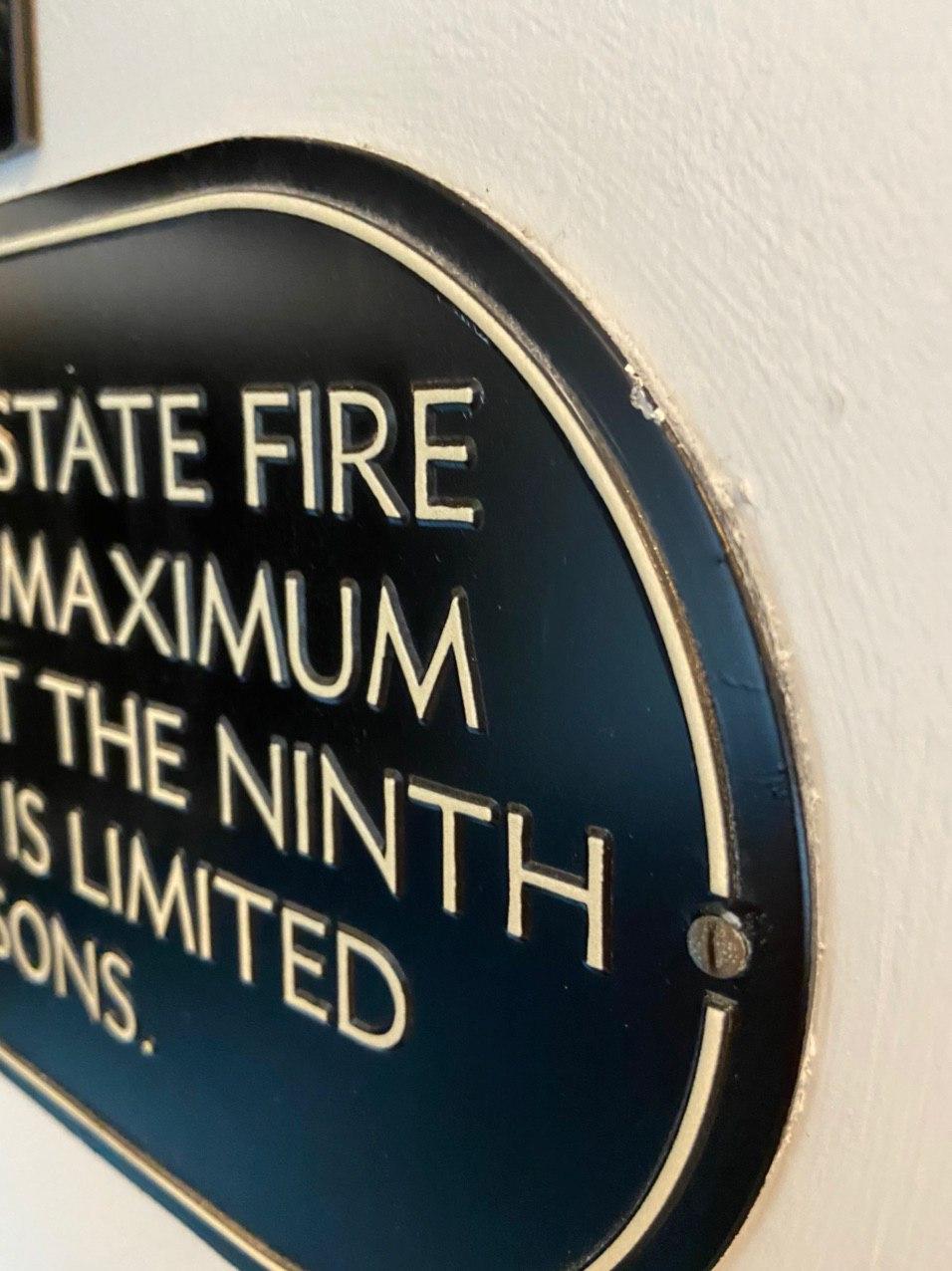

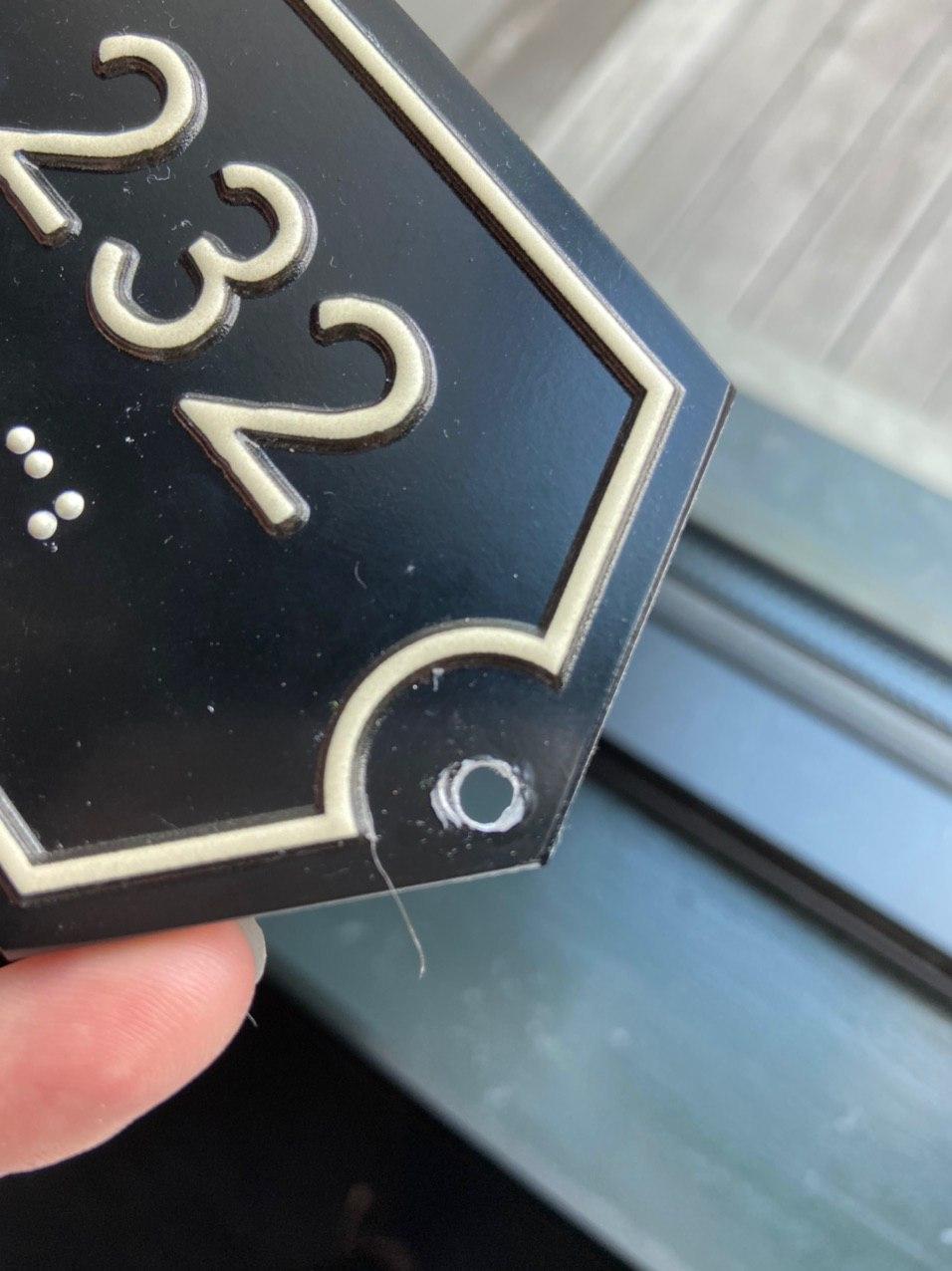

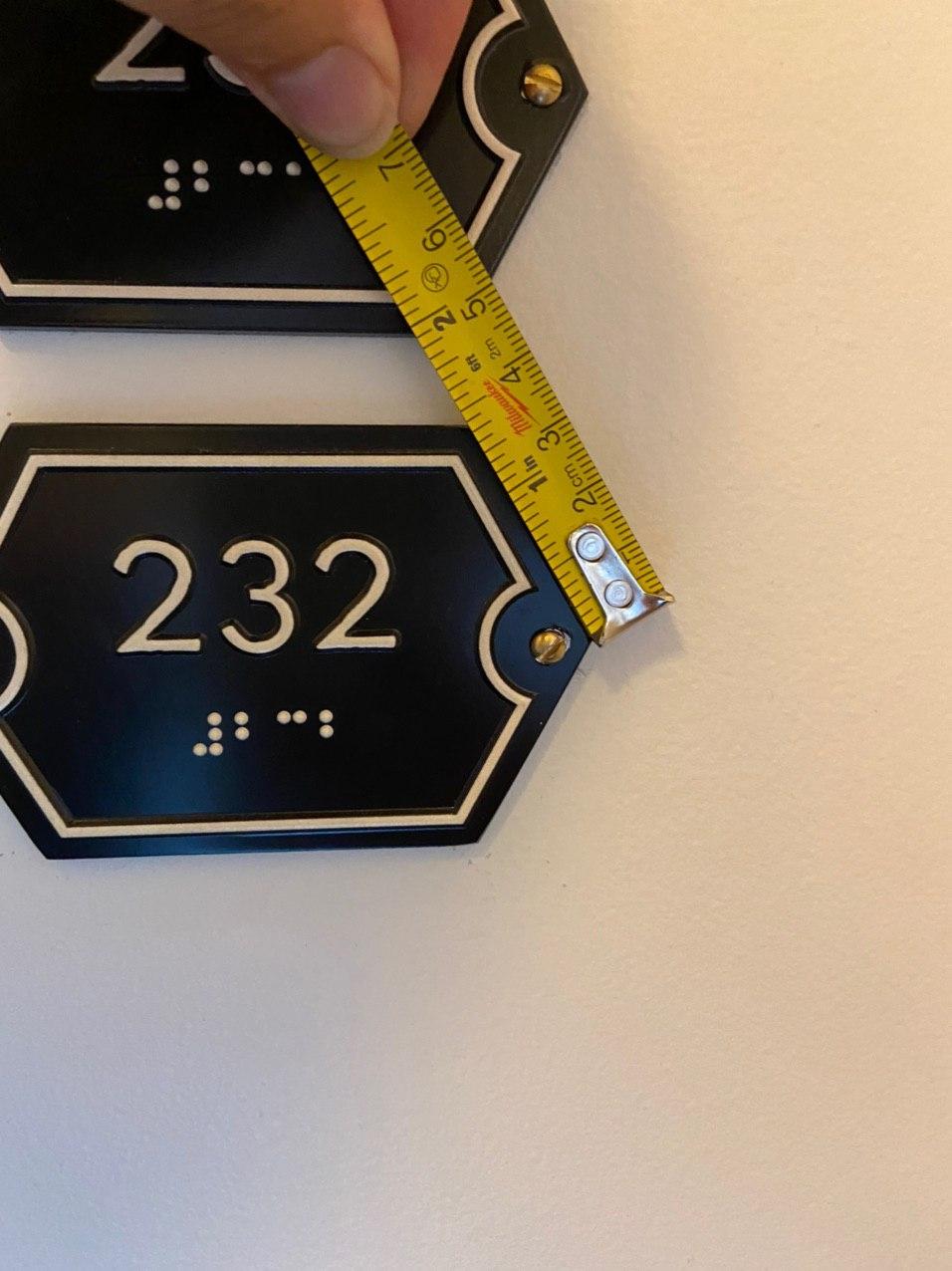

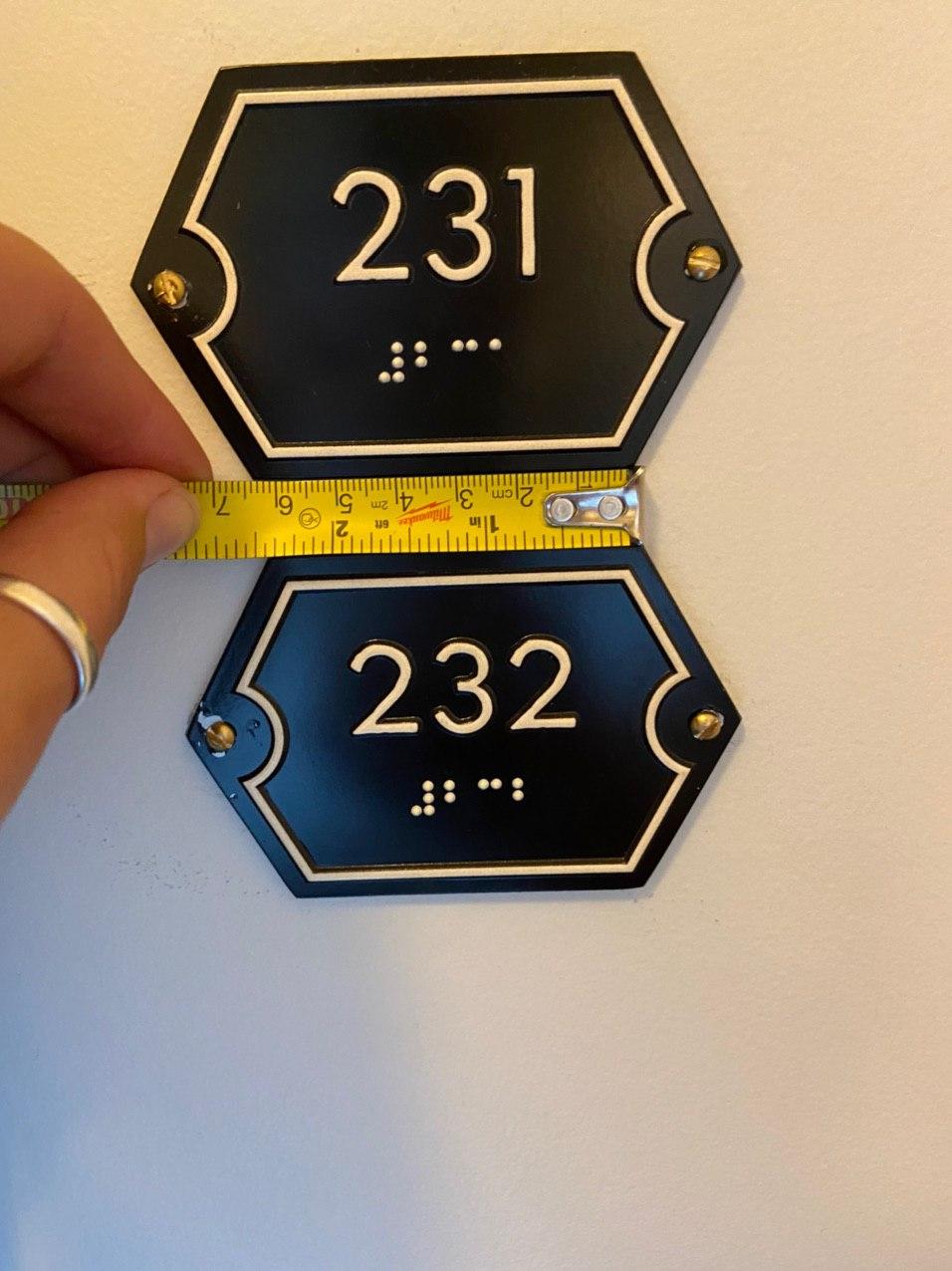

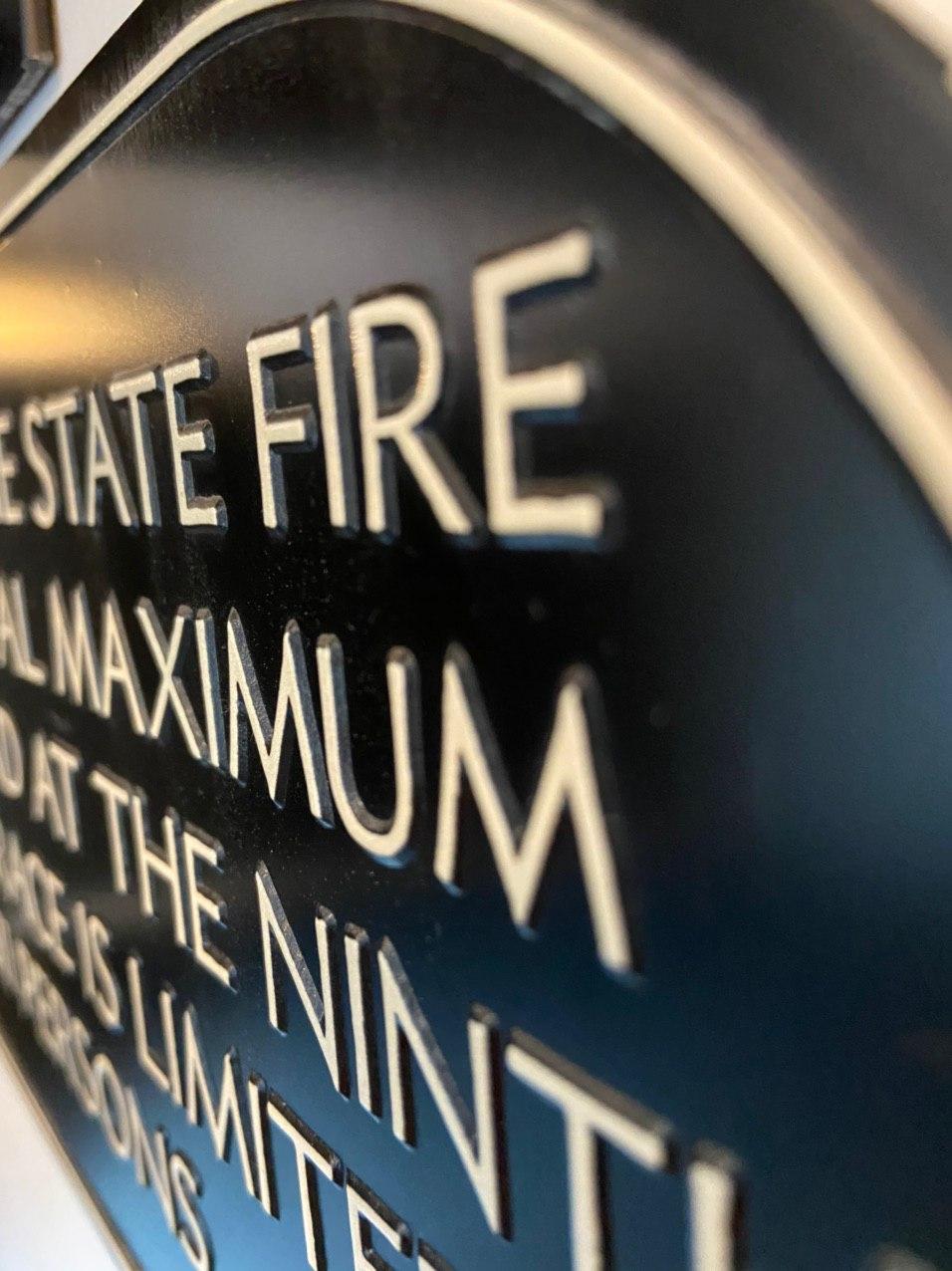

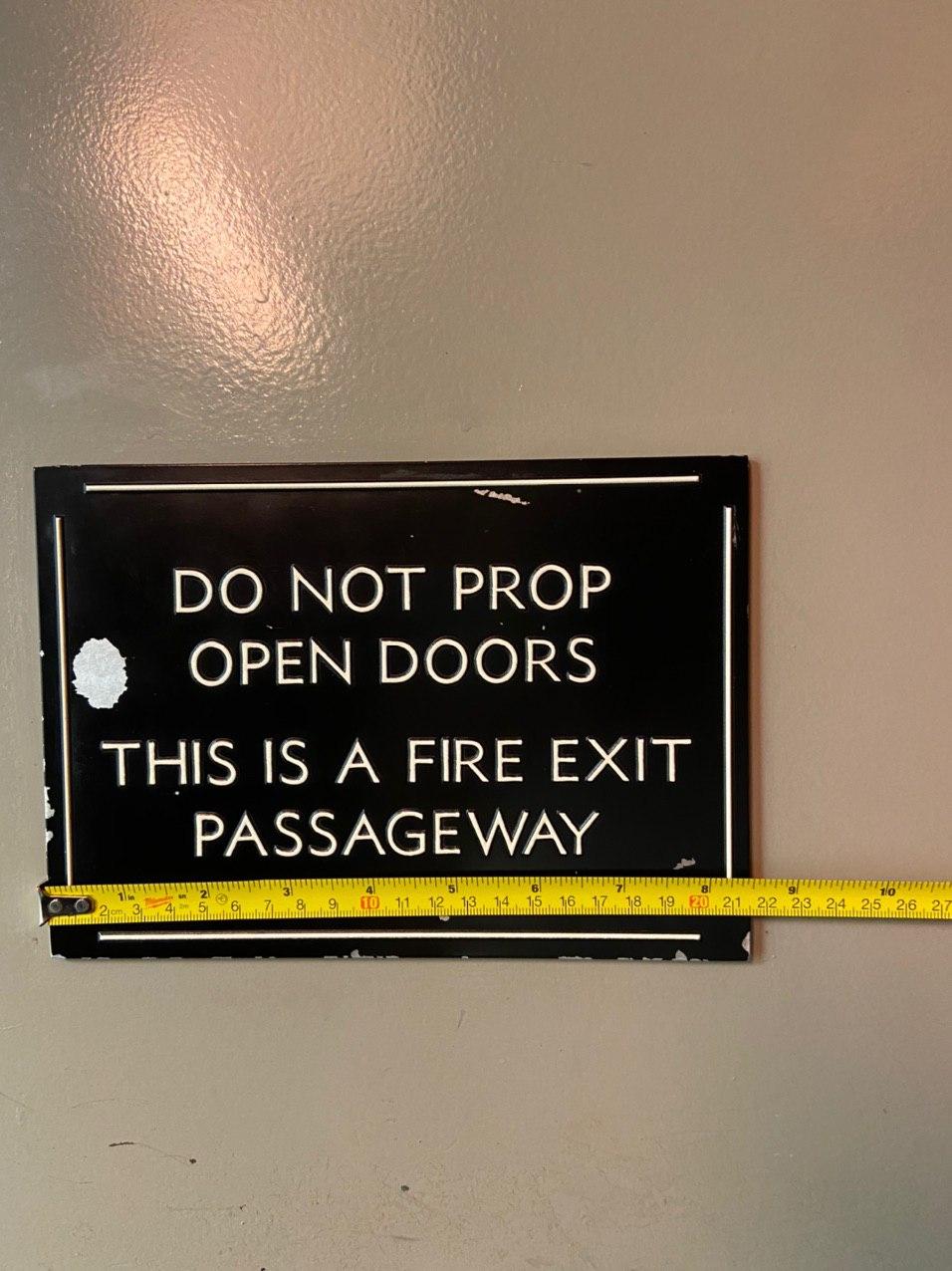

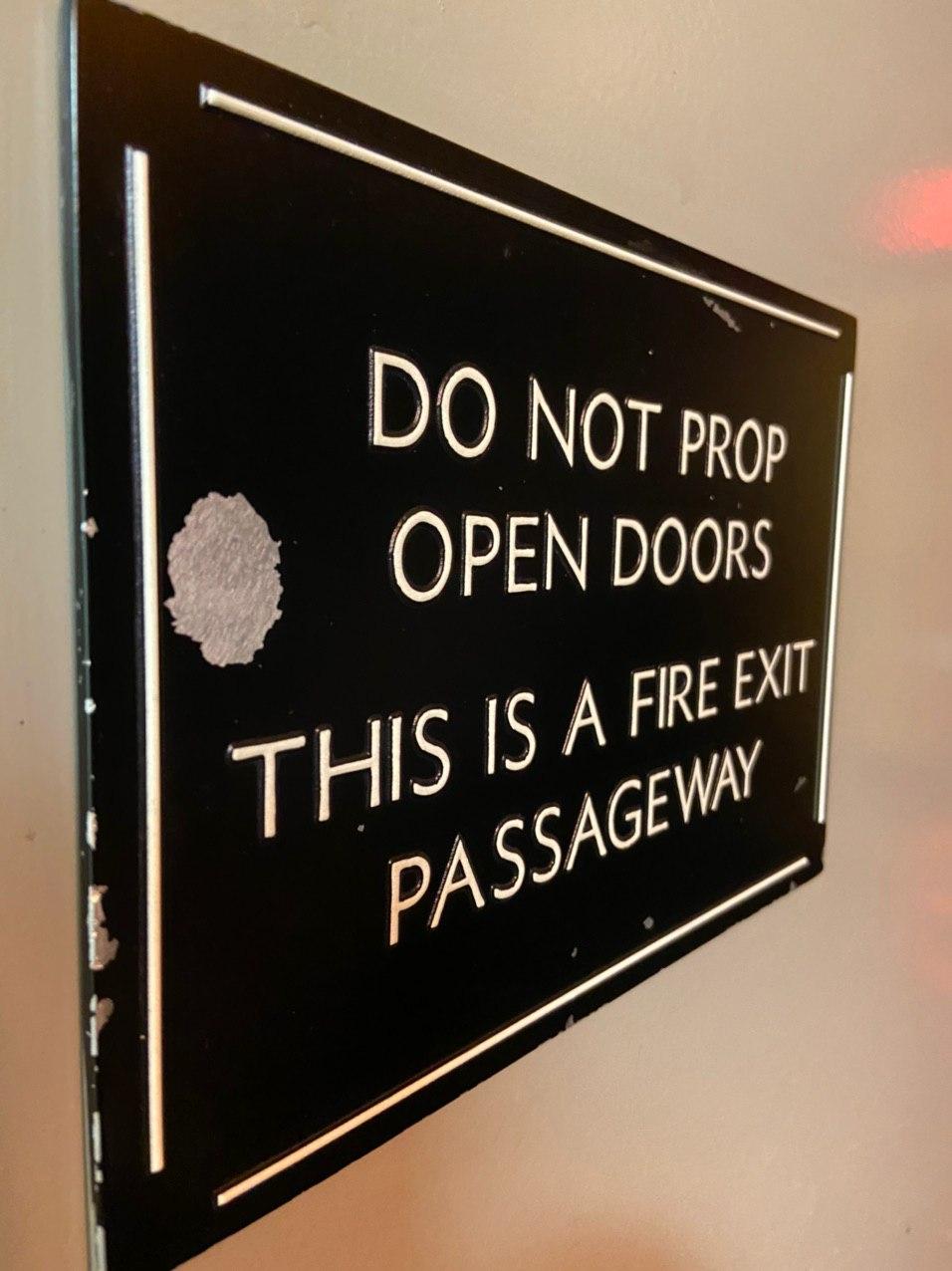

    They currently a combination of both metal & plastic ADA signage with a style that we had not produced before. The hotel is VERY about their specific aesthetic and wants replacements to keep the look as much as possible. Pictures are attached.

    I've talked to a couple ADA producers and they've told me these are cast signs.
    Where can we get these? What is maybe an alternative product that keeps the same feel?

    Any advice is appreciated!


    Attached Files:

  2. Gino

    Gino Premium Subscriber

    33,487
    2,384
    113
    Jun 7, 2006
    PA
    Check with Gemini.

    • Like Like x 1
  3. visual800

    visual800 Very Active Member

    3,930
    268
    83
    Aug 4, 2010
    montgomery, alabama
    bellcosigns.com, birmingham

    • Like Like x 1
    • Agree Agree x 1
  4. Cory Marcin

    Cory Marcin Member

    45
    10
    8
    Oct 2, 2018
    Wisconsin
    Looks like photopolymer process.

    • Like Like x 1
  5. JBurton

    JBurton Signtologist

    1,898
    380
    83
    Sep 28, 2017
    Arkansas

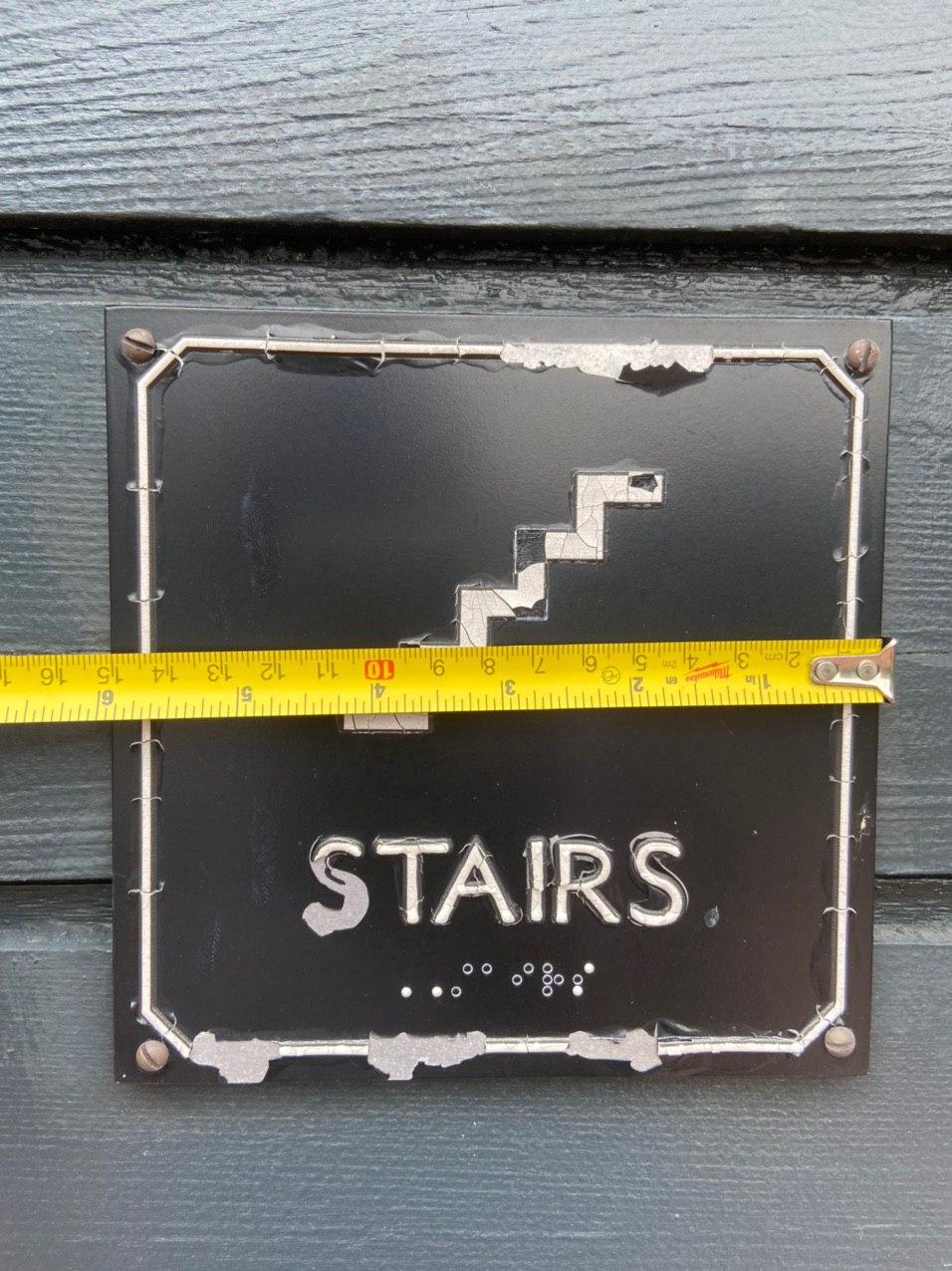

    Looking at the stairs one, looks like it's on an exterior wall, since portions of the border are missing I don't think it's actually cast. That and the sections where large flakes of paint have come off, you can see what looks like sanding swirl marks. If I had to guess, these were applique cut on sanded aluminum, then painted black and the copy was rolled white or cream. Howard industries could probably do this.

  6. Gino

    Gino Premium Subscriber

    33,487
    2,384
    113
    Jun 7, 2006
    PA
    Not sure, but it looks more like corrosion due to salt air or something else maybe in the air.

  7. JBurton

    JBurton Signtologist

    1,898
    380
    83
    Sep 28, 2017
    Arkansas
    Maybe talk them into replacing all of them with something like corian, either sandblasted or with raised copy routed on top of it. Corian looks like all sorts of granite, and is super easy to machine. You will just want to find a counter top guy that you can partner with, as the material needs a fine touch with a buffer to bevel the edges and even the finish out. The guy we worked with on a college library project was incredible, he could bevel every edge with a sander to make it look machined like that, and he could take the finish from flat to satin, and with enough time a high gloss. Also, mount the signs with 'hanger bolts' or 'furniture bolts' for a clean finish. You can drive them into a drywall anchor or a masonry anchor, then you'll be left with a threaded stud sticking out that you can put a fancy MBS standoff cap on. This way if they change rooms around, you won't be ripping paint off with your double stick, or worse, installing with screws visible on the face side.

  8. Zach Starr

    Zach Starr Head of Printing Operations

    47
    2
    8
    Nov 9, 2018
    Santa Ana, CA
    Check with Gemini, they would have the right solution for this.
