Moving the dots

Discussion in 'Roland' started by SlightlyChilled, Jun 14, 2013.

  1. SlightlyChilled

    SlightlyChilled Very Active Member

    1,270
    0
    36
    Dec 19, 2009
    Hell
    Okay working on a gx500 that will hold a 54" peace of vinyl BUT the cut marks are all the way to the right so you need to cut down the 54" vinyl shorter to move the marks to the left.. is there a way to move the cut marks to the right 4" in versa works. I know how to move the image but not the marks... I hope this makes sense. PS printing on a RE 640...

    Tags:
  2. tim99

    tim99 Member

    142
    11
    18
    Jun 9, 2013
    general
    Humm, cant say i ever had that problem before usually the registration dots position are relitive to the image size and position.
    for example if the image is 5 inches wide and right justified the markers will be the same, same image centered on the media the dots will move to the center as well.

    considereing thats how VW sets up the registration marks cant you just move the entire image 4" to the left to get what your after?

  3. SlightlyChilled

    SlightlyChilled Very Active Member

    1,270
    0
    36
    Dec 19, 2009
    Hell
    That what I was thinking but no. Even if you move the image the dots never move.

  4. Gene@mpls

    Gene@mpls Very Active Member

    2,008
    87
    48
    Jun 17, 2003
    Blaine, Mn
    On my VP540 I can move the right hand roller in 4" which will crowd the reg marks to the left. I posted a year or so ago
    how to set the GX500 up to cut a bit wider also. Gene

  5. SlightlyChilled

    SlightlyChilled Very Active Member

    1,270
    0
    36
    Dec 19, 2009
    Hell
    I saw that one and that was good info. So I guess I just need to print on 48 OR keep cutting down the print before I feed it to the cutter.

  6. DizzyMarkus

    DizzyMarkus Active Member

    822
    0
    0
    Jan 23, 2012
    Sure there is nothing hanging about transparent or white? A small dot way outside the working area? My reggies are always according to image size and their placement. Markus What happened to the enter key line break

    Last edited: Jun 15, 2013
  7. SlightlyChilled

    SlightlyChilled Very Active Member

    1,270
    0
    36
    Dec 19, 2009
    Hell

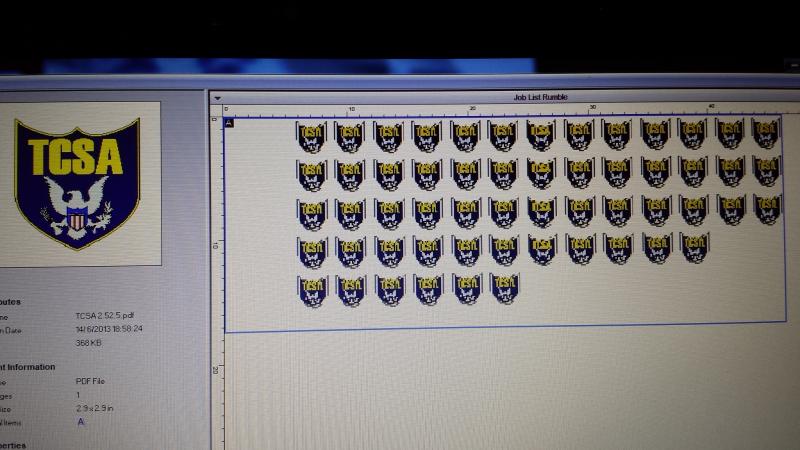

    Here you can see I moved the little guys to the right. But see the blue outer box that I can't move. That box is what dictates where the cut dots go. If I could make it go more right I would be set


    Attached Files:

  8. Cyw

    Cyw Member

    120
    0
    0
    Apr 20, 2011
    hmmm..............like Markus said, it sure does look like something is there that's causing the bounding box to be so far away from your visible artwork.
    Look back at the original file in Wireframe view. Double click with your Pick tool to Select All. You may be able to see what's causing the oversized perimeter.
    If you still can't see it in wireframe view, marquee select ONLY the decals you want printed and export to eps making sure the box 'Selected Only' is checked.

  9. SlightlyChilled

    SlightlyChilled Very Active Member

    1,270
    0
    36
    Dec 19, 2009
    Hell
    No there is nothing there I moved the images

  10. SlightlyChilled

    SlightlyChilled Very Active Member

    1,270
    0
    36
    Dec 19, 2009
    Hell

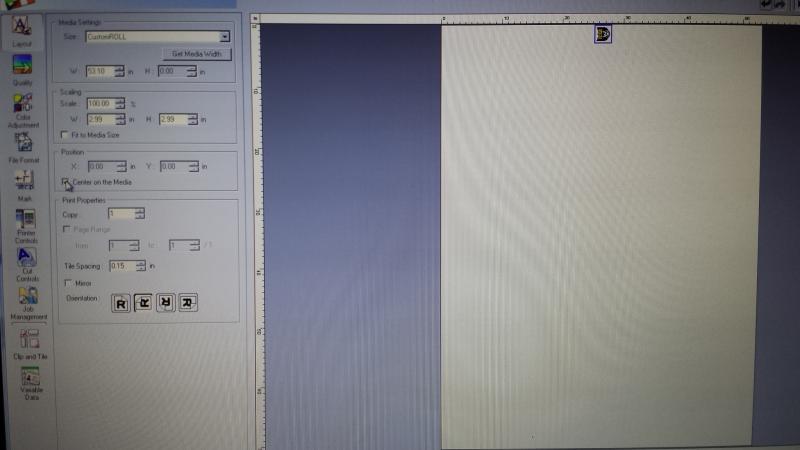

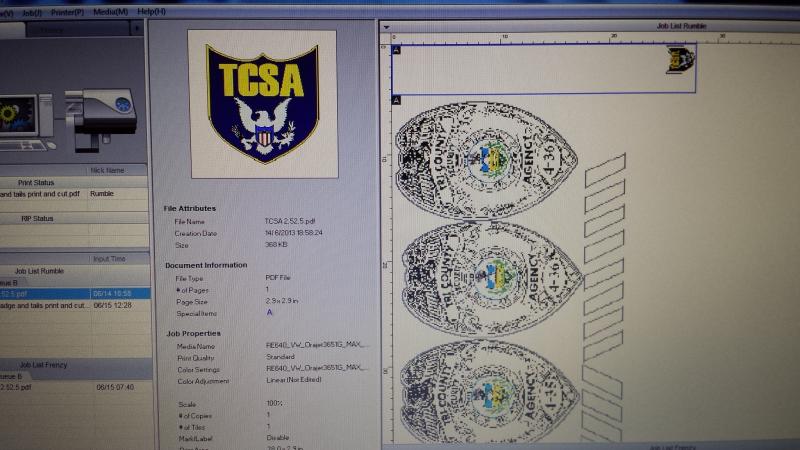

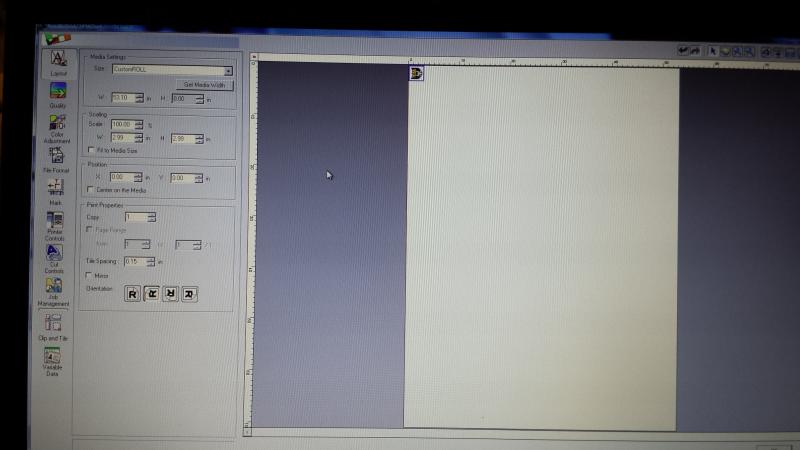

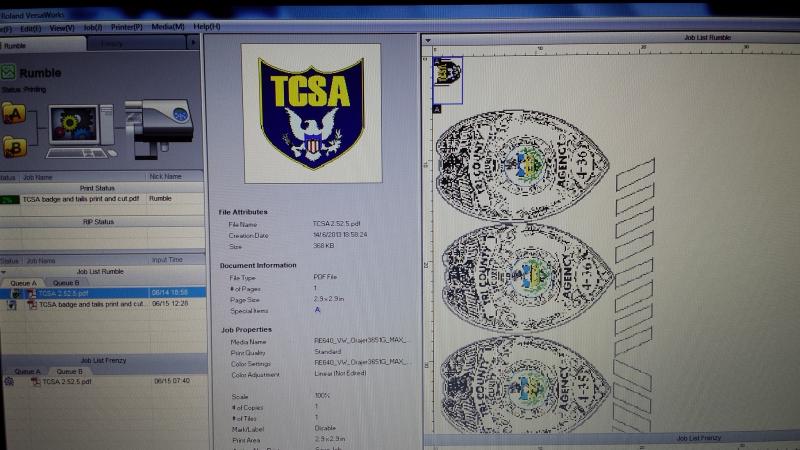

    Here I did it with just on image and the I centered same image to the paper... I can move it where aver I live in the edit screen but when I go back to the rip print the box will always stay to the upper left corner.


    Attached Files:

  11. Gene@mpls

    Gene@mpls Very Active Member

    2,008
    87
    48
    Jun 17, 2003
    Blaine, Mn
    What printer are you using- I didn't see a Roland in your profile?

  12. SlightlyChilled

    SlightlyChilled Very Active Member

    1,270
    0
    36
    Dec 19, 2009
    Hell
    Versa art RE 640

  13. SlightlyChilled

    SlightlyChilled Very Active Member

    1,270
    0
    36
    Dec 19, 2009
    Hell
    No other ideas?????

  14. SlightlyChilled

    SlightlyChilled Very Active Member

    1,270
    0
    36
    Dec 19, 2009
    Hell
    For others that may need this here you go. Need to set the baseband of the head over to about 48.5 that will move the marks to the right and all is well.
