Need Help Mutoh 1304

Discussion in 'Mutoh' started by Ppcwilly, Aug 5, 2020.

  1. Ppcwilly

    Ppcwilly Member

    35
    0
    6
    Jan 2, 2015
    North Carolina

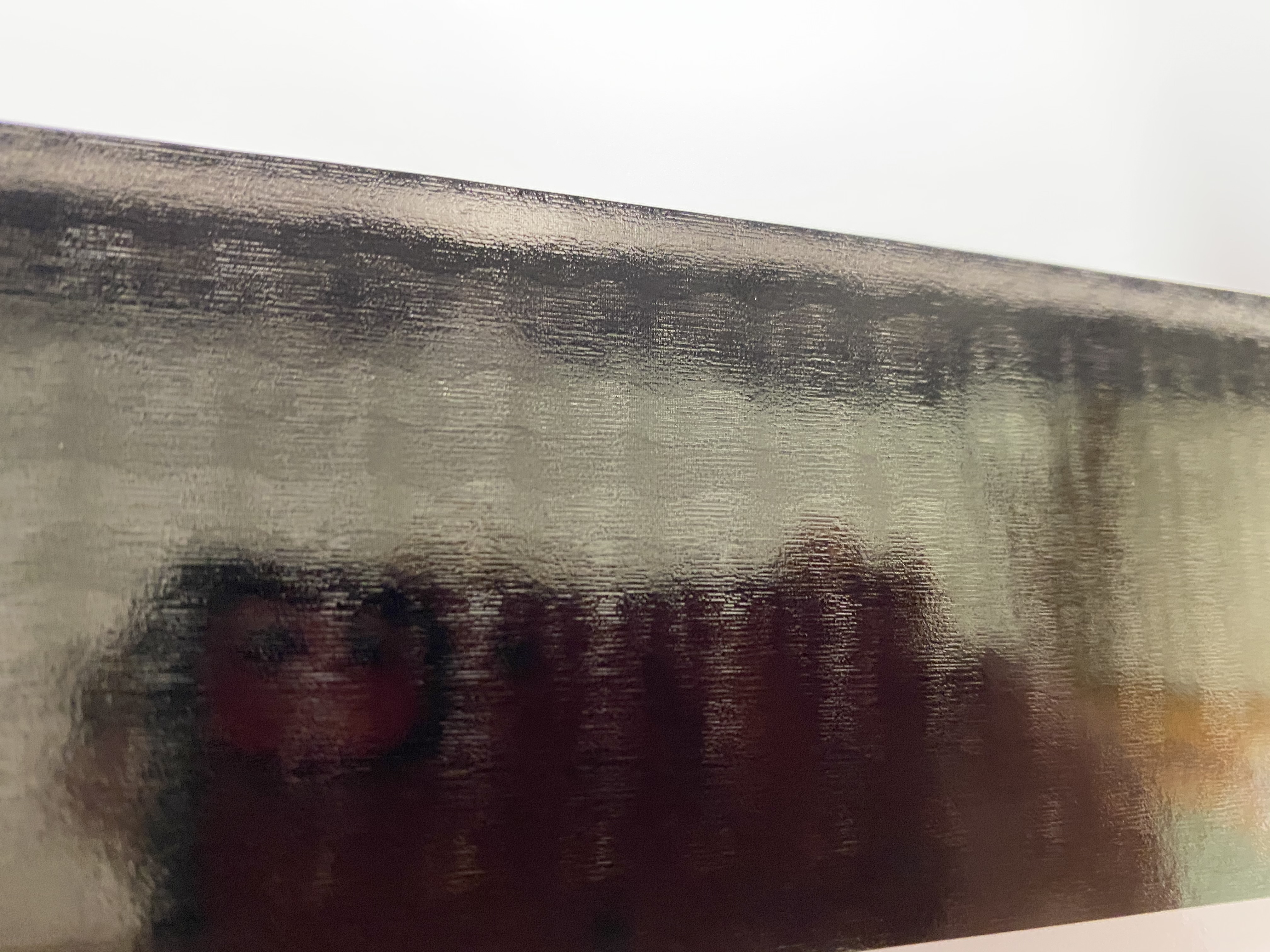

    IMG_3513.JPG IMG_3514.JPG I recently got a used 1304 to upgrade from my 1204 in order to print 54" media.
    I have replaced the T-fence ,Printhead, MS . Also have thoroughly cleaned the encoder and raceway bearings.
    I am getting lines in the print that show up on all colors but are more evident when printing black.
    Any ideas how to fix this?
    Thanks
    Bill

    Tags:
  2. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,231
    796
    113
    Aug 2, 2011
    Denver, CO
    What does your nozzle check look like? Did you run the head alignments after installing the head?

  3. Ppcwilly

    Ppcwilly Member

    35
    0
    6
    Jan 2, 2015
    North Carolina
    The nozzle checks look good on all colors. I have the service manual can you give me the specific section you are referring to for head alignments. Just want to make sure. Thanks

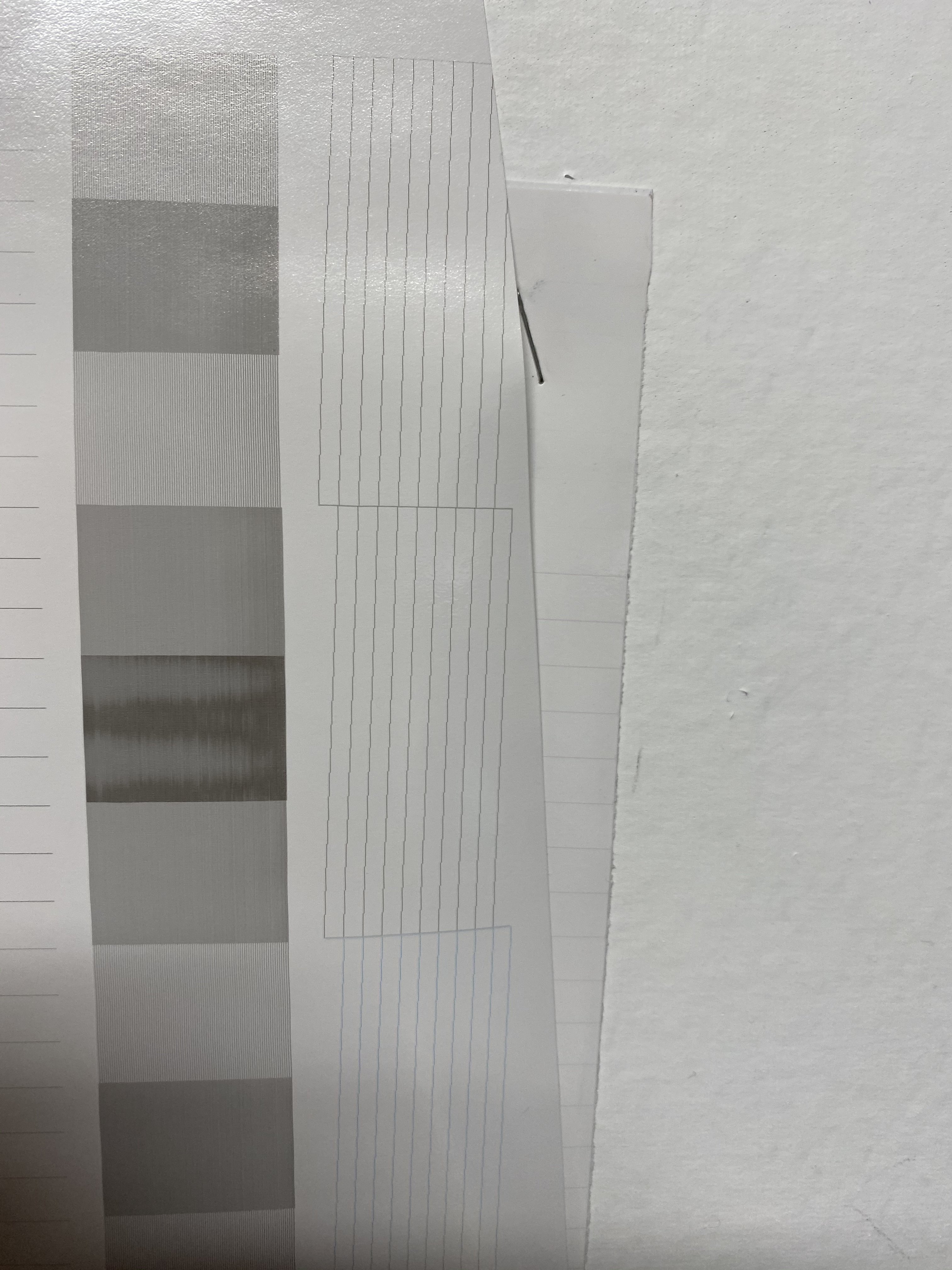

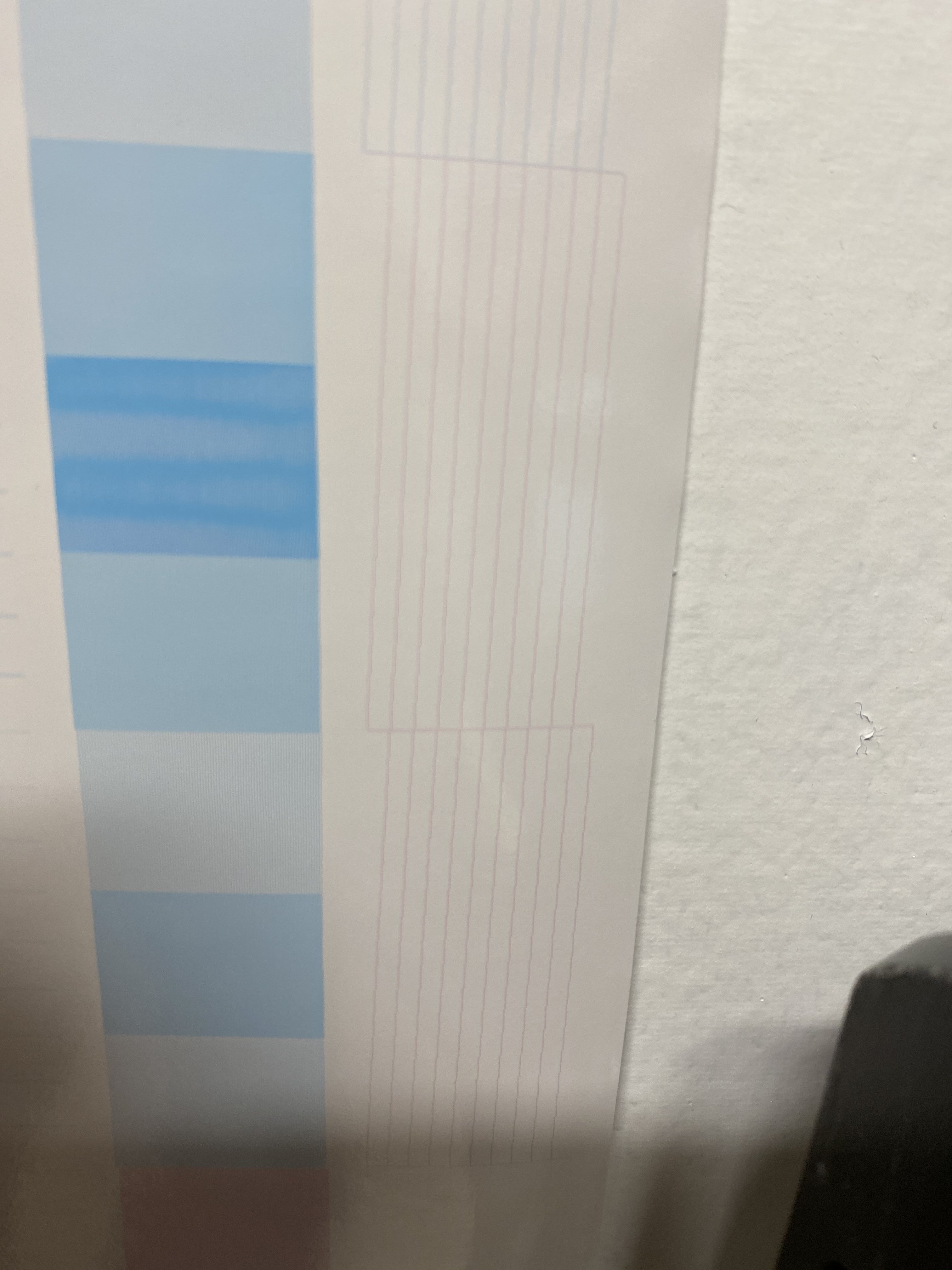

    IMG_3520.JPG IMG_3521.JPG

  4. Ppcwilly

    Ppcwilly Member

    35
    0
    6
    Jan 2, 2015
    North Carolina
    Yes I finished do all the head alignments, prints the same!

  5. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,231
    796
    113
    Aug 2, 2011
    Denver, CO
    It almost looks like a material issues when the ink gets more saturated. Have you tried other materials? Does this same material print fine on your 1204?

  6. Ppcwilly

    Ppcwilly Member

    35
    0
    6
    Jan 2, 2015
    North Carolina
    I tried some 3651 and Some fellers vinyl, same results. These substrates printed on my 1204. After the alignment of the head it printed a little better. Printing at 720x720 8 pass with high ink flow it looks better, but you can still see the vertical lines or shapes? Could it be the board or the belt? I thought about putting my working boards from the 1204 in to see if that would work? My 1204 came with an extra board that works, could it be reprogrammed to work in the 1304 if the board is bad? Thanks a lot for your input.

  7. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,231
    796
    113
    Aug 2, 2011
    Denver, CO
    I know it sounds stupid but, did you take the protective liner off the encoder strip before installing it? If you did or used a generic one that didn't have the protective liner, I would start thinking about the encoder sensor. You can air dust it to get rid of all the dust build up and that could fix the issue but it may need to be replaced as well. But that's just a guess. It looks similar to encoder issues but I have never seen this pattern before and I work on a lot of machines!

  8. Ppcwilly

    Ppcwilly Member

    35
    0
    6
    Jan 2, 2015
    North Carolina
    I had ordered a generic one awhile back for my 1204 and never needed it, The 1304 T-fence had some spots that would not clean off, so I put the generic encoder in. That made no difference in the print. The printer was really dirty, took it apart and clean everything. Recently I purchased a couple of Mutoh 900 sublimation printers from a guy who just wanted to get rid of them. They were very clean but the heads were bad, but I got spare pinch rollers which I needed and a lot of spare parts. I took one of the encoder wheels from the 900 and put it on the 1304, could that be the problem?

  9. Jim Hancock

    Jim Hancock Member

    422
    72
    28
    Nov 11, 2008
    Delray Beach, Florida
    Try adjusting the media feed. Depending upon the printing pattern you are using, the Mutoh printers will give you vertical banding if the media feed is off, especially in the wave pattern.

    • Agree Agree x 1
  10. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,231
    796
    113
    Aug 2, 2011
    Denver, CO
    The encoder disc for the RJ900 and VJ1304 are the same so you should be good there. You might clean it with alcohol to be sure there is no grease or dust build up on it. Air dust the sensor for that one too!

  11. Ppcwilly

    Ppcwilly Member

    35
    0
    6
    Jan 2, 2015
    North Carolina
    Is this found in the media setup menu?

  12. Ppcwilly

    Ppcwilly Member

    35
    0
    6
    Jan 2, 2015
    North Carolina
    I cleaned both the pf and cr sensor and encoder wheel, no change. Thanks for your input!

  13. Ppcwilly

    Ppcwilly Member

    35
    0
    6
    Jan 2, 2015
    North Carolina

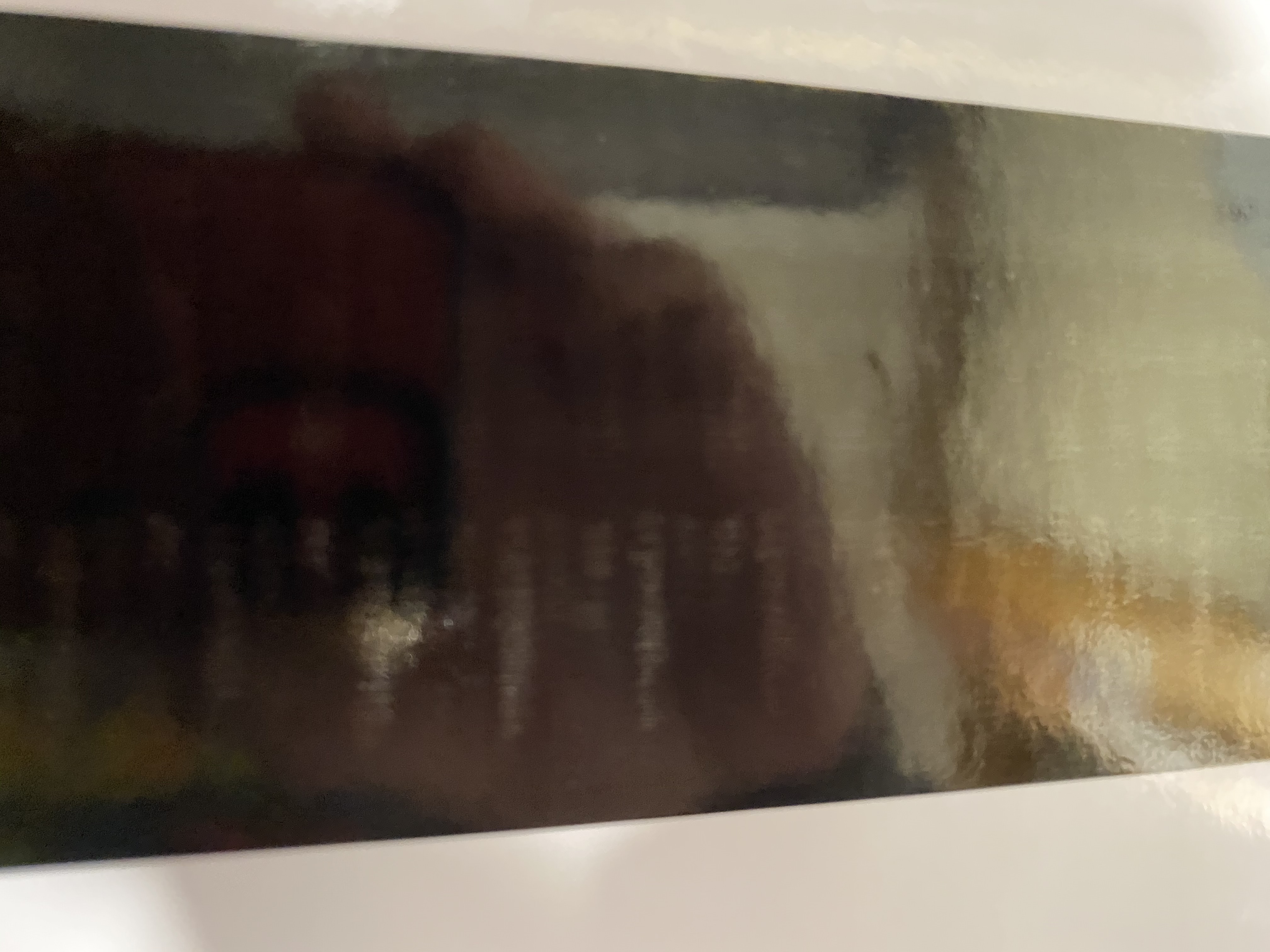

    Here is the latest print, it is 100 K black. IMG_3528.JPG

  14. Ppcwilly

    Ppcwilly Member

    35
    0
    6
    Jan 2, 2015
    North Carolina
    Hey Jim, Thanks adjusting my media feed seems to have worked.

  15. Ppcwilly

    Ppcwilly Member

    35
    0
    6
    Jan 2, 2015
    North Carolina
    Question do I need to input my head rank info from the new head. Some have said it does not matter, will that have an impact on my print quality? Thanks

  16. Jim Hancock

    Jim Hancock Member

    422
    72
    28
    Nov 11, 2008
    Delray Beach, Florida
    You're welcome on the media feed tip!

    Absolutely you should input the head rank! Will it hurt the head if you don't? Maybe, maybe not, depends upon who you ask. But!!! If it wasn't important, why would the manufacturer go to the trouble of putting it on the head? I do know some of the code has to do with the fine tuning of how the head fires. Don't know what else...

    But I ran into a situation once where a solvent printer had a water based head rank input and it oversprayed like crazy. Changed it to the correct head rank and the overspray disappeared. So, it is important.

    Last edited: Aug 15, 2020
