Mutoh refurb

Discussion in 'Mutoh' started by Irishprinter, Aug 11, 2010.

  1. Irishprinter

    Irishprinter New Member

    19
    0
    0
    Aug 11, 2010
    Hi all
    I have come into possession of a Kodak 3043 which is a Mutoh Falcon or Rockhopper 2 I believe.
    I have no idea how long it is since it printed and it runs through all the initialising ok and I can get to 'Plot Ok'.
    As expected it won't do a test print but as I love to tinker and fix things I was wondering would anybody be able to say if this could be got going again and what might be involved?
    I don't mind spending a few shekels on it if required.
    It's Eco solvent plus.
    Thanks in advance and please be sensitive with your prognosis :Big Laugh

    Tags:
  2. aviationben

    aviationben New Member

    9
    0
    0
    Aug 11, 2007
    I'd guess about $1300.... You'll want to read up on replacing dampers, capping station, ink pump, heads, and FUSES just to start. You will know every screw on this machine when your done. I've had mine for over 6 years now, purchase used. I was told they don't use plus ink anymore,l so be ready to spend around 500 for new inks.

  3. Irishprinter

    Irishprinter New Member

    19
    0
    0
    Aug 11, 2010
    Thanks for the reply....doen't sound too expenxive if it works.
    Do you know of any good resources to start reading? Only have the user manual....have been trying to track down a maintenance one as well.

  4. Ghost Prophet

    Ghost Prophet Member

    285
    0
    0
    May 26, 2010
    Here is the CMYKparts video on damper replacement, you need this for when you replace the print heads as well...

    I haven't been able to find a service manual online anywhere and Mutoh only supplies user manuals on their disfunctional website. However there is this page http://www.mutoh.com/kb/entry/117/

    Might try e-mailing Mutoh support for a PDF version. I know there is one.

    This forum will be your best resource (even over the service manual) when you run into problems. It has been for me.

  5. Irishprinter

    Irishprinter New Member

    19
    0
    0
    Aug 11, 2010
    Cheers for that. Have started to strip it down and try to identify parts.

  6. Irishprinter

    Irishprinter New Member

    19
    0
    0
    Aug 11, 2010
    Stripped this thing down and it looks like it has had a good flush, all the lines are clean with no ink in them.
    Put it back together and pulled the ink into the dampers, seemed fine....but now when I power up all I am getting is 'No Waste -Ink Tank'. Can't get by that.....everything to do with the waste bottle is the same. Any ideas?

  7. Ghost Prophet

    Ghost Prophet Member

    285
    0
    0
    May 26, 2010
    That is a prompt that has to be reset in your Falcon menu once you clean the waste ink bottle.

    I "think" you hit menu when you get the prompt and then one of the other buttons to tell it that it has been changed, a yes/no should show up somewhere. Sorry I can't be more specific as I've only done this once.

  8. randya

    randya Very Active Member

    2,060
    3
    38
    Apr 6, 2007
    Arizona
    There is a small microswitch under the bottle.

    Make sure that it is connected properly and that the bottle makes the switch.

  9. Irishprinter

    Irishprinter New Member

    19
    0
    0
    Aug 11, 2010
    Thanks guys/gals.
    This is simply an awesome repository of info...have spent a few days reading about my printer here and I now know such a lot more about it. Thanks for having me and so willingly sharing your experience.
    Two things I haven't been able to find:
    Will Signlab work as a RIP for this printer? I was intending to give it a computer of its own as I have one spare.
    The other thing is: When I broke down the machine I found that one of the waste pipes was wrapped around the cog wheel of the pump, it looked so abnormal I pulled it out again. How would I know that the pump is actually working? It doesn't move or do anything at all on initialise.
    Thanks again hope you all enjoy your Sunday, it's sunny and beautiful here in Ireland.

    Last edited: Aug 15, 2010
  10. FatCat

    FatCat Very Active Member

    2,018
    204
    63
    Feb 12, 2007
    Columbus, Ohio
    You should be able to see if ink is making it's way down to the waste bottle when doing a head wash/clean. If no ink is coming out then it's likely the pump or could be a few other things such as a poor seal on the head/maintenance station or a blocked tube.

  11. Irishprinter

    Irishprinter New Member

    19
    0
    0
    Aug 11, 2010
    Go raibh maith agat CaitSail!!

    Would anybody have a diagram or a good photo of how the tubes all connect in the capping staion and pump? I'm not convinced it is right on my machine....would this stop the pump working?

  12. Irishprinter

    Irishprinter New Member

    19
    0
    0
    Aug 11, 2010
    Hi, sorry to be a pest but would anyone be able to show me how the tubes and the pump go....somebody must have disassembled it and it is just sitting as a standalone which can't be right.:banghead:

  13. Ghost Prophet

    Ghost Prophet Member

    285
    0
    0
    May 26, 2010

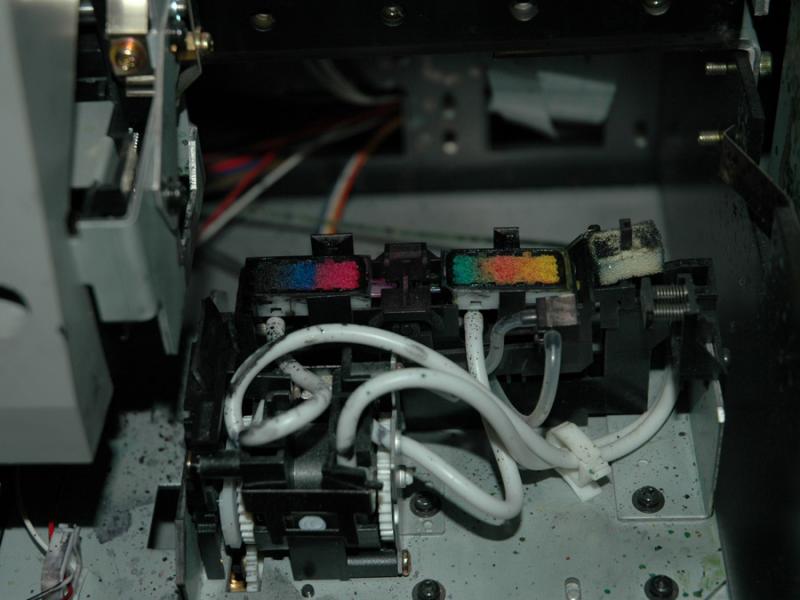

    This is the reverse side of a maintenance station ^^

    [​IMG]
    This is "a" capping station (not exactly the same as yours, but close enough).

    Two tubes go from the capping station to the pump and then from the pump you have two more tubes that should lead to your waste bottle.

    Found those photos on google images. Bwahaha :)
