Suggestions New shop: layout and tools

Discussion in 'General Chit-Chat' started by nolanola, Sep 11, 2017.

  1. nolanola

    nolanola Member

    151
    4
    18
    Sep 24, 2014
    New Orleans
    Hello.

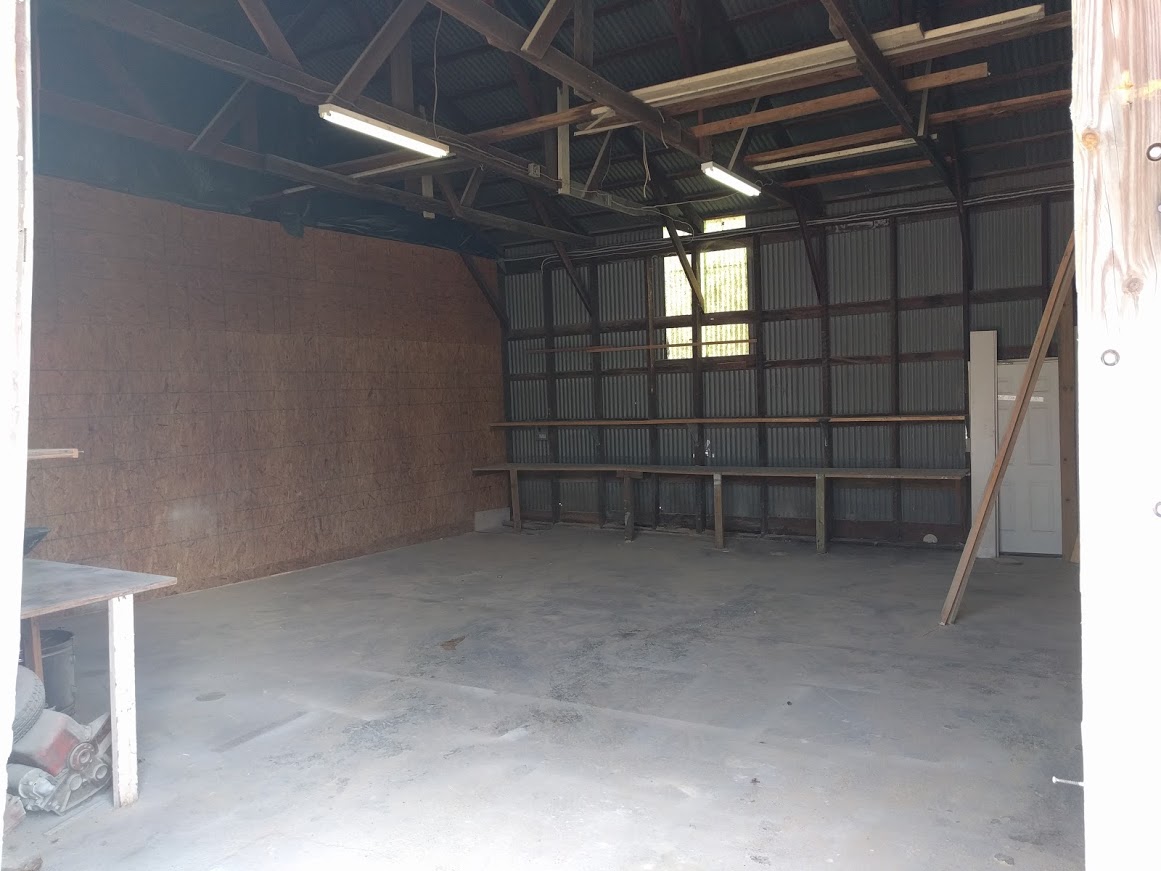

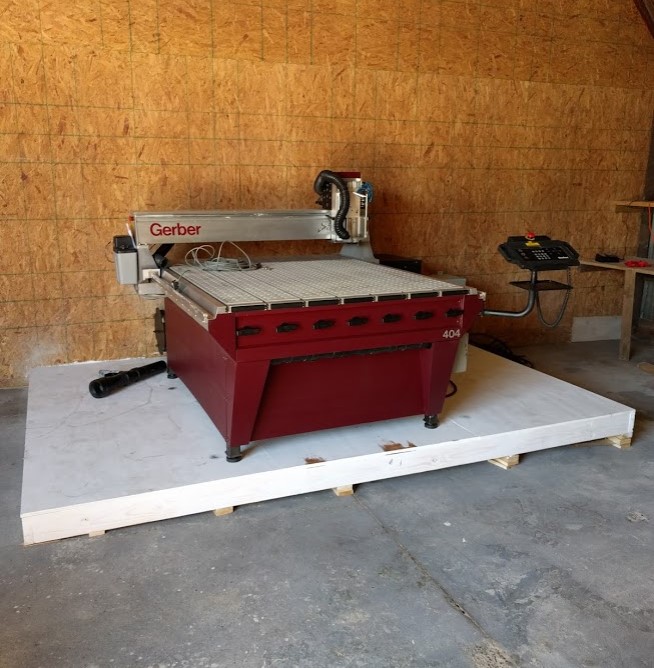

    We bought a CNC router and rented a separate shop for the "dirty" production: cnc machine, a small paint booth (HVLP system), a chop saw, a track saw, two working tables.
    We are going to produce dimensional letter signs and cabinet signs.
    I think an aluminum welder is on the short list.

    What is missing? How would you recommend to organize the space?

    Thank you.


    Attached Files:

    Last edited: Sep 11, 2017
    Tags:
  2. 2B

    2B Moderator Staff Member

    2,061
    46
    48
    May 5, 2011
    TX

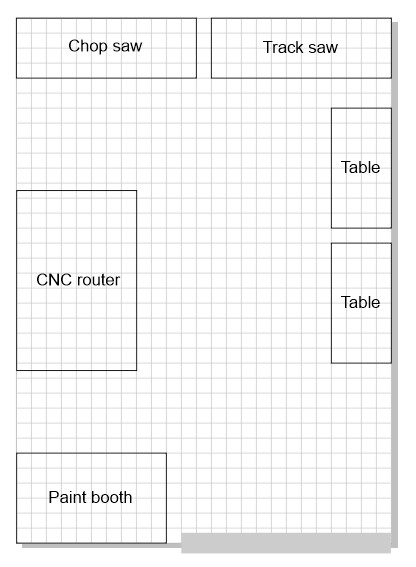

    is your drawing to scale?

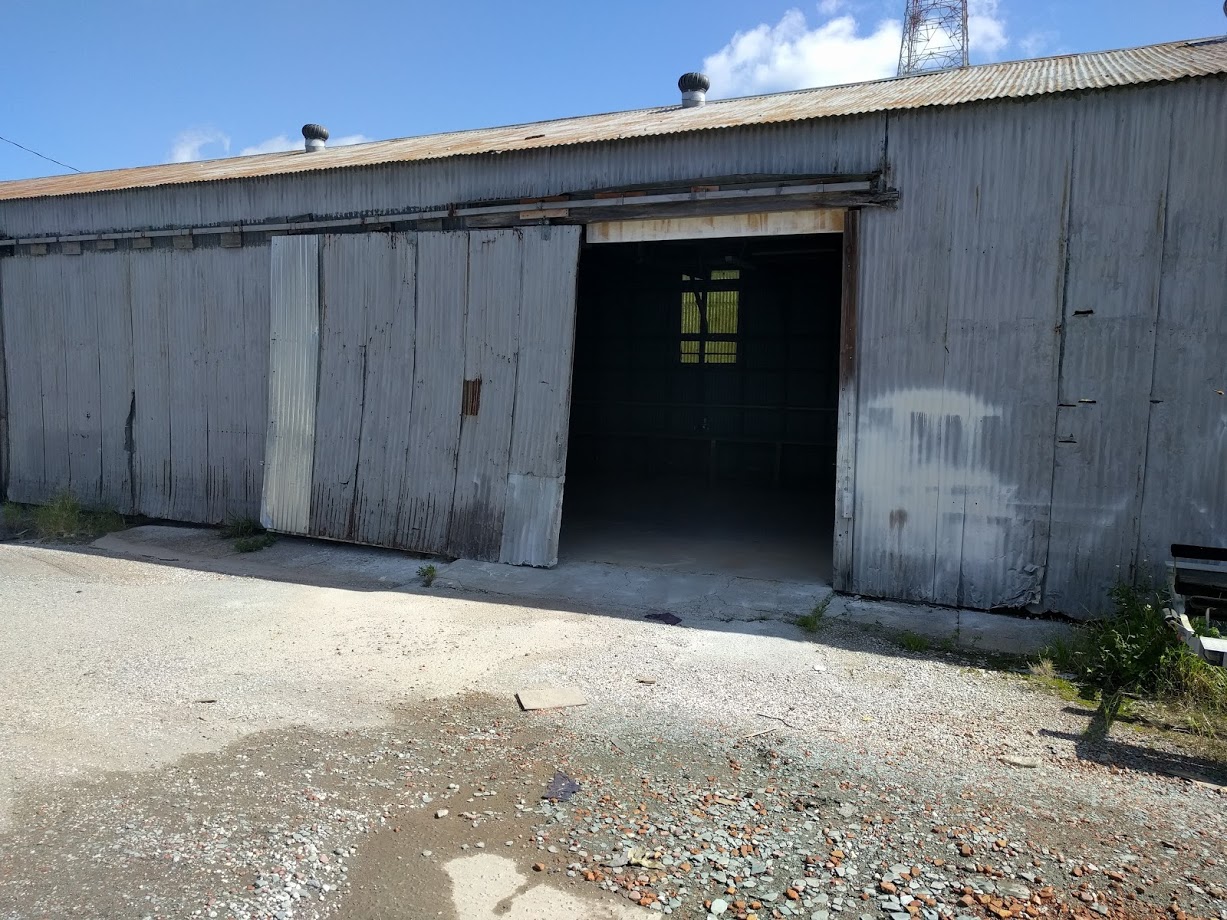

    Where is are the door(s)
    for us we keep our all of our saws on the long edge of the room to allow plenty of room for the lead edge especially on the over sized cuts.

    you have an abrasive chop saw, then you need to look into a multi-use cold cut saw.
    you need an air compressor and a shop vac to clean

    hopefully the paint booth is fully enclosed and stays that way as you do not want foreign material in the air when painting

  3. Gino

    Gino Premium Subscriber

    28,557
    526
    113
    Jun 7, 2006
    PA
    I think the door is that big grey box at the bottom. Must be a small garage or something, he's renting.

  4. nolanola

    nolanola Member

    151
    4
    18
    Sep 24, 2014
    New Orleans
    Yes, the door is the grey line.
    No, we don't have the abrasive chow saw, I was hoping to cut aluminum with a carbide-tipped saw blade.
    Yes, we have a small air compressor and two shop vacs: one is connected to the CNC machine.

    Thank you.


    Attached Files:

  5. Gino

    Gino Premium Subscriber

    28,557
    526
    113
    Jun 7, 2006
    PA
    You might wanna consider an alarm system and surveillance cameras.:thumb:

    • Like Like x 2
    • Agree Agree x 1
  6. 2B

    2B Moderator Staff Member

    2,061
    46
    48
    May 5, 2011
    TX
    a TIG or spot welder if you are only doing aluminum.

    an auto feed MIG with an Aluminum Spool for metal & Alum welding NOTE: we found for thinner aluminum it is easier to weld with a TIG or Brazing

    yes renting a location like that will needed more security

  7. henryz

    henryz Member

    144
    34
    28
    Nov 6, 2012
    Long Beach, CA
    If you are going to start making dimensional letters. You will need a finger brake - Tin Knocker 99, foot shear, 8ft minimum hand brake, maybe a Ruoff V-notcher, air compressor. I'm sure you know the rest and a lot of dedication along with some hair pulling.

  8. a77

    a77 Member

    183
    4
    18
    Jul 8, 2011
    Canada
    Not to hijack but for paint booths are most sign shops going with a open faced paint booth? Do you build your own or buy kits?

  9. nolanola

    nolanola Member

    151
    4
    18
    Sep 24, 2014
    New Orleans
    We will start with flat cut PVC and Acrylic dimensional letters.
    I am going to build a paint booth like in this video:
    But will use coroplast and banner material for the walls.

    • Disagree Disagree x 1
  10. Sandman

    Sandman Member

    30
    3
    8
    Jul 2, 2005
    Crystal Falls, MI
    I hope you don't plan on using lacquer or paint thinner based paints in that booth. Those fans are not explosion proof.
    I don't know what you mean by a track saw. If it is the same as a panel saw, you might want at least 12 feet clearance on either side of the saw blade for ripping 10 foot panels. If you mean the piece of aluminum you lay on a panel and run a skill saw on it... never mind.

    • Like Like x 1
    • Informative Informative x 1
  11. GAC05

    GAC05 Major Contributor

    4,803
    126
    63
    Dec 27, 2005
    Guam USA
    What kind of fire codes do you have to deal with back there?
    We just went through getting an occupancy permit for a much newer brick and steel building and had a hard time with the approval. 25 years or more ago we could set up in a building like yours but not now, no way.
    Dust control is going to be a big problem even with a booth. Might want to build a room to put the booth inside.

    Good luck with the new shop.

    wayne k
    guam usa

  12. nolanola

    nolanola Member

    151
    4
    18
    Sep 24, 2014
    New Orleans
    Yes, I mean the piece of aluminum for the track saw.
    I am not familiar with the local fire codes. Th "paint booth" would be 6'x10'.
    I like the idea to build walls for the paint booth. I will just use drywall.

    That's a good warning about the fans.
    Thank you!

  13. henryz

    henryz Member

    144
    34
    28
    Nov 6, 2012
    Long Beach, CA
    The dry wall will not last, you are going to want to clean it up. But by the sounds of it you want to built a $100 paint booth and that's what you'll get. If that's the case why not get some workhorses and some wood to paint them out side. You have plenty of space.

    • Agree Agree x 1
  14. Gino

    Gino Premium Subscriber

    28,557
    526
    113
    Jun 7, 2006
    PA
    Don't know the laws down your way, but that booth for commercial conditions would close you down as soon as your insurance company inspected it or OSHA. That is not a spray booth.... but a plastic barrier to protect things in your shop from over-spray. A spray both is completely enclosed, with explosion proof lights, outlets and walls which would hafta meet a fire code. Also, you cannot allow paint mist, fumes or over-spray to go out into the atmosphere. You need charcoal and water filters and then some.

    That thing looks like it's down in his basement and if he wants to kill off his family, that's on him, but once you go into a rented area for commercial use, the game changes.

    All of your other tools and things in your shop, pretty much meet code, but as for that booth, if ya get away with it, good for you, but you are causing harm to anyone within a few hundred feet. The air.... is not your filtering system, remember that.

    • Like Like x 1
  15. nolanola

    nolanola Member

    151
    4
    18
    Sep 24, 2014
    New Orleans
    After Marlene pressed that disagree button I am not building the paint booth anymore.
    I just found a used one for $2000.

    Thank you!

  16. Marlene

    Marlene Major Contributor

    10,574
    51
    48
    Jun 8, 2004
    Vermont
    just didn't want you to blow yourself up ;)
