Need Help Onyx Production House Profiling Problem- ICC Swatch errors

Discussion in 'RIP Software & Color Management' started by wiplash859, Mar 5, 2019.

  1. wiplash859

    wiplash859 New Member

    21
    0
    1
    Jun 16, 2010
    Landover, MD

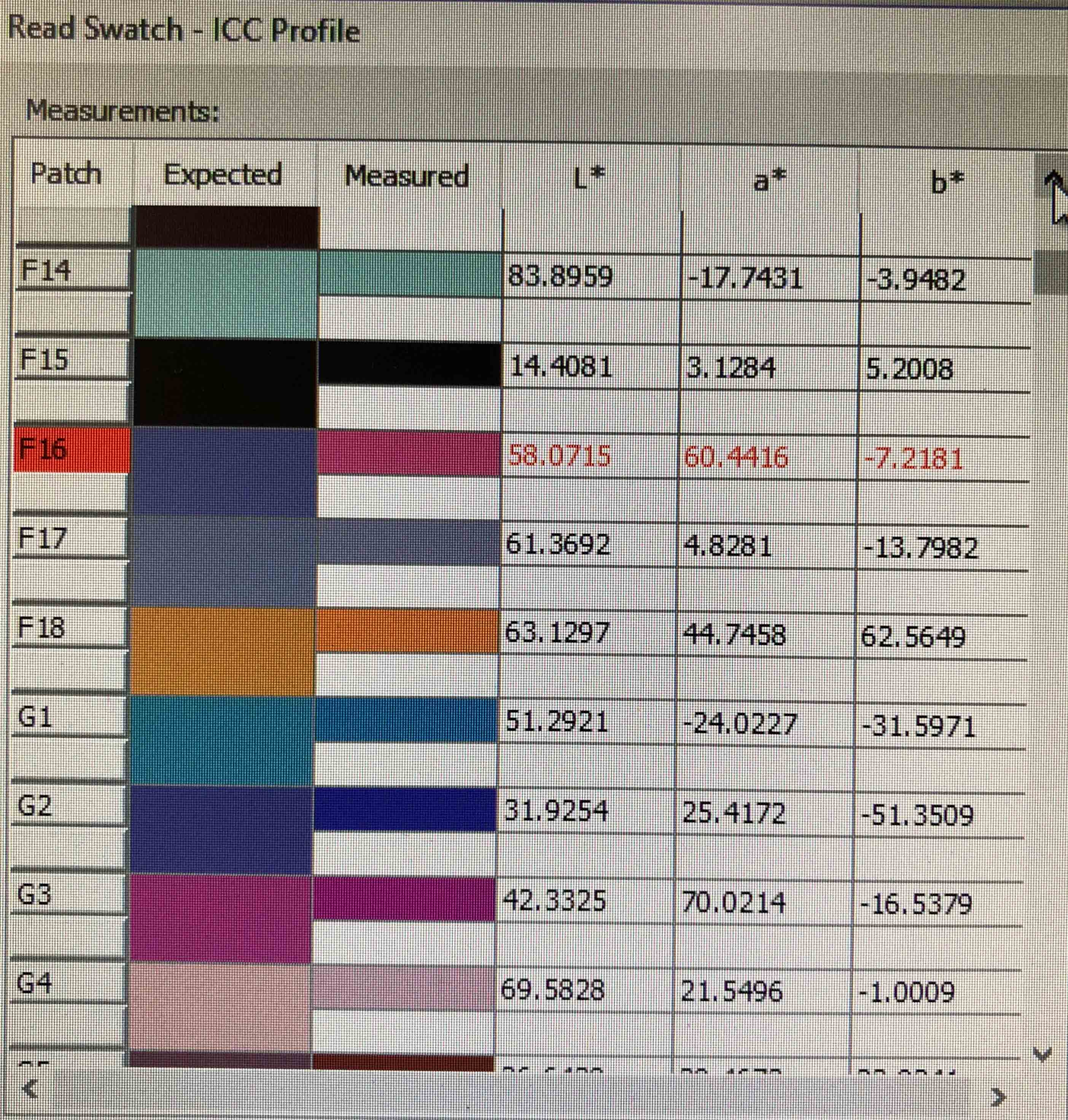

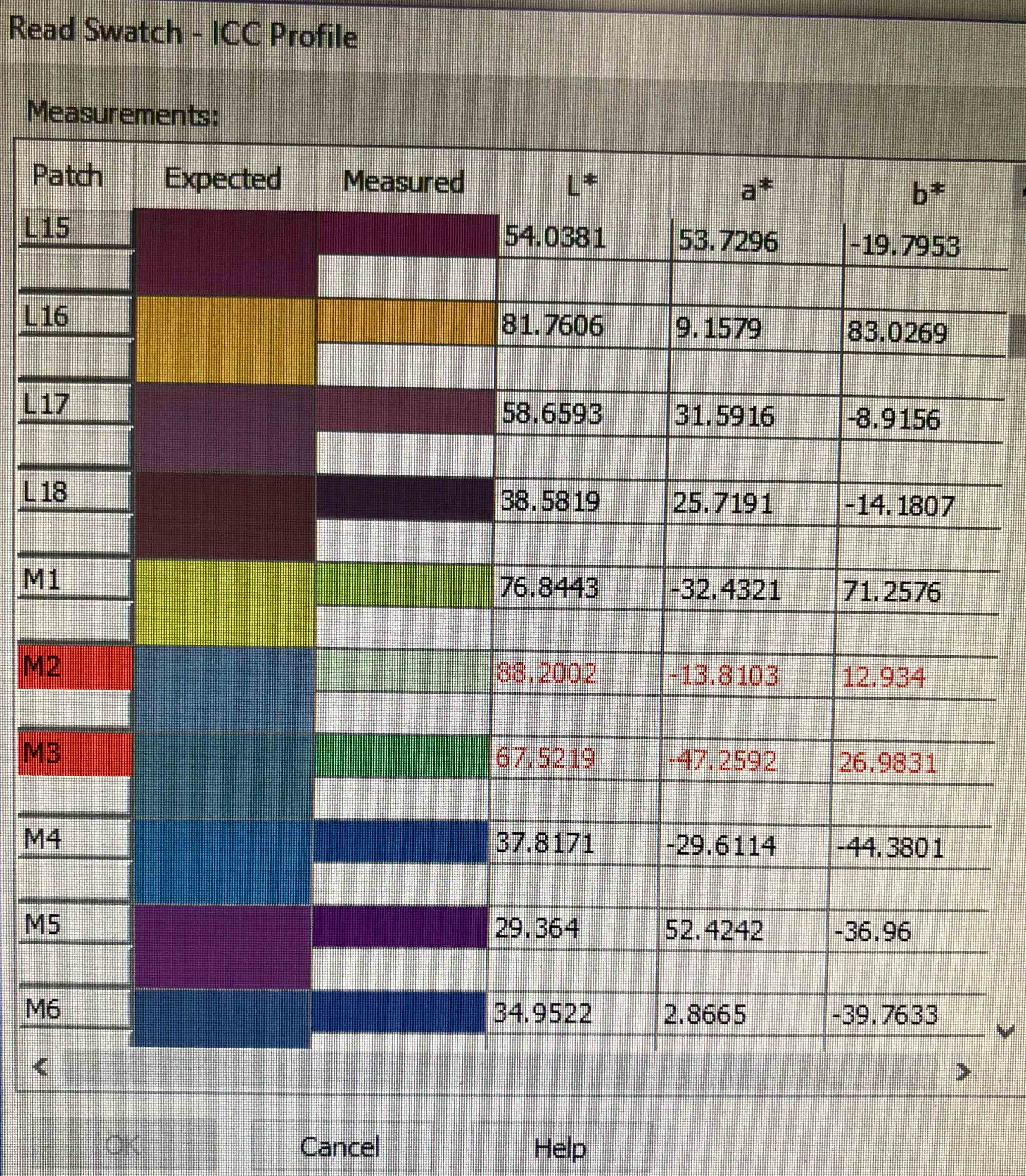

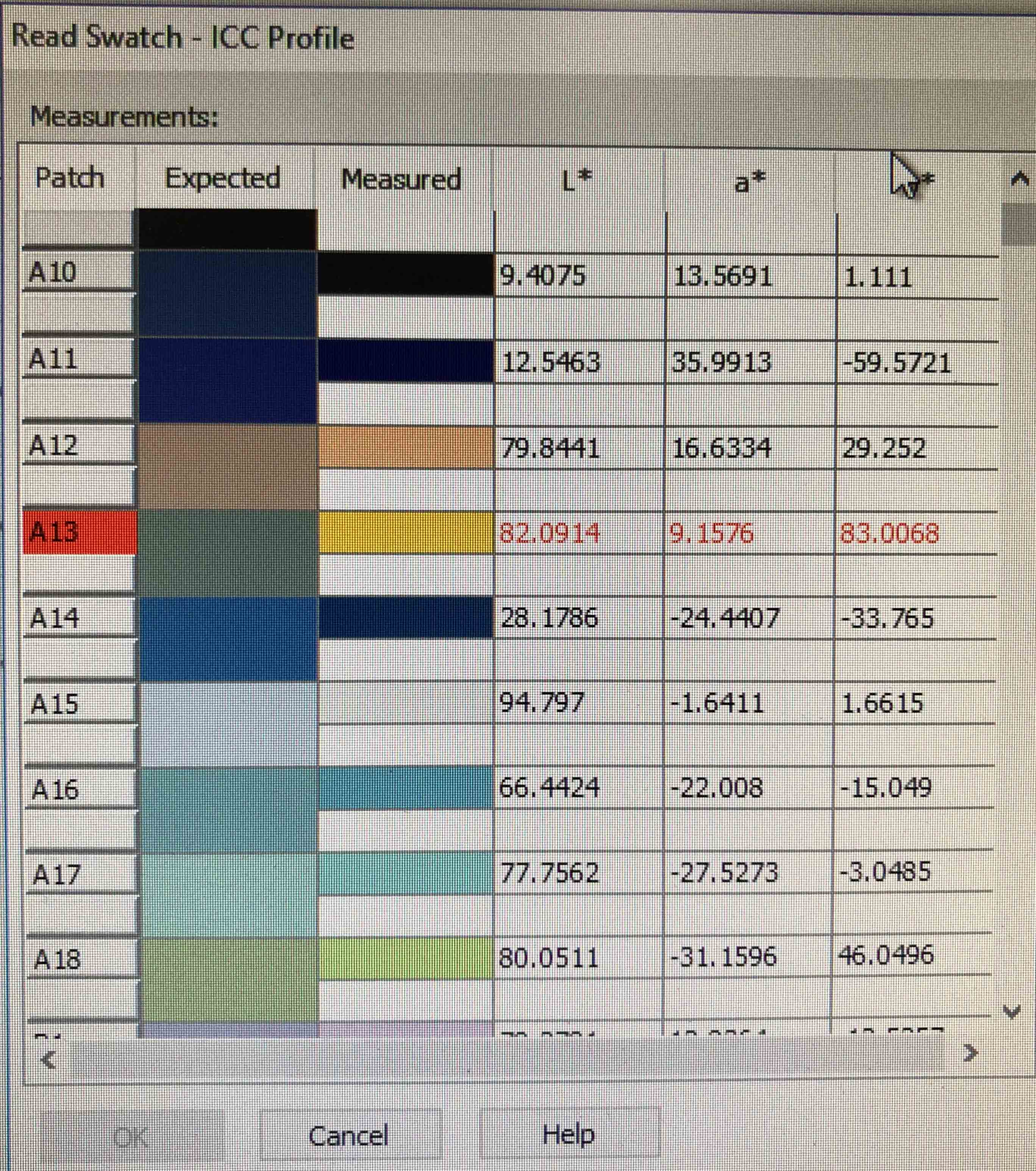

    We are attempting to create a new custom profile for a print-ready aluminum material using Onyx 18 Production House for our Oce Arizona 360 GT Flatbed Printer. We have completed all of the linearization, ink restriction, and ink limit steps without issue. We are currently working on printing and scanning the ICC swatches with our i1 Pro 2 spectrophotometer. The problem is that roughly one out of every 15 scanned colors scanned varies greatly from the “expected” value (see attached images). Any idea what could be causing this? The “measured” value displayed on the screen matches what was printed. We could really use some help on this one.

    IMG_6679.jpg IMG_3431.jpg IMG_1761.jpg

  2. SignMeUpGraphics

    SignMeUpGraphics Moderator

    1,141
    225
    63
    Apr 11, 2012
    Australia
    Is there any reason you can't use i1Profiler to make the ICC?
    We get better results from it compared to Onyx.

    That being said, do you have Onyx set up to scan patches twice or just the once?
    I *think* it might ignore the error if the 2nd scan matches what it's looking for, but it could also take an average and be just as bad. It's been over a year since we've tried to profile with Onyx.

  3. Bly

    Bly Very Active Member

    2,886
    310
    83
    Mar 9, 2004
    Sydney
    Onyx does a good job and is easy to use.
    There must be a reason those patches are so far out of what's expected.
    A couple are nothing like what they should be.

  4. Pauly

    Pauly Colour Guru

    750
    122
    43
    Feb 14, 2016
    Melbourne
    Open media manager.
    go to - configure colour sampling devices
    press manage
    pick or add your device and press setup.
    and go readings per patch. press 1. or if it's one 1 already, press 2

    See if that works.

  5. FrankW

    FrankW Very Active Member

    1,177
    90
    48
    Oct 19, 2008
    Germany
    Could be that if the background isn‘t white (you said that you want to profile aluminium), it will lead to misreading of colours. As long as only a few colours have this problem, I would not take care.

  6. wiplash859

    wiplash859 New Member

    21
    0
    1
    Jun 16, 2010
    Landover, MD

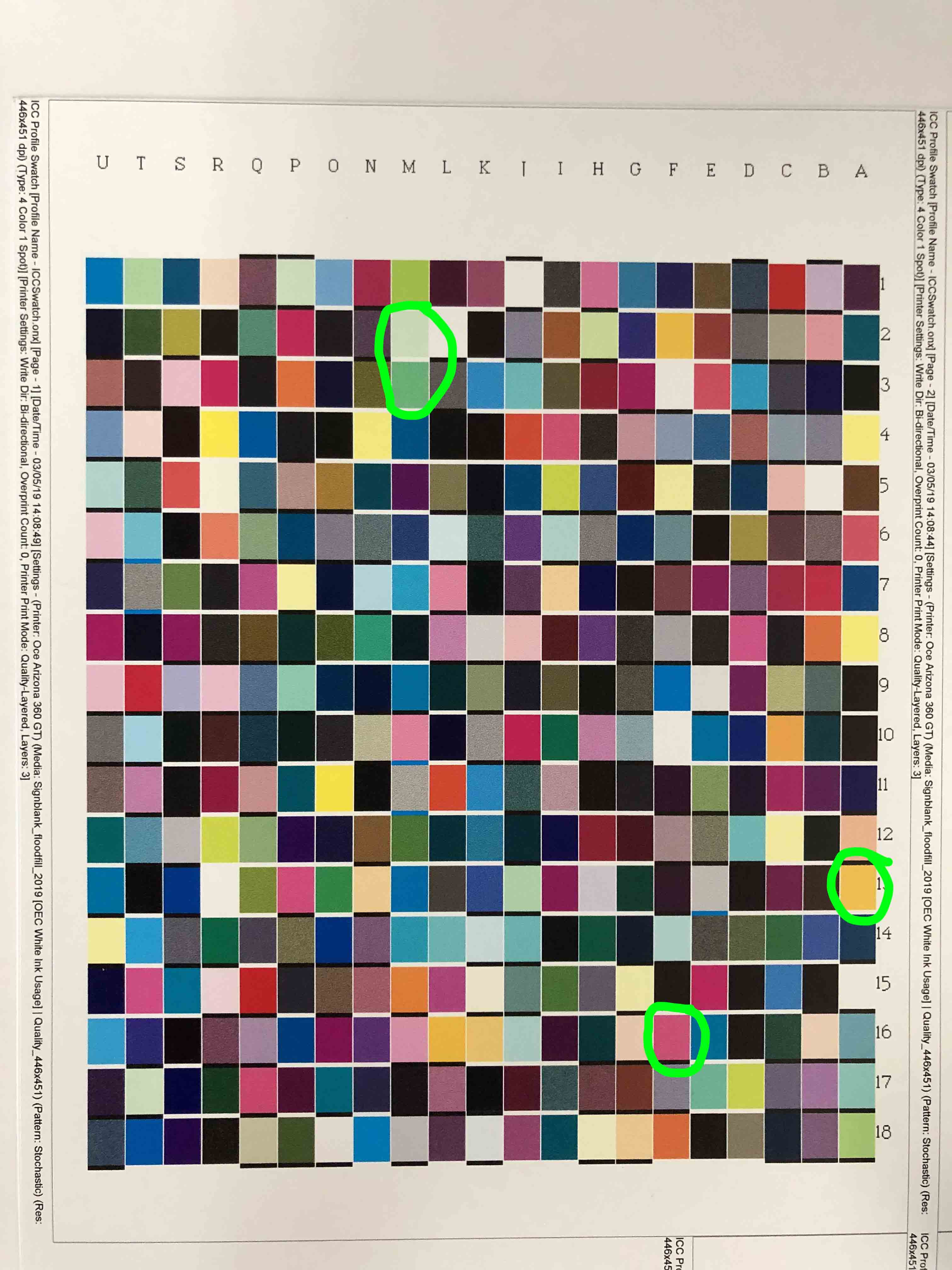

    Thanks to all who responded. FrankWFrankW The material is white powder coated aluminum. It is made specifically for printing and about as white as any premium glossy vinyl. PaulyPauly and SignMeUpGraphicsSignMeUpGraphics we are set up to scan each swatch twice but it is definitely NOT an issue with how the color is being scanned or how the i1 is interpreting it. Please see the attached thumbnail showing how the swatches are actually printing on the aluminum. Note that the "measured" values from the previously posted pictures match the actual print to aluminum exactly (this might be hard to tell in the photos but trust me) while the "expected" values are nowhere close. This is what is troubling me. SignMeUpGraphicsSignMeUpGraphics I have not tried profiling with i1 profiler since Onyx should provide a simple/streamlined solution. Obviously this is not the case this time so I think I'll try out the i1 software. Any other thoughts from the group in the meantime? This is truly puzzling me and the techs at Onyx.


    Attached Files:

  7. Pauly

    Pauly Colour Guru

    750
    122
    43
    Feb 14, 2016
    Melbourne
    Try a different patch count in onyx. that's all i really can think of. May be a bug in the system.

  8. wiplash859

    wiplash859 New Member

    21
    0
    1
    Jun 16, 2010
    Landover, MD
    PaulyPauly I was hopeful that your idea would work but unfortunately since I am using CMYK+Spot I think I am bound to the "CMYK+Spot" chart correct? I suppose I could go rogue and choose one of the others but I'm not sure what results i'd get. I noticed in Onyx that there is an option to print a "Specialty Ink Restriction Test Chart" to determine our white ink usage. I'm not sure how important this is since we are flooding the print area with 2 layers of white at 100% by default. It also doesn't look like you actually scan it with the spectro. Maybe just more of a visual evaluation. I went ahead and completed the profile anyway and it looks like I am getting "good" prints and decent color. Gradients and shadow transitions look good, etc. I am just worried that it is not a truly accurate profile given the numerous errors in the expected and measured swatches. SignMeUpGraphicsSignMeUpGraphics unfortunately our i1 is not licensed for full access to i1 profiler. I assume since we have onyx they did not bother to invest the extra money for full access to the i1 software. X-rite said it'd be an extra $1300.

  9. ColorCrest

    ColorCrest Active Member

    571
    79
    28
    Dec 11, 2017
    So Cal
    It seems you have certainly jumped into the deep end. I would have first recommended a practice profile-creating exercise by just printing on common paper so you could go through the motions.

    Are you laying 2 layers of white over white coated aluminum?

    If you upload the ICC profile you've created I can provide a report to let you know of its quality or shortcomings.

  10. SignMeUpGraphics

    SignMeUpGraphics Moderator

    1,141
    225
    63
    Apr 11, 2012
    Australia
    Did you want to test one of our profiles to compare to yours? Printing the Onyx test page should be a good comparison between the two.
    We spent a few days on ours and they look great. We did all print modes and colours are identical throughout.
    Also done on a 360GT w. Onyx 10.2 but should import into any newer version.

  11. wiplash859

    wiplash859 New Member

    21
    0
    1
    Jun 16, 2010
    Landover, MD
    ColorCrestColorCrest SignMeUpGraphicsSignMeUpGraphics Hi all. Wow. Thanks for al the input and offers to check the profile. And yes we are printing two layers of white on a "print-ready" aluminum. This seemed odd when I first started but the difference in quality after printing the layers of white as a "primer" is very noticeable. We are producing graphics strictly for museums and art galleries and quality/color accuracy is valued far more than speed and cost savings. After much back and forth with Onyx, they determined that I was using the incorrect swatch format for printing our ICC swatch. Despite what common sense would suggest (in my opinion at least), even though we are printing with a printer and profile that uses CMYK+Spot we should not be using the "CMYK+Spot" format to print the ICC profile. The recommended option from Onyx is "extreme accuracy" because we are only using the white as a flood fill. This is 100% in line with what PaulyPauly had suggested so kudos to him. Unfortunately earlier I was nervous about taking the time to print and scan an all new set of swatches in fear that I would get similar results. All that said, Onyx said the profile I generated originally (w/ CMYK+Spot charts) is probably fine and that I can ignore the "expected" value being so off. I will be redoing the ICC scan anyway just for peace of mind. I'm tired from battling this issue all day so I'll post the summary from Onyx below:



    "After speaking with our Engineer, the reason why his expected was looking different than what his xrite was actually measuring is because he was printing the CMYK+Spot swatch which will mix in the Spot Color that is displayed, the entire "expected" column is going to show the spot color mixed in with the colors in the swatch. He chose a lighter blueish/grayish color as the spot color display in Spot Color Setup in his profile. So that color will mix in with the CMYK and that will affect the "expected" column, because of that you can expect it to look different than the measured.

    Our Engineer mentioned that the customer could technically ignore the fact that his expected looks different than his measured and just continue to finish the profile because what he is measuring is correct. It doesn't matter in this instance if the measured matches the expected or not, what he is measuring is correct. The customer said they did in fact finish the profile and the job did print accurately.

    However the best practice is to use flood fill with one of the "normal" swatches such as the extreme accuracy swatch or anything below that and what that will do is flood fill with white on the bottom and then the CMYK on top. He just needs to make sure he is choosing white as his spot color display in spot color setup.

    But the reason why his expected looked different than what he measured is because he chose to print cmyk+spot for his swatch and it mixed in the spot color display with the cmyk. Instead he should choose the extreme accuracy or anything below and make sure flood fill is selected with the spot, make sure his spot color is white (in spot color setup) and print the swatch that way. That would be the best practice.

    The display color (spot color) doesn't have to be white, but white is probably best to avoid confusion"


    TL;DR I used the wrong format when printing my ICC swatch. I should've used Extreme Accuracy.

  12. unclebun

    unclebun Very Active Member

    In reading that, they seem to be saying the wacky swatches are irrelevant because they are supposed to be a color mixed with the spot color, and in this case you never specify such a color in your files for printing. Therefore the wacky colors will never be printed in a job.

  13. Bly

    Bly Very Active Member

    2,886
    310
    83
    Mar 9, 2004
    Sydney
    For that application I'd print the white base in Quality Layered mode, then create a separate Quality mode profile for the CMYK to be used only over a white flood fill.
    Print the white flood under your swatches first.

  14. Pauly

    Pauly Colour Guru

    750
    122
    43
    Feb 14, 2016
    Melbourne
    I have realised what you've done with out paying attention to what exactly you're doing.
    And yes you've answered your own issue. printing CMYK+S will mix the Spot channel with the patches. I completely didn't realise you're printing it as a CMYKSS as generally that's not something you'd do with a media that's already white. (i tend to skip a lot of stuff and going straight to the issue)

    Im not sure why your printing white anyway when the media is already white?
