Outline clean-up

Discussion in 'General Software' started by Stroker Ace, Feb 14, 2006.

  1. Stroker Ace

    Stroker Ace Member

    44
    0
    0
    Jan 30, 2006
    I use Pro Design software to run my Graphtec 300 – 24 inch cutter. The software seems to allow me to do minimal clean-up of my hand drawn flames but after vectorizing, I find that the flame outlines are extremely rough. I’m thinking I may need to do my clean-up with something different. What would you suggest I do? Thank you.
    <?xml:namespace prefix = o ns = "urn:schemas-microsoft-com:eek:ffice:eek:ffice" /><o:p></o:p>
    Mark

    Tags:
  2. WVB

    WVB Very Active Member

    2,749
    0
    0
    Feb 25, 2005
    You'll have to remove the extra nodes. Should look like a pen tip with a - next to it. To add nodes look for the pen tip with the + by it. Or if you have Illustrator go to path/simplify and change it to 93% and click on preview to see the changes.

  3. Fred Weiss

    Fred Weiss Merchant Member

    20,121
    200
    63
    Sep 11, 2003
    Olympia, WA
    Have you checked the path edit and cleanup tools in what you have. If they're there, they are located on a flyout toolbar connected to the node cursor tool (fourth tool down from the top). It uses a small arrow pointing to a node on a path for its icon. If it has a small black triangle on it that indicates more tools underneath it. They are some of the best path cleanup tools you will find. If they're not there you may have just a Level 1 version, in which case, I would look into upgrading your ProDesign (It is private label FlexiSign).

    ProDesign is sold by one of our Merchant Members, Ordway Sign Supply. The feature comparison page for the three versions they offer is located HERE.

  4. Stroker Ace

    Stroker Ace Member

    44
    0
    0
    Jan 30, 2006
    Thanks Fred -

    It's ProDesign level 3 and I did get it from your Merchent Member - Ordway Sign. I'm a real newbie here so can you tell me exactly what the tool you're referring to is called and I'll see if I can find it in the manual. I'm afraid I don't know enough yet to be able to find it based on your directions. What's a flyout tool bar?

    By the way, what form does the file need to be in to use the tool you're referring to -bitmap, vectorized ...? Thanks.

    Mark

  5. learned the hard way

    learned the hard way Active Member

    544
    0
    0
    Jan 3, 2006
    On the left side of your screen there is a vertical bar with several tools in it. Hover your mouse over each tool and a little box will appear and tell you what it is. You are looking for point selector tool. On my version it is second from bottom. If you click and hold on it, and drag to the right, a tool box will "fly out" with many more tool options. Pull up a vector graphic and practice with the tools to see what they all do.Make sure you're playing with a vector graphic, it doesn't work on bitmaps. Also fonts will need to be converted to curves to be able to manipulate points. If you have the manual, read it and learn what you can from it, but playing with the tools on a graphic is the best way to learn in my opinion.

  6. signage

    signage Major Contributor

    9,186
    18
    38
    Oct 5, 2005
    Penn
  7. Fred Weiss

    Fred Weiss Merchant Member

    20,121
    200
    63
    Sep 11, 2003
    Olympia, WA

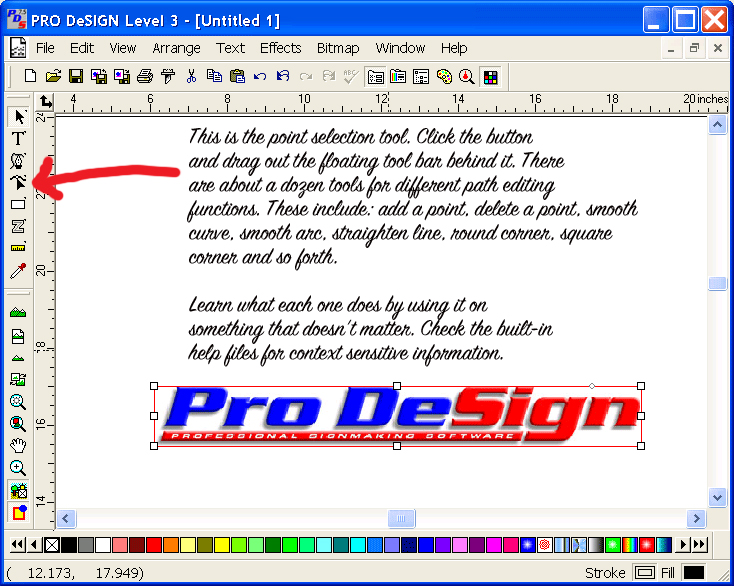

    the point selector tool


    Attached Files:

  8. Stroker Ace

    Stroker Ace Member

    44
    0
    0
    Jan 30, 2006
    Thanks Guys.

    Fred - that was just what I needed, a picture.

  9. signage

    signage Major Contributor

    9,186
    18
    38
    Oct 5, 2005
    Penn
    Mark the tutorals I told you about are short clips.

  10. Stroker Ace

    Stroker Ace Member

    44
    0
    0
    Jan 30, 2006
    Thanks Brian.
