PC60 Print Head

Discussion in 'Roland' started by w2csa, Mar 15, 2008.

  1. w2csa

    w2csa Active Member

    596
    0
    16
    Mar 15, 2008
    Canandaigua. NY
    Hi all,
    Has anyone changed a print head on a PC60?
    I need to replace mine and thought if it was possible to do this at home I could save shipping/expenses to Roland etc.
    Any help and suggestions would be appreciated.

    Thanks,
    Chris

    Tags:
  2. woolly

    woolly Active Member

    646
    19
    18
    Sep 24, 2007
    Cornwall uk
    you need the workshop manual and a quality volt meter not difficult just needs care

  3. WoppTorr

    WoppTorr Member

    171
    0
    0
    Mar 4, 2008
    Ya it's simple gota take off the top cover, 4 screws, 2 in front 2 in back, then you'll need a philips screw driver and a 2.5 alen werech to take the head off, the ribbon cable's connected to the print head will need to come off first, there is 2 screws on either side of the print head, and one alen screw to the left front with a spring on it, once you got those screws out the head comes right out, the alen screw is the adjuster for the head tracking, you'll need to adjust that one once you put in the new head, the adjuster on top the head is for alignment to the ribbon cassette's, once the head is out there is 2 philips screws holding on the head bracket, and a bushing in one of those holes the screws come out of DON'T LOOSE THAT, then, reverse these steps to put in the new one
    :thumb:

  4. w2csa

    w2csa Active Member

    596
    0
    16
    Mar 15, 2008
    Canandaigua. NY
    Thanks,
    I do have the service manual but it calls for a special cable for the voltage reading.
    Can the reading.adjustment be done without this cable?
    I do have a nice digital VM
    Thanks

  5. WoppTorr

    WoppTorr Member

    171
    0
    0
    Mar 4, 2008
    hey is the service manual, you have in a pdf format, i'm sure some of PC-60 folks hear wouldn't mind getting there hands on one
    :rolleyes:

  6. WoppTorr

    WoppTorr Member

    171
    0
    0
    Mar 4, 2008

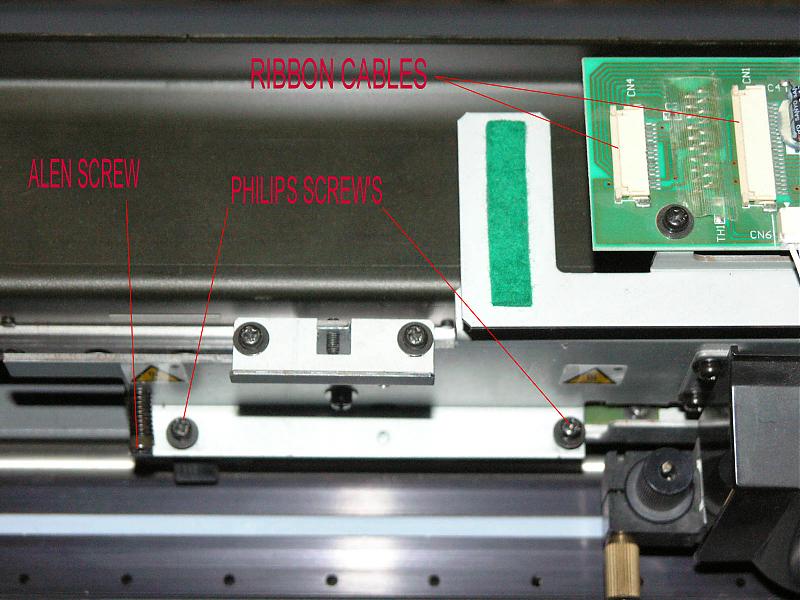

    well here's what it look's like with the print head out


    Attached Files:

  7. woolly

    woolly Active Member

    646
    19
    18
    Sep 24, 2007
    Cornwall uk

    yes but nice to have the cable.
    the mechanical job of changing the head is straight forward but the setting up takes time to do well, and is worth the effort.
    with your new head will be a disk with the correct info on it for THAT head, and the voltage is on the new head.
    just follow the manual carefully.

    woolly

  8. w2csa

    w2csa Active Member

    596
    0
    16
    Mar 15, 2008
    Canandaigua. NY
    Wooly,
    How do you get the readings if you dont have the cable?
    Thanks,
    Chris

  9. woolly

    woolly Active Member

    646
    19
    18
    Sep 24, 2007
    Cornwall uk
    where the lead would have pluged in to the board.
    the lead was made for the earlyer machines which had to have it, its just nicer to have.

  10. w2csa

    w2csa Active Member

    596
    0
    16
    Mar 15, 2008
    Canandaigua. NY
    Thanks for every ones help.
    I hope to order the head tomorrow and give it a try.

  11. hammered

    hammered Member

    332
    0
    0
    Mar 8, 2006
    Mine is on the way home after having this done. For the peace of mind, I prefered to pay the extra $175 to have it done. Plus it got a tune up, new cart holder, cleaning and 2 day shipping.

  12. woolly

    woolly Active Member

    646
    19
    18
    Sep 24, 2007
    Cornwall uk
    where are you ordering from please and how much.
    i have just fitted my last head and finding them is becoming a problem in the UK

    woolly

  13. WoppTorr

    WoppTorr Member

    171
    0
    0
    Mar 4, 2008
    Ya would be nice to have a list of places still carring head replacements for our pc-60, 12's and 600's
    :Big Laugh

  14. w2csa

    w2csa Active Member

    596
    0
    16
    Mar 15, 2008
    Canandaigua. NY
    UPDATE
    I saw on a forum that Pacific Coast Paint Supply http://www.pacificcoastsignsupply.com/index.html
    Had the Heads, I called yesterday and they dont have them anymore but Rich sent me to www.cammtech.com in Mass.
    After talking with Rich at Pacific, I now believe I may not need a new Head at all.
    The issue is:
    If I print a horizontal stripe, the total max width , with a thickness of.. say an inch, there will be a gap, not printed, about 11" out with a width of about an inch. It almost looks scratched.
    The first thing Rich suggested was simply getting new ribbons, I have them ordered and should be here in the next few days.
    Also Rich suggested the ribbon cable might be defective.
    Since the print only seems to be in error at 1 location it appears that the head might not be defective.
    The print ribbons, RESIN, I got with the machine do look ratty and old.
    Any thoughts?
    I'll let you know when I get the new ribbons.
    Thanks for your nice welcome and help.
    Chris

  15. WoppTorr

    WoppTorr Member

    171
    0
    0
    Mar 4, 2008
    ok, but did they have print heads for the one's that have bad print heads???? Thanks

  16. woolly

    woolly Active Member

    646
    19
    18
    Sep 24, 2007
    Cornwall uk
    wind back the ribbon and see if the print has gone of the side of the ribbon, this is what happens with some refills and at the bottom of the head unit is a small black roller, which if poor condition will do similar.

    good advice to try genuine ribbons first.

    woolly

  17. w2csa

    w2csa Active Member

    596
    0
    16
    Mar 15, 2008
    Canandaigua. NY
    Thanks all
    I called cammtech a little while ago.
    They do have print heads for $540
    Though I may not need one its good info to have.

  18. w2csa

    w2csa Active Member

    596
    0
    16
    Mar 15, 2008
    Canandaigua. NY
    Does anyone know if there is a Roland Service Center in Western NY, or in NY state?
    Thanks,
    Chris
