Need Help Please Help! I need service manual for my Roland Soljet Pro II Sj-540

Discussion in 'Roland' started by delriosigns, Jan 11, 2019.

  1. delriosigns

    delriosigns New Member

    13
    0
    1
    Jul 29, 2014
    Albuquerque, New Mexico
    Hi Everyone. Hopefully someone can PLEASE help me out. I have been looking everywhere and I can’t find the SERVICE manual for my Roland SJ-540. I even found a couple websites that seemed like they had the pdf for sale, but after paying there is no link and can’t get a hold of their customer service. Most likely a scam I know, but I’m desperate. I had a couple nozzles/nipples break on a couple of my printhead manifolds. I just purchased new manifolds but want to make sure they are replaced correctly and don’t want to spend a fortune paying a tech. Please help!

    Tags:
  2. delriosigns

    delriosigns New Member

    13
    0
    1
    Jul 29, 2014
    Albuquerque, New Mexico
    Thank you!

  3. Signturesigns

    Signturesigns Member

    82
    3
    8
    Apr 27, 2018
    New York
    hey im having the same problem did you resolve it? woud love to chat on a call whats your number? mine is 727 641 7115 lets knowledge share please!

  4. delriosigns

    delriosigns New Member

    13
    0
    1
    Jul 29, 2014
    Albuquerque, New Mexico
    what's your email i'll send it over to you!

  5. Signturesigns

    Signturesigns Member

    82
    3
    8
    Apr 27, 2018
    New York
  6. Broome Signs

    Broome Signs Member

    61
    9
    8
    Nov 1, 2018
    england
    Hi Replacing the head cap is a very simple process

    Turn the printer off and unplug it

    Lower the docking station manually, there is a hole underneath the printer to access the worm screw

    Remove the print ribbon cabal

    Remove the spring from the top of the head carriage

    Take out the 3x screws holding the head in

    Pull the head towards you and up

    Once out remove the manifolds x2 screws

    Replace manifold and put the head back in the printer

    Replace the damper

    Turn on the printer and perform a couple of powerful cleans

    Then print test print

    (Try to line it up as is came out, you may have to adjust the bi directional settings if the print is out)

  7. Sheila Case

    Sheila Case New Member

    4
    0
    1
    Feb 15, 2019
    Kerrville, TX

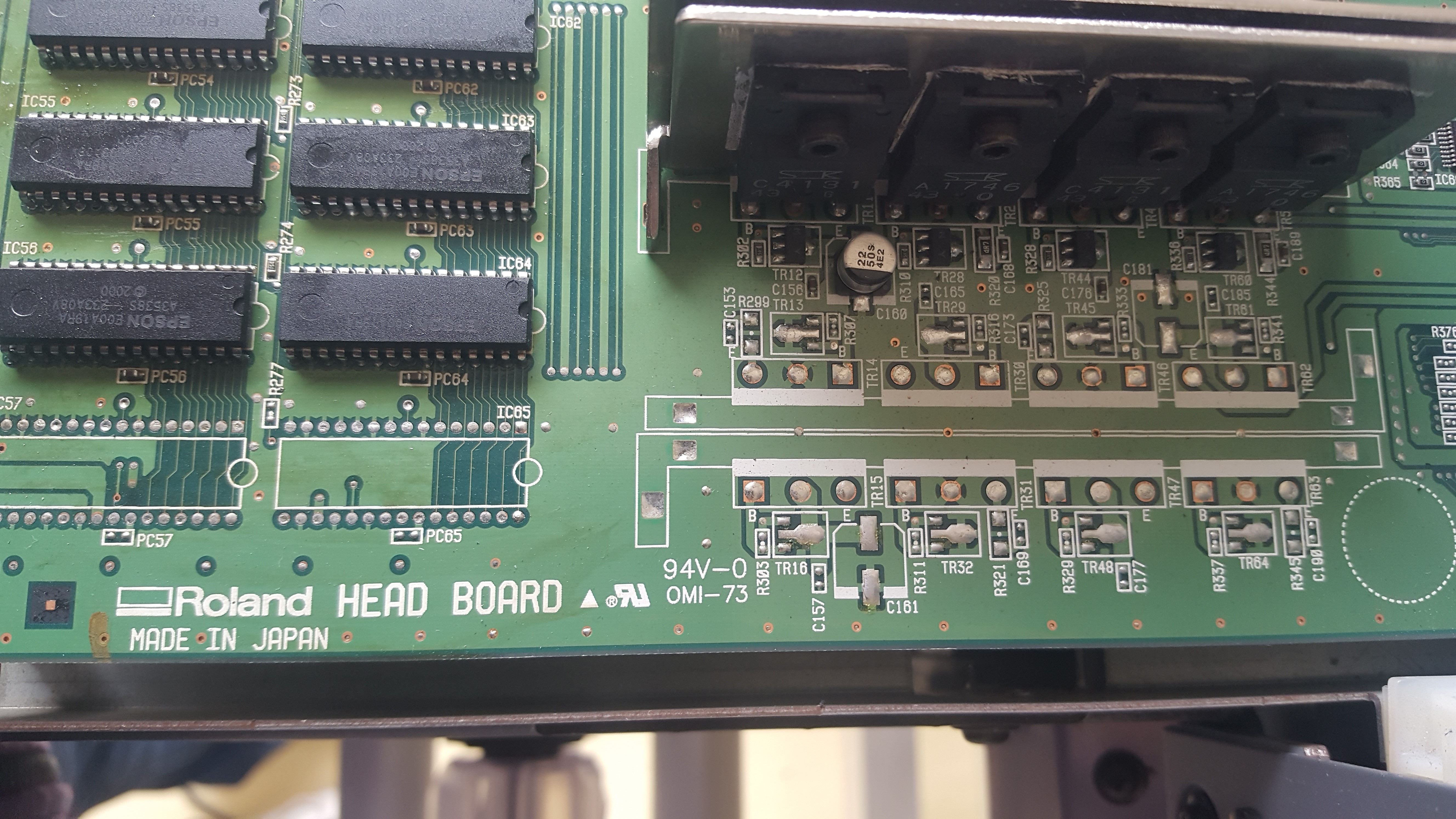

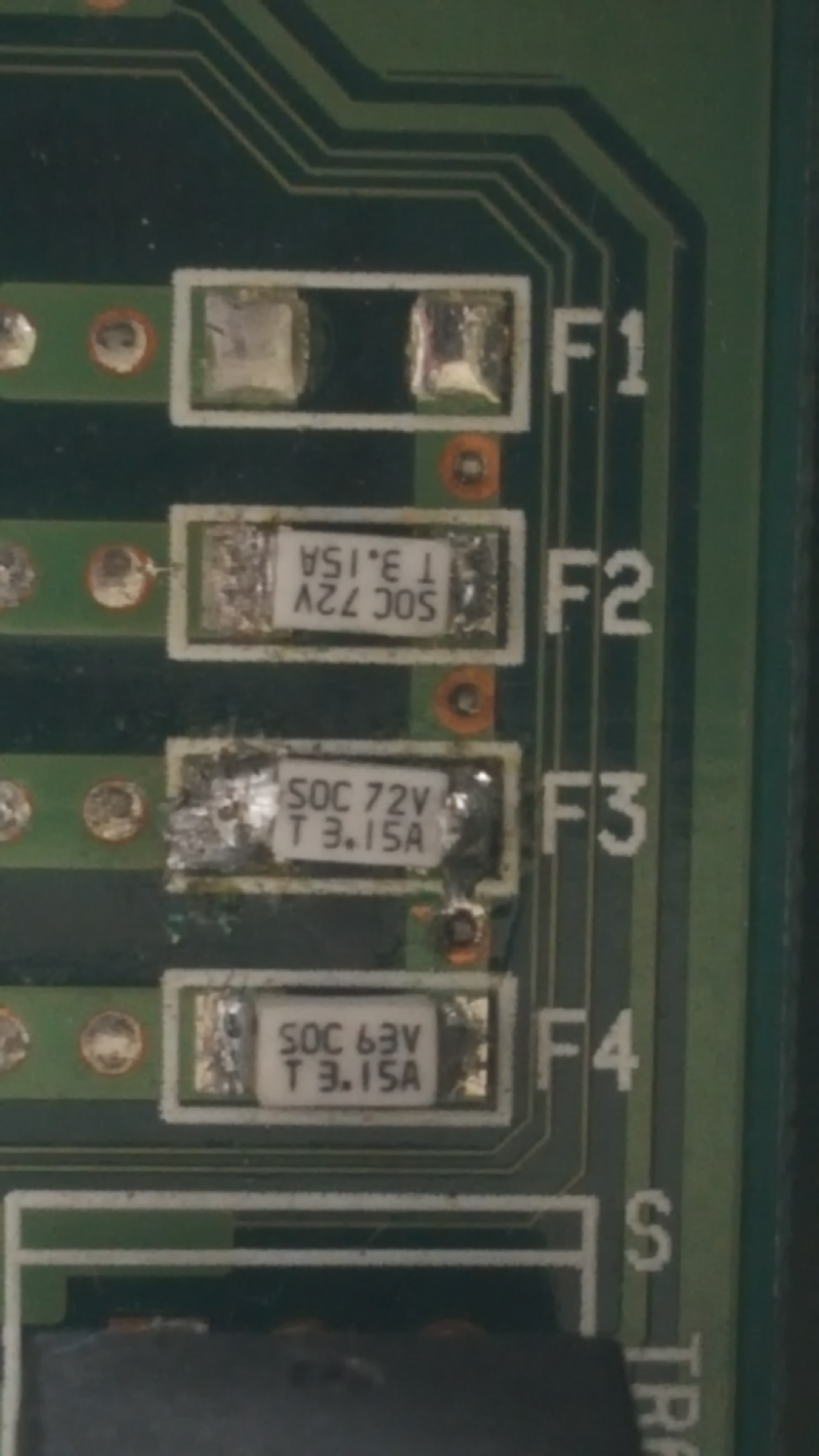

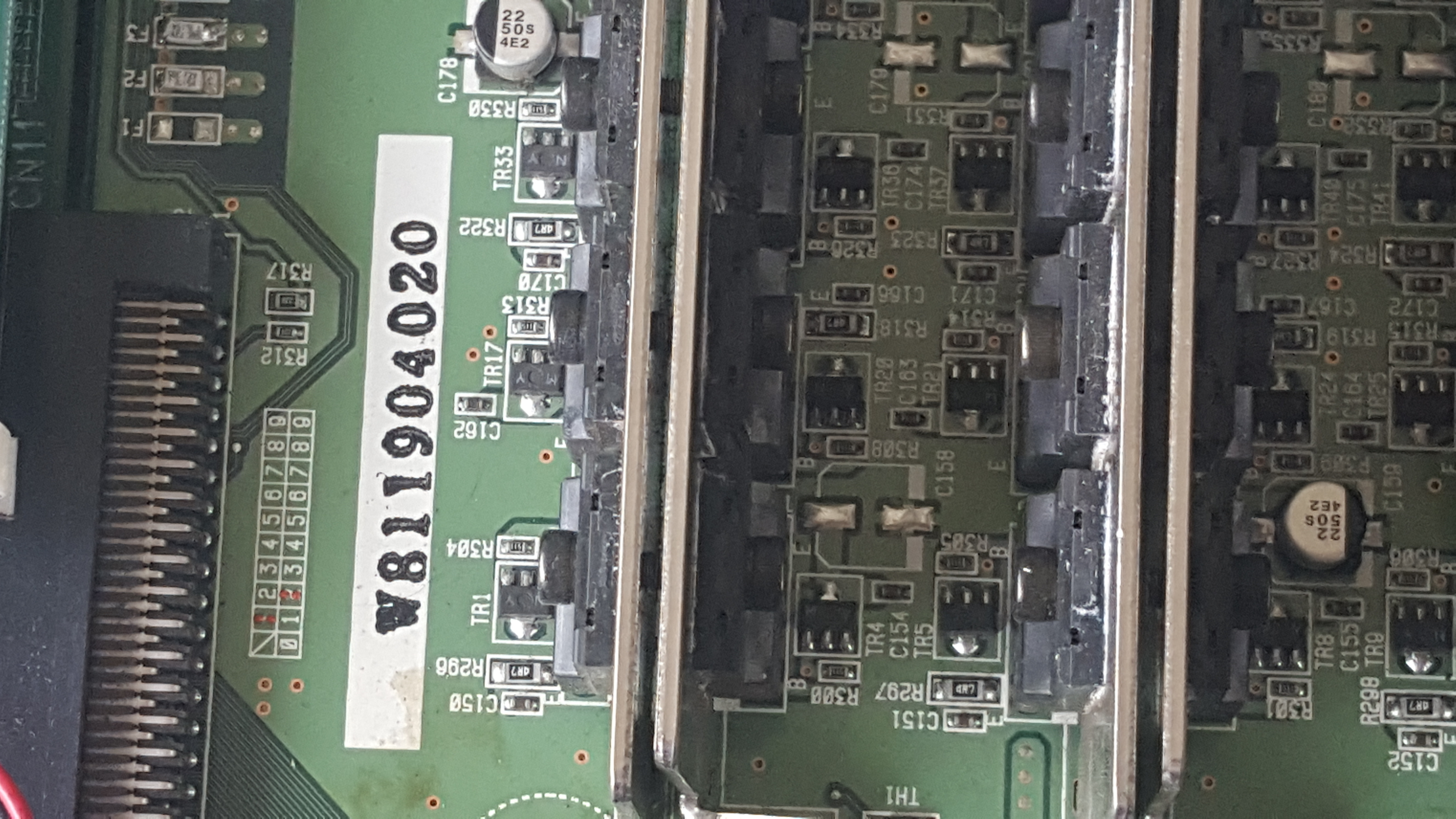

    Having some issues getting this printer up and running. Roland Soljet Pro 2 SC-540 We bought it without the heads. It had been sitting, without heads for about a year before we purchased it. We replaced the heads, caps, dampers, all 3 pumps and lines from caps to pumps. I was able to draw ink into the dampers but none at all past that point. Tried drawing though waste tube coming out of the pump, nothing. Drew through lines between cap tops and pumps, nothing. Cap tops are still dry. Tested head board fuse and found that F2 and F4 are ok but F3 is blown. I did notice that the F2 & F3 are 72V 3.15A and F4 is 63V 3.15A , does that make a difference? It looks as if these may have been replaced prior to us buying the printer (see pic) I have ordered new fuses to (all SOC 72V T3.15A, which is what the service manual specifies). How would I also test the transistor and where on the head board will that be located? (I have also ordered new ones, just in case).

    20190401_105106.jpg 20190401_105106.jpg

    No errors after powering up (other than it's time for a wiper change, which I did but still get the "time for wiper change" error). I am able to do cleaning cycle, go through service menu, test print, everything but doesn't print anything on test print, just goes through the motions.


    Service tech wants $400 min. to come to me to check it out (partly because of the area of Texas I am in), so I am determined to get this thing going myself if at all possible. Any suggestions would be most appreciated!


    Attached Files:

  8. Broome Signs

    Broome Signs Member

    61
    9
    8
    Nov 1, 2018
    england
    If you have any red led lights on the head board are read you will need a new one

    If all the led lights are on the board are green
    Power down the printer
    take all the heads out

    Put a small amount of tissue in a flat dish and pour some cleaning flush into the dish just too wet the tissue

    Put the heads on top of the tissue

    Add some more cleaning flush to the dish , just to the point where the silver cap on the head is coverd

    Do not get any flush on the top board or into the print ribbon slot (very bad)

    Cover the dish

    When you see the flush level go down the heads will be drawing the flush into themselves 24 /48 hours

    Take all the ink out and replace with flush cartridges

    Reassemble the heads into the print carriage

    Turn the printer on in service mode

    Perform power fill

    test print on paper

    Once the heads are firering change the flush cartridges for new ink

    Perform powerful clean until all the dampers are full of ink and then 2x more power clean

    X1 med clean x2 normal clean

    Now try the test print
