Question about Ce5000 and multiple registration mark orrection

Discussion in 'Graphtec' started by jimmmi, Apr 27, 2020.

Tags:
  1. jimmmi

    jimmmi Member

    189
    6
    18
    Sep 13, 2013
    Athens Greece

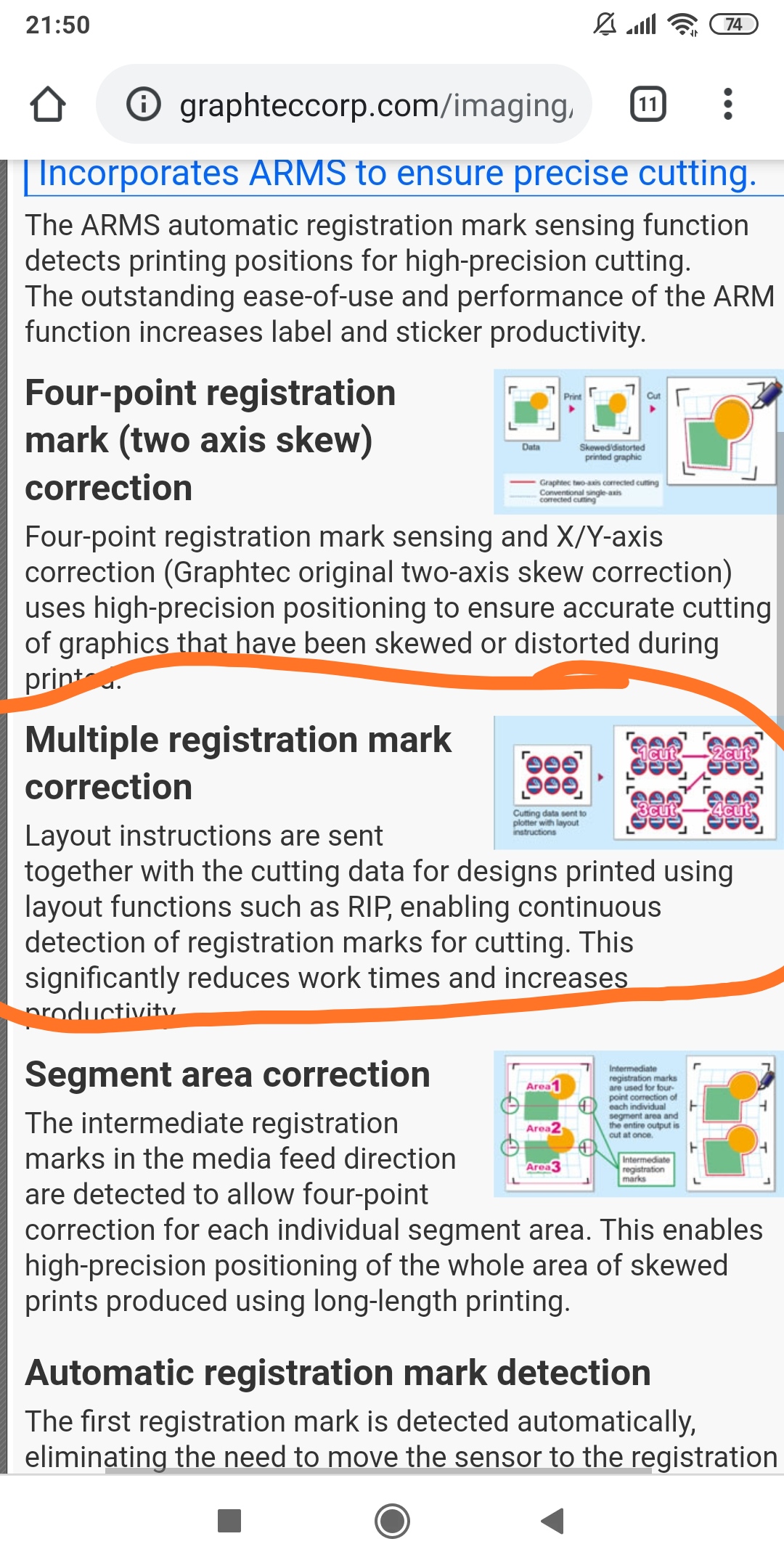

    Hello, in CE5000 specs says that it can cut with multiple registration mark. I attached a picture. Can someone guide me how is this possible?
    I want for example to have 3m length media with 4 or more registration mark groups. Something like the picture.
    Can this be done with Cutting Master 4? Or else??


    Attached Files:

    Last edited: Apr 27, 2020
    Tags:
  2. JeremyTn

    JeremyTn New Member

    2
    0
    1
    Feb 27, 2014
    Tn

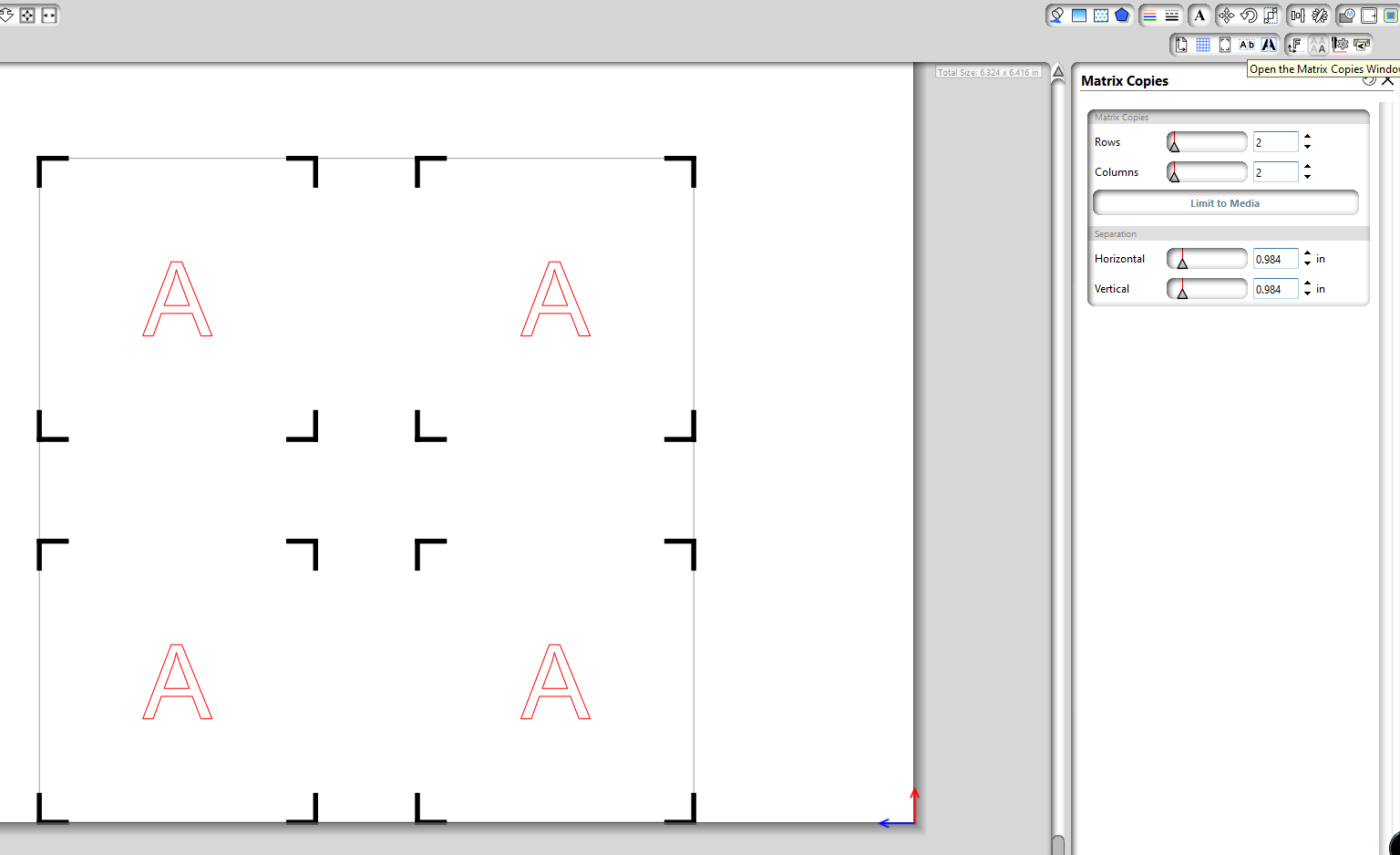

    I've never done it and I have a CE6000 so it may be different, but I think you set up one copy with 4 registration marks, then click on the "matrix copy" button and it copies the design and reg marks all together. Here it is in Graphtec Studio.


    Attached Files:

  3. jimmmi

    jimmmi Member

    189
    6
    18
    Sep 13, 2013
    Athens Greece
    Finally today i found the problem. First of all you use Cutting Master 3. The Cutting Master 4 doesn't have a matrix but has a tab for registration marks, the last tab. Its similar to your tab, with copies etc. The problem that I couldn't solve why didn't work is the X Direction (vertical or Horizontal) in registration marks window. I had first created horizontal and then trying to cut vertically. Because my items where circles, they havent sides and were similar that's was my problem.
