Quick question on X3

Discussion in 'Corel' started by muledalton, Jun 17, 2009.

  1. muledalton

    muledalton Member

    67
    0
    6
    Apr 3, 2008

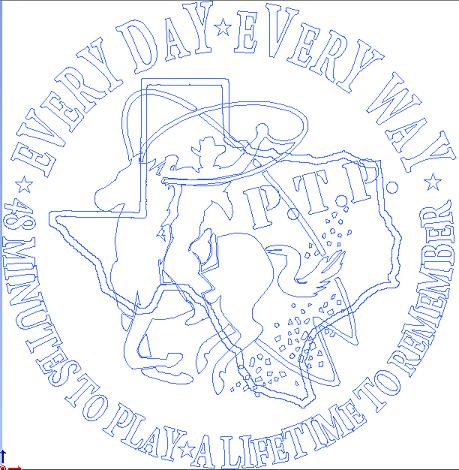

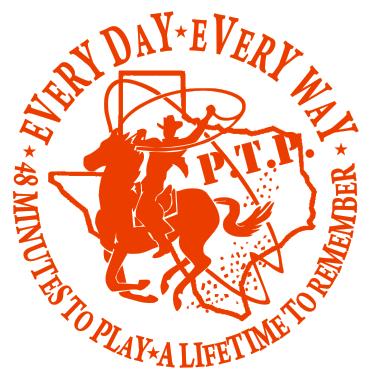

    I've designed a multilayer logo on coreldraw x3 and need to send it to my vinyl cutting program. The problem is that when I export it to Cut Studio it exports all the cut lines for each layer like the pictures below. I need to merge or melt all 3 layers together in corel to 1 layer so that I don't have cut lines going over other cut lines. Hope the picture explains it better.

    Tags:
  2. Shovelhead

    Shovelhead Major Contributor

    10,882
    16
    0
    Dec 5, 2003
    arrange/shaping/WELD and TRIM are your friend.

  3. Ponto

    Ponto Active Member

    650
    0
    0
    Nov 24, 2008
    what he said but take care to proof your results before committing to vinyl...

    JP

  4. GAC05

    GAC05 Major Contributor

    5,990
    820
    113
    Dec 27, 2005
    Guam USA
    Select them all and then use the "simplify" option under the weld tab.

    If this does not work you can select all the center elements and use the outline command also under the weld tab.

    If you still can't get what you want add a new layer and use the smart fill tool to create a new single object - then delete the multi part layers.

    wayne k
    guam usa

  5. Shovelhead

    Shovelhead Major Contributor

    10,882
    16
    0
    Dec 5, 2003
    The objects that make up the Texas should be "combine"(d) first to make an object and then start to weld your objects together.

  6. muledalton

    muledalton Member

    67
    0
    6
    Apr 3, 2008
    Got it! Thanks for the help!

  7. Jim Doggett

    Jim Doggett Very Active Member

    1,304
    1
    0
    Feb 17, 2008
    You might want to consider CoCut Pro, for the future. It saves a bunch of steps and time by making CorelDRAW designs vinyl-ready when they're sent to the cutter. (from within Corel) It automatically groups and welds objects for cut-by-color and gives you the option of adding reg-marks for lining up the color layers.

    www.cocut.com

    Best,

    Jim
