Removal of dimensional letters

Discussion in 'Dimensional Signs' started by Bert D'Souza, Jul 2, 2019.

  1. Bert D'Souza

    Bert D'Souza New Member

    3
    0
    1
    Jul 1, 2019
    Oshawa, Ontario
    Hi all,

    I'm new to the sign business and I have a client that would like to remove an existing logo (in an in-door reception area) and replace that logo with their current logo.

    I believe that the wall has wallpaper on it and I will need to remove the old dimensional letters (attached with studs, I believe) with minimum damage to the wall.

    What is the best way to go about doing that? And, how should I cover/fix the holes left from the original logo?

    Thank you, in advance, for your input.

    Bert.

  2. Gino

    Gino Premium Subscriber

    32,653
    2,128
    113
    Jun 7, 2006
    PA
    You're gonna need to provide pictures. You're being far too vague with all of your... I believe stuff. It either is or it ins't and you'll need to go and do an actual physical site survey.

    You're gonna ruin the wall paper and the walls will need to be patched, so unless the new stuff completely covers it, you're screwed.

    • Agree Agree x 2
  3. MikePro

    MikePro Major Contributor

    4,827
    201
    63
    Feb 3, 2010
    Racine, WI
    never looks right patching&painting a studded wall unless you're/they're gonna do the WHOLE thing.... which most likely won't happen if you're the one already contracted to remove. just yank the letters out of the wall, and design your new signage to include a backer panel that covers the old stud holes.

    • Agree Agree x 4
    • Like Like x 2
  4. Bert D'Souza

    Bert D'Souza New Member

    3
    0
    1
    Jul 1, 2019
    Oshawa, Ontario

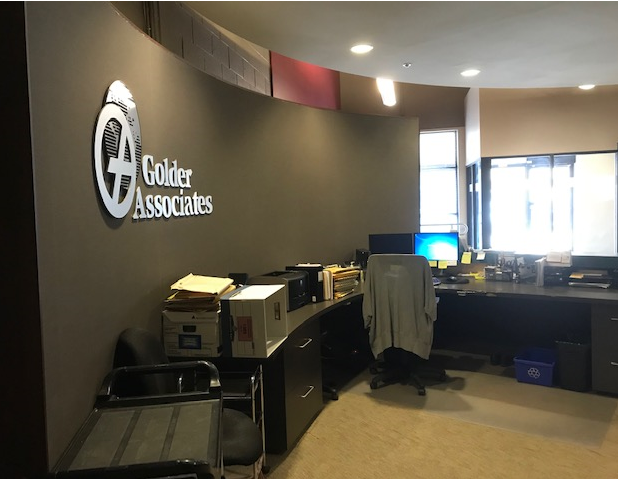

    Thanks for your feedback MikePro & Gino. I have attached a pic of the wall with the existing logo.

    Existing Reception Dimensional Sign.png

    • Agree Agree x 1
  5. Billct2

    Billct2 Major Contributor

    7,309
    591
    113
    Mar 12, 2005
    New England
    With that setup I would recommend removing the existing logo have the clients painting contractor patch and repaint the whole wall (unless you want to handle it also) and then install the new logo

    • Agree Agree x 5
    • Like Like x 2
  6. Bert D'Souza

    Bert D'Souza New Member

    3
    0
    1
    Jul 1, 2019
    Oshawa, Ontario
    That's probably the best solution, Billct2 - I wouldn't want to be blamed for not matching the paint-job perfectly. Thanks.

  7. White Haus

    White Haus Formally known as RJPW..........

    436
    120
    43
    Apr 6, 2018
    Winnipeg
    Hopefully you'll install the new letters straighter than the last guy..... ;)

    That "o" is waaaaaay below the baseline.

    • Agree Agree x 7
    • Like Like x 2
    • OMG / Wow! OMG / Wow! x 1
  8. d fleming

    d fleming Very Active Member

    2,713
    211
    63
    Nov 28, 2007
    Middleburg, Florida
    If they are on studs you will be doing wall repair before you can damage it with new studs.

  9. rossmosh

    rossmosh Active Member

    629
    140
    43
    Oct 9, 2014
    New Jersey
    The other option is to put the logo on a panel. Mount the panel to the wall. No drywall repair or paint issues.

    • Agree Agree x 2
  10. JBurton

    JBurton Signtologist

    1,347
    275
    83
    Sep 28, 2017
    Arkansas
    My money says that o has 4 symmetrically placed studs, and some dummy didn't look twice. I keep telling people it's way easier to avoid this as a fabricator by asymmetrically placing studs, always, even on stuff as obvious as a B.
    Some friendly advice. Like everyone else pointed out, the O is too low, but it should be a little lower than 'square' letters, but only because it's lower. Any round letter should be physically larger than square letters and should set lower & higher when compared. Basically, never use a straight edge to align the bottom edge of text, this is a rookie installer mistake. The difference in sizes is often hilariously minor, but when it's done wrong, it looks very wrong. When you do things right, people won't be sure you've done anything at all.

  11. Moze

    Moze Very Active Member

    1,964
    124
    63
    Feb 27, 2012
    Dallas, TX
    What's even better is when a sign company does that and posts it to their Instagram feed to show off their work.

    • Hilarious! Hilarious! x 2
  12. JBurton

    JBurton Signtologist

    1,347
    275
    83
    Sep 28, 2017
    Arkansas
    Only thing, well maybe not the only thing, but I see this all the time, someone will draw a 12x18, add a radius to the rectangle, and then shrink it for a border. If their are any vector novices out there, take heed; shrinking a shape works well on a circle, and it works well on a rectangle, but that's it. Learn how to properly use your graphics program and stop making shitty signs!

    • Like Like x 1
    • Agree Agree x 1
  13. equippaint

    equippaint Very Active Member

    1,855
    531
    113
    Oct 10, 2014
    Florida
    There arent any studs. Its all cockeyed, just look at the G and other O. Id give you 1 letter but not this. Go figure out what you have before wasting your time figuring out how youre gonna fix a wall that you wont have to.

  14. Texas_Signmaker

    Texas_Signmaker Very Active Signmaker

    3,975
    1,456
    113
    Oct 21, 2016
    Frisco, TX
    Sign companies are not paint and drywall people (thankfully) Get the customer to give you a ready wall when you come and install the new signs.

  15. Gino

    Gino Premium Subscriber

    32,653
    2,128
    113
    Jun 7, 2006
    PA
    For what it's worth, those letters are being removed, so however the original people messed it up, is of no concern. Now, if you zoom in on it, it does appear the two 'o's are larger than all the other letters. Nothing to do with rounds being bigger, as they're bigger than the 'c's 's's and 'e's. The 'o's look outta place, completely.

  16. Billct2

    Billct2 Major Contributor

    7,309
    591
    113
    Mar 12, 2005
    New England
    Doesn't matter how they are mounted, the wall will need refinishing. Unless maybe they used 3m command strips:rolleyes:

    Last edited: Jul 3, 2019
    • Agree Agree x 1
  17. TimToad

    TimToad Very Active Member

    2,568
    632
    113
    Jun 13, 2013
    CA
    Off topic but a major failure on what is a no brainer.

    Hmmmm. Start with a rounded corner rectangle 12"x18" with .75 radius corners. Select shape, choose a negative offset path the distance you want your border to be in from the edge. Choose that inner line, repeat with thickness of border want and you are done. Or stroke it and then convert stroke to outline.

  18. JBurton

    JBurton Signtologist

    1,347
    275
    83
    Sep 28, 2017
    Arkansas
    I was going to walk someone through it, but I'm not sure how many folks run corel vs flexi vs what have you. In corel you choose the 'contour tool', and instead of a negative offset, it's an offset on the inside.
    Or instead you could set the 'outline' to a 1/2" width then 'convert outline to object', problem with this is the 12x18 will turn into a 13x19, then when it's scaled down to the 12x18 the radius will have changed...

  19. TimToad

    TimToad Very Active Member

    2,568
    632
    113
    Jun 13, 2013
    CA
    I use Illustrator. The steps to do the same thing are all similar in most of the programs available to most of us. It's definitely an eye roll moment when I leave a store and every regulatory type sign has mismatched radiused corners between the edge of the panel and inset line. My feeling is that if you can't figure out how to do that, just don't add an inline border. All it does is cramp your message area and most sign people have margin control issues to begin with. LOL

  20. Johnny Best

    Johnny Best Very Active Member

    3,151
    1,769
    113
    Dec 9, 2015
    buffalo ny
    You need to have customer repair holes in wall and replace wallpaper after you remove old logo. Plus that is a large reception desk that needs to be moved to have new wall paper installed.
    I have no information on rectangles and circles with offset and scaling.
