Restriction by Chroma vs Total Ink Limit

Discussion in 'RIP Software & Color Management' started by neil_se, Nov 2, 2013.

  1. neil_se

    neil_se Member

    291
    2
    18
    Jan 21, 2012
    Qld, Australia
    I've been on a profiling journey since installed Caldera last week. I've read some helpful info on here today about restricting by measuring chroma which is simple enough in Easy Media. The result however of using peak chroma is that the necessary ink limit breaks Caldera's suggested rule that the ink limit should not be less twice the average individual limit (/half the sum of the limits). At the total ink limit that meets this rule the result shows heavy coalescing and bleeding. Eg. peak chroma for my Roland XC540 on monomeric SAV (720VD, 8 pass+ RIPC) occurred at 70/85/90/75% Pmax, but total ink limit should really have been around 140%.

    Originally I was just limiting by eye, but when I did carry through the whole process using peak chroma the gains in estimated gamut reproduction were fairly significant. But of course the profile wasn't much good in terms of pooling and bleeding.

    Qn 1. Is there a method/measure/rule of thumb I should be using for picking restrictions, or do I need to go to the extent of downloading Profilemaker and measuring back ~1 deltaE from the peak?

    Qn 2. So far I've just been using the bleeding target after setting total ink limits, but are there other useful targets I should be using during the process?

    Qn 3. Do others just leave Easy Media's suggested light ink transitions, or do you reduce them back knowing that you'll likely be restricting channels in the linearisation?

    Tags:
  2. P Wagner

    P Wagner Very Active Member

    1,928
    83
    48
    Aug 16, 2006
    San Diego
    Light inks (light cyan and light magenta) do virtually nothing to enhance the gamut volume, but they do tend to put a lot of the ink's base (water or solvent) onto the media, which needs to be controlled through heat or other means. Particularly with the latex inks but also solvent, you want to be very aggressive in limiting the light ink channels.

    Also, I don't like to limit total ink/ Total Area Coverage below 200 percent, as this reduces your gamut for secondary 2-color mixes (red, blue, green).

  3. neil_se

    neil_se Member

    291
    2
    18
    Jan 21, 2012
    Qld, Australia
    In Caldera the total ink limit is expressed in terms of printer output capacity, so if the channels were restricted to 80/80/80/80 then the maximum would be 320% and I'd be looking for a total ink limit of at least 160%.

  4. a77

    a77 Member

    242
    24
    18
    Jul 8, 2011
    Canada
    Hi Neil,
    I'm new to Caldera and sometimes struggling with easymedia with setting ink limits.
    To be honest I often end up printing the profile target and then noticing some bleeding between patches or some coalescence. I find it most useful because it shows so many colour combinations.

    Then I am faced with the same problem.. I want to reduce my ink limit so low that I am going below the magic [Pmax average *2] number. So then I go back to setup new linearization curves by using my previous readings and just sacrificing my Pmax's to come up with something close to make my restrictive ink limit work.

    I am only CMYK, so I don't have to work with light inks, so I guess that's one less step to worry about. But still, I'm not terribly happy with the process and don't have much confidence in some of my choices. For me, with my epson surecolor, I am most worried about ink drying times so that I'm confident I can go through to the takeup reel and not be worried with heavy coverage jobs. So I'm playing quite the guessing game by watching the test target and seeing how quickly it dries, trying to get away with as much ink as possible.

    Sorry, no useful info for you, more of a rant, but I am interested in any other tips/tricks or best practices for handling these limits so if anyone else has much experience with this, please chime in! :)

  5. rfulford

    rfulford Active Member

    566
    2
    18
    Feb 9, 2009
    Orlando
    Honestly, It sounds as if your media and print mode do not want to cooperate. This is not really surprising for a monomeric vinyl. Most that I have run across are really cheap. Is this the case? It sounds like you are doing everything right but the values you are picking sound way too low for a reasonable ink restriction. If you must use this media, you may have to go to a higher pass mode or drop your restrictions to account for where you need to set your ink limit. Also, you can try to keep them where they are, and continue with the profiling process realizing that you will not be able to produce works of art on this particular vinyl. This will not be a surprise to anyone. The danger in using a ink limit that is too low is that you will not be able to accurately mix C, M, and Y to approximate gray and your GCR will cause posterizaton in your shadow areas. You want to use GCR 4 or Max Black when dealing with low ink limits but still, your results will be marginal.

  6. a77

    a77 Member

    242
    24
    18
    Jul 8, 2011
    Canada
    Funny, I've been having these problems with almost all media..

    That is a good tip to print a test target that has some greys to see how it looks with the ink limits. But I suppose this test really is only accurate after you've gone through all the steps to create the profile.

  7. neil_se

    neil_se Member

    291
    2
    18
    Jan 21, 2012
    Qld, Australia

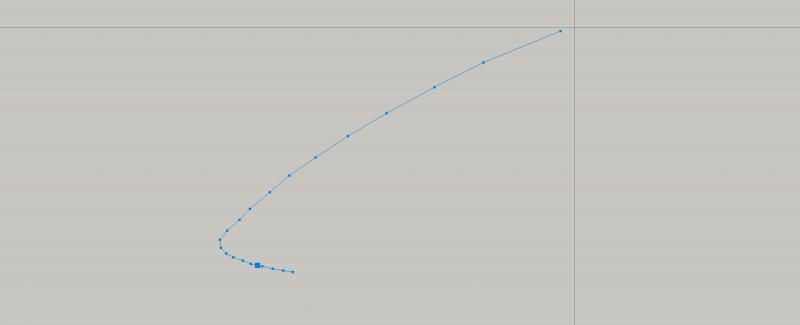

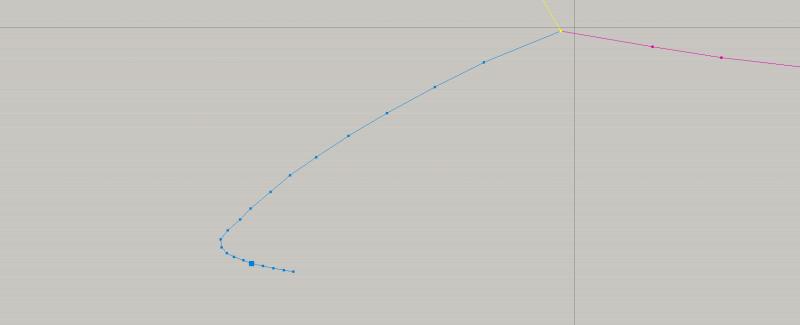

    I haven't had a great deal of time for experimenting in the past fortnight, but does anyone have ideas on if or how the hue shift should be taken into account in the individual restrictions? Eg. in the linearisation below, max chroma occurs and the 83%, but there's a large hue shift past 60%.
