Roland SC-540 - Print heads pattern problem

Discussion in 'Roland' started by SignJose, Oct 2, 2014.

  1. SignJose

    SignJose New Member

    Hello! We have an interesting situation with our printheads and this might have been answered somewhere in these forum. I saw already a similar problem but not exactly the same and wonder if anyone has experienced this exact situation.

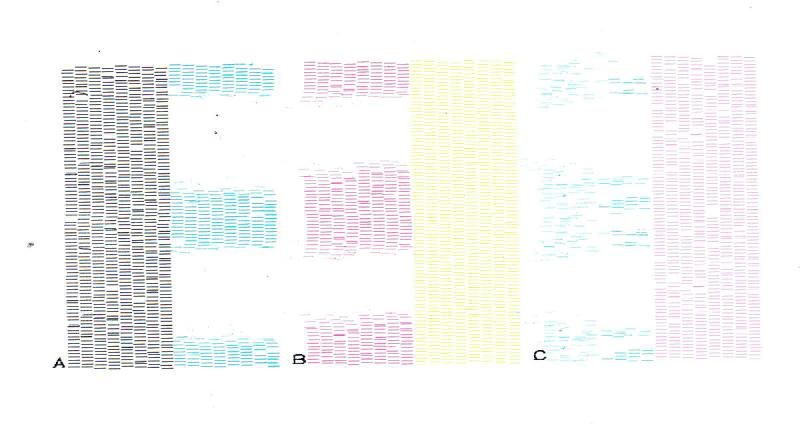

    The Cyan, Magenta and Light-Cyan printheads are creating 2 blank stripes, surprisingly equidistant to be just a clogged print nozzles. They have been cleaned, soaked and the whole enchilada. I suspect a faulty cable or motherboard issue. Co-worker insists it is clogged nozzles. Anyone here has had the same problem?

    Comments appreciated!

    Attached Files:

  2. J Hill Designs

    J Hill Designs Major Contributor

    Sep 24, 2004
    those heads look TRASHED

    headsoak overnight, see if it helps
  3. niksagkram

    niksagkram Active Member

    I agree..... the whole print test looks bad. Don't think a head soak will fix that. Invest in some new heads if possible. We replaced the heads in our SC-540 4 years ago, and it's still going strong, even with third-party inks. :smile:
  4. DravidDavid

    DravidDavid Member

    May 9, 2014
    Yea dude...Those heads are stuffed.

    Try a head soak for 24 or 48 hours and see if that helps. Swab the heads manually (You've got nothing to lose) and perhaps a flush. This looks like the result of several severe head strikes though.

    If you are going to replace the heads, buy one and replace one. If the problem continues with the new head, at least you didn't buy three others to replace perfectly good heads or spend time ripping all three heads out of the machine. I doubt these are perfectly good heads that just need some TLC though.
  5. Robert M

    Robert M Very Active Member

    Jan 23, 2007
    those heads

    Take a picture of the bottom of the heads and post it. That is a strange pattern
  6. woolly

    woolly Active Member

    Sep 24, 2007
    Cornwall uk
    I have the same machine to check first
    are the pumps and cap tops really doing their job correctly
    the deflection in black and yellow is bad saying that may be the case
    are the heads rubbing the spit sponge which they shouldn't causing the mixed colours
    generally it looks a real mess you could move the heads around to prove before spending big money rank no should be changed as you do. Not for the faint hearted.
  7. TheHemi

    TheHemi New Member

    Oct 6, 2014

    If your dead set on not getting a new head installed you can go ahead and let it soak. It "might" help a "tiny" bit. However i am 99% sure your going to need a new head
  8. Robert M

    Robert M Very Active Member

    Jan 23, 2007
    those heads

    If you can't get them cleaned up, I have new ones in stock at www.solventinkjet.com. We are factory trained and can supply tech support as well as manuals.
    Give a call first if you would like to discuss, 800-328-1306
  9. Oldoldoldman

    Oldoldoldman Member

    May 20, 2013
    draw ink manually through caps and heads to make sure heads are not starving for ink.
  10. player

    player Major Contributor

    Apr 24, 2006
    I would try some Roland dampers first.
