Roland SP 540 Fan Junction Board - part #876705040

Discussion in 'Roland' started by Josh Kuper, Jan 4, 2019.

  1. Josh Kuper

    Josh Kuper New Member

    12
    0
    1
    Apr 16, 2018
    greer, sc
    Anyone know where this part is located on the printer

    Tags:
  2. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,308
    812
    113
    Aug 2, 2011
    Denver, CO

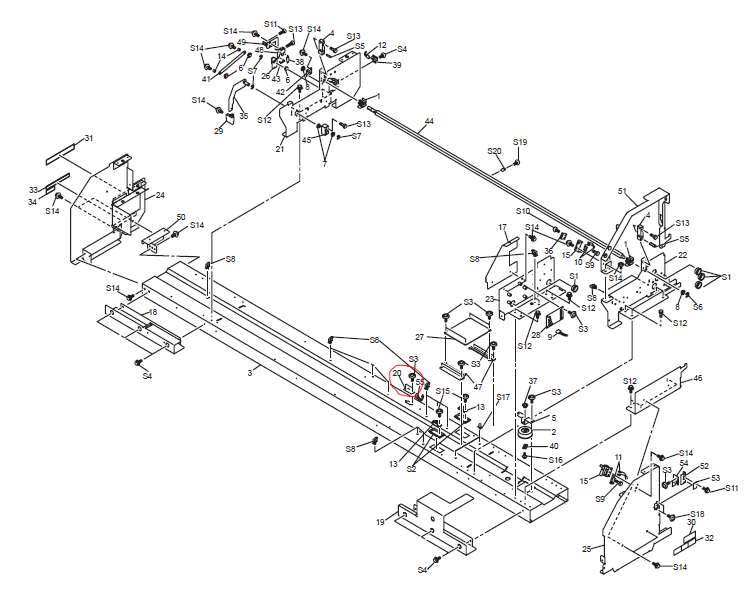

    It's located in the red circle in my image labeled #20. It looks like a very small board that is attached to the Y bar.


    Attached Files:

  3. Josh Kuper

    Josh Kuper New Member

    12
    0
    1
    Apr 16, 2018
    greer, sc
    It that the part that runs the fan, it stopped working and the vinyl won't stay flat

  4. Josh Kuper

    Josh Kuper New Member

    12
    0
    1
    Apr 16, 2018
    greer, sc
    Thanks for the image, that helps allot

  5. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,308
    812
    113
    Aug 2, 2011
    Denver, CO
    Unfortunately I am super unfamiliar with that particular part on this machine. If I had to guess that board looks like a junction board and probably doesn't actually do anything other than extend the cable to where ever it needs to go. On most machines I work on the fans are connected to either the main board or some sort of heater board either through some sort of junction board or just a long cable. If all the fans stopped working at the same time I would say it has to be some sort of board issue. If only 1 stopped i would suspect the fan itself. Unfortunately I have never had to repair that so I am not the best source. Hopefully someone can point you in the right direction.

  6. Josh Kuper

    Josh Kuper New Member

    12
    0
    1
    Apr 16, 2018
    greer, sc
    Ok, thanks, it's a start. I can't find anything about the fans on the web
