Roland sp-540v message

Discussion in 'Roland' started by Cassini14, Apr 24, 2020.

Tags:
  1. Cassini14

    Cassini14 New Member

    8
    0
    1
    Jul 29, 2018
    Florida

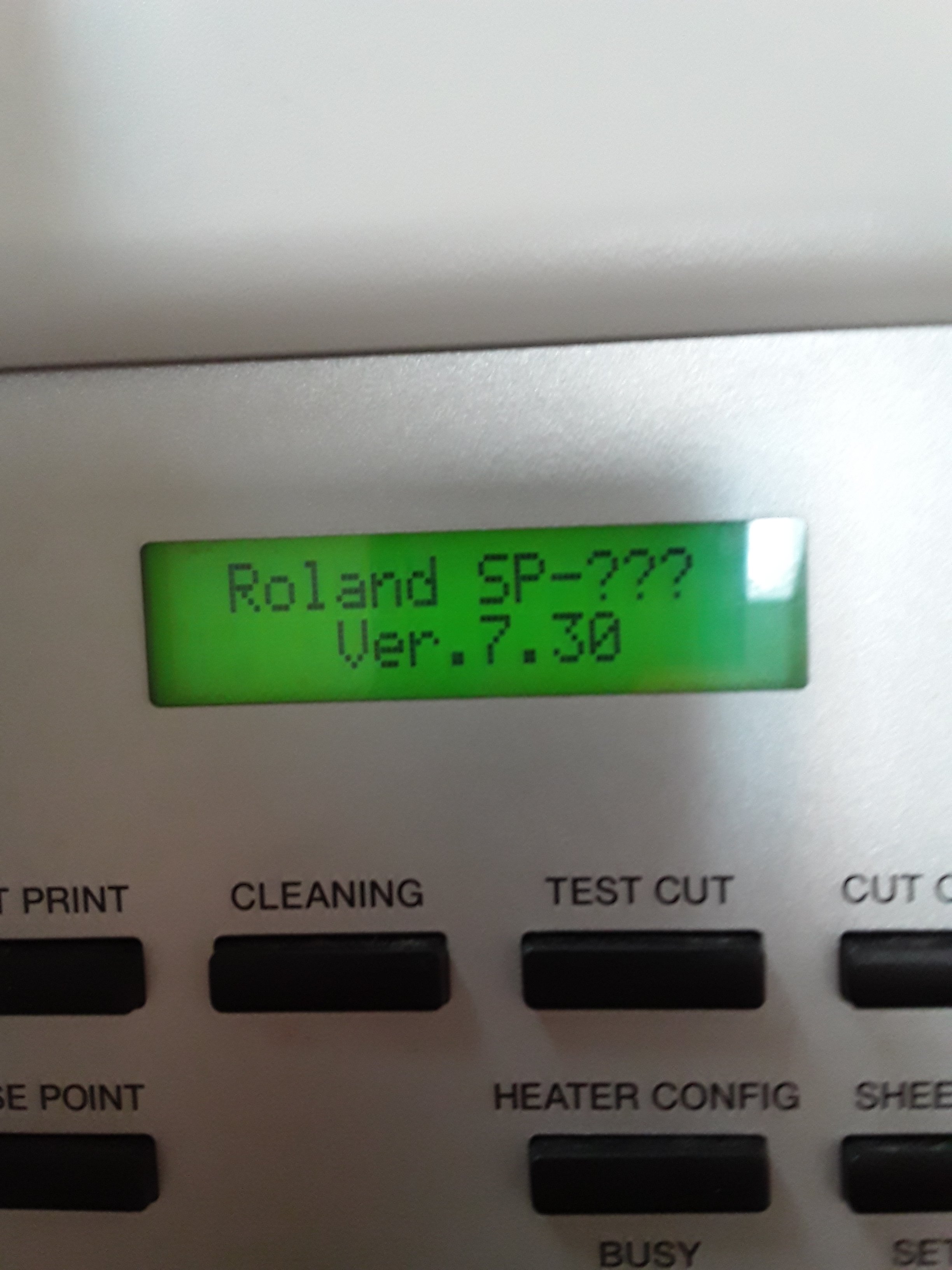

    This old horse is throwing me a lot of curveballs what is this message now (see pic). Of course many thanks

    Roland SP_???
    Ver.7.30


    Attached Files:

    Tags:
  2. MikePro

    MikePro Major Contributor

    5,042
    260
    83
    Feb 3, 2010
    Racine, WI
    lol. it looks like it forgot it's own name.
    but appears to be the same message i've always seen on my printers upon startup, declaring its firmware version

  3. FrankW

    FrankW Very Active Member

    1,324
    135
    63
    Oct 19, 2008
    Germany
    I would do a LIMIT INITIALIZE:


    • Like Like x 2
  4. Cassini14

    Cassini14 New Member

    8
    0
    1
    Jul 29, 2018
    Florida
    I'll get the limit Initialize and then I get UREVOVERABLE LIMIT ERROR (sounds serious)

  5. FrankW

    FrankW Very Active Member

    1,324
    135
    63
    Oct 19, 2008
    Germany
    Looks like a sensor problem.

  6. Jim Hancock

    Jim Hancock Active Member

    548
    100
    43
    Nov 11, 2008
    Delray Beach, Florida
    You most likely did not do the procedure correctly. The video outlines the process perfectly. I would suggest you try it again. It is very important that the printhead is locked in place for the "Move to Cap Pos" step , as shown at the 55 sec - 1 min point. If you can move it to the left at all, then it will give you the error you received. Keep trying to lock the head in place before pressing Enter.

  7. player

    player Major Contributor

    4,916
    190
    63
    Apr 24, 2006
    Toronto
    Is there a battery on the main board to keep settings? I think there is. Perhaps your battery is dead.

    Did you recently turn off the power?

    Yes, top left that looks like a battery holder.

    [​IMG]

  8. The purpose of the battery is actually a common misconception. The battery does not keep any settings.

    The battery only powers the clock... It will simply keep date and time when the power switch is turned off.

    If you ever switched off your printer and then when you power it on it says "press power to clean" that is a sure indicator that your battery is dead. That's because the printer has no idea when it was last cleaned because it does not know the date... or more likely the current date is earlier than the last clean date.



  9. BigO

    BigO New Member

    13
    3
    3
    Apr 7, 2020
    Texas
    I had the same problem the other day, Jim’s advice is spot on.
