Need Help Roland SP540v

Discussion in 'Roland' started by mikestickers, Sep 6, 2019.

  1. mikestickers

    mikestickers Chief, Cook and Dish Washer!

    34
    1
    8
    Mar 22, 2016
    Gulfport, MS
    My SP540v has a cut problem. It wonders off as it goes farther across the table. I have a new ribbon, did a cut config and aligned everything, even did an "auto" cut adjustment and yet it still wonders off almost 1/16 on each sticker. By the time it get across 54 inches it off almost an inch......Anyone know whats happening or how to fix it?

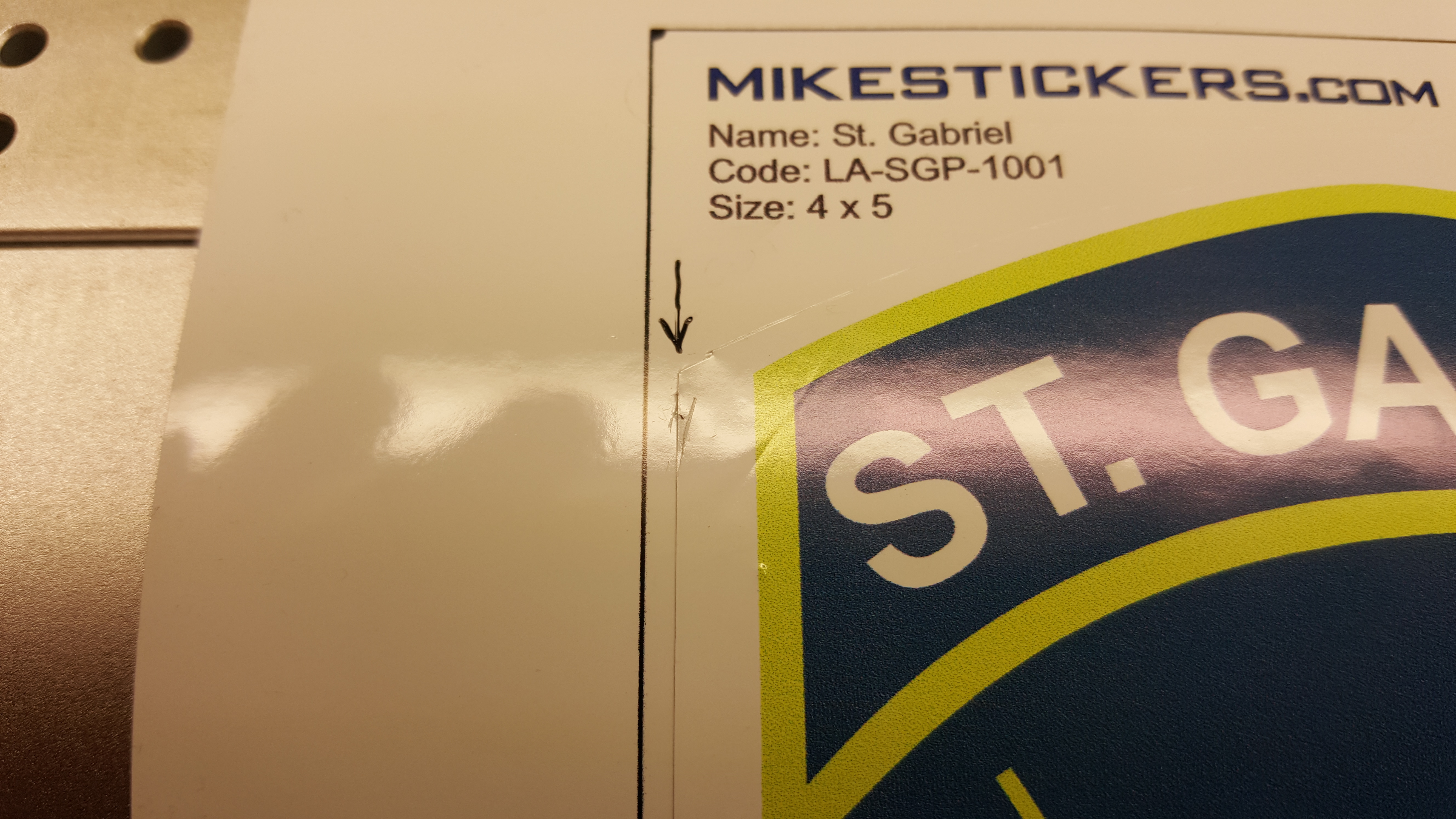

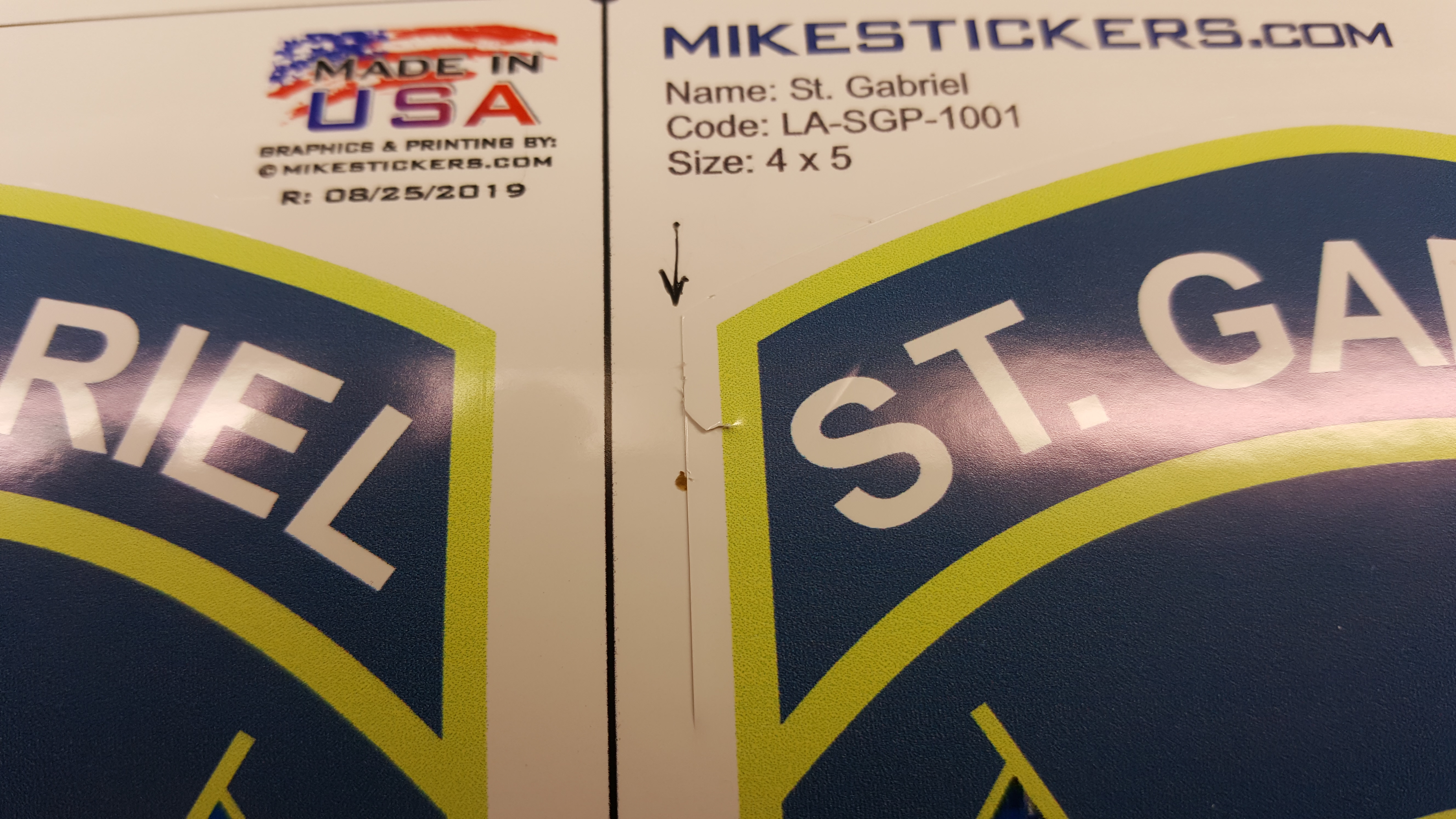

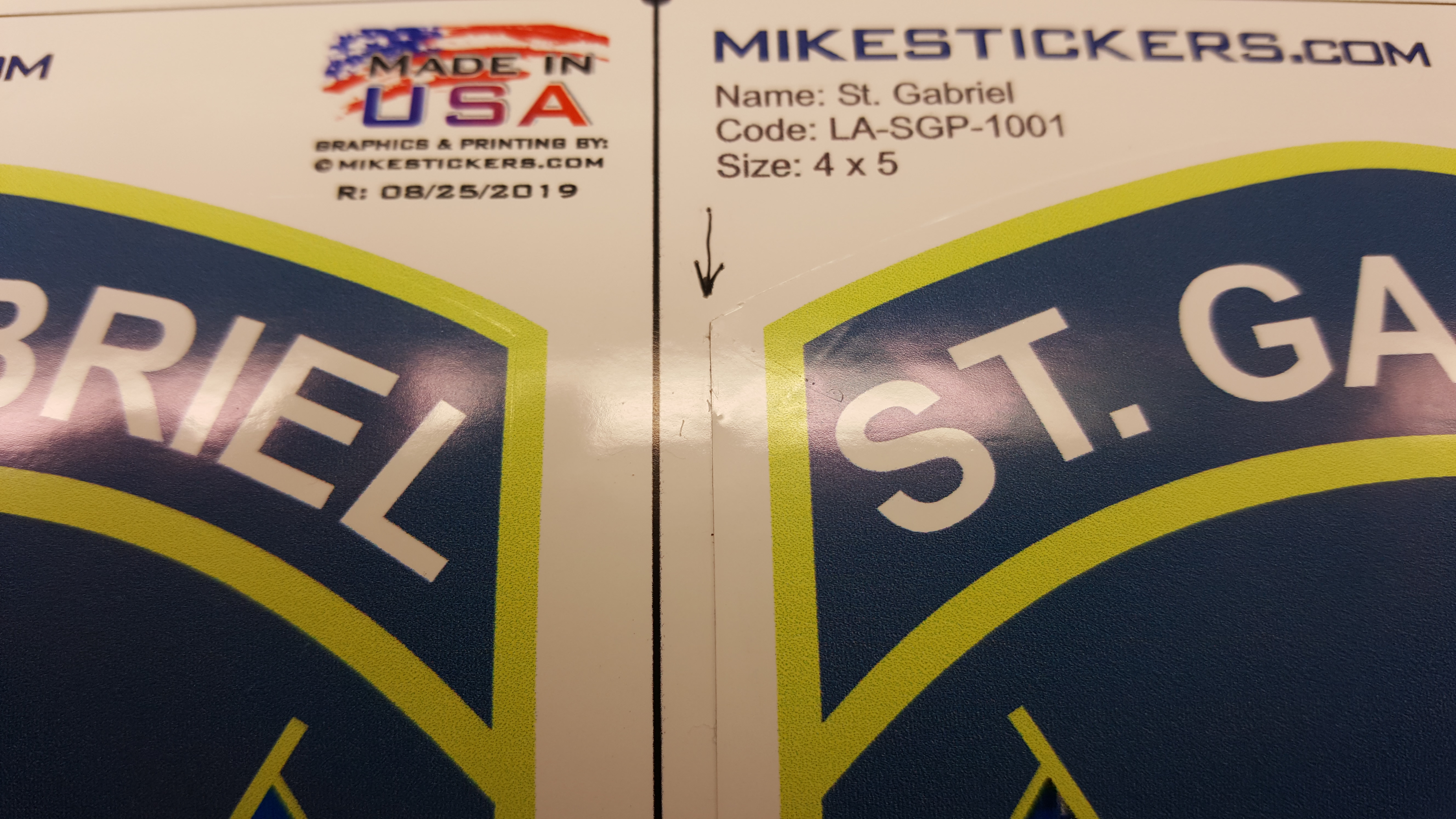

    see attached images. #1 shows 1/16 off, #2 shows 1/8 off and the 3rd shows 3/16 off

    Mike
    Mail@mikestickers.com


    Attached Files:

    Last edited: Sep 6, 2019
    Tags:
  2. C5 Service&Repair

    C5 Service&Repair Member

    328
    42
    28
    Jan 14, 2018
    Omaha, NE
    cut calibration is off

  3. mikestickers

    mikestickers Chief, Cook and Dish Washer!

    34
    1
    8
    Mar 22, 2016
    Gulfport, MS
    How do I fix it?

  4. Technician

    Technician Drive it hard

    35
    3
    8
    Apr 24, 2016
    Sweden
    Is it print and cut you have problems with? Or do you take out and laminate and cut?
    Is the problem in scan directions only or is it in feed directions to. Is everything good in beginning and getting worse and worse?
    You said you change some ribbon. Is it the linear scale you talk about?

    • Like Like x 1
  5. mikestickers

    mikestickers Chief, Cook and Dish Washer!

    34
    1
    8
    Mar 22, 2016
    Gulfport, MS
    Yes its print and cut, it even does it when cut is in separate job when laminating. the first cut is off also but gets worse with the next one and worse with the next one. It seems to only be with the scan.

  6. Technician

    Technician Drive it hard

    35
    3
    8
    Apr 24, 2016
    Sweden
    If you do the print and cut calibration. (Do the one with the 3 black square) how does it look?
    Can you adjust it to perfect?
    Don’t do the automatic calibration. It will never be good

  7. mikestickers

    mikestickers Chief, Cook and Dish Washer!

    34
    1
    8
    Mar 22, 2016
    Gulfport, MS
  8. Goatshaver

    Goatshaver Member

    279
    12
    18
    Dec 5, 2018
    Maine
    You need to enter the service mode.

    Then enter Service mode > Print and cut adj > Setting 2 > then you'll see some adjustments. Press and hold Test Cut and it'll print the three squares across the sheet and cut them and you can make the adjustments.

    • Like Like x 1
  9. mikestickers

    mikestickers Chief, Cook and Dish Washer!

    34
    1
    8
    Mar 22, 2016
    Gulfport, MS
    I was able to get into service mode but now it says service mode protected....How do I unlock it?

  10. IsItFasst

    IsItFasst Member

    385
    12
    18
    Jan 16, 2008
    USA
    You aren't in service mode if it says that. The combination has to be followed precisely or it will say that message because it knows your are trying to get into it. I know I see the message every so often when I do it wrong. Also, I think the combination of the last 3 controls (the ones you hold) is backwards from what I read online.

  11. equippaint

    equippaint Very Active Member

    1,855
    534
    113
    Oct 10, 2014
    Florida
    down right left up right down left. then left + down + right + power at the same time. You have to do it quickly
    IMO, its better to do all the adjustments in service mode

    • Agree Agree x 1
  12. timkaz227

    timkaz227 Member

    94
    1
    8
    Nov 29, 2010
    Charlottesville, VA
    I never knew there was an "Auto". Try print cut adj. first. You print it then it makes the cuts then you adjust the scan & feed based on what you see.

  13. Lindsey

    Lindsey Not A New Member

    100
    27
    28
    Jan 17, 2013
    Canada
    Try adjusting the cut speed and doing some testing. Depending on the material you're using, and the blade settings, faster or slower might work better.
    I also get better results cutting on the SP540v when the material has cooled and heater is off.

    • Like Like x 1
  14. TimToad

    TimToad Very Active Member

    2,568
    636
    113
    Jun 13, 2013
    CA
    An obvious question is whether the rollers may have moved during reloading of the media after laminating.

    Depending on the age and model, the distance between your outer rollers has to match when you go back to cut.

    • Like Like x 1
  15. mikestickers

    mikestickers Chief, Cook and Dish Washer!

    34
    1
    8
    Mar 22, 2016
    Gulfport, MS
    OK, I was able to get back into service mode, I did the print test with the three squares and it cut all three the same. but it still walks off on the scan cut, the fees cut is ok

  16. C5 Service&Repair

    C5 Service&Repair Member

    328
    42
    28
    Jan 14, 2018
    Omaha, NE
    you need to do the calbration on pg 68 of the user manual. this isnt a service mode function.

    • Like Like x 1
  17. 2ny

    2ny Member

    55
    7
    8
    Jan 2, 2012
    Norway
    It has to be something with the ribbon you replaced.
    If it worked ok before the change, than this is the only change in the scan direction that can cause this...?

    Good luck
    Tony

  18. Chriswagner92

    Chriswagner92 Member

    335
    23
    18
    Aug 26, 2013
    nc
    The sp540v has never been a good cutter in my opinion. We had to limit it to like 3' at a time. Clean everything, make sure the encoder strip isn't in need of replacing, do an environment match, and make the panels as small as possible.

    • Like Like x 1
    • Disagree Disagree x 1
  19. mikestickers

    mikestickers Chief, Cook and Dish Washer!

    34
    1
    8
    Mar 22, 2016
    Gulfport, MS
    Ya, when I first got the machine (Used) it walked off on the first 54" cut, but worked fine when I did the test on a 30"
