Round Shape Illuminated Logo Box

Discussion in 'Electric Signs & Channel Letters' started by k2vin, Feb 24, 2010.

  1. k2vin

    k2vin New Member

    3
    0
    0
    Mar 24, 2009
    Got a request need a double side illuminated logo box, similar to StarBucks,

    [​IMG]

    I have done a lot single side logo box, but not double side. I proposed 6" thick returns, and L.E.D. illuminated. not sure 040 aluminum / clear acrylic as a inside divider. Appreciate anyone could share thoughts on how to fabricate. Thanks in Advance.

    Tags:
  2. Rick

    Rick Certified Enneadecagon Designer

    6,955
    389
    83
    Apr 17, 2003
    Valle Vista
    How Big?

    I think I have a drawing floating around of the standard Starbuck sign.

    If I remember correctly on the drawing, they rout out a ring and weld a return to it and screw that into a reinforced .063 or maybe even .080 aluminum radius cabinet, I think they were around 10" deep.

  3. Shovelhead

    Shovelhead Major Contributor

    10,882
    16
    0
    Dec 5, 2003
    Maybe 8" deep...with a white aluminum divider to reflect the light.

  4. UFB Fabrication

    UFB Fabrication Member

    166
    1
    0
    Jan 26, 2010
    As said alum divider or poly carb. Acrylic is a UL no-no for structure like your asking about.

  5. k2vin

    k2vin New Member

    3
    0
    0
    Mar 24, 2009
    The signs is going to be dia 36", and I think I saw the Starbucks box is only about 6" deep. I wonder how they reflect the L.E.D. lights to make the "spots" invisible. Is there anyone can share the construction of the inside of the box? thanks in advance.

    I think I will go with 063 white aluminum for the divider.
    Thanks a lot!

  6. jonnyj

    jonnyj New Member

    1
    0
    0
    Nov 8, 2014
    standard starbuck sign drawig. Do you still have it handy?

    Rick,

    I ran a crossed this old post. Do you still have the standard Starbucks circle sign handy? I am looking for approx. 36" drawing.
    Thanks!

    I think I have a drawing floating around of the standard Starbuck sign.

    If I remember correctly on the drawing, they rout out a ring and weld a return to it and screw that into a reinforced .063 or maybe even .080 aluminum radius cabinet, I think they were around 10" deep.[/QUOTE]

  7. Moze

    Moze Precision Sign Services

    2,032
    156
    63
    Feb 27, 2012
    Dallas, TX
    There are a few different ways it can be made. I've surveyed a couple/few hundred Starbucks over the years and every sign company is going to do it a little different.

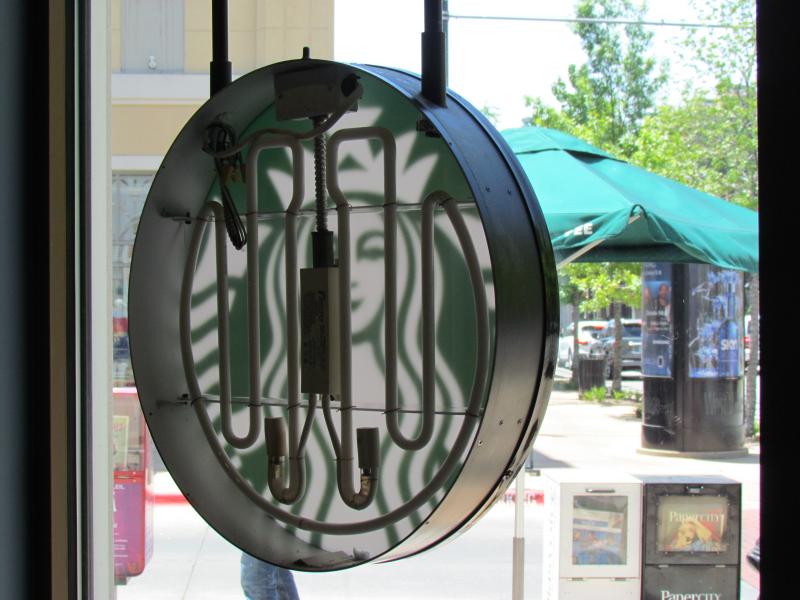

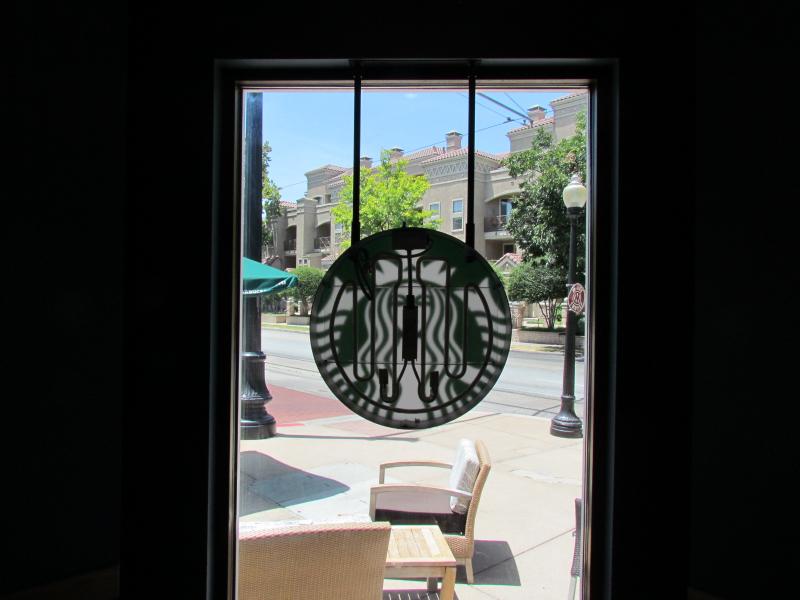

    Here's one...


    Attached Files:
