Rounding corners for cut vinyl

Discussion in 'Adobe' started by mikeinpdx, Mar 5, 2014.

  1. mikeinpdx

    mikeinpdx Member

    81
    0
    6
    Feb 6, 2011
    portland

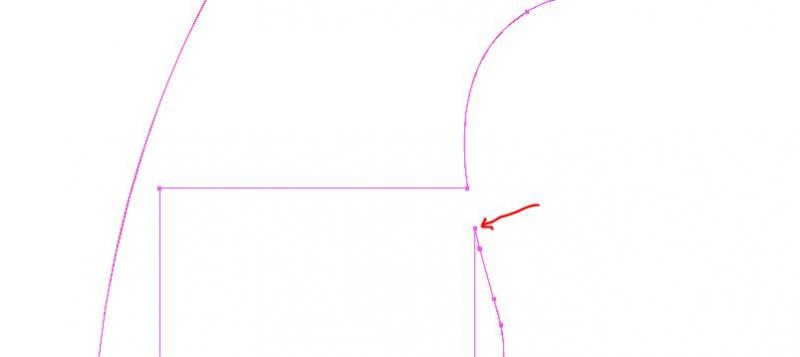

    I've used Effects>Stylize>Round Corners when I've got artwork with sharp corners that aren't going to cut cleanly. But it doesn't recognize really sharp corners like in the screenshot.

    Is there a way to get the effect to work with bends like this as well, or does it just need to be fixed manually?


    Attached Files:

    Tags:
  2. J Hill Designs

    J Hill Designs Major Contributor

    15,549
    16
    0
    Sep 24, 2004
    try to use the 'convert anchor point' thing on nodes that it wont work on

    edit: i guess it might not work on bezier curves...converting it using the tool turns it into a straight line

  3. mpn

    mpn Active Member

    737
    22
    18
    Aug 6, 2011
    Location
    Add an anchor point manually and put a small curve to it?

  4. MikePro

    MikePro Major Contributor

    4,979
    236
    63
    Feb 3, 2010
    Racine, WI
    i usually use a fillet tool via my Omega Composer or EnRoute, on the production-end. Which also allows me to specify inner/outer corners.

    but, when I do use illustrator for this, i usually just offset path-rounded.
    something along the lines of: offset path -.063, and then offset that new path +.063 rounded to obtain your final path.
    (values t.b.d., i usually just play with #'s until i get what I'm looking for since I'm in scaled artwork)

  5. Malkin

    Malkin Very Active Member

    2,188
    16
    38
    Feb 11, 2009
    Augusta, ME
    My technique is to set an inline (negative offset path) equal to the radius you wish to end up with on the corners. Then select that new line and set a positive offset path in the same amount and be sure to choose ROUND joins. Delete the original path and the temporary inset path and it should be set to go.

  6. mikeinpdx

    mikeinpdx Member

    81
    0
    6
    Feb 6, 2011
    portland
    Thanks!

    Thanks, everyone! I'll give these suggestions a try.

    In the meantime, I did some searching around and found some scripts that will do a good bit automatically. Looks pretty good so far. Check out the "round corners" script at http://shspage.com/aijs/en/#usage1

  7. toomeycustoms

    toomeycustoms Member

    205
    2
    16
    Nov 18, 2008
    Nor Cal
  8. The Vector Doctor

    The Vector Doctor Very Active Member

    3,496
    144
    63
    Aug 15, 2005
    Ohio

    Yes the new rounding corner works incredibly well. Probably the best single update they added to illustrator in a while. The adobe function is really useful when you want a bit more control plus it is editable. You can go back in and change those corners on the fly and watch it happen in real time


    I have not tried the rounding script from the script listed on that other webpage but have had great success with this script too. It is better when you want to apply the rounding to every single point at once.

    http://www.adobe.com/cfusion/exchange/index.cfm?event=extensionDetail&extid=1045709

  9. mikeinpdx

    mikeinpdx Member

    81
    0
    6
    Feb 6, 2011
    portland
    Yep, same guy, same script, different webpage :)

  10. TammieH

    TammieH Very Active Member

    1,087
    67
    48
    Nov 28, 2011
    Pacific NW


    +1, Exactly!
