SEAL 62 Pro S Laminator MSRP $21,500 / Selling: $9,400

Discussion in 'Member to Member Classifieds • For Sale' started by VisualArtsImaging, Oct 16, 2020.

  1. VisualArtsImaging

    VisualArtsImaging New Member

    12
    3
    3
    Nov 24, 2016
    Palm Springs, CA
    https://www.sealgraphics.com/us/us/5910/64296-us/seal-62-pro-s-laminator

    Video: https://www.sealgraphics.com/ajax/showVideo.aspx?id=255296

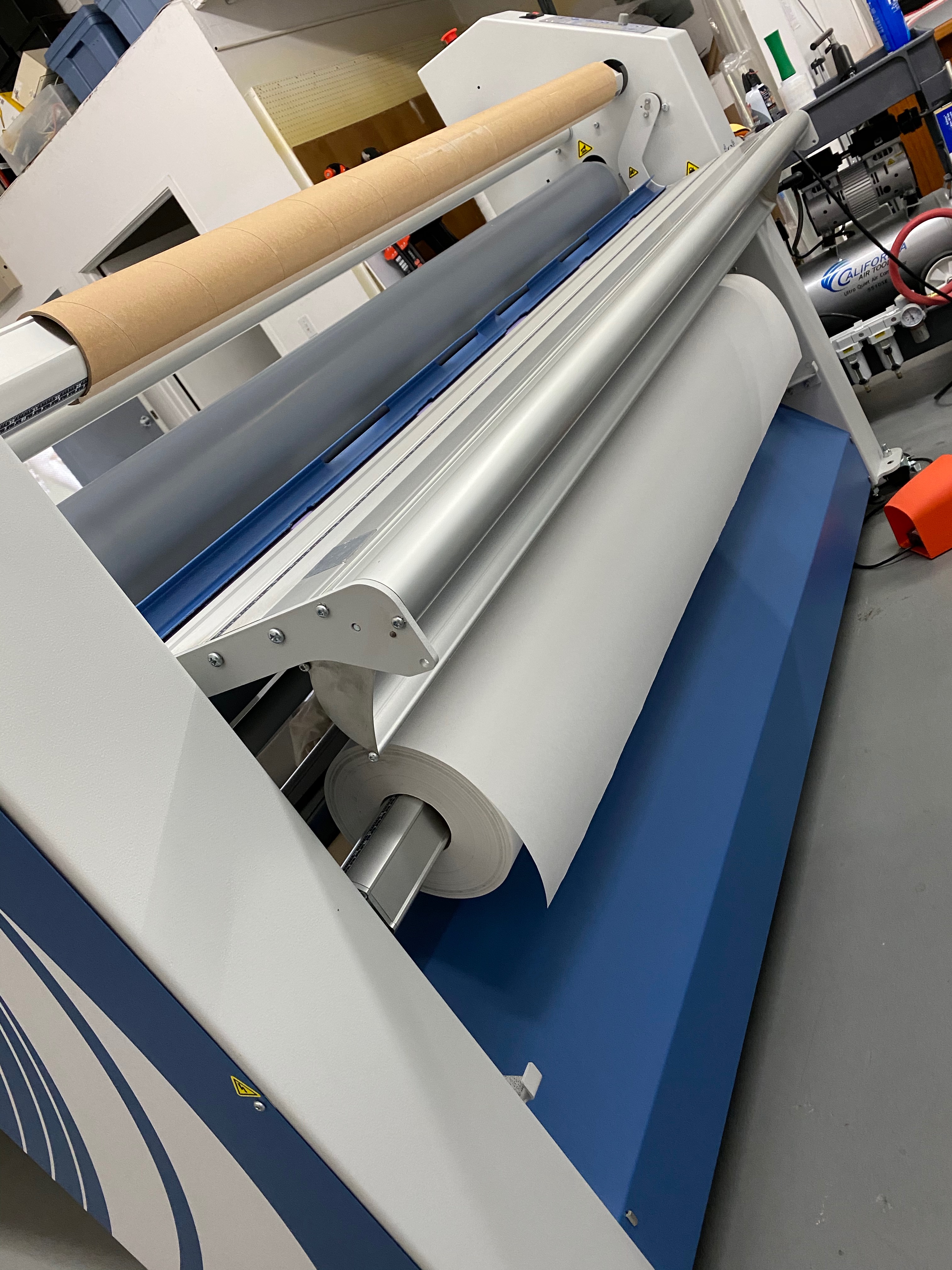

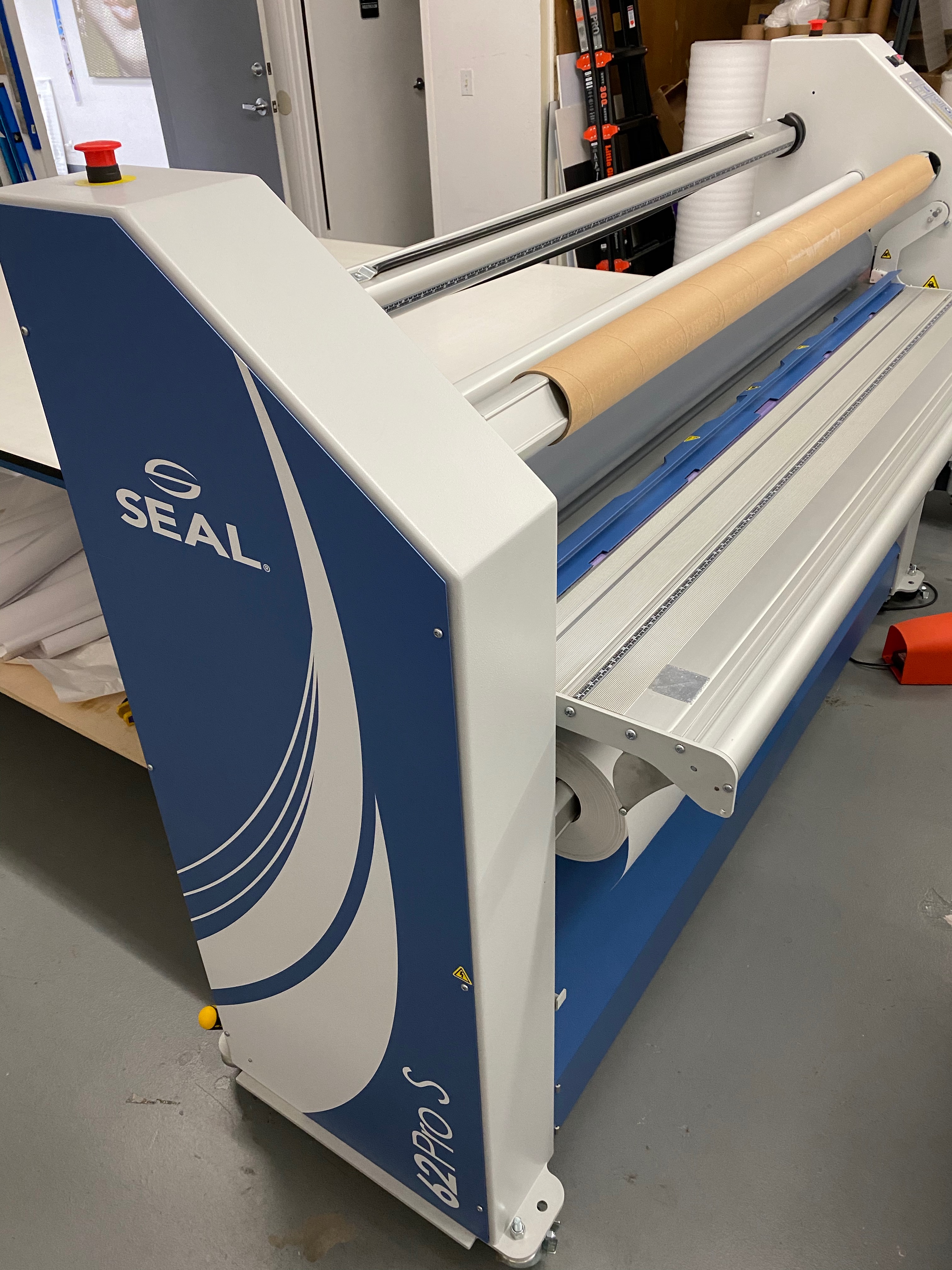

    The SEAL 62 Pro S is a 61" wide mounting laminator and encapsulator offering industrial performance at exceptional value. With fully adjustable top roller temperature, speed and pressure settings, the 62 Pro S is ideal for the more experienced operator. The 62 Pro is also ETL Certified in the US/Canada.

    Features
    • Heat assisted top roller for superb lamination performance
    • Laminates graphics up to 61" wide
    • Capable of laminating at speeds up to 20 feet/minute
    • 1 1/2" manual nip adjustment allows for precise operation and accommodates most substrates
    • Roll-to-roll operation (from bottom unwind) to accommodate applications including vehiclewraps
    • 14.28 lbf/in (2.5n/mm) line pressure for superior cold lamination
    • Lightweight drop-in supply shafts with auto-grip for easy loading of materials in tight spaces
    • Auto-grip upper take-up shaft for winding release liners
    • Exclusive ‘stay-put' swing up feed table keeps table up, making media handling and set-up a snap
    • Comprehensive safety system with emergency stops and self-checking safety eyes

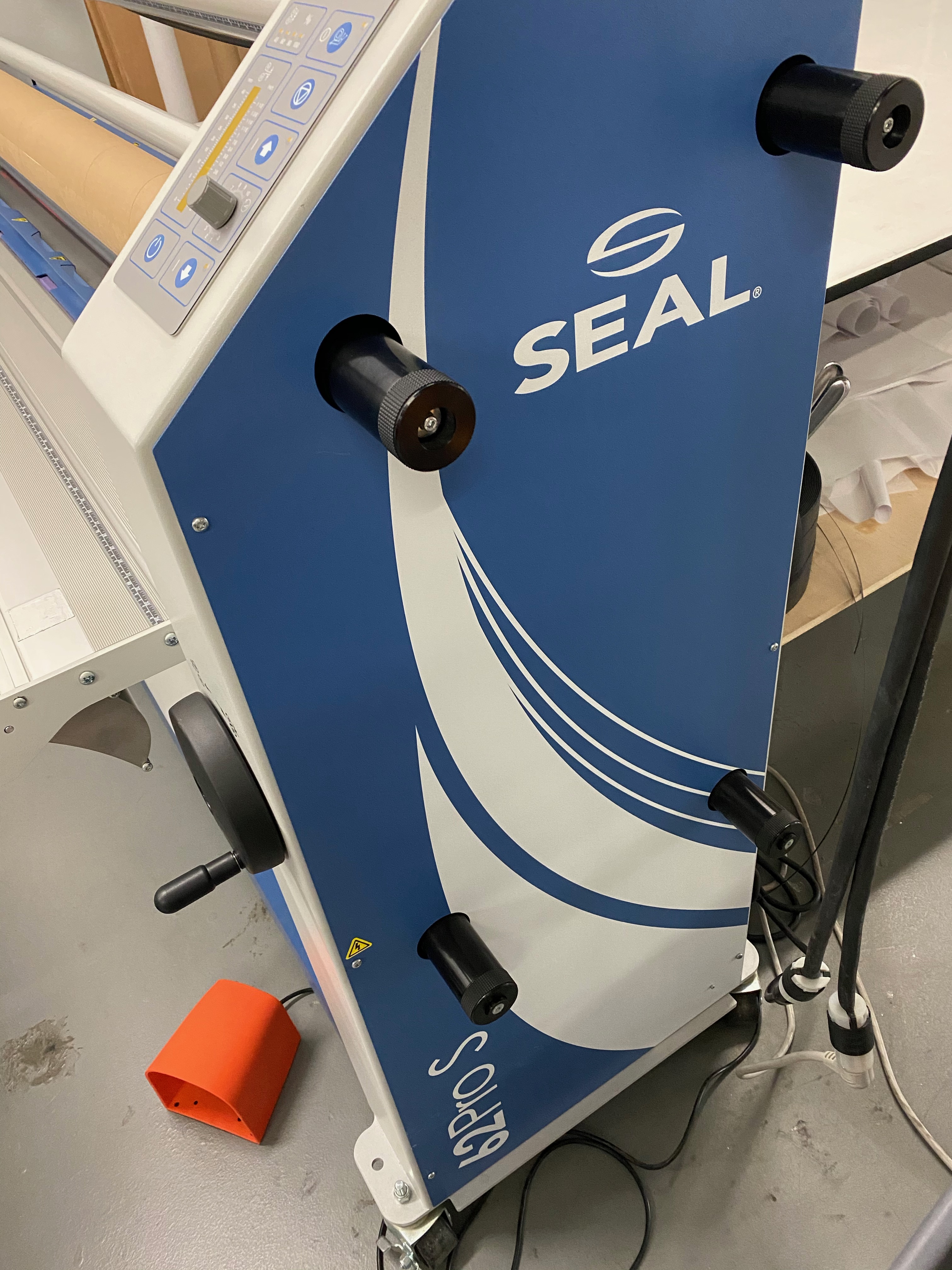

    • Foot switch for hands free operation

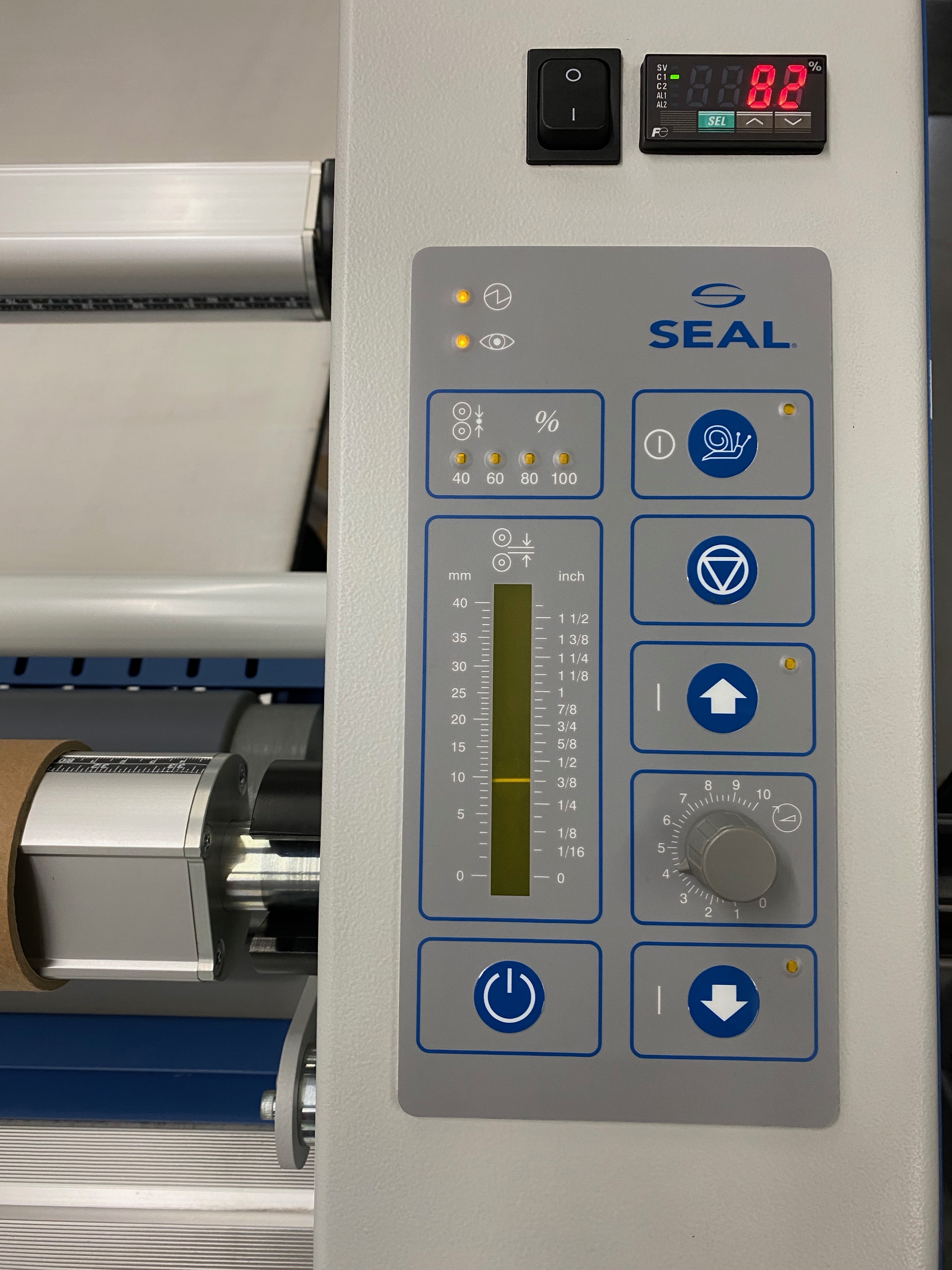

    • Ergonomic touch pad control panel
    • Included roll trough to keep rolled prints in place before and during lamination

    Specifications
    • Depth : 17.7" (450 mm)

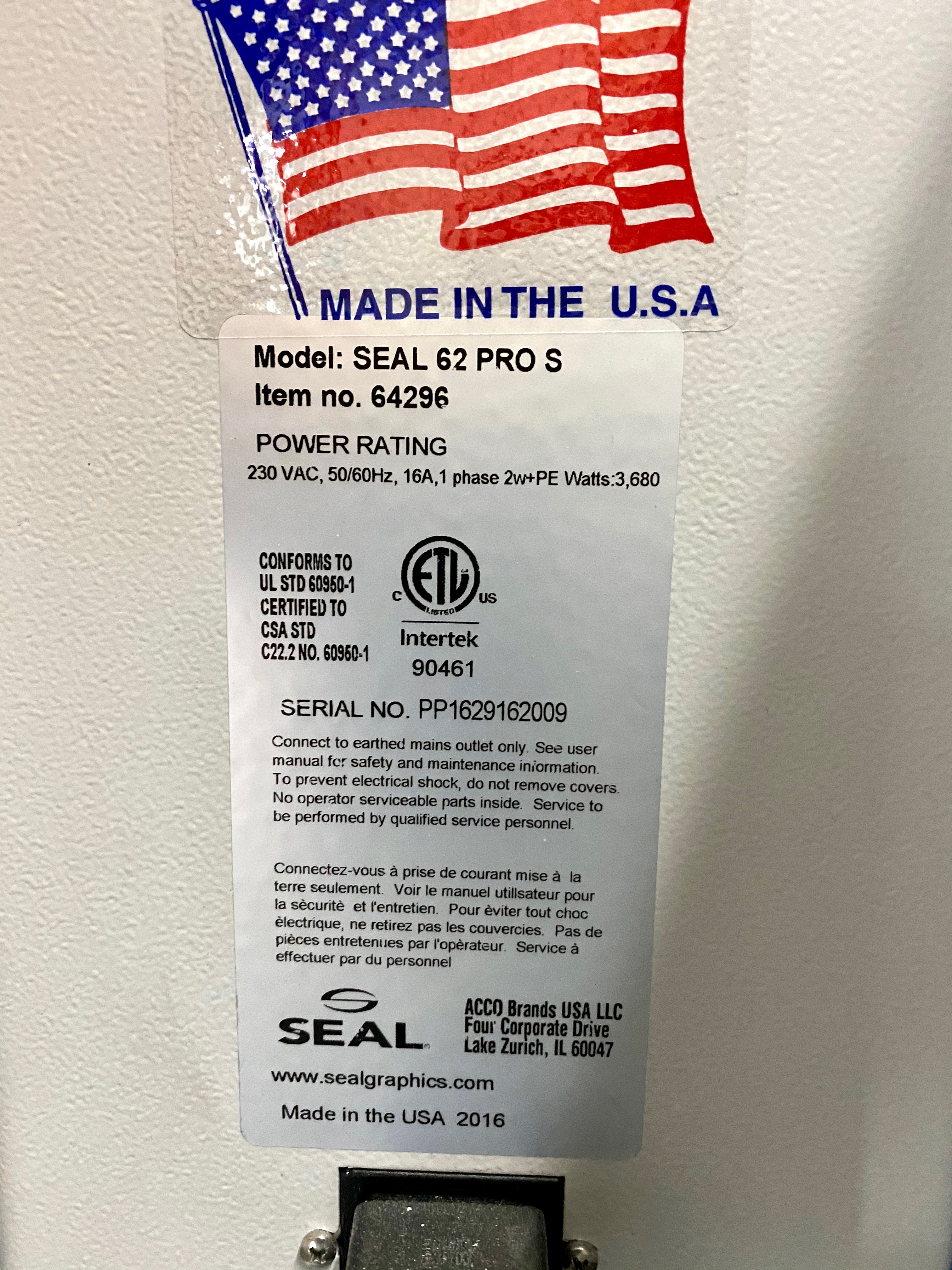

    • Electrical Requirements: 1N/PE 230VAC +/-10%, 50/60 Hz, 16A
    • Heated Rollers: Single
    • Maximum Roller Temperature: 284F (140C)
    • Maximum Speed: 20 ft/min (6m/min)
    • Maximum Substrate Thickness: 1 1/2" (38mm)
    • Maximum Working Width: 61" (1550 mm)
    • Weight: 850 lbs (386 kg)
    • Dimensions: 87.4" x 48.6" x 17.7" (2220 x 1234 x 450mm)
    • Film Type: Pressure Sensitive
    • Made in USA.
    While this unit is well cared for and runs perfectly, the roller has three years of wear and tear, but no blemish affects bonding performance. Additional pics available upon request.

    Lowered Price: $8,995 or best offer.


    Attached Files:

    Last edited: Nov 9, 2020
