Sending a print *then* cut job in onyx (with marks)

Discussion in 'Mimaki' started by iPrintStuff, Mar 30, 2020.

  1. iPrintStuff

    iPrintStuff Prints stuff

    653
    160
    43
    Sep 3, 2018
    United Kingdom
    So I’ve just switched to onyx on our mimaki. Managed to get a job to print and cut but it didn’t print the cut marks - just wondering if anyone can share how they have print and cut jobs set up on theirs? (It’s a CJV30)

    Tags:
  2. SignMeUpGraphics

    SignMeUpGraphics Moderator

    1,192
    249
    63
    Apr 11, 2012
    Australia

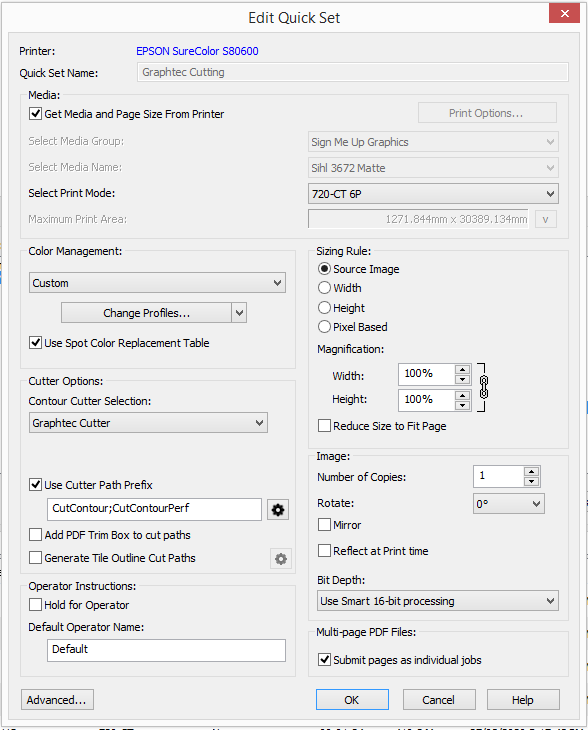

    We have a QuickSet that is used when we need to contour cut.
    You need to ensure that you have your cutter selected as well as the spot colour names/cutting path prefixes specified as the example below:


    • Like Like x 2
  3. iPrintStuff

    iPrintStuff Prints stuff

    653
    160
    43
    Sep 3, 2018
    United Kingdom
    Got all that, not new to cutcontour, just new to sending a print and cut file in onyx to a printer/cutter.

    Been running a Colorado and a summa on onyx for a year or so using the barcode server so haven’t had to print and cut a job in one swoop lol.

    currently managed to get it to print and cut a job, by selecting “by printer” in the cutter menu.

    and I can get it to print the marks by selecting “Mimaki cutter” but then it doesn’t actually cut.

    Never easy lol

  4. White Haus

    White Haus Formally known as RJPW..........

    442
    120
    43
    Apr 6, 2018
    Winnipeg

    Do you need the marks though if you're printing/cutting in one step? I know we were told to use cropmarks when printing/cutting on our UCJV (I guess they admit they're not accurate enough without cropmarks??) but we've always printed/cut on our Rolands without cropmarks with perfect accuracy. I can't say I've tried the print/cut route out of onyx before. Usually when we're printing out of onyx it's because we print on our Roland or Mimaki then cut on the Summa.

  5. iPrintStuff

    iPrintStuff Prints stuff

    653
    160
    43
    Sep 3, 2018
    United Kingdom
    It’s more of a backup than anything else, most of the jobs we run through the mimaki now are just print and cut, but in its old age it’s sometimes temperamental.

    I’d love to run these through the summa but the summa barcode basically means we’d only get 3 up instead of 4 as it needs about 1/2” at either side of the media and the artwork is already really tight.

    We also run thousands of these with unique info on them so adding the summa marks as an extra step isn’t really an option.

    Ran a good few today though and no issues without the print and cut, would just be ideal to have the marks as a backup!

  6. hazartilirot

    hazartilirot Member

    74
    7
    8
    Sep 23, 2018
    Ukraine
