Need Help SP-540 Head not firing after installing new DX4 Manifold

Discussion in 'Roland' started by Creative Dept, Mar 4, 2020.

  1. Creative Dept

    Creative Dept New Member

    2
    0
    1
    May 19, 2015
    Australia
    HELP!!!
    I`ve replaced head manifold & am having problems. It was printing in the morning but after running cleaning solution through the lines like I do every month or so, my Black/Cyan head is not firing. See test print image.
    I've been told I may have blown the external fuse, I've checked the fuses in the image below and they look to be intact. Any help would be greatly appreciated.

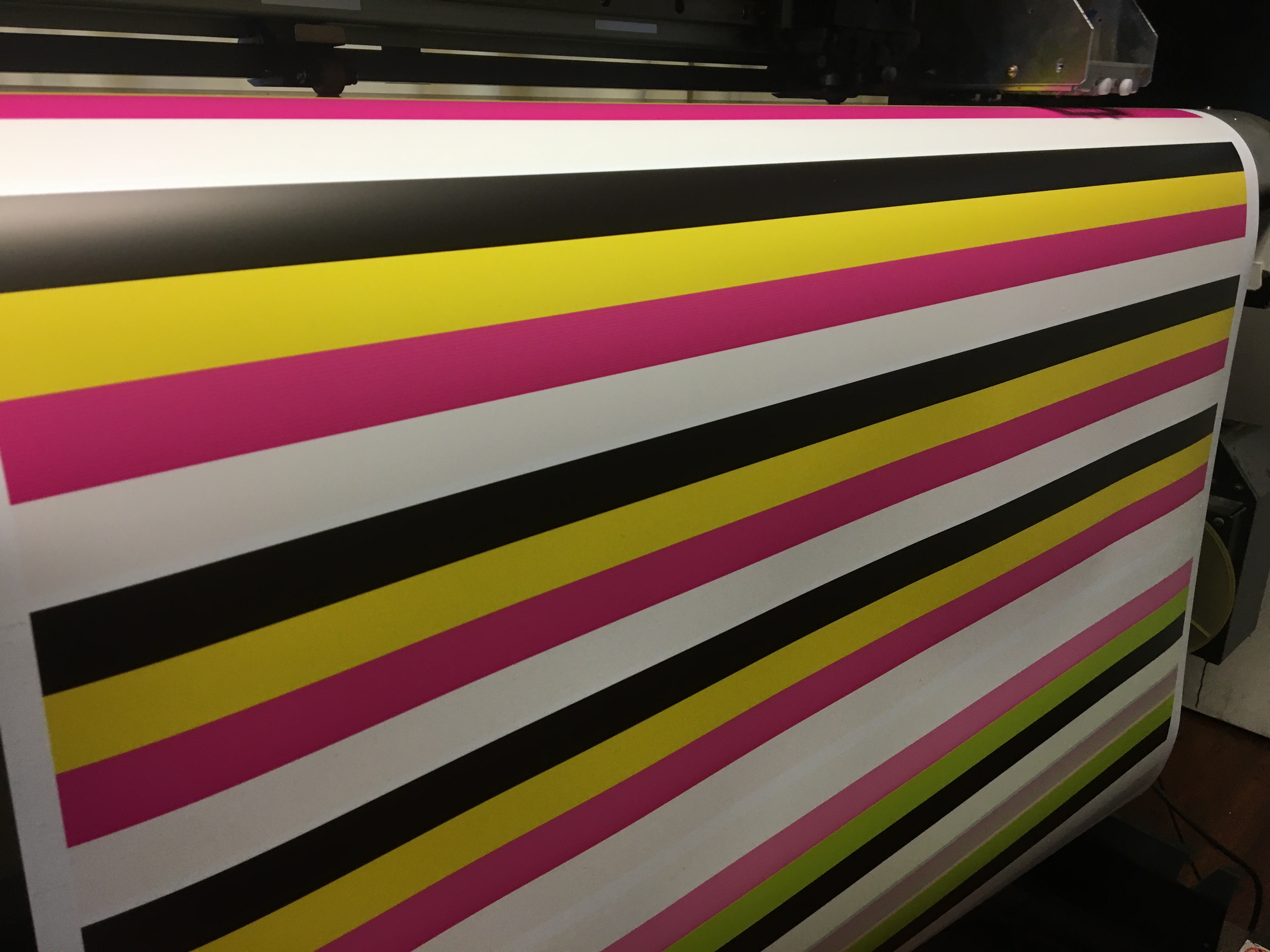

    1st image is of my own CMYK test print I do with the broken manifold missing Cyan.

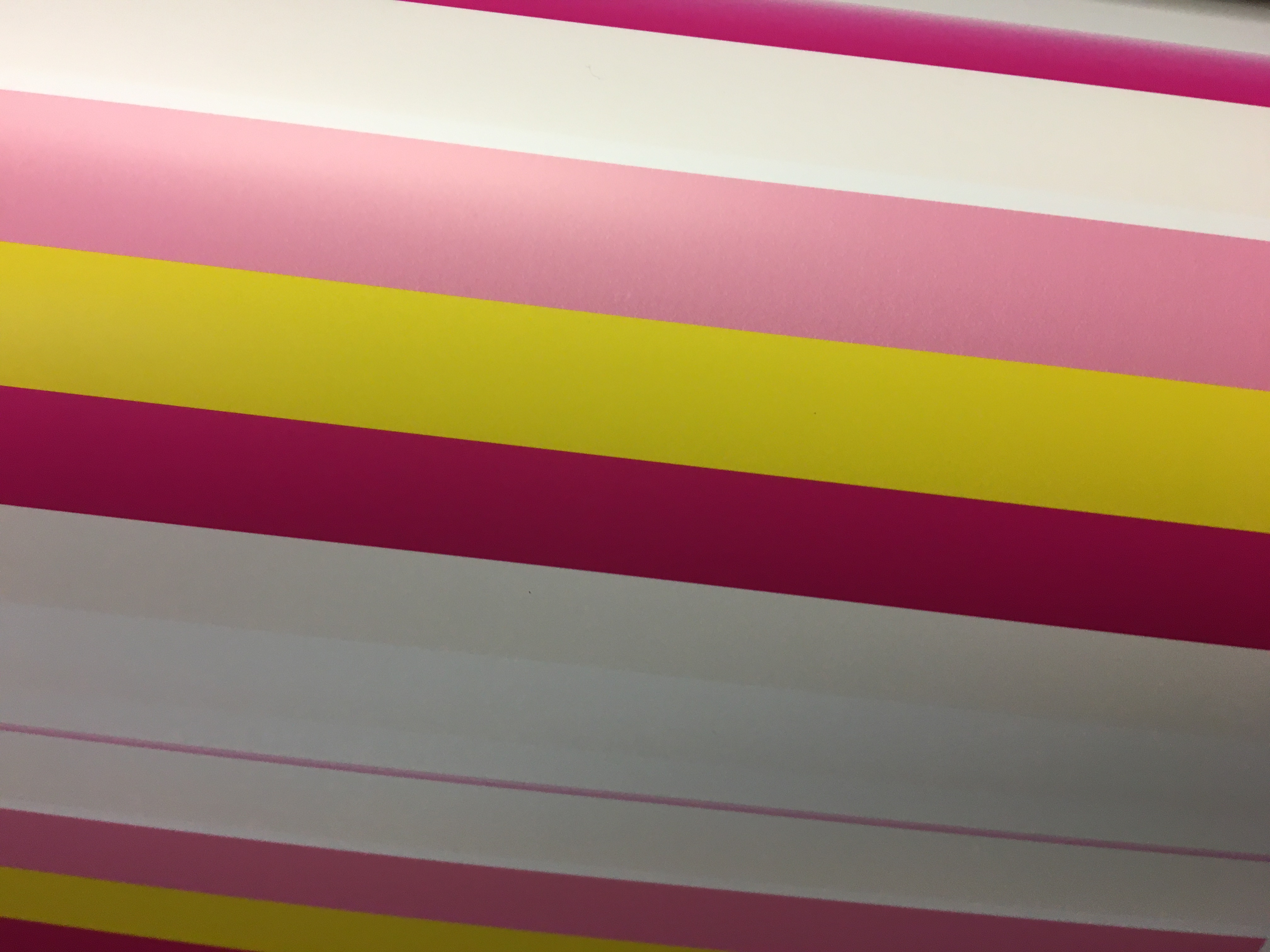

    2nd image is same CMYK test print with Blk/Cyan head not firing and looking like I'm running light magenta

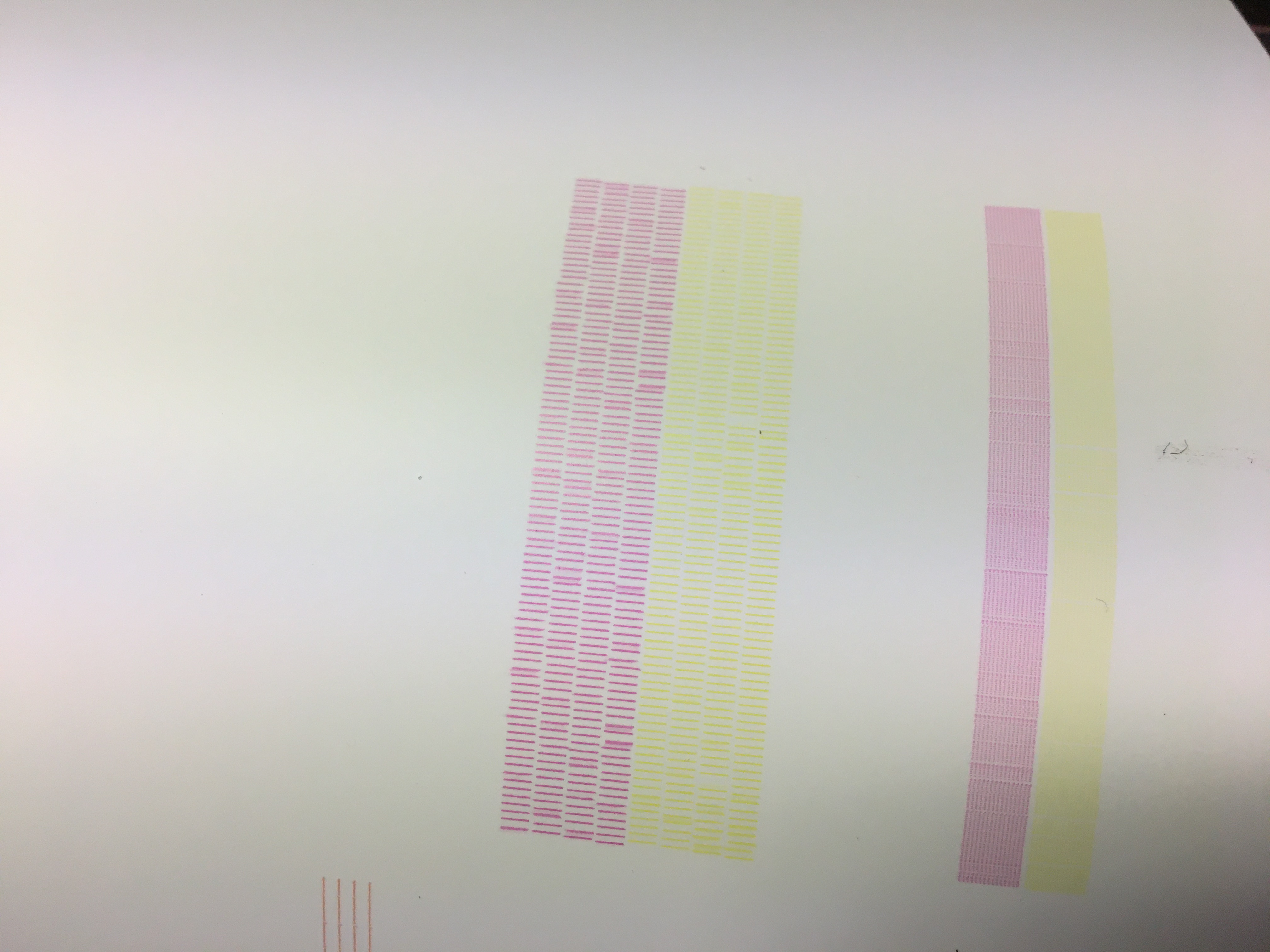

    3rd image is yesterdays test print via machine

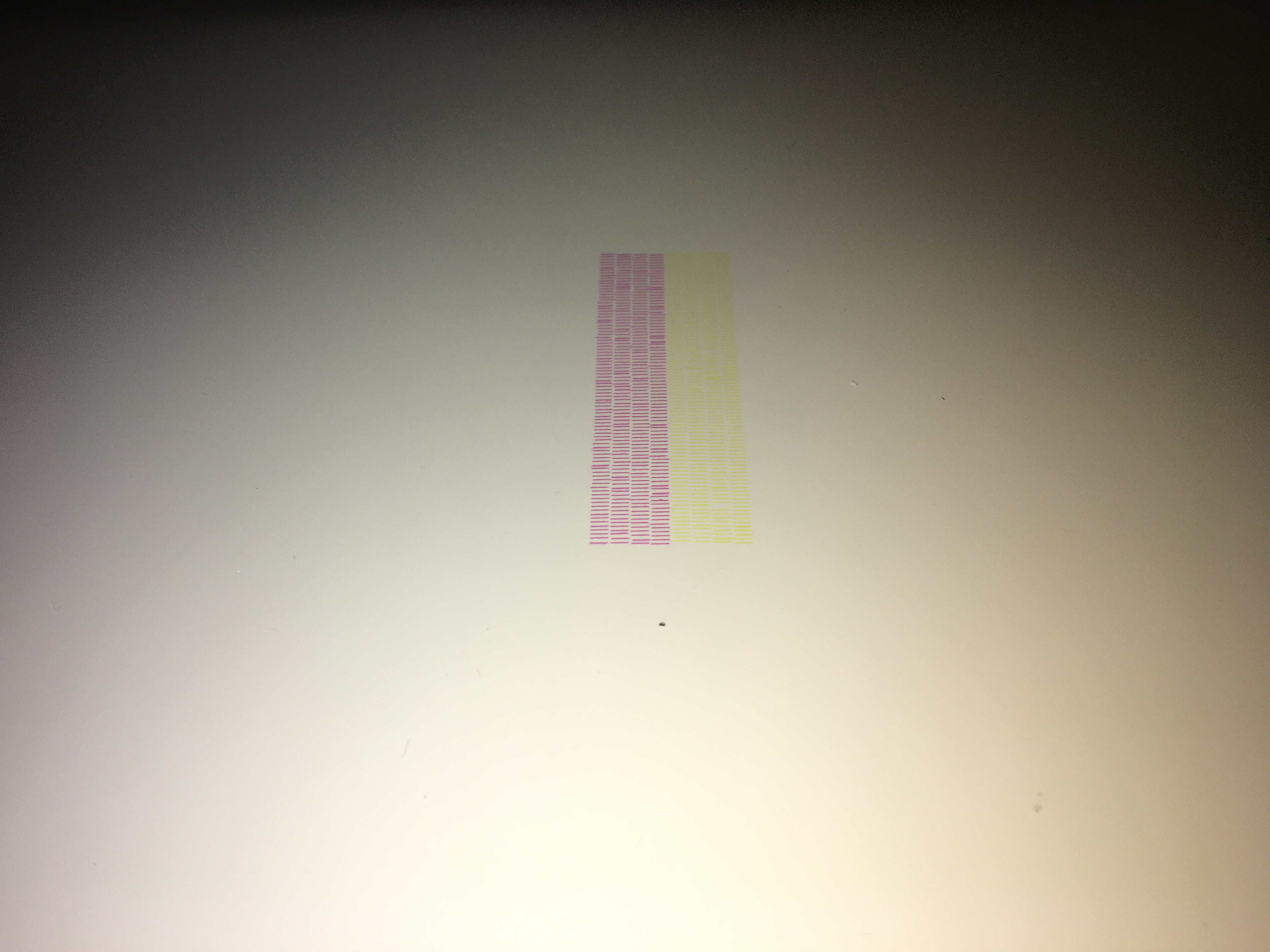

    4th is this mornings test print via machine

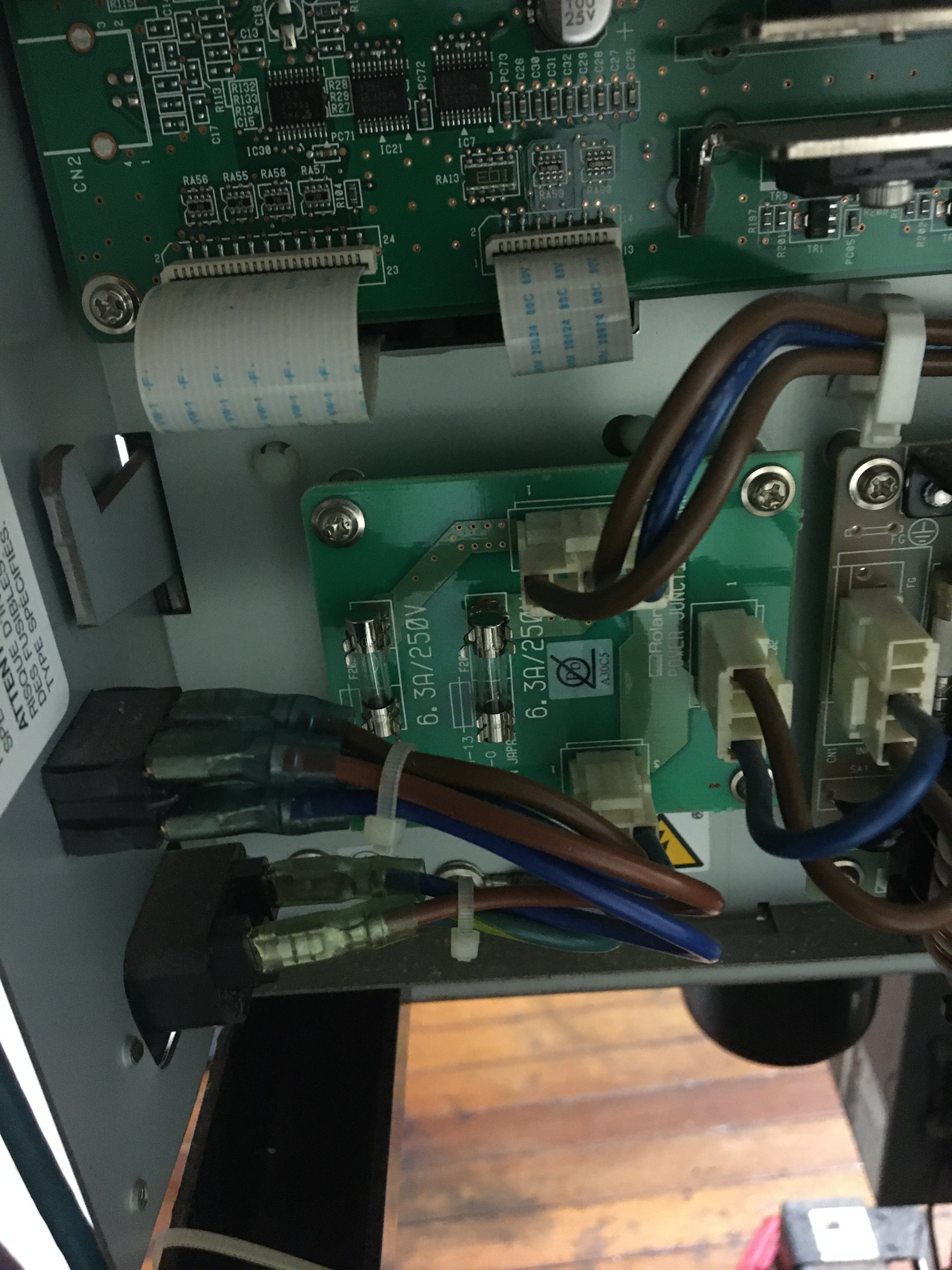

    5th is what I'm thinking are external fuses but can't seem to locate fuses on the main board ( Part number )
    F2 22555109 FUSE,CCF1NTE1.6 FUSE for HEAD BK&CY


    Attached Files:

    Tags:
  2. C5 Service&Repair

    C5 Service&Repair Member

    306
    38
    28
    Jan 14, 2018
    Omaha, NE
    I'm guessing this is a SP(i) machine. The fuses you have pictured are for the heaters and not the heads. On the SP models, the fuses are soldered onto the board and are not serviceable without unsoldering and resoldering new ones in.
    Is there cyan/black ink leaking onto the head? If everything is reassembled correctly, and there is no air leak, I would guess you need to re-prime the dampers.

  3. hand851

    hand851 Roland Mutoh & Mimaki inks digiprint-parts.com

    182
    16
    18
    Nov 22, 2010
    Columbus, Ohio
    Un plug printer from power check F2 F3 with a VOM lower right corner of main board.. You can solder a new fuse on top the fuse that is blown (probably F2)

  4. player

    player Major Contributor

    4,912
    186
    63
    Apr 24, 2006
    Toronto
    When my fuses blew I ran wires from the fuses to new fuse holders so I could change them out in the future. Must be able to solder though.

    • Like Like x 1
  5. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,189
    783
    113
    Aug 2, 2011
    Denver, CO
    I have the fuses and fuse holders available on my site here. The holder makes it easier to change in the future if needed.

  6. signage

    signage Major Contributor

    9,517
    75
    48
    Oct 5, 2005
    Penn
    But they better have good to above average soldering skills to install it without causing additional issues.

  7. Jim Hill

    Jim Hill Active Member

    C5 Service and Repair wrote the following, On the SP models, the fuses are soldered onto the board and are not serviceable without unsoldering and resoldering new ones in.

    What I did with my SP when a fuse blew on the on the head.
    I went to the auto parts store and purchased an inline fuse holder and then I soldered the end of it and then I took the wire and touched in the correct fuse and touched quick with the soldering iron and has worked perfectly for the past five years.
    Now if a fuse blows again it is a simple matter of changing the fuse.
    Make sure you purchase the correct fuse from Roland first.

    Hope that helps. Jim
