Stretching the image?

Discussion in 'Vehicle Graphics' started by Annette Asberg, Jul 16, 2019.

Tags:
  1. Jul 16, 2019 #1
    Annette Asberg

    Annette Asberg Member

    87
    11
    8
    Sep 20, 2018
    Aliso Viejo Californien

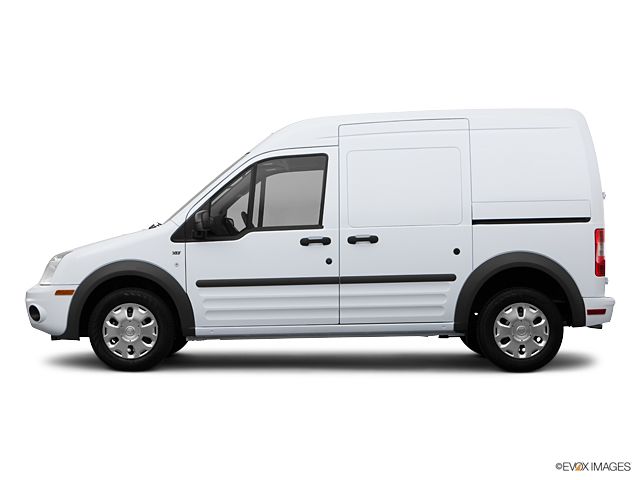

    My client wants his Ford Transit Connect wrapped. As you can see in the photo, the lower part of the body has a number of horizontal grooves. For the wrap to look good I believe I need to stretch the image in Illustrator before I rip and print. Can you give me some tips on how this best is done?
    Is there a formula that can be used to calculate how much "stretch" that needs to be done? Any tips are welcome! Ford.jpg

    Tags:
    • Hilarious! Hilarious! x 2
  2. Jul 17, 2019 #2
    SignosaurusRex

    SignosaurusRex Major Contributor

    8,595
    514
    113
    Mar 7, 2007
    Washington State
    Are you serious? Don't worry about it. You are over-thinking the small stuff. STOP IT! Your cast wrap material will stretch into the indentations without issues.

    • Agree Agree x 3
  3. Jul 17, 2019 #3
    C5 Service&Repair

    C5 Service&Repair Member

    328
    42
    28
    Jan 14, 2018
    Omaha, NE
    be sure to post heat after stretching

    • Like Like x 1
  4. Jul 17, 2019 #4
    Annette Asberg

    Annette Asberg Member

    87
    11
    8
    Sep 20, 2018
    Aliso Viejo Californien
    Thanks I always do

  5. Jul 17, 2019 #5
    JulieS

    JulieS Member

    89
    10
    8
    Jan 15, 2011
    Columbia, SC
    Hooray for perfectionism! You go, girl! :)

  6. Jul 17, 2019 #6
    Johnny Best

    Johnny Best Very Active Member

    3,567
    2,006
    113
    Dec 9, 2015
    buffalo ny
    If you still feel you need a math formula.a-b= c
    Measure from top to bottom with tape measure, write that down. Now take a strip of masking tape and follow in curves from top to bottom. After you pull it off and adhere it to a flat surface. Measure the length of that. Tape is a, tape measure length is b, a minus b = stretch

  7. Jul 17, 2019 #7
    Texas_Signmaker

    Texas_Signmaker Very Active Signmaker

    4,740
    1,744
    113
    Oct 21, 2016
    Frisco, TX
    Don't worry about it. The material will stretch to fill in those grooves on their own. Only time you'd want to consider this is on a bus or something corrugated.

  8. Jul 17, 2019 #8
    jfiscus

    jfiscus Map Wraster

    3,203
    242
    63
    Apr 2, 2009
    Cincinnati, OH
    That is not the proper install method for that type of groove. This is more of a bridge, heat, press in type of install as these are not deep grooves so no extra material is required.

    • Agree Agree x 2
