SUMMA D140 HELP

Discussion in 'General Signmaking Topics' started by Chris - Charlotte, Oct 1, 2020.

Tags:
  1. Chris - Charlotte

    Chris - Charlotte New Member

    10
    2
    3
    Jan 28, 2020
    Charlotte, NC
    Need some serious help. under the gun and I can not figure out what the problem is with our D140. Cutting a job that is segmented into 10 18" sections. Reading the XY not using the OPUS barcode. It will go through the first few segments, then not read the registration marks. Will unroll and reroll rotate the cut and will have same issue in a new segment. Sensor strip does not appear to damaged. Cleaned all sensors, put in new blade, ran opus calibration, ran media calibration. Any ideas out there?

    Tags:
  2. Chris - Charlotte

    Chris - Charlotte New Member

    10
    2
    3
    Jan 28, 2020
    Charlotte, NC



    video of it happens , no error code just "place tool above mark" and it will not read

  3. Sean@CedarHouse

    Sean@CedarHouse Printing Money

    16
    1
    3
    Sep 22, 2020
    Beaverton Oregon
    I think your mark is moving outside the pinch roller. Your pinch rollers on the outside need to be outside of your reg marks. That's what happens to me when I get that error.

  4. PHILJOHNSON

    PHILJOHNSON Sales Manager

    1,036
    61
    48
    Jul 23, 2010
    Seattle, WA
    Good afternoon,

    I would agree with Sean that you should move your pinch rollers outside the registration marks and closer to the edge of your media. In the video it appears the rollers are a couple inches from each edge and usually you will want to set those about a half inch from each edge. If you plan on leaving the rollers in the same position with the marks outside the rollers then you will want to turn on the extended load feature so the cutting head moves far enough over to detect all the marks in the job.

    Best regards,

    Phil Johnson
    Airmark Corporation
    (800)527-7778, ext 112
    philj@airmark.com

  5. Chris - Charlotte

    Chris - Charlotte New Member

    10
    2
    3
    Jan 28, 2020
    Charlotte, NC

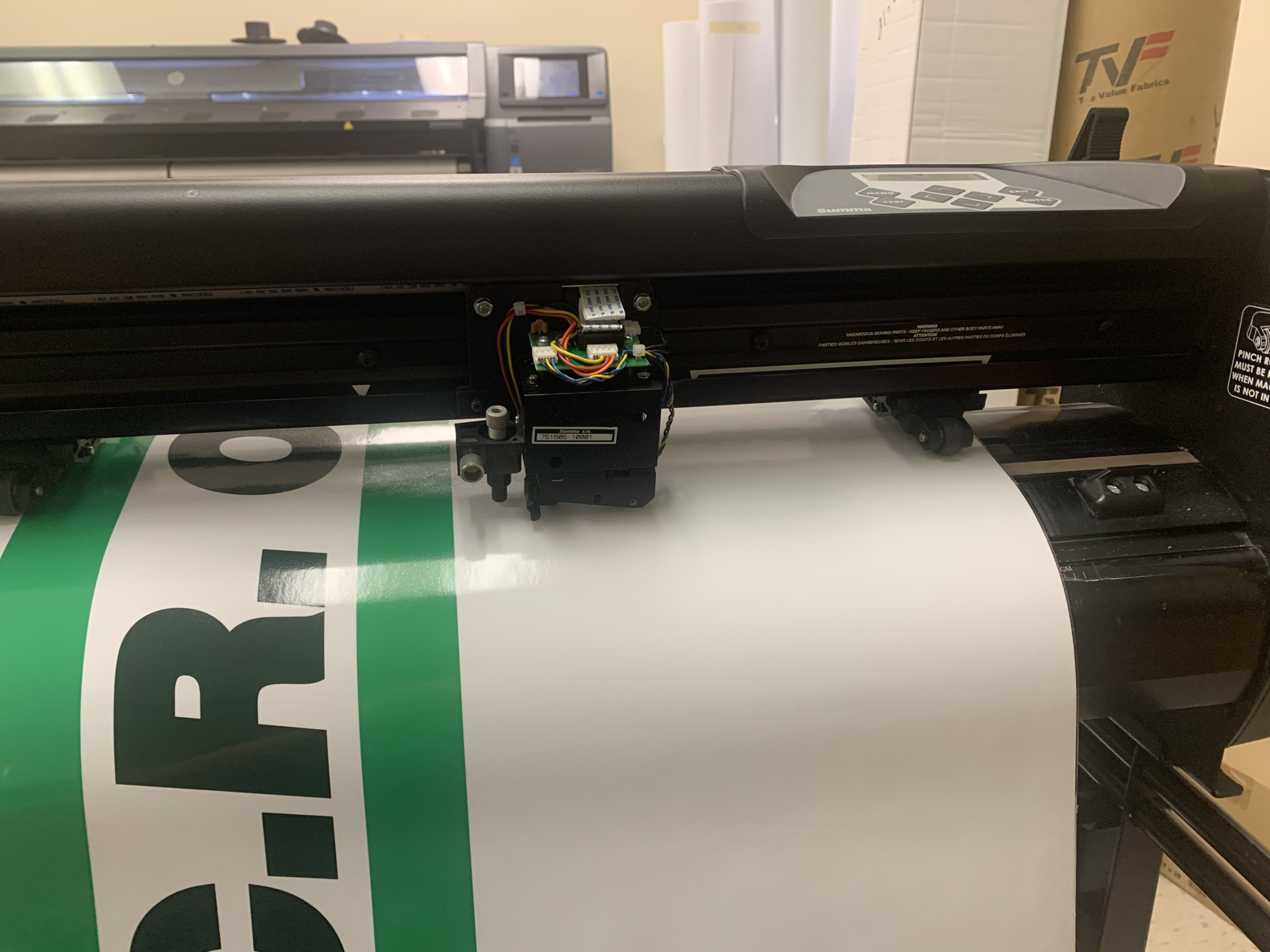

    Thanks Sean & Phil. I reprinted the jobs and still failing on the 4th panel. What am I missing? Could the sensor be going bad?


    Attached Files:

  6. Sean@CedarHouse

    Sean@CedarHouse Printing Money

    16
    1
    3
    Sep 22, 2020
    Beaverton Oregon
    Are you putting the blade over the reg mark? Is it not reading the mark at all? You might clean the sensor with something soft and clean (no liquid needed) to see if there is something there, although if it's reading the first few panels and not the 4th then I'm still thinking it's an alignment issue and the pinch rollers are too close to the reg mark.

  7. Chris - Charlotte

    Chris - Charlotte New Member

    10
    2
    3
    Jan 28, 2020
    Charlotte, NC
    Yes the blade is over the registration mark. It is sporadic, it will read the registration marks then stop reading the registration marks on a random panel. I spoke with 2 summa techs this week about it and I quote from both "we have not seen this issue before, we suggest cleaning the camera, sensors, drive wheels, run OPUS calibrations and media calibrations. Then try again". I moved the pinch rollers outside the registration marks between roughly .5" - .75" from the edge of the substrate per Phil's suggestion. And it failed 4 times on the 5th attempt it cut the entire job without failure. No setting changed, just kept re-cutting. Frustrating to say the least because it is costing me tons of time and money, with miss cuts and reprints. Could the camera assembly be shorting out or going bad? That is what I am leaning to right now.

  8. Sean@CedarHouse

    Sean@CedarHouse Printing Money

    16
    1
    3
    Sep 22, 2020
    Beaverton Oregon
    Oh man that sounds so frustrating! There is an adjustment for the sensor. Mine is under OPOS menu. This has happened to me on some very glossy, chrome, reflective materials but my work around is scotch tape. Matte finishes seem to make it work better. Maybe Phil has more suggestions.

  9. chester215

    chester215 Just call me Chester.

    376
    45
    28
    Sep 29, 2011
    Naugatuck, CT
    When ours is not reading the registration marks it is usually because a bump in the vinyl pushes the opus sensor up and it will not read, we just manually push down on the small tab that sticks out of the sensor so the sensor is in contact with the vinyl and have it try again.

  10. Sean@CedarHouse

    Sean@CedarHouse Printing Money

    16
    1
    3
    Sep 22, 2020
    Beaverton Oregon
    Oh yeah! I forgot that has happened to me too. Good call.

  11. Chris - Charlotte

    Chris - Charlotte New Member

    10
    2
    3
    Jan 28, 2020
    Charlotte, NC
    Spoke with someone near me today that had similar issues with this on his F series 1612. He was having registration issues and misreading of OPUS marks out of the blue like I am experiencing. He was running windows 7, like I am. Upgraded to windows 10 and the issues went away. Going to try that and update next week. Time for a cold one after this week
