Summa not cutting properly

Discussion in 'Summa' started by eahicks, Sep 24, 2019.

  1. Sep 24, 2019 #1
    eahicks

    eahicks Magna Cum Laude - School of Hard Knocks

    2,500
    356
    83
    Apr 17, 2012
    DALLAS, TEXAS
    So we have a fairly new S2 160 T. I am cutting a black vinyl grid to apply to a dry erase board.
    We do these all the time. Suddenly having this issue.. all my lines, which are correct and even thickness in the file, are coming out thicker in parts, way too thin in other parts. So it appears the vinyl is shifting somehow. I am using all 4 pinch rollers, and I have slowed the machine way down to cut it very slow and I'm watching as it cuts. I can't figure where it's going wrong. I have attempted 5 times (these are 4'x 8' btw, so imagine how much vinyl I am wasting.) NEVER had this issue, even on our old crappy Q54.

    ANY IDEAS??

    Tags:
  2. Sep 24, 2019 #2
    rjssigns

    rjssigns Major Contributor

    5,201
    547
    113
    Jun 4, 2007
    Home Office
    Didn't mention if it was random or repeatable(same spot every time). Blade holder or carriage may be loose. Could be an issue with the bearings in blade holder.

    Just because something is new doesn't exclude it from being broken.

  3. Sep 24, 2019 #3
    gabagoo

    gabagoo Major Contributor

    5,772
    113
    63
    Oct 10, 2006
    Vaughan, Ontario
    Make sure it is sequencing the cuts and not going back and forth

    • Like Like x 1
  4. Sep 24, 2019 #4
    eahicks

    eahicks Magna Cum Laude - School of Hard Knocks

    2,500
    356
    83
    Apr 17, 2012
    DALLAS, TEXAS
    Well it's hard to sequence these cuts...mostly long lines. So there is a bit of back and forth. It's cutting like the vinyl is not tracking straight from one end to the other, but Im watching it and it's not moving side to side.

  5. Sep 24, 2019 #5
    eahicks

    eahicks Magna Cum Laude - School of Hard Knocks

    2,500
    356
    83
    Apr 17, 2012
    DALLAS, TEXAS

  6. Sep 24, 2019 #6
    eahicks

    eahicks Magna Cum Laude - School of Hard Knocks

    2,500
    356
    83
    Apr 17, 2012
    DALLAS, TEXAS

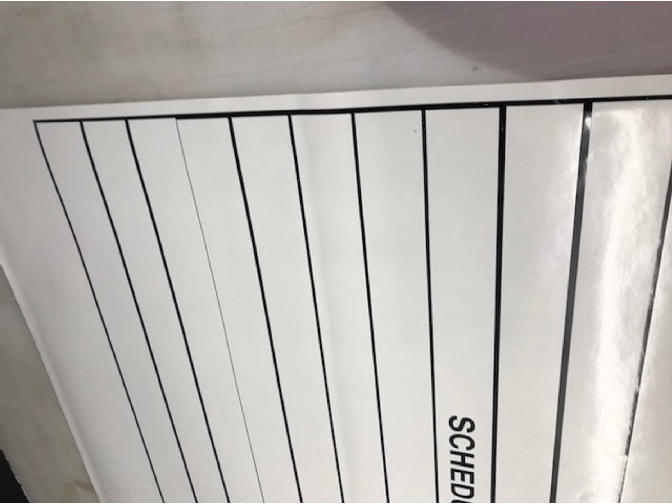

    try again


    Attached Files:

    • OMG / Wow! OMG / Wow! x 2
  7. Sep 25, 2019 #7
    gabagoo

    gabagoo Major Contributor

    5,772
    113
    63
    Oct 10, 2006
    Vaughan, Ontario
    That is awful!!! You could print the graphics and laminate with write erase laminate

    • Like Like x 1
  8. Sep 25, 2019 #8
    FrankW

    FrankW Very Active Member

    1,325
    136
    63
    Oct 19, 2008
    Germany
    Check if Autoload is enabled. If it is disabled, enable it. Do you use a heavy roll, but don't use the media flanges? Check if the pinch rollers are ok. Does you set the outer pinch rollers to lower pressure?
