Timber Frame Questions

Discussion in 'Dimensional Signs' started by 3Dsigns, Jan 18, 2019.

  1. 3Dsigns

    3Dsigns Member

    119
    17
    18
    Oct 22, 2010
    NW Florida

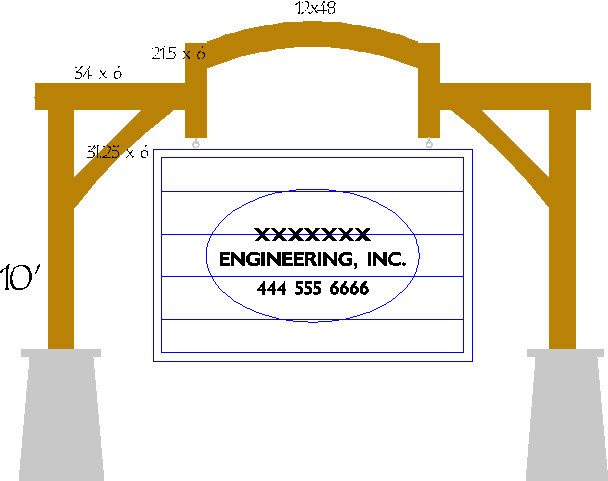

    Alday Frame1.JPG Alday Frame1.JPG

    For anyone who has built a timber-frame sign structure; If you made this frame out of 8''x8'' pressure treated pine timbers, what kind of joints would you use? Lap joints?
    Also, the arch will need to be from laminated 8x8's. Have you ever used Gorilla Glue to laminate PT wood? What about West Systems epoxy? Or would I be better off using cedar for the arch? Thanks

    Tags:
  2. spectrum maine

    spectrum maine Member

    268
    48
    28
    Nov 1, 2012
    biddeford, maine
    as long as the pt is dry, no problems, the arch is going to need some mechanical fasteners unless you laminate from 1/4 by 8" strips.

    • Like Like x 1
  3. rjssigns

    rjssigns Major Contributor

    5,331
    592
    113
    Jun 4, 2007
    Home Office
    I'd check here: https://bensonwood.com/timberframe/

    Maybe have them build a kit?

    Lot's of stress points etc...not something I'd be messing with. Once you pull the permit you "own" the sign.

    • Like Like x 1
  4. 3Dsigns

    3Dsigns Member

    119
    17
    18
    Oct 22, 2010
    NW Florida
    And I'm going to need to borrow a bigger bandsaw, than the one I have, to cut it out with.

    Last edited: Jan 18, 2019
  5. Johnny Best

    Johnny Best Very Active Member

    3,691
    2,082
    113
    Dec 9, 2015
    buffalo ny
    Mortise & Tenon on all your joints with wooden dowels.

    • Like Like x 3
    • Agree Agree x 3
  6. ddarlak

    ddarlak Trump Hater

    i understand trying to make a statement with the sign posts, but i find the design both unattractive and a disaster of an engineering job. especially for an engineering company sign.

    • Like Like x 3
    • Agree Agree x 1
  7. neato

    neato Very Active Member

    2,139
    284
    83
    May 16, 2003
    Henderson, IL
    I have to agree with ddarlak. The arch above with the rectangle sign looks a bit like someone is trying to reuse an old structure that doesn't fit the new sign. Maybe the rectangle is just a place holder for a different shape?

  8. Billct2

    Billct2 Major Contributor

    7,597
    685
    113
    Mar 12, 2005
    New England
    I'm not sure about that framing detail. I did a quick search for similar shapes and they all seem to have a peak as part of the structure. And I agree, with all the detail in the frame I hope the sign shape and details are similar


    Attached Files:

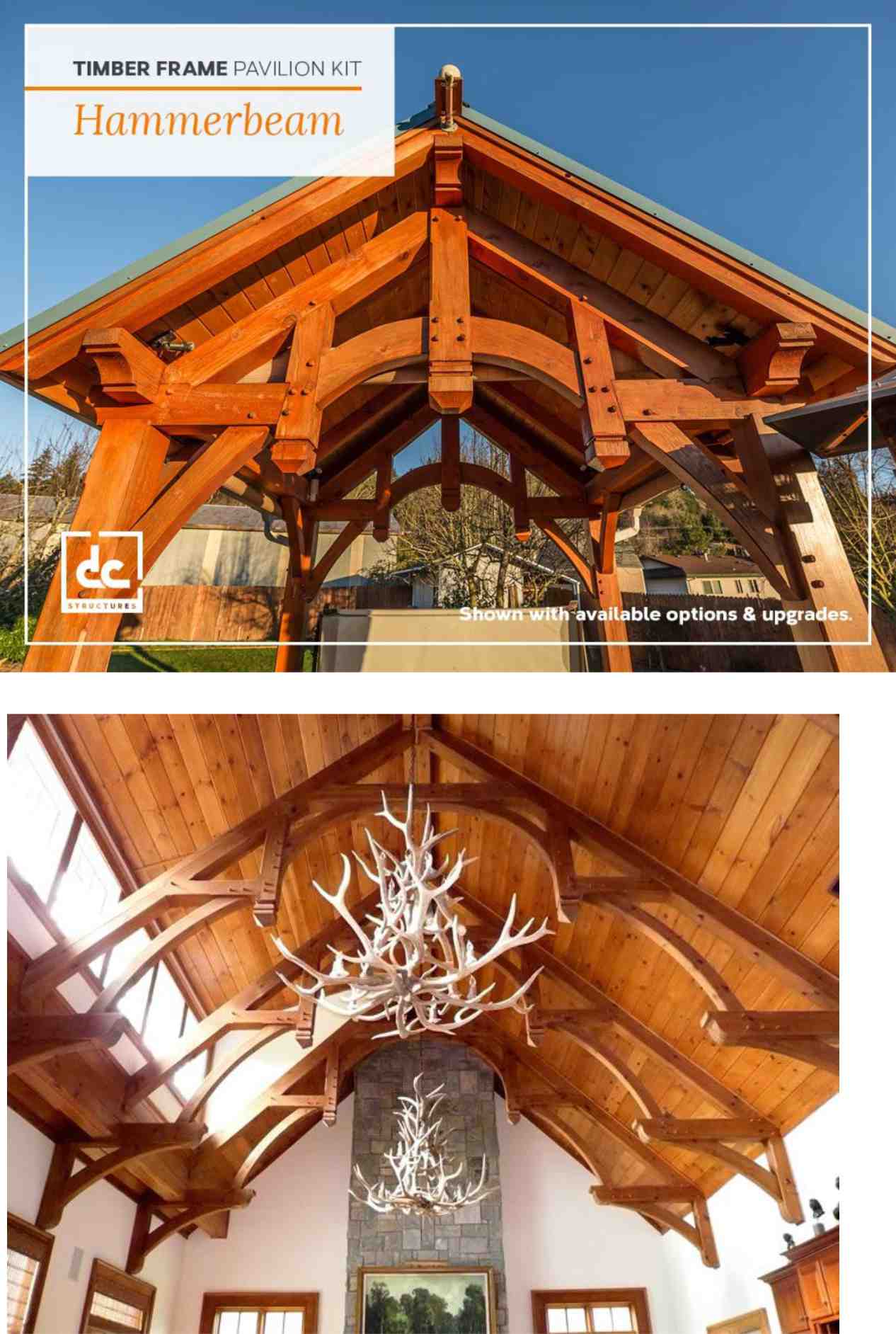

    • 1a.jpg
      File size:
      146.1 KB
      Views:
      100
  9. Johnny Best

    Johnny Best Very Active Member

    3,691
    2,082
    113
    Dec 9, 2015
    buffalo ny
    If made right with tendons and mortise, it would look great for an engineering company to have. It could be unattractive and a disaster if made wrong and the use of hardware and if lap joints are used they should be hidden as with good carpentry would do because you would be using long screws or nuts and carriage bolts holding lap joints together.

  10. ddarlak

    ddarlak Trump Hater

    i guess you could look at it that way, if it was built right, it would be an engineering feat, but it still would look butt ugly

    • Agree Agree x 1
