Time to research a plotter?

[MGB_LE]

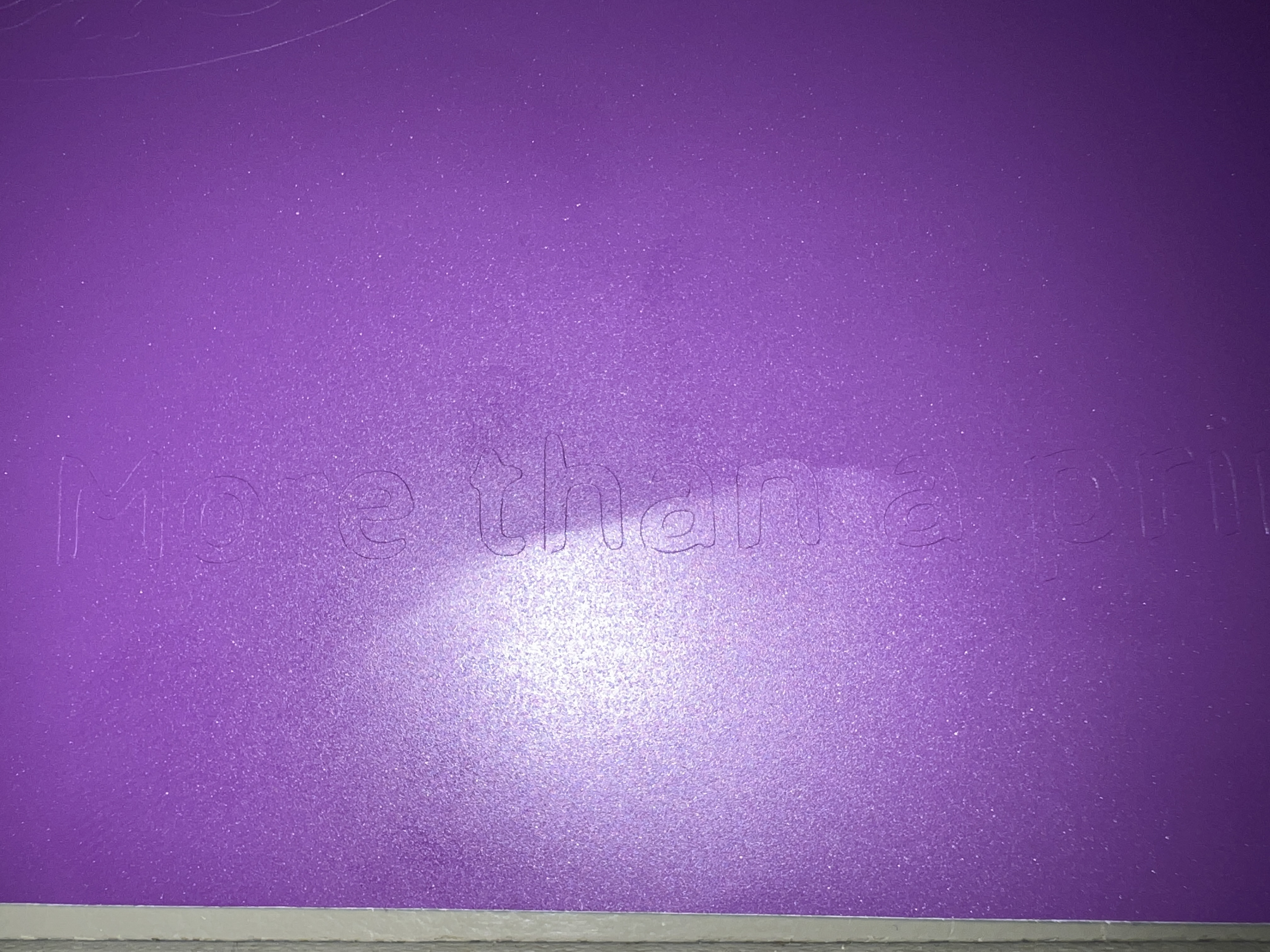

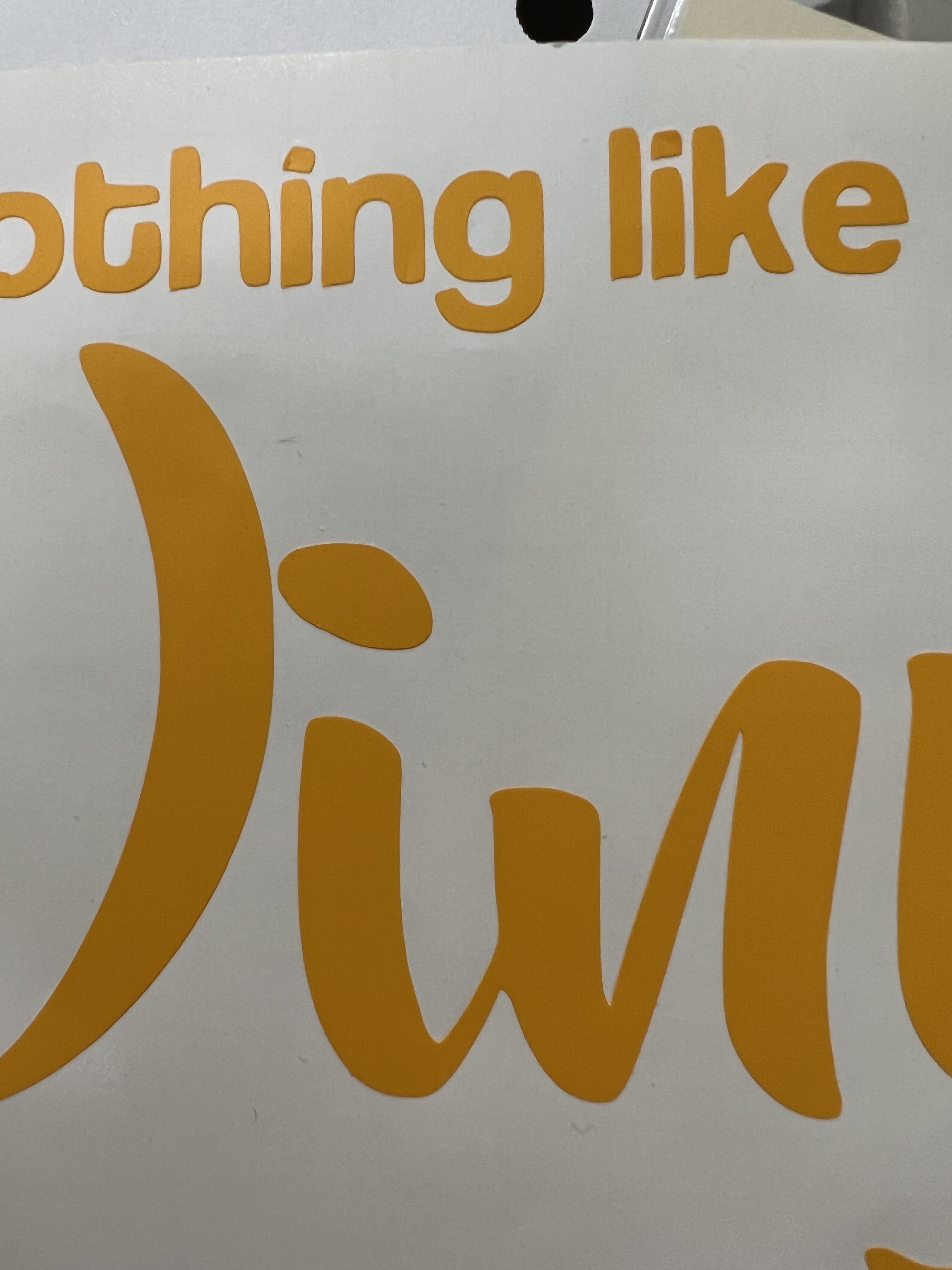

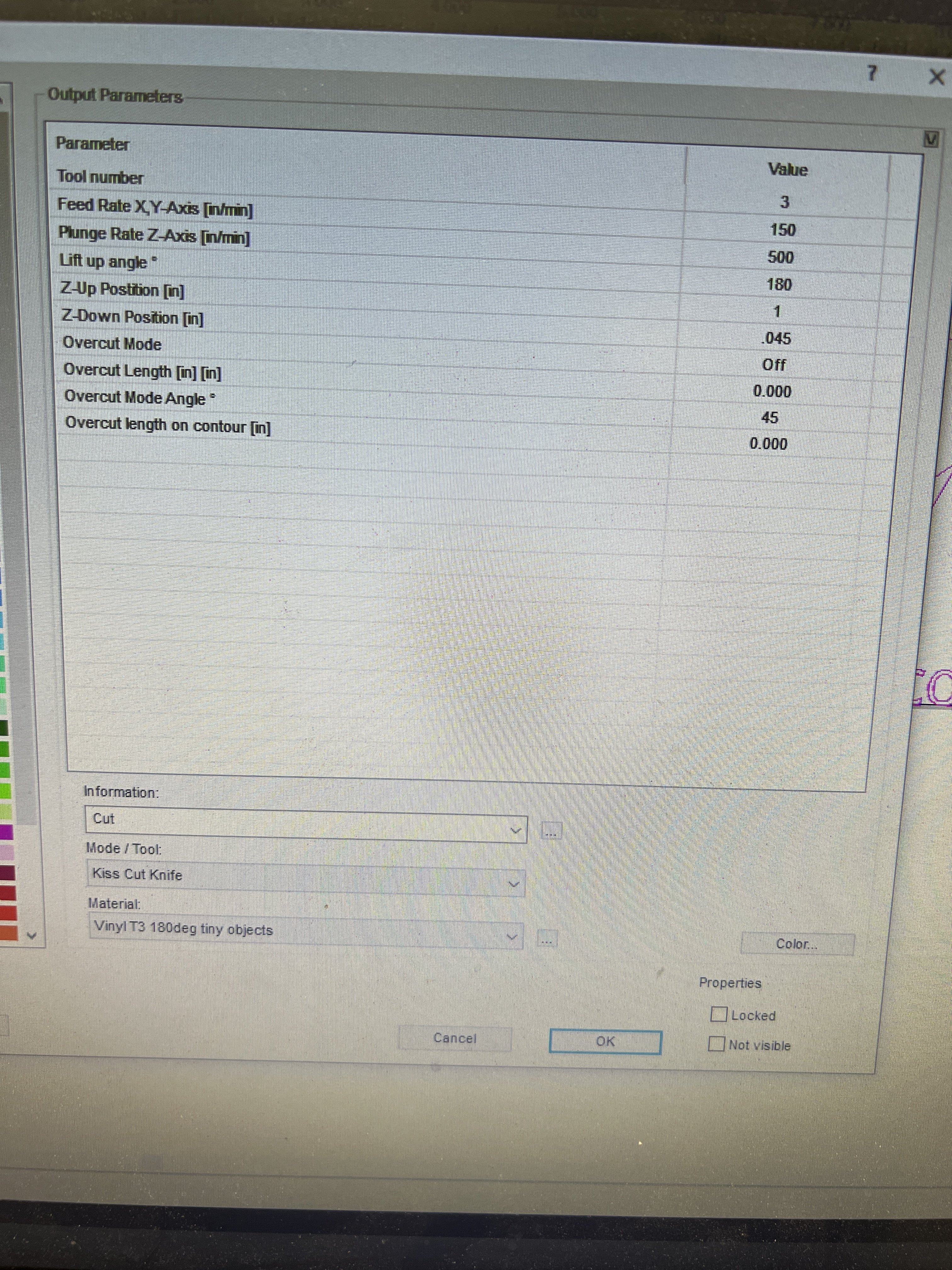

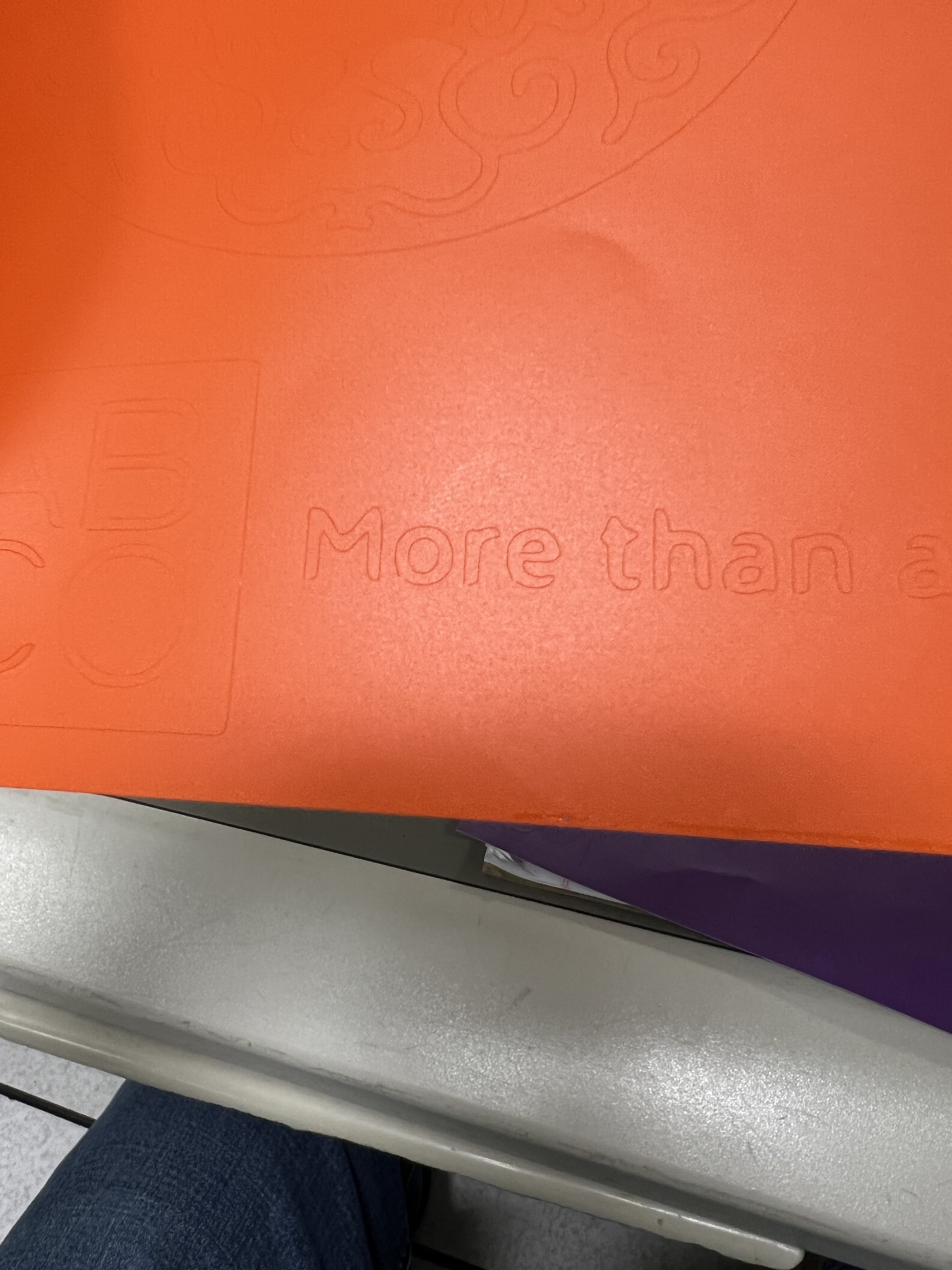

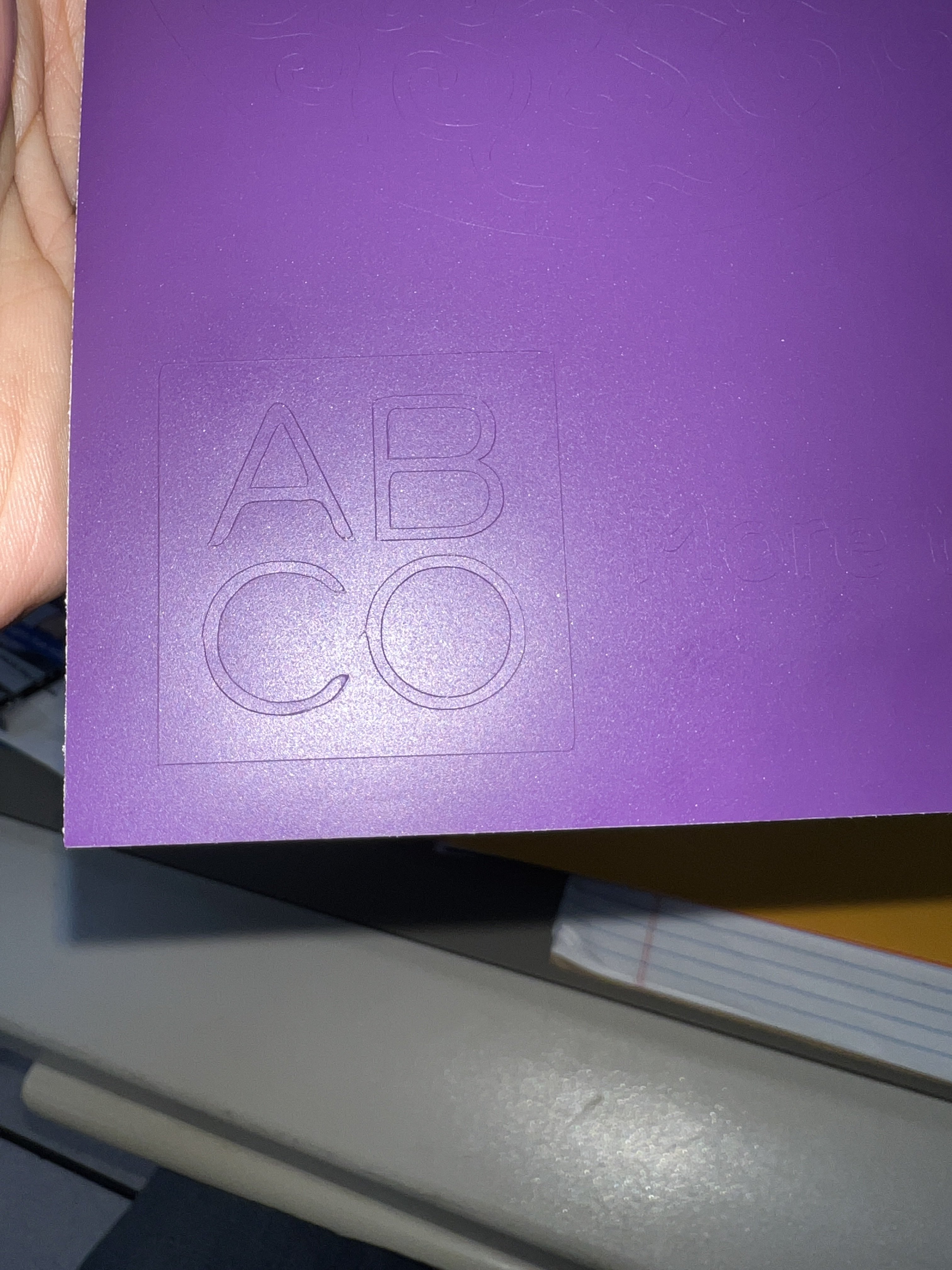

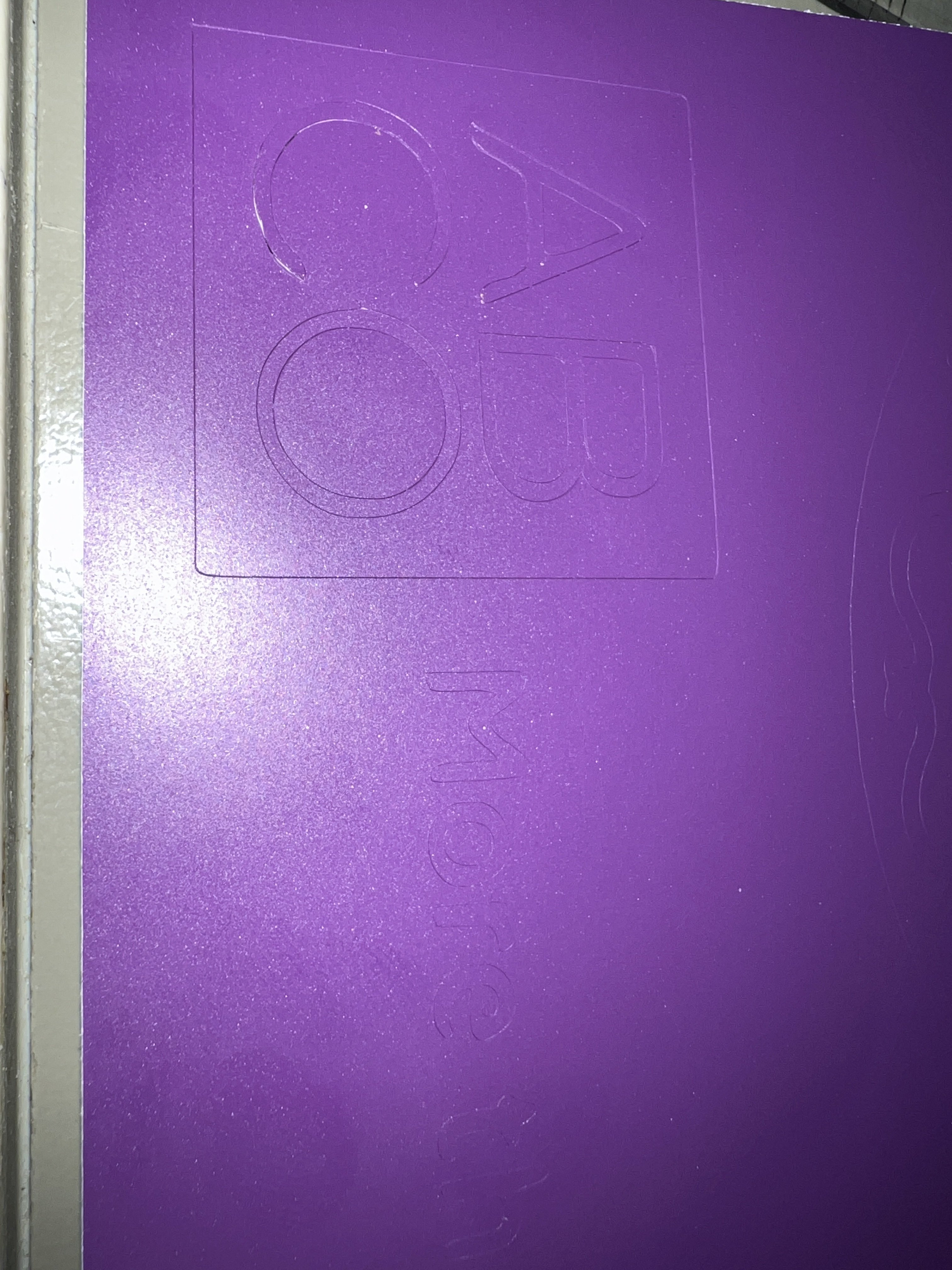

We bought the Colex updated kiss cut tool. However, our results are not matching my expectations. That may be a learning opportunity, so I'm not blaming the tool. We're testing on Oracal 631 and the cut result is low fidelity to the the cut file. What feedback do you have to help improve our results. Buying a plotter is one option, but maybe an extreme solution to the challenges I see? I've include a screenshot of our cut settings as well



[MGB_LE]

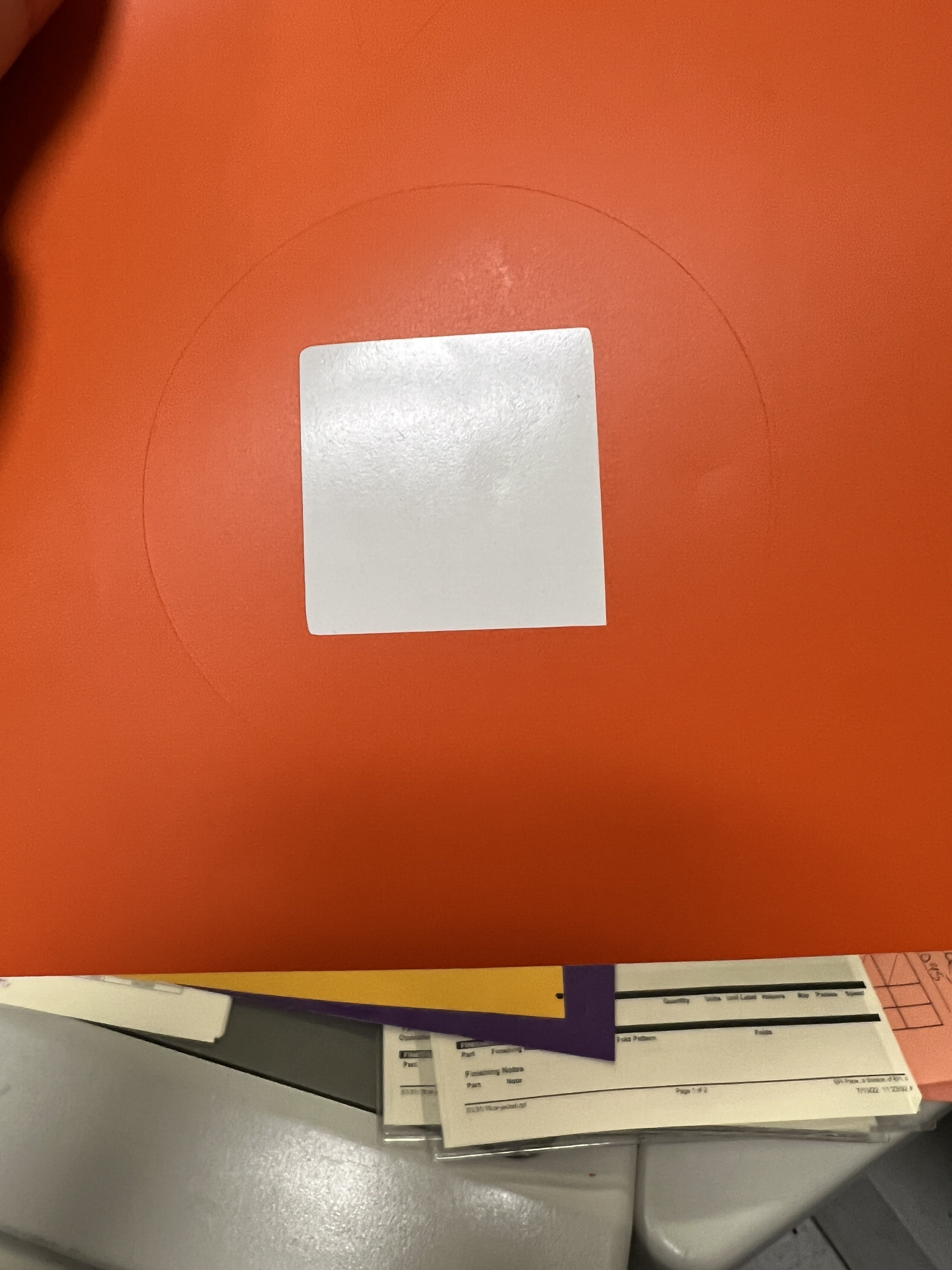

We're seeing the "suggestion" of sharp corners but the execution is lackluster. The square in the center of the circle on the orange vinyl has maybe (1) 90 degree angle cut out of (4) corners.



[balstestrat]

Do you have the correct knife selected in the settings? It looks like the knife offset is wrong in the setup.

Red has one good corner because it's the start and stop.



[mim]

It looks like an issue with the knife offset. For example, I switch between two knives, one that requires a 45 degree offset (angle) and one that requires a 90 degree offset (angle) so I have to go into the cutter's settings and make that change so the machine knows how to adjust itself.
