Sold Used Rosenthal 74"W x 8"OD 2HP Roll Slitter/Rewinder

Discussion in 'Merchant Classifieds • For Sale' started by rshacklett, Mar 17, 2015.

Thread Status:
Not open for further replies.
  1. rshacklett

    rshacklett Wholesale Sign Specialist

    For Sale:

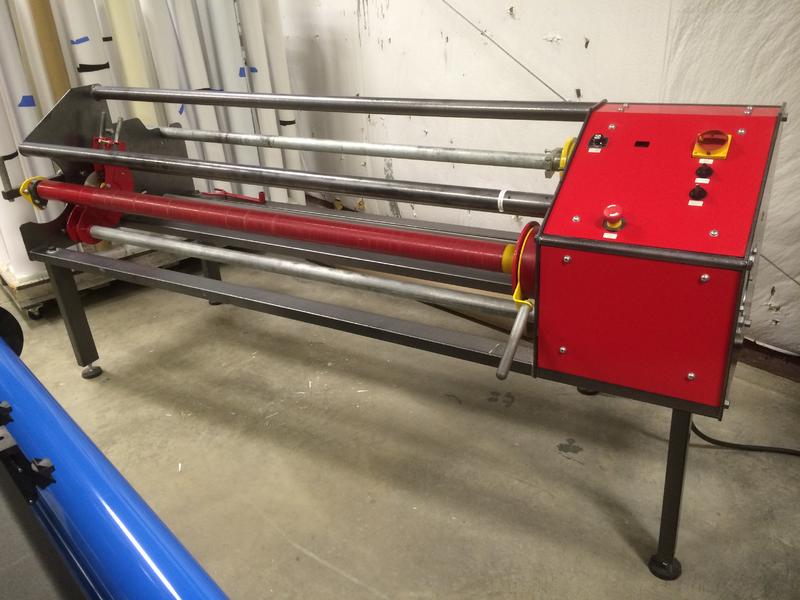

    Roll-Slitter/Rewinder by Rosenthal Manufacturing, model “Super” S874
    Original owner, purchased brand new July 2010

    Asking $5900 o.b.o., contact Ryan Shacklett <ryan@ultimaxinc.com>

    Description from the manufacturer:
    With Super you can slit hundreds of different kinds of roll-stock materials, including self-adhesive vinyls, double-sided adhesive tape, pre-mask, reflective tapes, electrical tapes, magnetic material, banner and awning material.

    In addition to log-slitting, the Super log slitter also features rewinding capabilities. Rewinding allows you to transfer a precise amount of material from a master roll to a recovery roll. For example, you could take one 250-yard (230m) roll and convert it down to five smaller rolls of 50 yards (46m) each. And because this is Super, you can then just as easily core-slit the converted rolls into whatever widths you require.

    Like our other core SmartSlitters, the Super log slitter features a self-lubricating blade design called WetBlade. The benefit? You can make dozens of cuts on even highly-adhesive materials, and the blade will not gum up, seize or bind to the material. Super's smooth operation is also due to StrongArm, which supports and stabilizes the core shaft. Even when turning 150lb-rolls at 500RPM, Super's core shaft rotates smoothly and evenly, producing clean, true cuts every time. And as with all SmartSlitters, Super is solid: 3/16" (4.76mm) steel plates and tubing are welded together to form a uni-body frame, which is then powder-coated to produce a smooth, durable finish.

    The Super log slitter is a pleasure to operate. Thanks to its patented ExpansionRing design, installing and securing rolls of material onto the master core shaft takes only a few seconds. ExpansionRing also allows for minor discrepancies in 3" (76mm) core diameters. Installing and removing rolls of material is also made easy thanks to StrongArm, Super's end-of-shaft bearing assembly, which allows for quick access whenever you need to change rolls.

    Super's drive system consists of a 2HP, 3-phase Baldor motor, producing more than enough power to spin even 150lb-rolls at 500RPM. But power is nothing without control. That is why we have added a variable-speed frequency drive with forward/reverse and soft-start, allowing you to vary Super's speed when rewinding material. In addition to being powerful, the Baldor motors we use in Super are among the most reliable available, and contribute to Super's excellent reliability.

    This machine also includes a measuring wheel which can be lowered onto the media roll to count how many inches/feet have been rolled. This measuring wheel is perfect for quickly and accurately rewinding rolls of exact lengths of media.


    Machine Specs:
    Brand: Rosenthal Manufacturing, Inc.
    Model: “Super” S874
    S/N: 458
    Please note that this machine iteration does not include the following technologies from Rosenthal: SlipLock

    Power: 220V 3 Phase
    Motor: 2HP

    Dimensions: 97”W x 22”H x 24”D
    Weight: 615 lbs

    Capacity:
    Maximum Roll Width: 74”

    Slitting Maximum Roll OD: 8”
    Slitting Core ID: 3”
    Unwinding Maximum Roll OD: 12”
    Unwinding Core ID: 3”
    Rewinding Maximum Roll OD: 8”
    Rewinding Core ID: 3"

    Includes:
    Extra cutting blade
    Measuring wheel (feet/inches) attachment arm

    Contact:
    Ryan Shacklett <ryan@ultimaxinc.com>


    Attached Files:

  2. rshacklett

    rshacklett Wholesale Sign Specialist

    SOLD

    SOLD SOLD SOLD - Thanks Signs101
