VP 540 head cable order

K

Keevan

New Member
Hi guys I got a VP 540 without heads or cable. I've got new ones coming in but I don't know how to connect them.

Can anyone give me a diagram of the carriage board and which cable goes to which head and which side?

K

Keevan

New Member
All boards are working. Is this the correct order?


Attachments

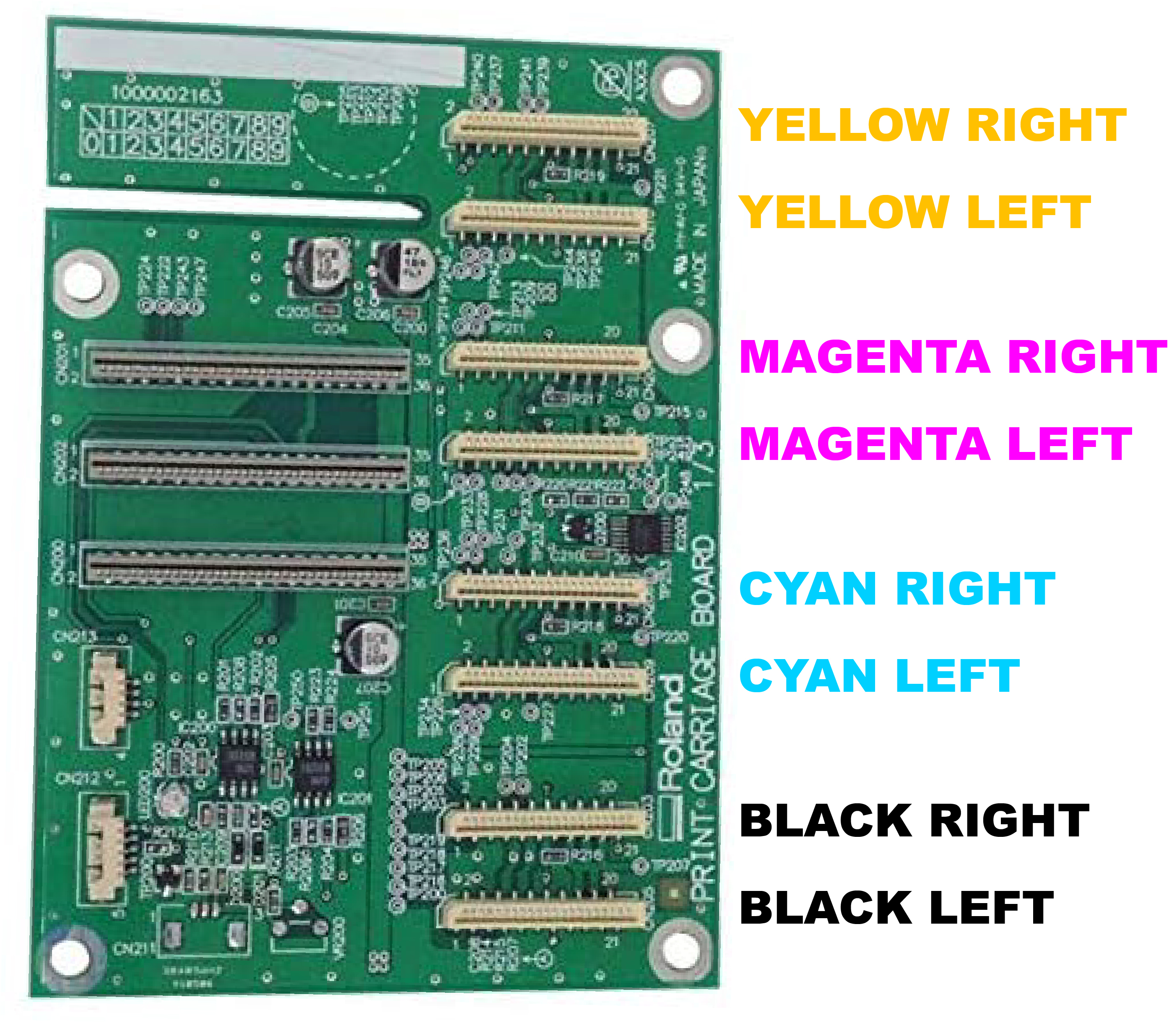

  • VP 540 CABLE ARRANGEMENT-01.jpg
    VP 540 CABLE ARRANGEMENT-01.jpg
    2.9 MB · Views: 82
K

Keevan

New Member
Just confirming that I was successful in repairing the VP. The order shown in the picture is correct for anyone's future reference.
