VP-540 Printer messed up

Discussion in 'General Signmaking Topics' started by klingsdesigns, Dec 6, 2018.

  1. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin
    So last Friday before we moved shops the printer was acting up. It would quit printing mid print. Have to try a few times to get it to work. Had to shut off printer in back and then restart it. We moved machine saturday to new shop. Well every day since had issues with printing have to do it so many times. Then the contour cut seems to be off as well. I did notice when I printed monday my wiper pads got stuck behind my scraper and i had cyan ink coming out. Fixed that issue before it drained too much. Now today finishing up on jobs and the red started to run out. Now the red head doesnt fire and the yellow isnt as well. Any ideas of what to change? I tried new cable to computer, shut all power saving options down on computer, changed ip and printer bought a heater and tried running that behind printer boards to get them warmer.

    Tags:
  2. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin
    So I pulled ink through each line and i got the colors on test print to show up. Would this have anything to do with me removing the ink cartridges when we moved shops? Air into the lines?

    Last edited: Dec 6, 2018
  3. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin

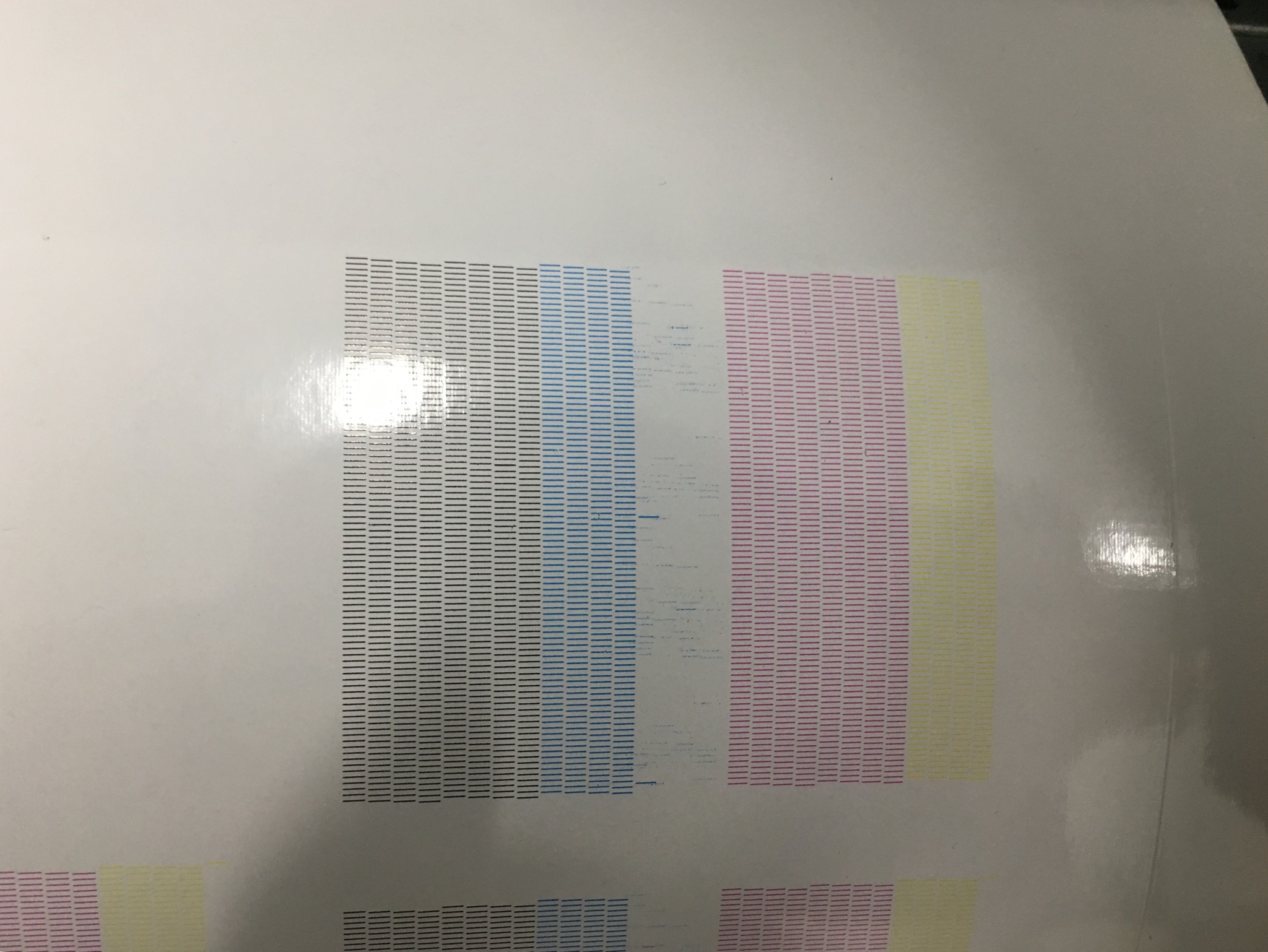

    Got it to about this. Going to let it sit overnight to see if anyone has any help


    Attached Files:

  4. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin

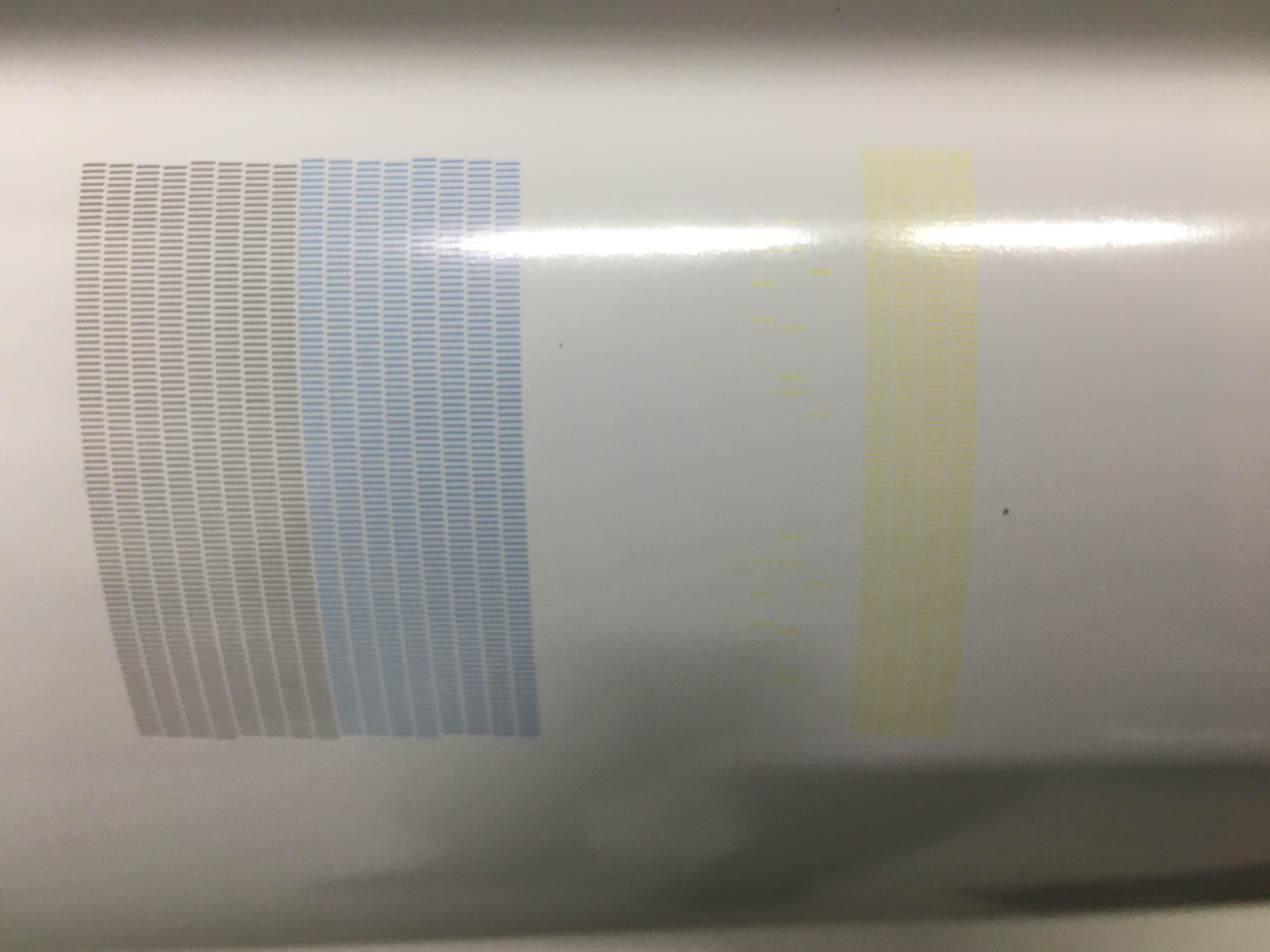

    This was before I pulled ink into the lines with syringe.


    Attached Files:

  5. CSOCSO

    CSOCSO I don't hate paint, I just overlay it.

    404
    38
    28
    Jul 18, 2012
    Florida
    oem cartridges?

  6. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin
    You bet.

  7. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin
    Once it stops mid print only way to print again is turning printer off from the back. Then turn back on. Otherwise Versaworks says not connected.

  8. Mainframe

    Mainframe Very Active Member

    This is a common problem with VP 540 printers, I have had the same problem and solved it by replacing the wifi router, I however had the problem about 6 months ago and it ended up being the main board, I read somewhere on a post a guy put a fan on his mainboard and it helped for a while, the VP540 machines have flawed main boards that commonly fail, as far as I am concerned I think there should be a class action suite against Roland for all these boards going down.

    I ended up trading my VP in for another Roland which incidentally just happens to have a fan running all the time on the main board and one inside the print head.

  9. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin
    You have a hater fan or cooling fan. Did you replace the main board yourself?

  10. TimToad

    TimToad Very Active Member

    2,568
    636
    113
    Jun 13, 2013
    CA
    I would suspect air in the lines for the drop outs is only a minor contributor. The amount of air that could enter the lines with the cartridges pulled out is pretty minimal. Its not like its an open valve.

    The "now processing" issue seems to have as many causes and remedies as anything related to the VP series.

    We've tried all the various software and connection related remedies with no success. New cables, static IP, etc.

    In our case, it has to be some loose solder connection or something on the mainboard that is loose and only makes full contact when the temperature rises to about 75 right near the printer. All summer long ours starts up and runs perfectly without the error. As soon as fall comes and the shop cools down over night, it's a daily occurrence.

    We placed a small space heater right behind the printer at the same level as the mainboard and run it for an hour right when we get in. We also run a blank "warm up" print of 3 or 4 feet of material to warm the plate. After that it will run perfectly all day.

    Hope you find a work around like we have. I've heard that there are computer repair shops out there that can fix the issue, we just haven't found one nearby.

  11. Bigdawg

    Bigdawg Just Me

    7,462
    133
    63
    Jun 8, 2005
    Sunny Florida
    Yep - we had the same issue and had to change the main board. We did not do it ourselves - we had a tech take care of it. As others have mentioned, it seems to be a common problem with the VP540. We've had our since it was new, so it went 10 years before the board had to be replaced.

  12. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin
    Been running good ever since with the new board? I was debating on upgrading to a vg540? Or probably have tech replace board so i dont mess anything up electrical. He said he would do trade of 2 grand for mine if i upgraded printers.

  13. Bigdawg

    Bigdawg Just Me

    7,462
    133
    63
    Jun 8, 2005
    Sunny Florida
    We've had no problem since it was changed. I'd love to upgrade but can't justify it because the darn machine still prints so good.

    • Like Like x 1
  14. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin
    For whatever reason i am still missing the whole right side of my black on the test print. Every other color works perfect. I am assuming i still have air in it. Pulled about 60cc of ink through it. Either that or damper went bad but replaced that about 6 months ago.

  15. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin
    My black did come back today. Might be because the cartridge is almost empty. Hopefully buying a new vg540 tomorrow and trading this one in. Thanks again for all the help.

  16. klingsdesigns

    klingsdesigns Very Active Member

    1,169
    75
    48
    Apr 16, 2012
    Wisconsin
    Anyone know best place to purchase vp540 mainboard?

  17. 2B

    2B Very Active Member

    3,049
    395
    83
    May 5, 2011
    TX
    VanderJVanderJ

    • Like Like x 1
    • I Appreciate You I Appreciate You x 1
  18. Solventinkjet

    Solventinkjet DIY Printer Fixing Guide

    4,300
    808
    113
    Aug 2, 2011
    Denver, CO
    Thanks 2B! Unfortunately we are not a good source for Roland boards. We carry the most common parts but the boards are harder to get when you aren't a dealer. I would suggest a local dealer like Denco or Midwest.

    • Like Like x 1
    • I Appreciate You I Appreciate You x 1
