What does this mean?

Discussion in 'Designs & Layouts' started by myront, Oct 2, 2018.

  1. myront

    myront CorelDRAW is best

    1,335
    240
    63
    Dec 3, 2015
    Niceville, FL

    rag right?

    Tags:
  2. Rick

    Rick Certified Enneadecagon Designer

    6,955
    389
    83
    Apr 17, 2003
    Valle Vista
    • Informative Informative x 2
  3. myront

    myront CorelDRAW is best

    1,335
    240
    63
    Dec 3, 2015
    Niceville, FL

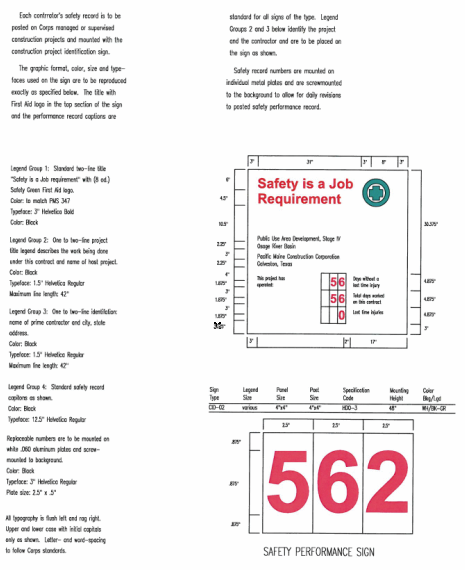

    I was given this guideline to make a new sign. Not sure if it's going to be legible enough here but...

    A whole lotta wrongs going on here! Anyone else see them?!


  4. Rick

    Rick Certified Enneadecagon Designer

    6,955
    389
    83
    Apr 17, 2003
    Valle Vista
    Looks like alignments and sizes are off...

    First Off:
    -- The + logo is not where it's supposed to be called out, and there is no measurement called out on how high it sits on the sign.
    -- The changeable number panel says one size, then gets thrown off on the detail drawing.
    -- Also looks like baseline to baseline measurement on the "Safety is a Job Requirement" is off
    -- Changeable panels and text do not match called out measurements,

    Most likely someone pasted on the wrong scale layer and/or didn't verify the correct size, and shifted the drawing over a smidge...

    Last edited: Oct 2, 2018
    • Agree Agree x 2
  5. myront

    myront CorelDRAW is best

    1,335
    240
    63
    Dec 3, 2015
    Niceville, FL
    I'd post the non-vector pdf here but it's really a pia to do so. p.s. I've forgotten my dropbox password.

    Calls for Helvetica but the image to the right doesn't use helvetica.
    Says black but shows red.
    At one point it mentions 12.5" LH.

    Why not design the sign at full scale first then right the notes/legend to match? Once it's all said and done make a copy and scale it down to 8.5 x 11 for print and while you're at it leave it all vector.

  6. Nickprints

    Nickprints Member

    50
    6
    8
    Aug 20, 2018
    Ma
    Think composition paper. Even on the left and uneven writing on the right

    • Agree Agree x 1
  7. Rick

    Rick Certified Enneadecagon Designer

    6,955
    389
    83
    Apr 17, 2003
    Valle Vista
    I agree that a full-size editable and vector template would be nice. On standards like this though, the reality is it takes one lazy person to mess up a drawing and it usually only gets worse as times goes on.

    There are so many designers that are this lazy and there is so much wrong with that drawing. To cover your butt, I would rebuild it using whatever information you have, send them a scaled drawing of it, and then have them sign off on it.

    • Like Like x 1
  8. myront

    myront CorelDRAW is best

    1,335
    240
    63
    Dec 3, 2015
    Niceville, FL
    ok, I understand "rag right" now. Thanks all.

  9. Garyd3599

    Garyd3599 New Member

    8
    0
    1
    Mar 22, 2018
    Utah
  10. Grizzly

    Grizzly Member

    161
    16
    18
    Sep 1, 2010
    Utah
    Is it really necessary to call out every size and spacing of the whole sign? Must have been an architect. (No offense to architects, just seems unnecessary for this type of sign)
    Apparently we're dumb as designers and can't figure out how to layout a sign...

    • Like Like x 1
    • Agree Agree x 1
  11. Rick

    Rick Certified Enneadecagon Designer

    6,955
    389
    83
    Apr 17, 2003
    Valle Vista
    Actually, yeah, there are a lot of dumb replicators (sign shops)

    This one drawing shows that even the person calling out the sign can't make a layout even when called out. There is a graphic standard for quite a few government signs, my bet is that some sign vendor rebuilt this drawing, and messed it up... and is now being circulated.

    I'm also betting that a design firm that specializes in signage or in-house government office originally designed the graphic standard, maybe even before signs were computer drawn.

    I design graphic standards, and have worked on quite a few government projects. The reason for such detail is that a replicator would not have to go out on the field and measure an existing sign and/or try to figure out typefaces, colors, materials. The idea is that each sign is made exactly the same as the next. Imagine allowing hundreds of sign shops access to interpreting a sign - even a simple one like this one.

    • Agree Agree x 1
  12. ddarlak

    ddarlak Trump Hater

    when i get specs like this they go right where they should in the garbage.

    design it how it should be and send them a layout, nobody will be the wiser, only architects and engineers design signs like this and they don't matter.....

  13. signman315

    signman315 Signmaker

    297
    93
    28
    Oct 5, 2015
    Edmeston, NY
    I think of it like a free answer to a pop quiz....here's the size, fonts, and every other possible spec, now make it so. I generally enjoy these jobs, no thinking, just make the money um I mean just make the sign lol. The only time I don't enjoy them is when it's specified as something that's going to be a failure if made to said specs, at which point I decline the job and/or offer my own alternative. I'll either lose a job I didn't want or they will accept my alternative using methods that are in my lane and I'm comfortable with.

  14. Rick

    Rick Certified Enneadecagon Designer

    6,955
    389
    83
    Apr 17, 2003
    Valle Vista
    If you are going into most of the these as a new project, most jobs I work on like this are in the hundreds of thousands, some of these jobs are in the millions of dollars. Most everything has been worked out code wise, permitting is usually a breeze, bidding is easy, sometimes all you have to do is double check the drawing, size it up and you are good to go...

    It's when you have to make 1 sign - every few months or so, and different sign shops do them, imagine dealing with multiple interpretations, not all sign shops have the same capabilities, or skill or fonts... thats the problem.
