Need Help Question What is wrong with this Gerber printhead?

Discussion in 'Gerber' started by Durangedesign, Jun 20, 2020.

  1. Durangedesign

    Durangedesign New Member

    24
    1
    3
    Sep 16, 2003
    Utah

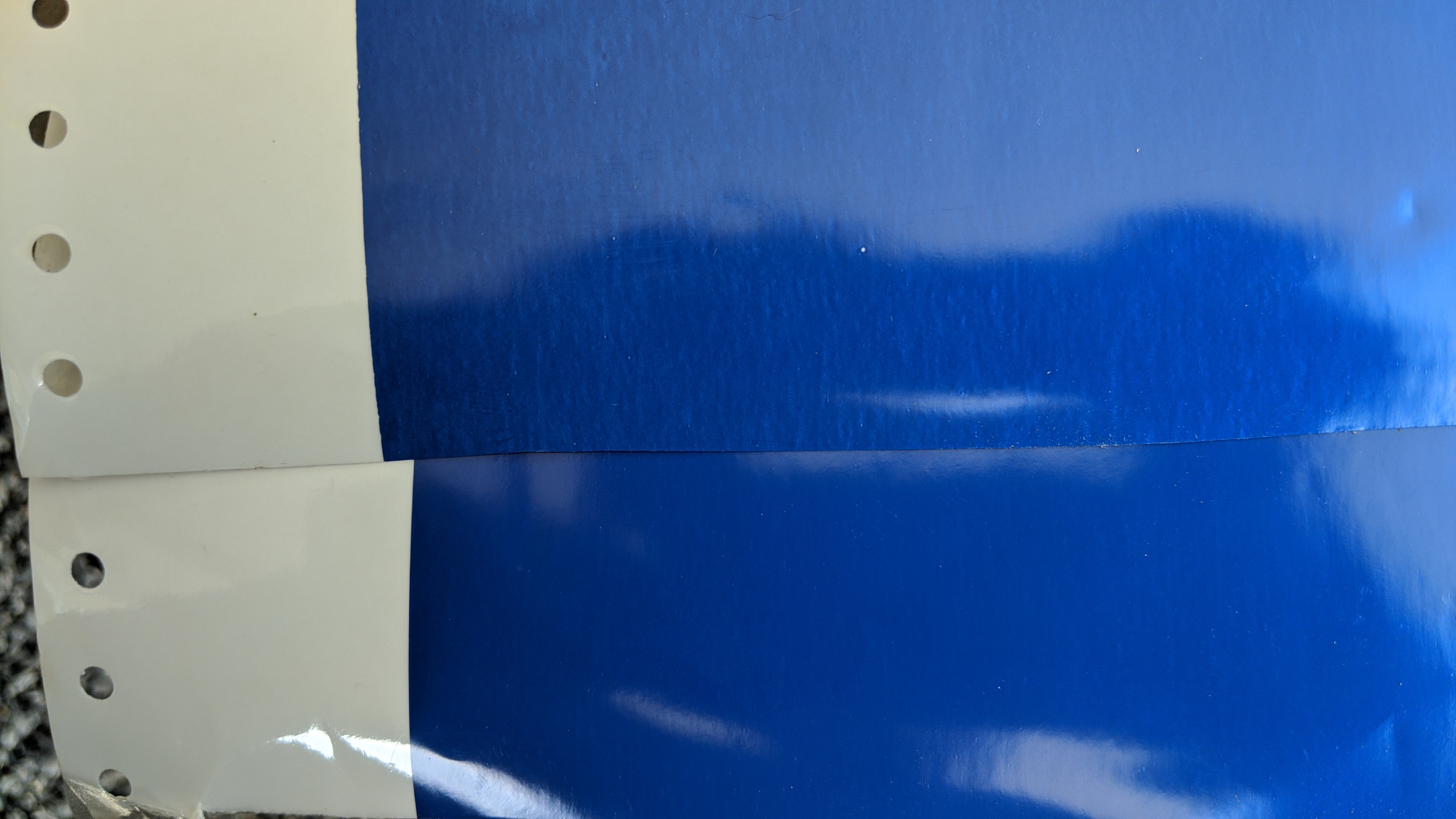

    The bottom edge print in the photo was printed on a edge 2 and has a normal print. The top print was printed on a different edge 2 and is not 100% solid. I used the same vinyl, same foil and with low and high heat settings with the exact same result. Any thoughts to the 10 or so edge users on here?


    Attached Files:

    Tags:
  2. ah funfunfunfun troubleshooting....ok, admitting I haven't used an edge for the last 12 years, but did use it daily for 4 years. If I saw this, I'd try running the vinyl thru machine #1 again. The same roll may not be consistent for all 50 yds. Try wiping the surface with isopropyl, and see if that mottled pattern remains in Machine #2. I've seen vinyl that was rolled too 'hot' at the factory, and the paper backing leaves an imprint, or contaminates the surface. More obvious on a dark colour, but now you're printing that, and it shows up.
    good luck!

    • Like Like x 1
  3. Durangedesign

    Durangedesign New Member

    24
    1
    3
    Sep 16, 2003
    Utah

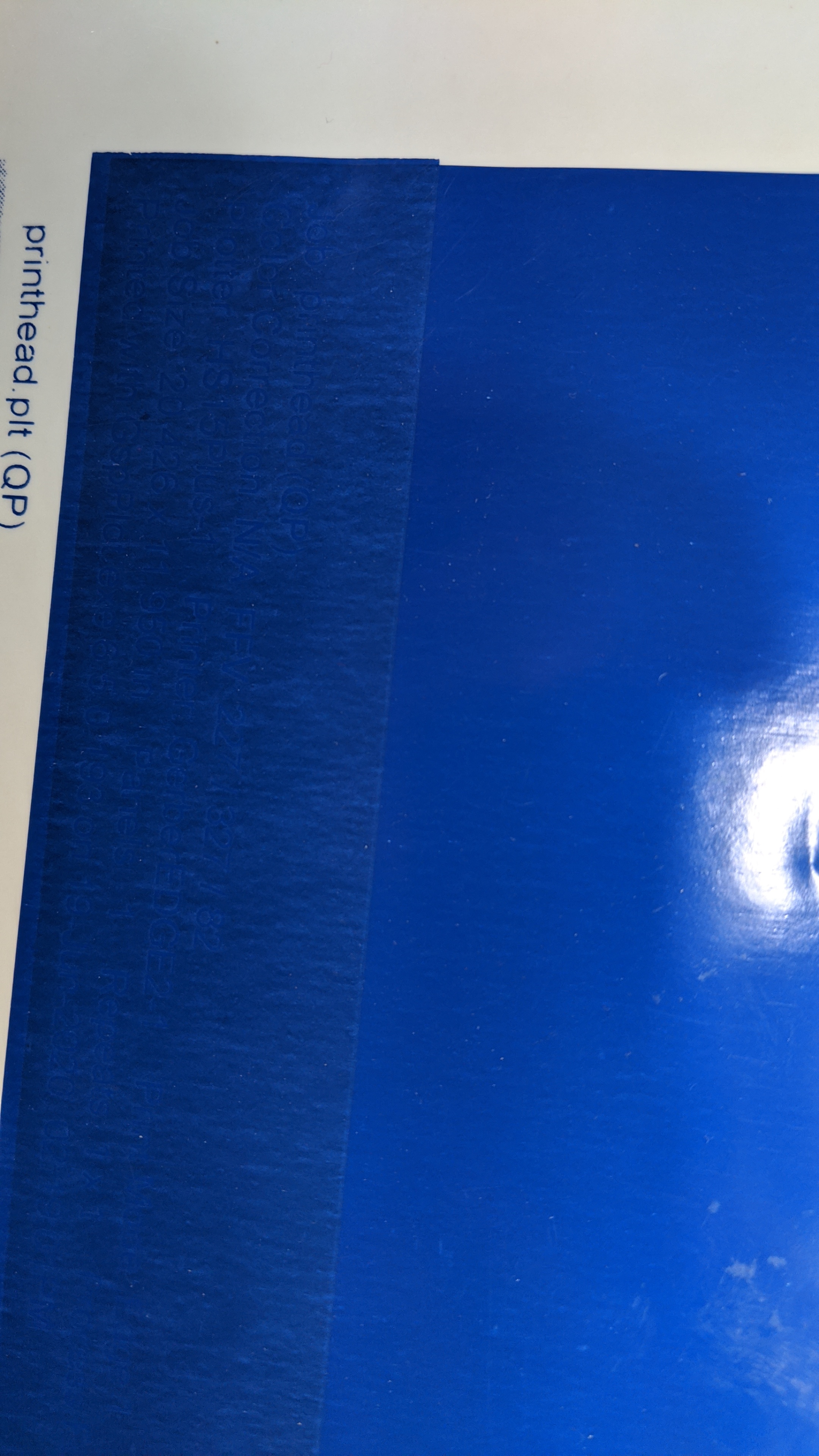

    Yeah I had checked all of that. I even went as far as printing a bad print over the top of the good print as seen in the picture. I believe it is the printhead pressure because one side prints a little darker then the other side, does anyone have any experience with this problem?


    Attached Files:

  4. MikePatterson

    MikePatterson Head bathroom cleaner.

  5. jfiscus

    jfiscus Map Wraster

    3,204
    242
    63
    Apr 2, 2009
    Cincinnati, OH
    I don't know what is wrong with it, but something definitely is. Haven't seen that issue before, but it looks like a bad printhead or some other electrical issue. Does it print all solid colors that way?

  6. FunkotronXL

    FunkotronXL Member

    63
    9
    8
    Apr 6, 2015
    Washington State
    Looks like an energy transfer issue. Could be too much, could be not enough; tough to tell without further testing on different materials. Have you tried different material settings to "trick" the machine into giving a bit more oomph?

    LexEdge or 280 are decent starts; cranking the heat using other material settings may open up some other issues if you're doing dimensionally large prints.

  7. Jburns

    Jburns Active Member

    799
    158
    43
    Jan 19, 2009
    Denver
    I would try printing a test print from the printer only - not software- block full head width for 4 inches or so.

    • Like Like x 1
  8. Rhodesman

    Rhodesman Dusty

    1
    0
    1
    Jul 4, 2019
    Milwaukee, Wisconsin
    Looks like the your print head is misaligned, or it has a compromised print head data cable.

    To verify mis alignment I would run the Edges on board print test that has 70 % it its displayed title

    The Edge will print a block of dense dots (rather than a solid block)

    if one edge print is crisp dots and then the dots fade to ugly, this your problem

    IF it fades to ugly.....

    and you are cifident in your abilities....

    unplug the edge from the wall (safety)

    with a 2.5mm allan wrench take off the plastic hood (4 bolts)

    then open the top and just loosen (do not remove) the 4, 3mm, shcs screws on the right side (2 on top-2 on the bottom), that are locked in place with maroon gliptol paint

    once they are ALL loose, pull (or push) the ONLY the bad area of the print head assembly (top or bottom), NO MORE than a 1/2 using the 3mm allan wrench either clockwise or counter clockwise (you make a guess-there is a tool, but we dont have one now and remember which way you turn it) then tighten the 4 red screws back down again and run the 70% test again. if it got better... You went the correct way.

    If your dots get worse you went the wrong way. In this case loosen ALL 4 screws. then correct your wrong way, half turn., and add another half turn for the adjustment.

    slowly make the adjustments this way until the dots are crisp and consistent.

  9. davedavedave

    davedavedave Member

    80
    8
    8
    Dec 14, 2018
    germany
    can it be some wrong heat setting is used?
