Where can I get this room ID plaque?

Discussion in 'Materials' started by NP_18, Jun 12, 2020.

  1. NP_18

    NP_18 Member

    39
    7
    8
    Jul 18, 2018
    Texas

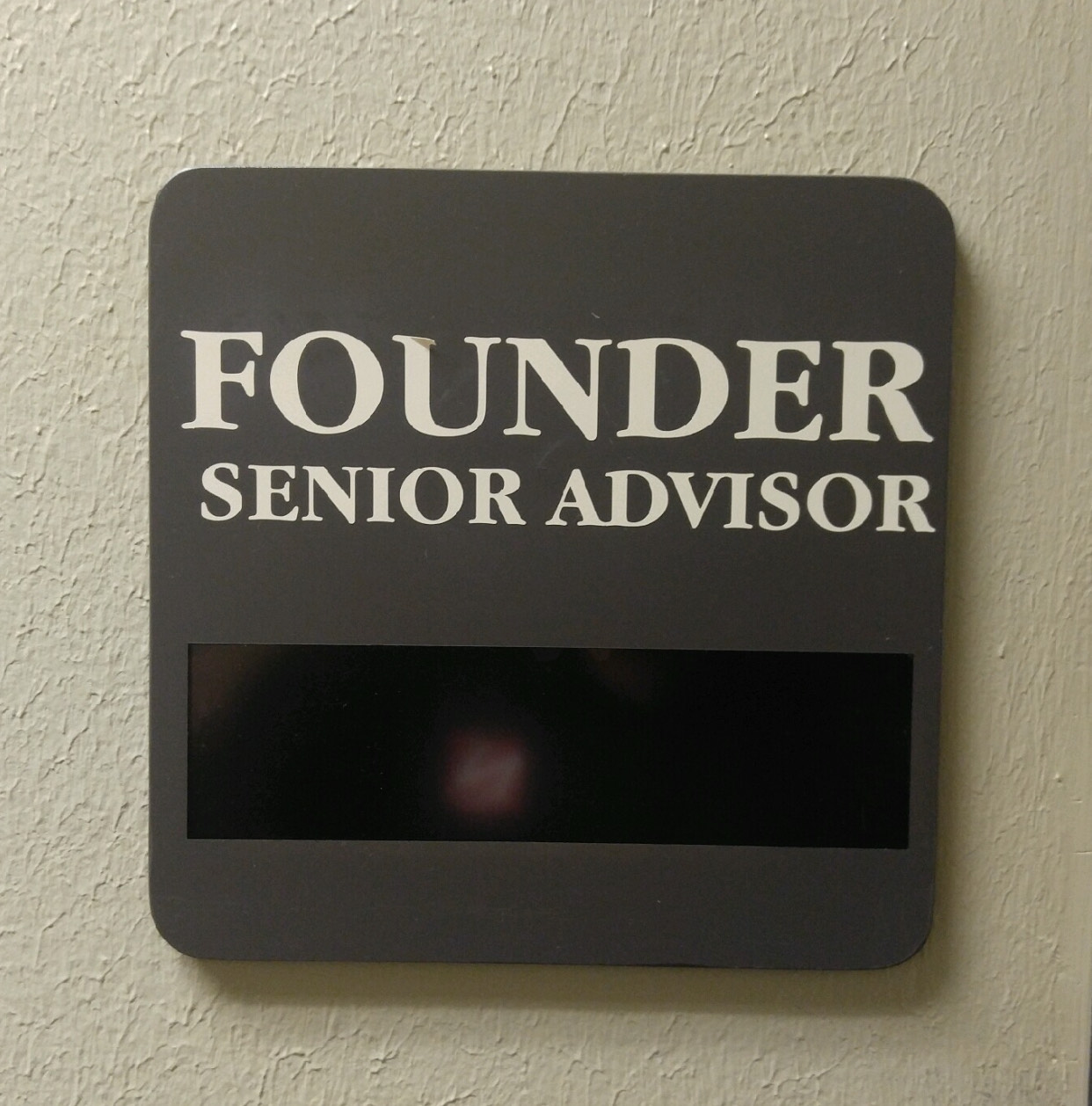

    I have a client with a several of these room ID plaques in their building and they want to add more, but I can't find this particular one anywhere online. Any idea where I could get one or who makes them? The black section is open and allows a slip of paper to slide in from the edge.


    Attached Files:

    Tags:
  2. JBurton

    JBurton Signtologist

    2,026
    447
    83
    Sep 28, 2017
    Arkansas
    Do you have a shot from the side?
    This looks like an engraved 'window sign' as we call them, layered materials assembled with 3m 467mp and routed out for a panel or piece of paper to be slid in. I'm not sure if anyone really sells them wholesale as opposed to doing it in house, they tend to get very pricey when you are only doing a few. It also looks like they used vinyl for the copy instead of actual engraved copy, we add a final layer of 1/32" white and route out the letters in most cases.

    • Like Like x 2
  3. CanuckSigns

    CanuckSigns Very Active Member

    3,519
    431
    83
    Nov 11, 2008
    Ontario
    I agree, we would make these in house with our laser engraver, pretty easy but small quantities have a PITA fee added on due to setup time.

    • Like Like x 1
  4. NP_18

    NP_18 Member

    39
    7
    8
    Jul 18, 2018
    Texas
    I just have the one picture, but when asked they said that from the side it looks like it has multiple layers. Thanks for the advice!

  5. JBurton

    JBurton Signtologist

    2,026
    447
    83
    Sep 28, 2017
    Arkansas
    Do you cut separate strips and then assemble, or are you able to cut one layer at a time with the laser?
    Personally I cut the background, add a layer, cut the spacer, remove window portion, add a layer for window cover and cut it, then add a layer for the background, then cut that.
    I've been considering getting a laser, but from what I understand, this process would not work, but cutting parts to assemble would.

  6. CanuckSigns

    CanuckSigns Very Active Member

    3,519
    431
    83
    Nov 11, 2008
    Ontario
    Our process would be:
    - mask both sides of acrylic
    -cut out the window with the laser, just through the mask
    - remove the mask, leaving the window covered
    - paint the sign the desired colour
    - peel off the mask, revealing the clear window
    -attach to backer piece of acrylic using foam tape strips

    Text can be done as a tactile process on the face, cut vinyl on face or engraved on the back side through the paint.

  7. JBurton

    JBurton Signtologist

    2,026
    447
    83
    Sep 28, 2017
    Arkansas
    Ah, so your foam tape acts as a spacer to allow paper to be slid behind the window?
    I've previously stocked up on parts to assemble these, but they always look so shoddy when 1/2 of them are just enough crooked that you can see parts of the backer panel, so building them on the plate takes all the guess work out and makes me feel like I'm being reasonable in charging $50+ for a one off window sign.

  8. CanuckSigns

    CanuckSigns Very Active Member

    3,519
    431
    83
    Nov 11, 2008
    Ontario
    If someone ordered 1 of there they would be looking at $95 - 150 depending on how much I wanted the job.

  9. JBurton

    JBurton Signtologist

    2,026
    447
    83
    Sep 28, 2017
    Arkansas
    Hot Damn, actually... Just checked, last single went for $117.20, but this is for one of our biggest clients, that lobs tons of other signage work our direction, so we like to keep them happy as can be.
    That one was full ADA, raised copy & braille, but our materials are colored so at least we can have it inside of 30 minutes if nobody interrupts me.

  10. CanuckSigns

    CanuckSigns Very Active Member

    3,519
    431
    83
    Nov 11, 2008
    Ontario
    Whenever we do these, I always make up 5-10 blanks up at the same time, the client always forgets a few, and this way they are already 75% made when they call needing 2 more.

    For a good client our price would be less, probably around $65-75 for a 1 off

  11. JBurton

    JBurton Signtologist

    2,026
    447
    83
    Sep 28, 2017
    Arkansas
    But are they ADA, or just painted and vinyled?

  12. CanuckSigns

    CanuckSigns Very Active Member

    3,519
    431
    83
    Nov 11, 2008
    Ontario
    They would be ADA with raised tactile & braille

    Tactile lettering is super easy with our laser cutter and is actually the fastest way for us to put lettering on a sign, so we usually default to it and the clients like it.

    Braille is done with the raster method, we've got our settings pretty dialed in, it takes about 15 minutes to setup the machine and braille a single sign.

    • Like Like x 1
  13. JBurton

    JBurton Signtologist

    2,026
    447
    83
    Sep 28, 2017
    Arkansas
    What sort of laser is it?
    Sorry for jacking OP's post here...

  14. CanuckSigns

    CanuckSigns Very Active Member

    3,519
    431
    83
    Nov 11, 2008
    Ontario
    We have 2 trotec lasers a speedy 300 and a speedy 400, both run for 8 hours a day, 5 days a week and have yet to give us any issues in 5+ years

    • Like Like x 1
