Where can I get this Shape

Discussion in 'Designs & Layouts' started by SAR.Summerlin, Mar 4, 2013.

  1. SAR.Summerlin

    SAR.Summerlin Member

    306
    0
    0
    Jul 11, 2012

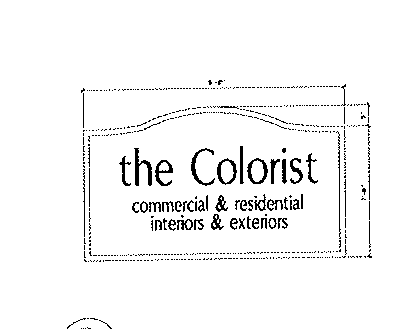

    So I guess since it is Monday I am fumbling but I have spent the last hour trying to draw this simple shape (my pen tool must be mad at me) because I don't have it in Flexi does anyone know if there is somewhere I can just get this shape or what it is called so I can search for it.


    Attached Files:

    Tags:
  2. J Hill Designs

    J Hill Designs Major Contributor

    15,549
    17
    0
    Sep 24, 2004
    :thumb:


    Attached Files:

  3. Jillbeans

    Jillbeans Major Contributor

    14,457
    19
    38
    Dec 24, 2003
    Butler, PA
    It's a sign shape.
    There are a lot of these sign blank shapes available online as vector art.
    Or just draw a rectangle, overlap an oval, weld, then node edit.
    Love....Jill

  4. Flame

    Flame Major Contributor

    8,283
    7
    38
    Apr 26, 2006
    Vancouver
    Need to either get friendly with beziers, or do like I did and draw a square, then a circle, combine them and delete 2 nodes.

    4 variations attached.


    Attached Files:

  5. SAR.Summerlin

    SAR.Summerlin Member

    306
    0
    0
    Jul 11, 2012
    Thanks folks I think I am just having a Monday. Didn't even think of the rectangle square thing.

  6. bosdub

    bosdub Member

    34
    0
    6
    Aug 19, 2010
    02062
    A designer I'm not!

    How would you create the same shape smaller to use inside that sign as a rule running around the whole thing? When you do a basic scaling, it changes the aspect.

  7. The Vector Doctor

    The Vector Doctor Very Active Member

    3,498
    144
    63
    Aug 15, 2005
    Ohio
    an offset path or contour depending on what software you use.

  8. omgsideburns

    omgsideburns Very Active Member

    2,180
    0
    36
    Apr 15, 2008
    Oh come on, do we need someone to draw circles too? Wheres our resident circle designer at?

  9. bosdub

    bosdub Member

    34
    0
    6
    Aug 19, 2010
    02062
    Gee thanks sideburns.

  10. bosdub

    bosdub Member

    34
    0
    6
    Aug 19, 2010
    02062
    Thanks Doc for the helpful response

  11. MikePro

    MikePro Major Contributor

    5,003
    245
    63
    Feb 3, 2010
    Racine, WI
    +1 draw shape and offset path
    you can also obtain the same effect by adding a stroke to the original shape, outlining it, and then deleting one of the two shapes created by the stroke.

    simple vectorization, but you're not alone. I have to train every designer that comes through our shop that just simply copying a rounded rectangle and enlarging it behind the original shape will not maintain a matching radius.

  12. dhamlett15

    dhamlett15 Member

    240
    0
    16
    Aug 26, 2005
    Tennessee
    Look under the shape options


    Attached Files:

  13. bosdub

    bosdub Member

    34
    0
    6
    Aug 19, 2010
    02062
    Thanks everyone. Offset path is the answer. Working in Illustrator

  14. Pat Whatley

    Pat Whatley Major Contributor

    8,593
    86
    48
    Sep 29, 2003
    Wetumpka, AL

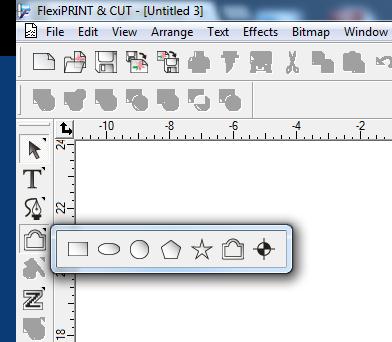

    You do have that in Flexisign.
