Need Help 1324x which damper correspond to which nozzle check?

Discussion in 'Mutoh' started by Keevan, Nov 18, 2020.

  1. Nov 18, 2020 #1
    Keevan

    Keevan New Member

    15
    1
    3
    Nov 3, 2018
    Trinidad

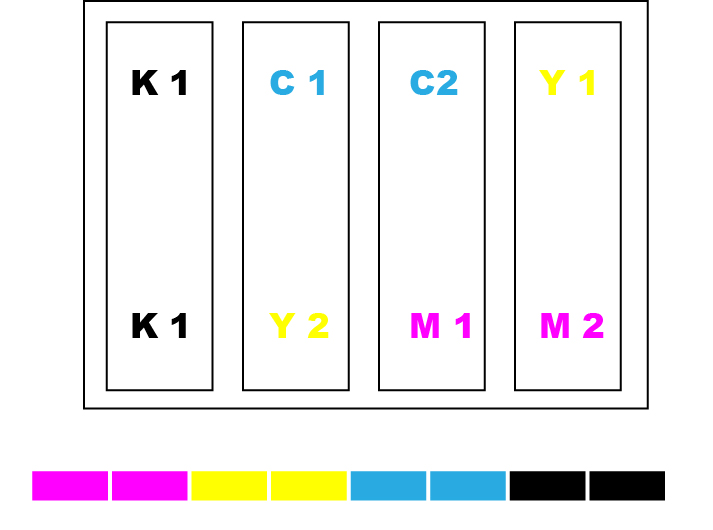

    Ok so you guys familiar with the nozzle check pattern and the damper configuration. See attached image.

    Which damper corresponds to which printed pattern on the nozzle check?


    Attached Files:

    Tags:
  2. Nov 19, 2020 #2
    Keevan

    Keevan New Member

    15
    1
    3
    Nov 3, 2018
    Trinidad

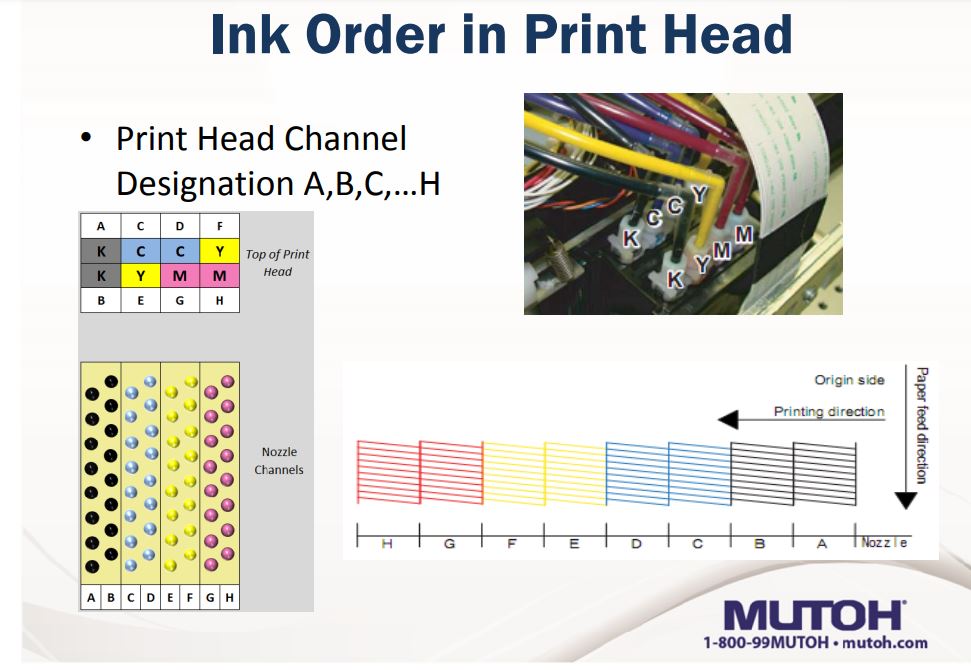

    I found it, here it is. Now you know when nozzle check bad which damper to check.


    Attached Files:

  3. Nov 19, 2020 #3
    Umca

    Umca Member

    161
    10
    18
    Sep 4, 2015
    UA
    Mistake on the picture. It describes "Top of printhead" But alignment correct for top of dampers. For printhead correct will be opposite top and bottom row. Because the damper has a cross way for ink channel.

  4. Nov 19, 2020 #4
    Keevan

    Keevan New Member

    15
    1
    3
    Nov 3, 2018
    Trinidad
    You are right! but for the purpose of the nozzle check and identifying which damper at fault it is accurate as indicated. I had a bad nozzle test on H as shown in the nozzle check. When I changed the F/H damper the problem was resolved.
