can´t export any drawing from CORELDRAW X3 to SOLIDWORKS 2008

Discussion in 'Corel' started by 1234, Jan 27, 2008.

  1. 1234

    1234 Member

    108
    0
    16
    Dec 16, 2006
    hi,
    does anyone know the easy (even funny :) way to export vector graphics from coreldraw x3 to solidworks 2008? i´m talking about eg. DFX or DWG files. unfortunately, both of them´re included in corel, solid or autocad for export ,BUT all of them are different and uncompatible.
    programs like dfxtools,bezarc and so on doesn´t works...
    anyway,any tip or advice much appreciated.
    best luck
    george

    Tags:
  2. Service Sign Co

    Service Sign Co Very Active Member

    2,311
    0
    36
    Nov 9, 2006
    Southaven
    Haven't used Autocad since 14. Back then with Corel 6 the only way to get a Corel drawing into R 14 was exporting it as a WMF

  3. OldPaint

    OldPaint Major Contributor

    id say the problem is with SOLID WORKS...what ever that is...

  4. Service Sign Co

    Service Sign Co Very Active Member

    2,311
    0
    36
    Nov 9, 2006
    Southaven
    It's a 3-D solid modeling program. Never learned how to use it,but it's interesting anyway

  5. jiarby

    jiarby Major Contributor

    4,513
    0
    0
    Feb 11, 2007
    do eps files import?>

  6. 1234

    1234 Member

    108
    0
    16
    Dec 16, 2006
    hi, thanks to all!
    we´ve just started working with cnc plasma, so i´like to cut some nice piece of work,
    created in coreldraw. solidworks isn´t gentle enough to create all difference lettering for signmaking work.
    (...some people even claims, that coreldraw isn´t a good program at all, but
    i disagree. you can hardly do some pretty nice sign with solidworks)
    anyway, i need to get it from corel, via solidwork to wrykrys to feed the machine and burn.
    i can do it easily with summa plotter, but with cnc plasma it´s more complicated
    p.s. EPS doesn´t work with solid, not even DXF, nor DWG from corel or cad.
    unfortunately, DWG and DXF from solid is different.

  7. Service Sign Co

    Service Sign Co Very Active Member

    2,311
    0
    36
    Nov 9, 2006
    Southaven
    Did you try WMF?

  8. Techman

    Techman Major Contributor

    8,520
    8
    38
    Jun 24, 2003
    michigan
    there are several converters around that will take dfx and dwg files and convert it to G code. Of the top of my head I cannot give you a list, However I do know they exist because of my recent CNC study.

    And then, If I remember right. Solid works changes their file format. They want you to upgrade the software so the older version files will not open unless you do some certain gyrations. IF you goto their support forum you will find the newer import process posted.

  9. iampogo

    iampogo New Member

    7
    0
    1
    Jul 15, 2004
    Alabama
    You can import as an ai file. All curves will be converted to line segments in Solidworks.

    I also tried to export from corel as a dwg and had no problem getting the file into solidworks with curves intact.

    Last edited: Jan 28, 2008
  10. 1234

    1234 Member

    108
    0
    16
    Dec 16, 2006
    hi everyone,
    fortunately i´ve got some tips how to do it via ICQ helper, but
    the graphic is a bit raw, and not gentle as i expected.
    anyway, it starts fine, and i´ve to keep trying..
    many thanks to you all!
    best wishes
    :Welcome:

  11. 1234

    1234 Member

    108
    0
    16
    Dec 16, 2006
    by the way, any experience with preparing graphics for cnc plasma PIERCE RUR 2500? is there any better program, than terrible WRYKRYS?
    thanks :)

  12. Service Sign Co

    Service Sign Co Very Active Member

    2,311
    0
    36
    Nov 9, 2006
    Southaven
  13. 1234

    1234 Member

    108
    0
    16
    Dec 16, 2006
    hi, thanks for your tip, very nice software.
    i´ve to check it out.
    what about Command´n cut software?
    it may works with coreldraw x3?
    it´l be nice, we do signmaking work too. :)
    any suggestion or experience?
    thanks to you all !

  14. 1234

    1234 Member

    108
    0
    16
    Dec 16, 2006
    hi, i´ve checked the gibbscam, very nice piece, but.
    it seems, it´s for 3D cam work, but i looking for a soft for
    2D cutting software with postprocessor, supported our
    cnc plasma PIERCE RUR 2500, mainly to prepare graphics
    for cutting, like our poor WRYKRYS. :) http://www.wrykrys.cz/en_index.html
    anyway, thanks for interest of helping others.
    have a nice day.

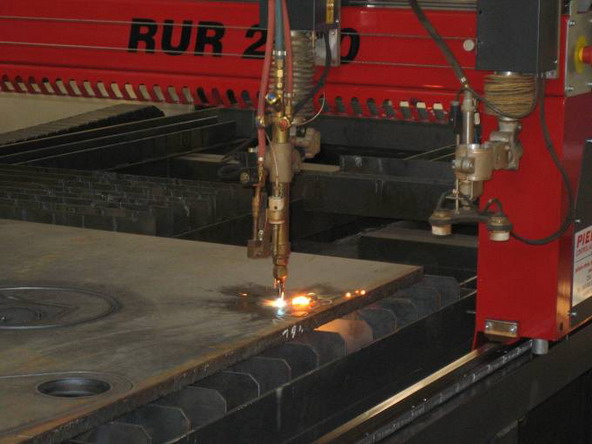

    Attached Files:

  15. 1234

    1234 Member

    108
    0
    16
    Dec 16, 2006
    thanks to you all, very inspiring!

  16. Goatboy

    Goatboy Member

    87
    0
    0
    Jan 10, 2008
    try Enroute have used it for a few years and works great for 2D and 3D(if you go the pro)

  17. functionpdx

    functionpdx Member

    49
    0
    0
    Apr 30, 2008
    I'm using Corel 12 and Solid Works 06 so I don't know what's changed, but export dwg from Corel to "open files of type" dwg in Solid Works worked fine for me.

  18. 1234

    1234 Member

    108
    0
    16
    Dec 16, 2006
    hi,
    first of all, thanks to everyone!
    by the way, you can export corel files to solid, but it´ll cut your graphic into many segments, and i like to have it in one piece for 2D CAM work.
    by the way, do you have any experience with dxftool?
