Contour offset too large

Discussion in 'Corel' started by Z Force, Jul 27, 2006.

  1. Z Force

    Z Force Member

    49
    0
    0
    May 1, 2006

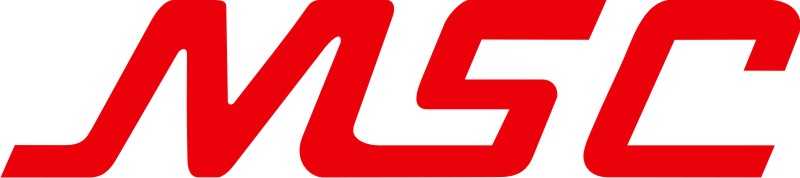

    I am trying to create an outline on this image using X3. The C works fine, but the MS says "contour offset too large". Doesn't matter how small I go, it doesn't work.

    Any ideas why?


    Attached Files:

    Tags:
  2. Shovelhead

    Shovelhead Major Contributor

    10,882
    15
    0
    Dec 5, 2003
    There is a.............

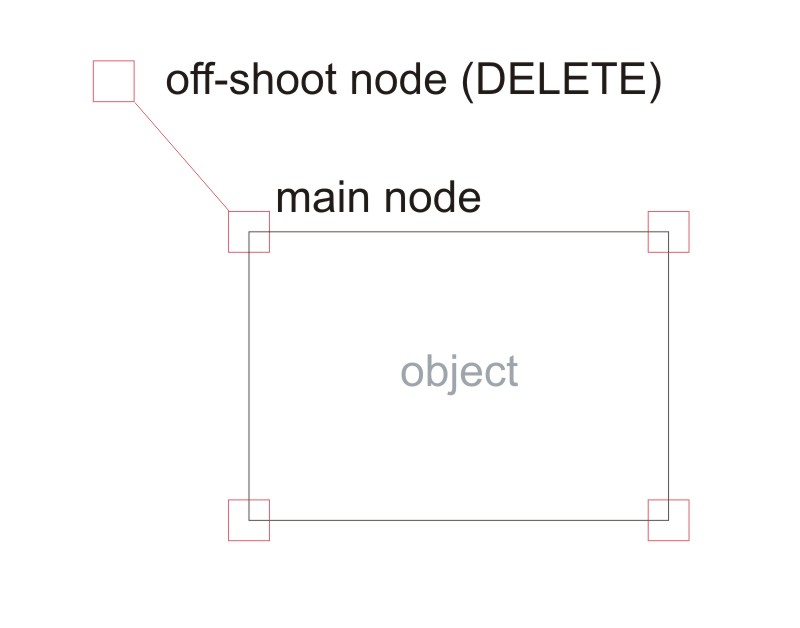

    stray node that you have to find and delete.

  3. Z Force

    Z Force Member

    49
    0
    0
    May 1, 2006
    I can't find it!!!!!

  4. Shovelhead

    Shovelhead Major Contributor

    10,882
    15
    0
    Dec 5, 2003
    !!!!

    check it out


    Attached Files:

  5. neato

    neato Very Active Member

    2,134
    279
    83
    May 16, 2003
    Henderson, IL
    Check to make sure you are applying a contour to the 'outside' of the graphic rather than the 'inside'.

  6. Shovelhead

    Shovelhead Major Contributor

    10,882
    15
    0
    Dec 5, 2003
    Try this............

    :Coffee:


    Attached Files:

  7. Z Force

    Z Force Member

    49
    0
    0
    May 1, 2006
    okay, i'm a rookie....

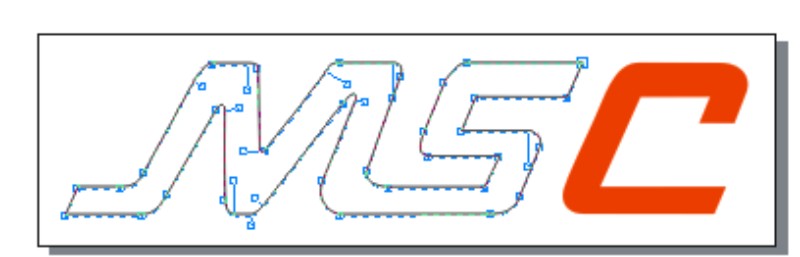

    When I zoom out, I can see the nodes that need cleaned up, but when I zoom in to do it, they go back to looking normal.

    Make sense?


    Attached Files:

    • MSC1.jpg
      File size:
      26.9 KB
      Views:
      147
  8. Shovelhead

    Shovelhead Major Contributor

    10,882
    15
    0
    Dec 5, 2003
    You're not done cleaning up anyway...........

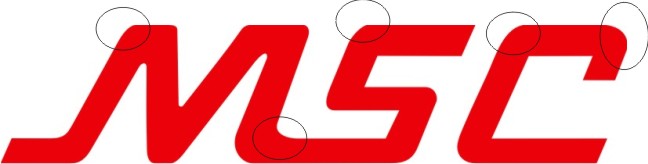

    smooth these areas out first and see what happens.


    Attached Files:

  9. learned the hard way

    learned the hard way Active Member

    544
    0
    0
    Jan 3, 2006
    The C works, but the MS doesn't....so apparently the graphic is in 2 pieces that you are applying contours to separately. Try this...select all and go to arrange/combine...then try to apply your contour. May not work, but worth a try.

  10. Shovelhead

    Shovelhead Major Contributor

    10,882
    15
    0
    Dec 5, 2003
    That's a frequent COREL problem........

    if a line of text is converted to curves and combined, it must be
    brokern aprt and each character contoured individually..........
    unless you have FLEXI then you wouldn't be contouring in
    COREL anyway.

  11. Flame

    Flame Major Contributor

    8,283
    6
    38
    Apr 26, 2006
    Vancouver
    Uh..... I can combine text (converted to curves of course) and add a contour. Just did it to make sure. The only time I have ever gotten that message was if I am trying to make a contour to the INSIDE. The cause could be that you have some stray node throwing everything off or your contour offset is too large (you might have typed 1, rather than .1, I've done that).

    Just some of my ideas. Good luck.

  12. Techman

    Techman Major Contributor

    8,520
    8
    38
    Jun 24, 2003
    michigan
    is the "M" and "S" actually welded?or does it just over lap

  13. Z Force

    Z Force Member

    49
    0
    0
    May 1, 2006
    Welded. Typed in .001 for sure. Outside for sure.

  14. Z Force

    Z Force Member

    49
    0
    0
    May 1, 2006
    I wonder if I should just re-trace over the existing, then delete the old?

  15. Shovelhead

    Shovelhead Major Contributor

    10,882
    15
    0
    Dec 5, 2003
    I don't believe I stated every time..............


    I said frequently..............

  16. Techman

    Techman Major Contributor

    8,520
    8
    38
    Jun 24, 2003
    michigan
    look at it in wireframe

  17. Z Force

    Z Force Member

    49
    0
    0
    May 1, 2006
    I just redrew it over the old and I'm off and running. Thanks guys.

  18. Flame

    Flame Major Contributor

    8,283
    6
    38
    Apr 26, 2006
    Vancouver


    Yup. You sure did Shovelhead. Basically agreeing with you. The more the merrier!:beer

  19. edwin

    edwin Member

    69
    0
    0
    Mar 8, 2006
    Went to a siminar/sale speech thing this morning for X3. He talked about a Boundrie control tool (Seems to be simular to the conture tool). He also talked about a node reduction tool (this may be helpful finding stray nodes). Have not expeirmented with these tools yet but might would be helpful in this situation.

  20. StanBo

    StanBo New Member

    4
    0
    0
    Nov 17, 2005
    Sorry to bring up an old thread but I thought a nice thanks would be appreciated. I ran into the same problem and retracing worked for me. Naughty nodes.
