Discussion in 'Corel' started by craigco, Aug 13, 2007.

  1. craigco

    craigco Member

    359
    0
    0
    Jan 7, 2006
    I want to make .5" radius corners. How do you to that? I know how to make corners round, but do not know how to adjust their size to what i want.

    Any clues?

    Thanks,
    Craig

    Tags:
  2. stickerguynyc

    stickerguynyc Member

    142
    0
    16
    Jan 19, 2007
    New York
    corner

    what kind of corner? For the program to design a square with .5 radius corner of to cut a aluminun corner?

  3. Bogie

    Bogie Very Active Member

    1,972
    0
    0
    May 17, 2007
    Pies are square.

    A half-inch radius means you're cutting a 1" circle. Only not all of the circle.

    Easy tip: Exacto around a quarter, or if you're really feeling like a high roller, use a Susan B...

  4. craigco

    craigco Member

    359
    0
    0
    Jan 7, 2006
    For example: i have one of those corner rounders that has a .5" die in it.

    I want to add a border to a car magnet. How do i get the border to be the same size as the .5" rounded corner.

  5. Columbia Signs

    Columbia Signs Member

    300
    0
    0
    Aug 7, 2007
    Not sure I understand what you are asking, but try using the interactive Contour Tool. That will add a border around your .5 corner. Make sure you have the tool selected to outside (or inside) and only 1 step.

  6. dclet

    dclet Active Member

    666
    0
    16
    Dec 23, 2004
    fdsfdf
    In coreldraw x3

    go to Window - Dockers - Fillet/Scallop/Chamfer

    choose your corner node, or all 4 nodes

    choose "fillet" from drop menu

    adjust setting to .5 click apply

    you can then contour that to create a border....

    *note

    Any rectangle you make using the rectangle tool you'll have to convert to curves first (ctrl - Q)

  7. craigco

    craigco Member

    359
    0
    0
    Jan 7, 2006
    yea, i have that. But i need to know how to have the .5" corner already there to contour around.

    It's easy to make a rounded corner. But how do you know what size it is?

    Another example, just talked to someone about getting some aluminum cut. They asked "Is 3/4 radius corner ok?"

    I need to know how to draw a rectangle with 3/4" radius corners, so I can see if it is ok.

  8. 300mphGraphics

    300mphGraphics Active Member

    518
    5
    18
    Aug 15, 2006
    arizona

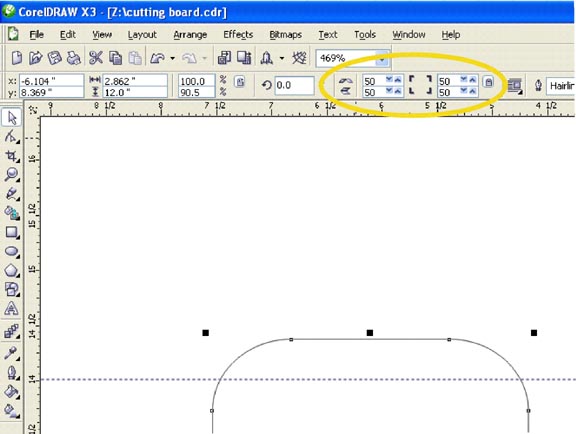

    This might be what you're looking for..


    Attached Files:

  9. Columbia Signs

    Columbia Signs Member

    300
    0
    0
    Aug 7, 2007
    In the tool box flyout select the one right below the "A" text botton. Make it fly out by clicking the little black triangle in the bottom corner. Select the one that looks like many square boxes inside boxes. That is the Contour Tool you need.

  10. craigco

    craigco Member

    359
    0
    0
    Jan 7, 2006
    I don't seem to have that docker. If I do it's not listed under dockers.

  11. WhiskeyDreamer

    WhiskeyDreamer Professional Snow Ninja

    3,562
    83
    48
    Aug 6, 2007
    Riften

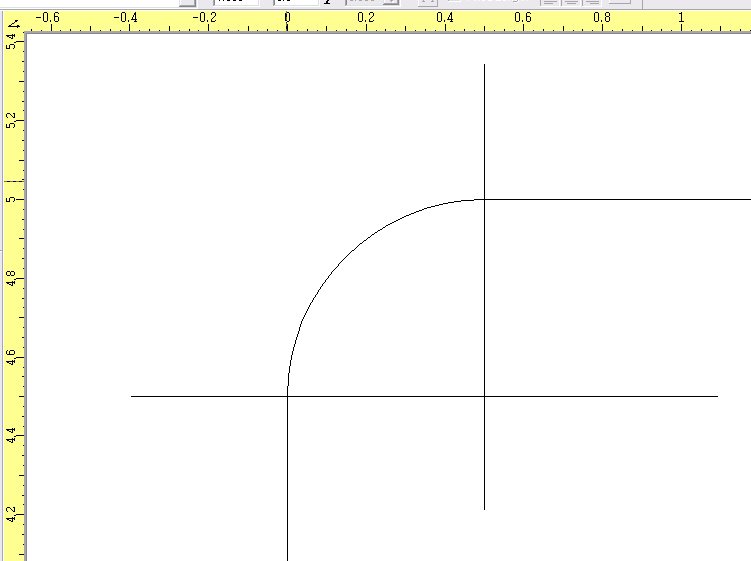

    look at the pick.............measure from where the two lines meet out to the outside edge of the sign....that is your radius..


    Attached Files:

  12. Service Sign Co

    Service Sign Co Very Active Member

    2,311
    0
    36
    Nov 9, 2006
    Southaven
    Draw the right size circle and put it in the corner of your layout

  13. Flexi it's simple. Corel, no idea. I understand your are trying to match your corner radius machine. We just did the trial and error deal on paper till we matched it. We just keep it on file when we do corner radius mag's.

  14. dclet

    dclet Active Member

    666
    0
    16
    Dec 23, 2004
    fdsfdf
    what version of corel?

  15. craigco

    craigco Member

    359
    0
    0
    Jan 7, 2006
    i'm using corel 12. I guess i could do what fenris reccommended. I just thought there might be a tool.

  16. dclet

    dclet Active Member

    666
    0
    16
    Dec 23, 2004
    fdsfdf
    ver12 doesn't have it....sorry

    Info

  17. WhiskeyDreamer

    WhiskeyDreamer Professional Snow Ninja

    3,562
    83
    48
    Aug 6, 2007
    Riften
    your profile shows your run signlab.....i used to run signlab 5.0....there was an option to "round corners"...

  18. craigco

    craigco Member

    359
    0
    0
    Jan 7, 2006
    well i will have to change that, because I don't. Thanks though.

  19. Columbia Signs

    Columbia Signs Member

    300
    0
    0
    Aug 7, 2007
    Let me see if I understand what you are trying to do....

    You have made your rounded corners.... yes / no? You now want to contour a line around them? So when you are done you will have your .5 radious coners and another line that goes around them? Corel 12 has that tool. I remember using it back in ver 9.

  20. Columbia Signs

    Columbia Signs Member

    300
    0
    0
    Aug 7, 2007
    If all you're trying to do is make a .5 radious corner. Draw a box, use the node tool and slide one of the nodes. All 4 coners nodes will automaticly radious.
