Free Stuff For Y'all

jfiscus

Rap Master
2015 ez go rxv

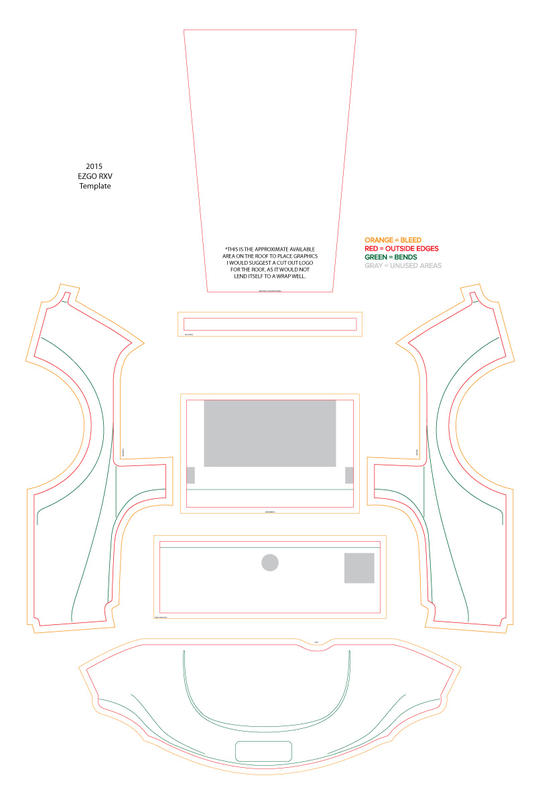

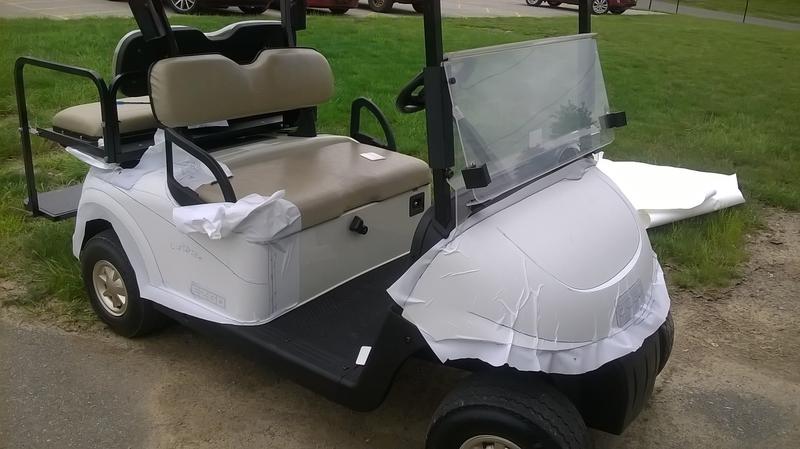

Here is a template I made a couple weeks ago for an EZ GO RXV golf cart.
It should work well for you, but I do NOT recommend wrapping the roofs of these due to the insane recesses.


Attachments

  • Golf Cart Panels.pdf
    275.1 KB · Views: 1,013
  • Golf-Cart-Panels.jpg
    38.8 KB · Views: 1,205
  • WP_20150707_11_19_20_Pro.jpg
    50.1 KB · Views: 1,031

jfiscus

Rap Master
Motor Coach

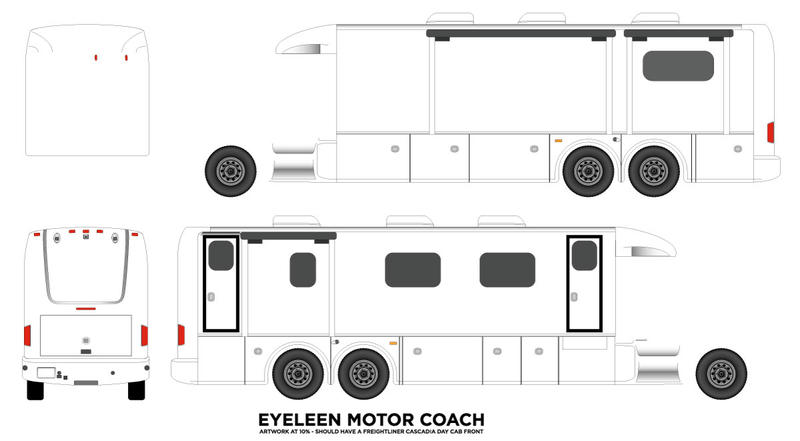

Attached is a motor coach I just set up from scratch. It should have a (PVO) freightliner cab on it, but that was not my artwork so I removed it before saving a copy for everyone here. Enjoy! Set up at 10 percent scale.


Attachments

  • Coach Template 10-percent blank.pdf
    485.4 KB · Views: 642
  • Coach-Template-10-percent-blank.jpg
    32.4 KB · Views: 881

myront

CorelDRAW is best
Here is a simple 12"x18" pole sign mock-up template.

I've done much of the same sign templates and assigned a macro to the most common. Aluminum sign blanks from most third party companies use a corner radius of 1.5" with 3/8" holes centered 3" from top and bottom.

We don't use vehicle templates for wraps. Way too many variations within models. Easy enough to photograph and scale to full size.


SightLine

║▌║█║▌│║▌║▌█
All of this comes in handy. Thanks! I'll pitch in too. Couple of different size Knapheide KUV service bodies at quarter scale. Because these come in so many different configurations and sizes you should of course verify the dimensions and stick the chassis front you need on them. I've had these with pickup cabs, van cutaways, and even a new Transit cutaway cab.


Attachments

  • KUV25percent.pdf
    1.2 MB · Views: 699

jfiscus

Rap Master
All of this comes in handy. Thanks! I'll pitch in too. Couple of different size Knapheide KUV service bodies at quarter scale. Because these come in so many different configurations and sizes you should of course verify the dimensions and stick the chassis front you need on them. I've had these with pickup cabs, van cutaways, and even a new Transit cutaway cab.
Thanks, I actually had one of these on my "to draw" list. I'll just go off my measurements and adjust to fit his truck.


jfiscus

Rap Master

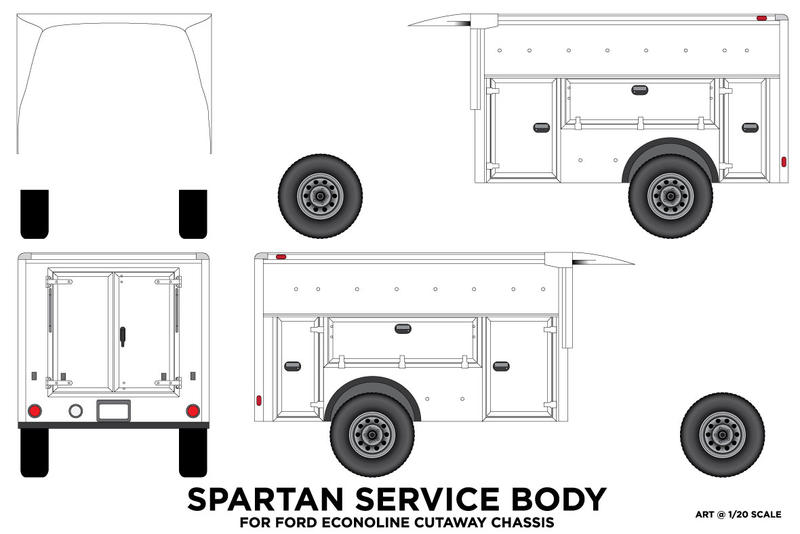

Spartan Service Body for Ford Econoline cutaway chassis.
Artwork at 1/20 scale.


Attachments

  • Ford Econoline Spartan Service Body.pdf
    270.9 KB · Views: 552
  • Ford-Econoline-Spartan-Service-Body.jpg
    42.9 KB · Views: 899

jfiscus

Rap Master

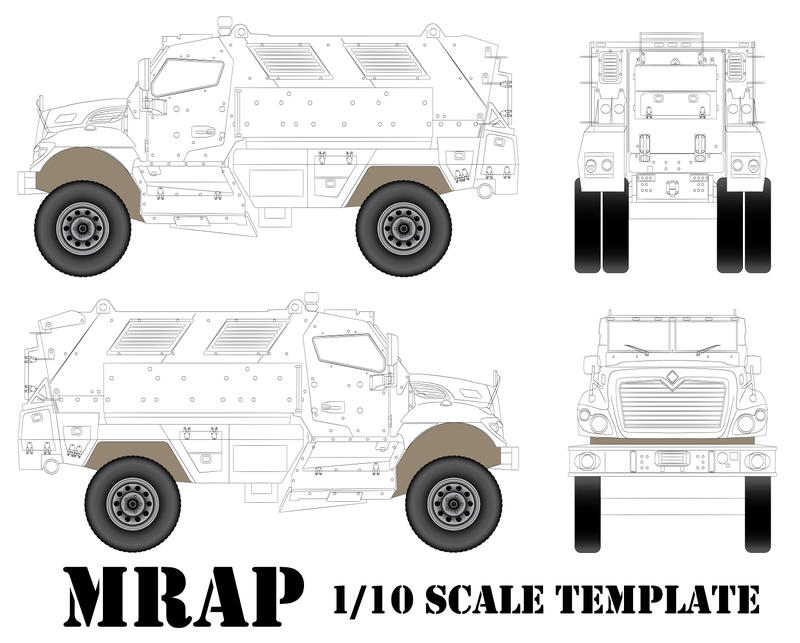

MRAP Scale Template for Vehicle Graphics

NOTE: The front hood/grill/fender area may not be correct, I didn't measure it that well as nothing was going on it, but everything else SHOULD be pretty close. Also, there are a LOT of different configurations of these, so measure your vehicle and compare to the template!
Set up at 1/10 Scale. ENJOY!


Attachments

  • MRAP.jpg
    67.4 KB · Views: 816
  • MRAP.pdf
    711.1 KB · Views: 530

jfiscus

Rap Master
NOTE: The front hood/grill/fender area may not be correct, I didn't measure it that well as nothing was going on it, but everything else SHOULD be pretty close. Also, there are a LOT of different configurations of these, so measure your vehicle and compare to the template!
Set up at 1/10 Scale. ENJOY!

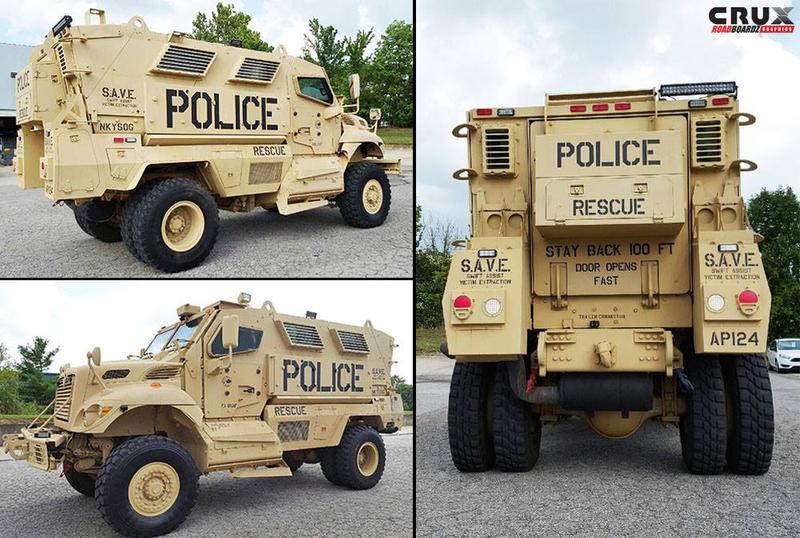

The template worked out great for me on this project, btw.


Attachments

  • 14047214_1242933959072727_9011638294259993195_o.jpg
    98.8 KB · Views: 911

b2413

New Member
Great Work

Jfiscus you have to put together a tutorial of how you are doing this. Very helpful! Thank you!


jfiscus

Rap Master
Hubcaps

Something from like 2009, but someone might find it useful? Various hubcaps for RC cars.


Attachments

  • Hubcaps.pdf
    257.5 KB · Views: 612
