Gerber FX - Jamming Vinyl

Discussion in 'Gerber' started by phatmanu812, Jun 20, 2012.

  1. phatmanu812

    phatmanu812 New Member

    21
    0
    0
    Sep 13, 2011
    Has anyone else had a problem with vinyl jamming in the Gerber Edge FX?

    I have:

    1) shipped it off to Gerber and have them say there is nothing wrong with it
    2) replaced the sprockets
    3) replaced the squeegees
    4) coated the surface on which the vinyl exits with a teflon lubricant (Leading hypothesis - the vinyl experiences a vacuum between the bottom of the exiting vinyl and the surface on which it exits the FX which prohibits the vinyl from disengaging from the sprockets)
    5) adjusting the alignment of the incoming vinyl
    6) adjusting the height of the incoming vinyl

    The problem seems to be independent of room temperature and humidity and never happens with white vinyl. Some colors are more prone to jam than others.

    Any thoughtful suggestions would be most welcomed.

    Tony

    Tags:
  2. J Hill Designs

    J Hill Designs Major Contributor

    15,549
    15
    0
    Sep 24, 2004
    my only thought would be: old vinyl that has shrunk to the point that the holes in the vinyl are off from the holes in the backing paper, therefore sticking to the sprocket tabs

  3. Tony Teveris

    Tony Teveris Active Member

    Can you slew the "unnamed" material back and forth without a problem?

  4. phatmanu812

    phatmanu812 New Member

    21
    0
    0
    Sep 13, 2011
    No

  5. phatmanu812

    phatmanu812 New Member

    21
    0
    0
    Sep 13, 2011
    Also, I exclusively use Scotchcal 220 and I turnover vinyl rapidly. It's not "old" vinyl.

  6. Ditchmiester

    Ditchmiester Active Member

    711
    0
    16
    Mar 24, 2011
    Oswego, IL
    I'm having the same issue but I have narrowed it down to when I'm using the backing or flooding of cast vinyl mostly oracal transparent 951. I can't figure out why it is happening either.

  7. Mike Paul

    Mike Paul Major Contributor

    5,435
    8
    38
    Dec 30, 2003
    NJ
    I had periodic jamming of material w/ my Edge 2 once in a while.
    The fix was to clean the shaft of the movable back sprocket and give it a drop or 2 of oil.
    Fixed the issue every time.
    Not sure if the FX has the same back sprocket setup but probably does...

  8. Ditchmiester

    Ditchmiester Active Member

    711
    0
    16
    Mar 24, 2011
    Oswego, IL

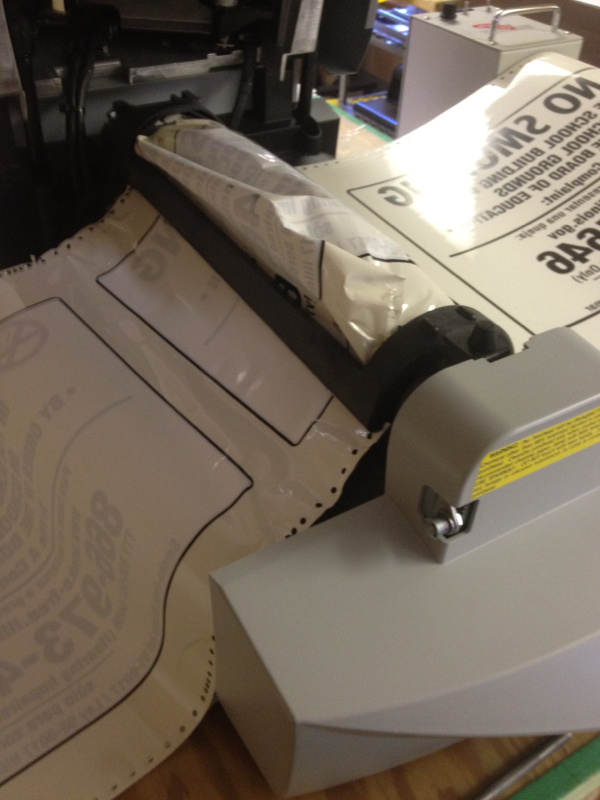

    Is this what yours looks like when it jambs?

  9. Jase

    Jase Member

    181
    1
    18
    Jul 28, 2010
    South Wales
    cover the plastic strips with masking tape.

  10. phatmanu812

    phatmanu812 New Member

    21
    0
    0
    Sep 13, 2011
    Is this what yours looks like when it jambs?

    Yes.

  11. Ditchmiester

    Ditchmiester Active Member

    711
    0
    16
    Mar 24, 2011
    Oswego, IL
    I used masking tape on my edge 2 but that that was to prevent scratching and eliminate static.

  12. Jase

    Jase Member

    181
    1
    18
    Jul 28, 2010
    South Wales

    Try it again.

  13. loumill

    loumill New Member

    2
    0
    0
    Aug 28, 2012
    Did you find a consistent solution to this problem. My Gerber department after 5 years is "all of a sudden" having this problem with no material change. I was just wondering if you found an answer?

  14. Tony Teveris

    Tony Teveris Active Member

    Tony, I passed your into on to the head of Support - you do not seem to be the only one having this type of problem. If no one contacts you in a week or so email me and I'll bug them again. With 220/225 you should not have to put any tape on the wipers. I'm wondering the the "base plates" the black sheet metal plates that the vinyl lays on are installed correct. Again let me know if no one contacts you.

  15. Tony Teveris

    Tony Teveris Active Member

    Tony, I sent you a PM

  16. Ditchmiester

    Ditchmiester Active Member

    711
    0
    16
    Mar 24, 2011
    Oswego, IL
    I'm having this problem too. Can you see in the picture if there is something i'm doing wrong?

    Thanks,

    Ditch

  17. signage

    signage Major Contributor

    9,185
    18
    38
    Oct 5, 2005
    Penn
    Are you sure your punch pattern isn't messed up? looks like the tractor holes a bugged up on the far side of photo.

  18. Browner

    Browner Member

    374
    3
    18
    Jun 28, 2005
    Winnipeg

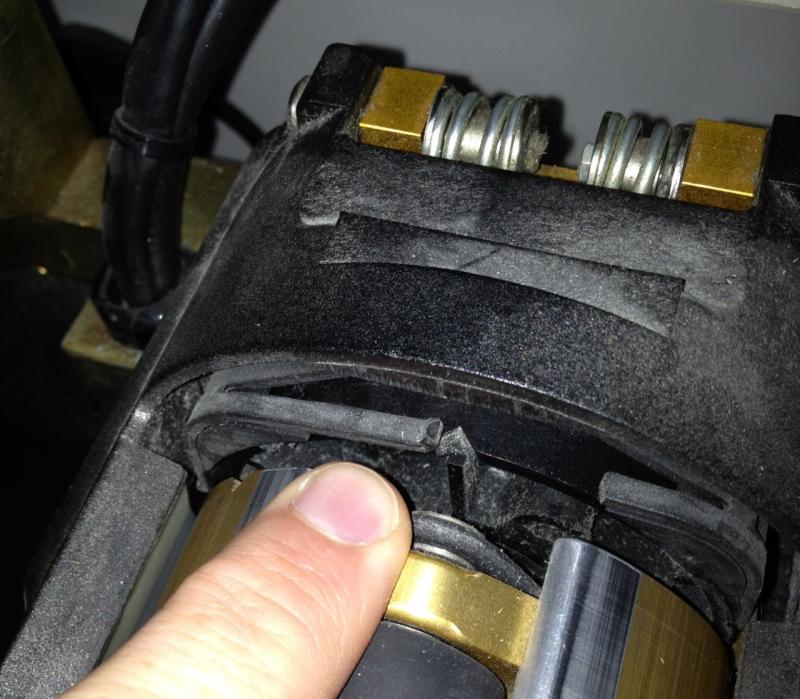

    I've had this happen a few times. Could only figure that it was the little "prongs" that stick out from the bail arm. I found that if the vinyl had to go back and forth a few times, the punched holes would have a tendency to elongate. If it was bad enough, one of those holes could (and would) catch on the prongs and jamb things up - usually on the faster, return run of the vinyl. Once it was so bad, it just broke the prong off (as seen on the right hand side of the image). Interestingly enough, I don't think it's happened since. :thumb:


    Attached Files:

  19. Tony Teveris

    Tony Teveris Active Member

    Ditch, I sent you a PM also.

    I have no clue whats going on, I'm just reporting the issue to Service and letting you know what they said. Hopefully when the issue is resolved someone will report back here so we all know the cause.

  20. jfiscus

    jfiscus Adobe Shinobi

    2,851
    127
    63
    Apr 2, 2009
    Cincinnati, OH
    I have had this happen a couple times. my "moveable" rear sprocket (the one that adjusts) doesn't slide well on its shaft.

    Whenever you load vinyl onto the sprockets (in the home position), you have to make SURE that the sprockets are centered on the corresponding holes. If the sprockets are off a bit to the outside/inside your holes will become elongated and later rip through the holes and cause a jam like shown.

    Most of the time for me the holes get elongated while printing, then the plotter tears the holes out... fixing the holes SUCKS.
