Illustrator Cut Line

Discussion in 'Adobe' started by acothran, Dec 16, 2009.

  1. acothran

    acothran Member

    384
    0
    16
    Jun 25, 2009
    Bowling Green, KY

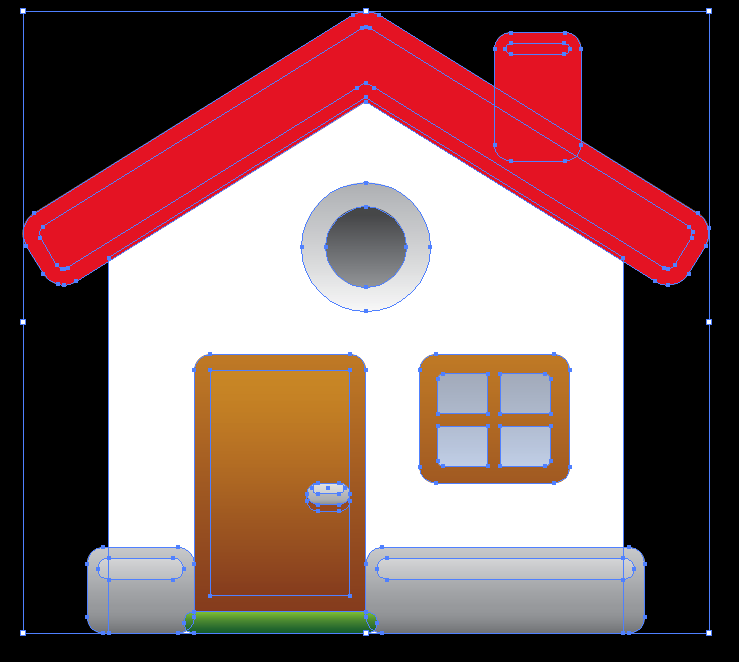

    Greetings. I have a stock icon that I am attempting to print and cut (see pic). I'm much familiar with Photoshop and Illustrator is currently whipping me. So, the icon is several layers/objects, which are grouped but I'm not sure how to put a cut line around this group, to make a cut out of the house, without just drawing my own cut line with the Pen Tool. Right now, it wants to cut out the roof, door, window, etc separately. I tried working with Outline Stroke and had no luck. Any help is appreciated.

    Thanks,
    Allen


    Attached Files:

    Tags:
  2. Circleville Signs

    Circleville Signs Very Active Member

    2,140
    11
    38
    Sep 30, 2009
    Circleville, OH
    Draw your cut-line in a seperate layer in Illy. Looking at this shape it should take you about 2 minutes, tops.

    If you're having trouble with it, feel free to email me your Illy file and I'll help you out. I'm dead today.

    gary@circlevillesigns.com


    Gary

  3. Bigdawg

    Bigdawg Just Me

    7,462
    133
    63
    Jun 8, 2005
    Sunny Florida
    Select all of it, copy, then Ctrl+2 to lock down your original.

    Ctrl F to paste a copy in front.

    With everything still selected... Object---->Path---> Outline Stroke (if anything has a stroke on it)

    select all

    Pathfinder ----> Merge

    You should have an outline of the house now exactly over your original.

    While my original is still locked down I usually do a Select All and then click OFF the house outline and then hit delete. This gets rid of any stray points that may be left from the merge.

  4. cptcorn

    cptcorn adad

    1,210
    2
    36
    Jul 16, 2007
    Two Harbors
    This is the best method.

  5. petepaz

    petepaz Major Contributor

    4,347
    82
    48
    Feb 14, 2007
    NJ/NY/PA
    yeah what stacy said
    or you can goto the object drop down menu and goto path and use the path offset

  6. petepaz

    petepaz Major Contributor

    4,347
    82
    48
    Feb 14, 2007
    NJ/NY/PA
    yeah actually cptcorn's way is quicker

  7. acothran

    acothran Member

    384
    0
    16
    Jun 25, 2009
    Bowling Green, KY
    To everyone.....THANK YOU!!

    Gary - I need to practice my pen tool. Thanks for the offer.

    Stacy - Thanks for the detailed tutorial. I had to take a couple of additional step but you got me going in the right direction.

    I get into Illy and want to Cmnd + click on the layer thumbnail to select the object....doesn't work that way. Photoshop and Illy look enough alike (i.e. tool palette) to make me think they are similar :)

    Allen

  8. Gino

    Gino Premium Subscriber

    33,954
    2,505
    113
    Jun 7, 2006
    PA

    I thought that WAS Stacy's way all along ?? Just a copied quote.

  9. Wags

    Wags New Member

    9
    0
    0
    Jan 8, 2010
    Glad to see there are some Illustrator users on this forum. Rock on!!

  10. PMG

    PMG Very Active Member

    2,453
    0
    0
    Feb 1, 2005
    if anyone wants it here is a detailed PDF on doing a cut line in illy.........:popcorn:
