I have a mutoh vj1324. I flushed the print head in the lapse of ordering a new head and now the print head tries to print but will not lay any ink. It works on clean. I was told that the f2 fuse was blown.. I cannot find an f2 fuse on this board? am i missing it or what?

premiercolour

premiercolour

Merchant Member
xtreme872 said:
I have a mutoh vj1324. I flushed the print head in the lapse of ordering a new head and now the print head tries to print but will not lay any ink. It works on clean. I was told that the f2 fuse was blown.. I cannot find an f2 fuse on this board? am i missing it or what?
Click to expand...

Google f2 fuse on Mutoh you should be able to find it.
https://www.google.com/search?q=mut...ved=0ahUKEwjJntXU1oDOAhVR72MKHY0FBtMQ_AUICSgC

We have F2 fuse in stock to ship from California.
http://www.premiercolour.com/0-75ma-fuse-for-roland-mutoh-mimaki-printers/

Signs101 Archieve
http://www.signs101.com/forums/archive/index.php/t-95544.html

Premier Colour
714-668-9200

X

xtreme872

New Member
All the pics I saw doesn't look similar tommy board I see f3 and some more and f1 on top offspring head but still no f2

UOTE=premiercolour;1296016]Google f2 fuse on Mutoh you should be able to find it.
https://www.google.com/search?q=mut...ved=0ahUKEwjJntXU1oDOAhVR72MKHY0FBtMQ_AUICSgC

We have F2 fuse in stock to ship from California.
http://www.premiercolour.com/0-75ma-fuse-for-roland-mutoh-mimaki-printers/

Signs101 Archieve
http://www.signs101.com/forums/archive/index.php/t-95544.html

Premier Colour
714-668-9200[/QUOTE]

premiercolour

premiercolour

Merchant Member
xtreme872 said:
All the pics I saw doesn't look similar tommy board I see f3 and some more and f1 on top offspring head but still no f2

Not able to see anything could be the fuse blown or other reasons. If you did not take care this issue well, you might blew other components as well including the new expensive printhead. Please consult with the company who you purchased it from or have someone to come out to properly diagnose it.

You might still have factory warranty left. The dealer is obligated to install the parts under warranty. The Mutoh warranty for 1324 is 1 full year. Any Mutoh parts installed by a non-certified technician will not have any warranty. The warranty is only apply to the first owner of the equipment and is not transferable.

Premier Colour
714-668-9200
Click to expand...

A

altereddezignz

New Member
Did you find this. The fuse can be changed if you know what your looking for. There is a fuse that allows power to the head so it can fire. Normally they will be popped if you unplug power and do not hold down the power button for a few seconds to discharge any power in the capacitors before you start working on it.

They are hard to get to but look like a small rectangle cube. Black end goldish center. Shoot me a pm i may be able to find pics of it i have some left over. I think i have some pics of the location of this exact fuse as well.

premiercolour

premiercolour

Merchant Member
altereddezignz said:
Did you find this. The fuse can be changed if you know what your looking for. There is a fuse that allows power to the head so it can fire. Normally they will be popped if you unplug power and do not hold down the power button for a few seconds to discharge any power in the capacitors before you start working on it.

They are hard to get to but look like a small rectangle cube. Black end goldish center. Shoot me a pm i may be able to find pics of it i have some left over. I think i have some pics of the location of this exact fuse as well.
Click to expand...

Thank you for providing such useful information. Could you provide a photo here on the forum so it is searchable for everybody else. If you send me a file, I can help to upload it here. sales@premiercolour.com

Francis

A

altereddezignz

New Member
You can buy everything you need to fix but fuses here.
http://www.solventinkjet.com/valuejet-1324/

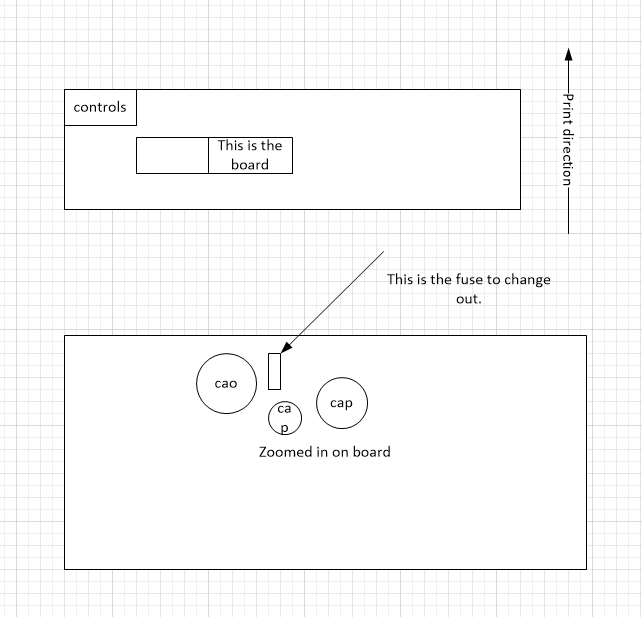

Here is an image of where the fuse is at on the board.

The image is of a board off a 1624 but has the same board here exept the 1324 fuse is not soldered in.

Now let me explain how it is in here. Open the quick drawn out picture it shows where it is at. Ill get u a picture of the fuses, I dont remember of hand where i got them but they where about 1$.


Attachments

  • photo.jpg
    47.1 KB · Views: 599
  • ScreenHunter_181 Sep. 28 15.24.jpg
    ScreenHunter_181 Sep. 28 15.24.jpg
    94.7 KB · Views: 419
A

altereddezignz

New Member

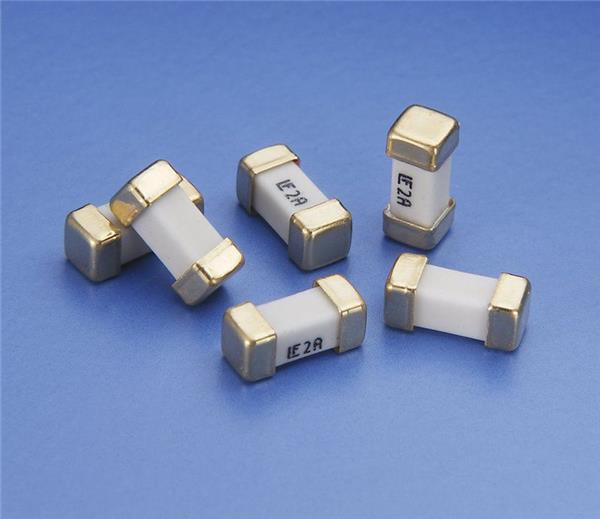

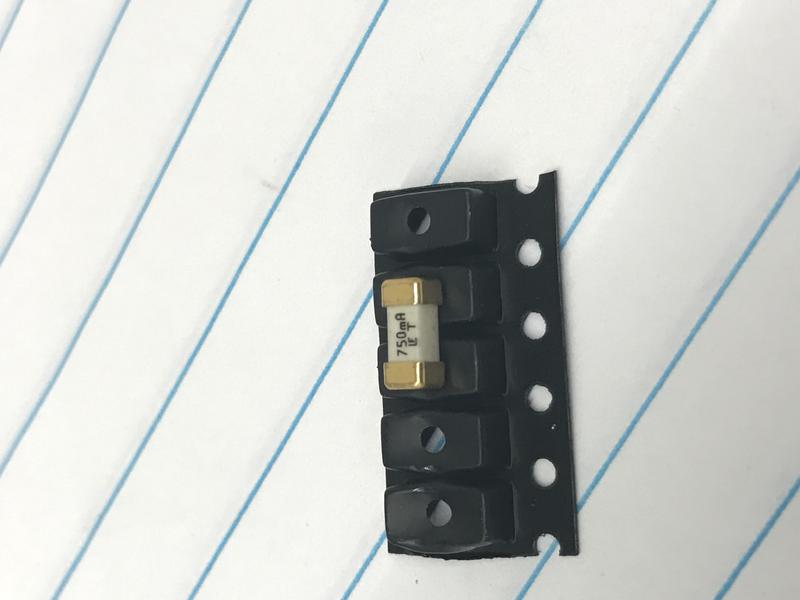

F2 fuse location if I remember right on the 1324. Make sure after you unplug machine to hold the power button down for about 10 seconds. It will flash like it is going to power on. If not you WILL keep blowing that fuse. This is when you have to work on it. If you ever have to unplug the ribbon cables from the head for remote soaking or cleaning this is a must.

Solventinkjet

Solventinkjet

DIY Printer Fixing Guide
H

Hate2wait

New Member
xtreme872 said:
I have a mutoh vj1324. I flushed the print head in the lapse of ordering a new head and now the print head tries to print but will not lay any ink. It works on clean. I was told that the f2 fuse was blown.. I cannot find an f2 fuse on this board? am i missing it or what?
Click to expand...

I know this is a really old post but did you ever find the F2 fuse on your board? I cannot find it I found everything except for the F2 fuse. I’m having the exact same problem you had. Please help!!


Sent from my iPhone using Tapatalk

H

Hate2wait

New Member
Hate2wait said:
I know this is a really old post but did you ever find the F2 fuse on your board? I cannot find it I found everything except for the F2 fuse. I’m having the exact same problem you had. Please help!!


Sent from my iPhone using Tapatalk
Click to expand...





Sent from my iPhone using Tapatalk
