Need Help Need help with a calculation

Discussion in 'General Signmaking Topics' started by Annette Asberg, Jul 16, 2019.

  1. Annette Asberg

    Annette Asberg Member

    87
    11
    8
    Sep 20, 2018
    Aliso Viejo Californien

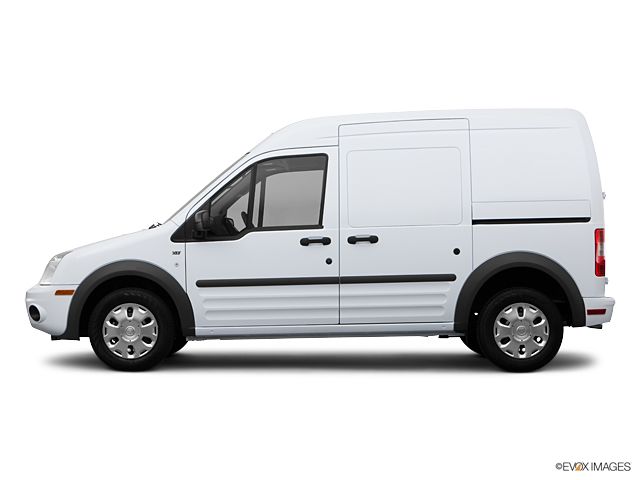

    My client wants his Ford Transit Connect wrapped. As you can see in the photo, the lower part of the body has a number of horizontal grooves. For the wrap to look good I believe I need to stretch the image in Illustrator before I rip and print. Can you give me some tips on how this best is done?
    Is there a formula that can be used to calculate how much "stretch" that needs to be done? Any tips are welcome!


    Attached Files:

    • Ford.jpg
      File size:
      22.7 KB
      Views:
      166
    Tags:
  2. C5 Service&Repair

    C5 Service&Repair Member

    328
    42
    28
    Jan 14, 2018
    Omaha, NE
    you don't pre-stretch the image. measure and install as if the grooves aren't there. then stretch the vinyl into the grooves. make sure you use a true wrap vinyl and laminate that allow for the amount of stretch needed. IJ180 will stretch to 130% of its original size, and IJ480 will stretch to 150%. I don't believe those grooves are very deep so IJ180 will probably work. Just remember that you are only measuring across the groove. So if the groove is 3" across, then it can only measure just under 4" for ij180 or 4.5" for ij480, as you measure the actual surface as it dips in.

    • Agree Agree x 3
    • Like Like x 1
  3. Annette Asberg

    Annette Asberg Member

    87
    11
    8
    Sep 20, 2018
    Aliso Viejo Californien
    Thanks, C5 for an honest response. I am getting so much **** from others that i am getting sick

  4. RPM

    RPM Member

    39
    10
    8
    Nov 23, 2015
    Rogers MN
    On a transit like that, those grooves are pretty minor and you will have no trouble sinking the vinyl into the recessed areas. I would do exactly what C5 stated above....

    • Agree Agree x 1
  5. bannertime

    bannertime Very Active Member

    2,160
    505
    113
    Sep 8, 2016
    No
    For this job, do it like they said. For times that we've factored that in: use a measuring tape ribbon and measure the length or circumference, then measure again making sure the ribbon goes into the groves. Subtract the two and that's how much extra you'd need to add. Alternatively, you can apply a strip of removable vinyl, mark where you'd measure, pull it off and measure it flat.

  6. myront

    myront CorelDRAW is best

    1,506
    294
    83
    Dec 3, 2015
    Niceville, FL
    I never even thought of stretching an image to compensate for grooves. That's just ludicrous! Just roll with it as others suggested. It's not a dually truck wrap after all.

  7. zspace

    zspace Merchant Member

    118
    37
    28
    Jul 9, 2013
    Houston, TX
    I asked the same question once upon a time and I would bet money that all those giving you **** did too. There is nothing wrong with talking through potential issues before they become an expensive roll of trash.

  8. burgmurk

    burgmurk Member

    139
    22
    18
    Oct 24, 2016
    Auckland, New Zealand
    There are times when this would be necessary, like a garage door or somesuch, but this is not one of those times.
    When it is one of those times, what i do is take a known length of scrap vinyl, apply it, then measure the length on the corrugated area. that will give you the ratio of 'stretch' required.

  9. Eric H

    Eric H Member

    153
    7
    18
    Aug 1, 2006
    Pennsylvania
    Go right over them. Is this the right model year? The new ones don’t look like this and haven’t for several years.
