Registration marks, sp300, colorip 2.2

Discussion in 'General Software' started by Ken, Apr 15, 2007.

  1. Ken

    Ken Major Contributor

    5,484
    2
    38
    Feb 7, 2005
    BC
    Shoot, I've had this machine 2 years now and have not yet done a print/cut/laminate/cut. So, I'm about to try.
    In the versacamm manual it says on page 68 that "Crop marks drawn using computer programs cannot be used as crop marks by this machine".
    ??
    So what kind of crop mark or registration mark should I be using?
    IN colorip 2.2 I told it to print registration marks and it printed 4 small "targets"-small circle with a cross-hair-
    in the corners of the print (outside the printed area).
    Will the sp300 find these? I've read other people describe these marks as dime-sized black dots. How do I get those on my material?
    Thanks. Ken

    Tags:
  2. Replicator

    Replicator Major Contributor

    10,230
    9
    38
    Nov 19, 2006
    Sun City, AZ
    make your graphic in Corel . . . In the colorip 2.2 print setup select print with cropmarks.

    Also the image must have a hairline CutContour outline to cut, and the file must be EPS.

    You may just want to try Roland CutStudio Plug-in for Corel,

    or CoCut if you find that this is just too much to deal with [​IMG]

  3. Ken

    Ken Major Contributor

    5,484
    2
    38
    Feb 7, 2005
    BC
    Thanks Rep. I'm on-side withe the EPS and cutline already.
    I'll try the cut with cropmarks in 2.2--thanks, should have tried that already.
    I'm not familiar with Roland CutStudio for Corel...is that new?
    Thanks...Ken

  4. Replicator

    Replicator Major Contributor

    10,230
    9
    38
    Nov 19, 2006
    Sun City, AZ
    Heres what Roland tech told me . . . . You must go into your color palette

    and create a new color, save it with the name : CutContour

    exactly like that [CutContour] . . . Then when your setting up a file to be cut

    you must select your CutContour color from the fountain pen tool, and then

    your hair line from the fountain pen tool and then export the file as an

    EPS [or] PS the only files that your Roland will recognize !

    He sent me a PDF with all this info the other day, if you want I can email it

    to you tomorrow when I'm at work !

  5. Ken

    Ken Major Contributor

    5,484
    2
    38
    Feb 7, 2005
    BC
    HI Mark.
    No. I'm OK with the cutline and .eps
    Thanks.
    Ken

  6. 2NinerNiner2

    2NinerNiner2 Very Active Member

    1,122
    0
    36
    Mar 21, 2006
    Calgary, AB
    Hey Ken...

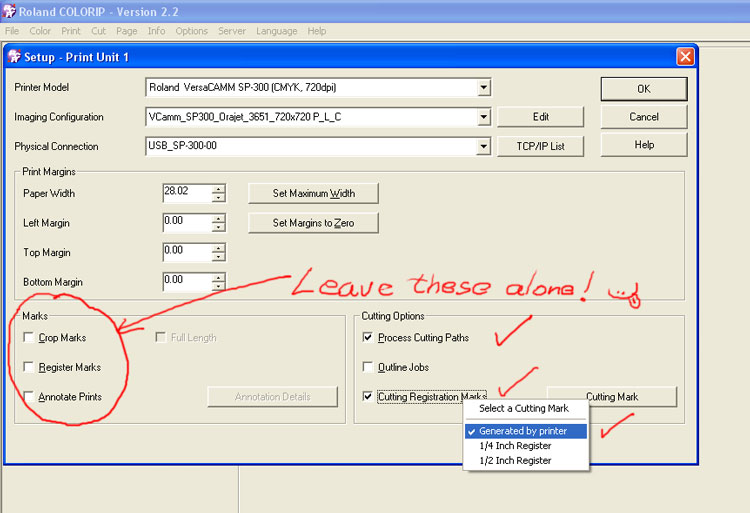

    Yeah, it's a bit confusing, but if you already have the 'marching ants' where you want them, see the attachment for the settings :) You'll also note that your max. print width will decrease as well; keep this in mind when sizing the job.

    Cheers!
    Lyle


    Attached Files:

  7. Ken

    Ken Major Contributor

    5,484
    2
    38
    Feb 7, 2005
    BC
    Hey, thanks Lyle.
    That should do it.
    Ken
