Scissor Lift in Car Dealership showroom tile breaking

Discussion in 'General Chit-Chat' started by Texas_Signmaker, Sep 5, 2019.

  1. Texas_Signmaker

    Texas_Signmaker Very Active Signmaker

    3,723
    1,384
    113
    Oct 21, 2016
    Frisco, TX
    I have to do some vinyl on a wall that is 20'-25' tall. Floor is tile so I'm not getting an extension ladder up there. The area on the wall I have to work on is around 8'x12' so that'd be a lot of moving around.

    I thought of a scissor lift but the GM said they used one a few months ago and it broke some of the tiles that were on the floor.

    You guys have any ideas of how I can get up there? The GM said they did the letters while they were remodeling so we assume it was before they laid the tile.

    [​IMG]

    Tags:
  2. BUCKY

    BUCKY Member

    90
    28
    18
    Jan 15, 2018
    WISCONSIN
    Rent scaffolding.

    • Agree Agree x 3
    • Like Like x 1
  3. Dan360

    Dan360 Member

    438
    90
    28
    Dec 23, 2014
    Ontario, Canada
    In the arena we do work in, they lay plywood under where the lift is going to spread out the weight and not damage the court.

    • Agree Agree x 3
    • Like Like x 1
  4. Texas_Signmaker

    Texas_Signmaker Very Active Signmaker

    3,723
    1,384
    113
    Oct 21, 2016
    Frisco, TX
    I tried this once at a hospital and the plywood just skidded everywhere.

  5. Texas_Signmaker

    Texas_Signmaker Very Active Signmaker

    3,723
    1,384
    113
    Oct 21, 2016
    Frisco, TX
    Nice idea, thank you!

  6. 2CT Media

    2CT Media Major Contributor

    4,236
    597
    113
    Jun 15, 2009
    Mesa, Arizona
    You can lay down carpet and plywood so it doesn't skid. I would walk away though, hassle can't be worth the price they are willing to pay for vinyl letters.

    • Agree Agree x 1
  7. Billct2

    Billct2 Major Contributor

    7,255
    579
    113
    Mar 12, 2005
    New England
    Those floors are usually designed to hold cars driving on them, don't know why they couldn't handle a lift. But the underlayment is a good idea, we've used on outside pavers with bucket trucks. Also using regular scaffolding would work. Install cost is more that the lettering, but that's the way it goes. I have some retail clients with warehouse ceilings, a $50 sign requires a lift to hang from the ceiling.

  8. Johnny Best

    Johnny Best Very Active Member

    3,057
    1,724
    113
    Dec 9, 2015
    buffalo ny
    3/4" plywood, 3 ply RTD

  9. GAC05

    GAC05 Major Contributor

    5,589
    665
    113
    Dec 27, 2005
    Guam USA
    How far is the entry door? Maybe you can rent
    a lift that has the reach to get to the top of the wall while being parked outside.
    Or just go from the top down with one of these and your safety harness.

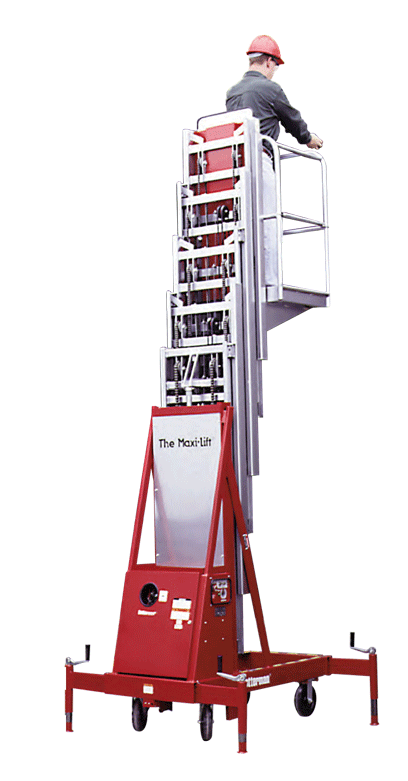

    There are also light weight lifts but it would not be fun moving them around to get to the whole install area.


    Last edited: Sep 5, 2019
  10. 2B

    2B Very Active Member

    2,955
    358
    83
    May 5, 2011
    TX
    we have used those thick rubber mats as you see in a weight room.
    spreads the weight and doesn't slide.

  11. signage

    signage Major Contributor

    9,367
    47
    48
    Oct 5, 2005
    Penn
    2 ladders and a pick, Baker scaffolding. This isn't as hard as you are making it, hope you priced it correctly.

    • Like Like x 1
  12. Gino

    Gino Premium Subscriber

    32,471
    2,063
    113
    Jun 7, 2006
    PA
    The only way a lift would break any tiles would be if the tires were full of nails and crap. You must tell the place where you are renting it, to make sure the tires are free and clean of all debris and not leaking because it will be used indoors on a tile floor. We've been using scissors lifts on tile floors for years and only had one accident. However, the lift had an oil leak, so we put a diaper on it. You can also get tire muffs too, to prevent any skid or scuff marks.

    • Like Like x 1
  13. AF

    AF Active Member

    951
    70
    28
    Dec 8, 2013
    Ventura, CA
    5x10 scaffold with 12” pad feet.

  14. mfatty500

    mfatty500 Active Member

    755
    83
    28
    May 10, 2010
    Sugar Grove, Ill
    What about a mini Telescopic material handler, you'd need another person, but they are rubber tired, and you'd have to empty the showroom so you could maneuver around

  15. bannertime

    bannertime "You guys do banners, right?"

    1,963
    454
    83
    Sep 8, 2016
    Arlington, TX
  16. petepaz

    petepaz Major Contributor

    4,315
    77
    48
    Feb 14, 2007
    NJ/NY/PA
    [​IMG]i have a few of these ladders and scaffolding plank worth it's weight in gold

    • Agree Agree x 1
  17. Gino

    Gino Premium Subscriber

    32,471
    2,063
    113
    Jun 7, 2006
    PA
    Yeah, but can you do that over 20' in the air ?? I wouldn't want to. I have several of those aluminum walk planks and 3 sets of those ladders, but I ain't doing it 25' up there. Hmmmm... maybe if I was younger, but not anymore.

    • Agree Agree x 2
  18. AF

    AF Active Member

    951
    70
    28
    Dec 8, 2013
    Ventura, CA
    If the tiles were installed with air voids they can deflect and crack. Run into this a lot down this way due to the combination of cheap tiles and poor installs. An off-road scissor lift with pneumatic tires would probably spread the load like a car tire as compared to a standard roller wheel. I would just rent scaffold and not worry about it. You can buy used scaffold for the same cost as renting sometimes so start there.

    • Agree Agree x 3
  19. equippaint

    equippaint Very Active Member

    1,855
    531
    113
    Oct 10, 2014
    Florida
    Problem with the tires is they are solid and have a real small contact area for the weight, just like a warehouse forklift. It would have to be something solid like plywood under it to disperse the weight. Not sure what you did to make it skid around, we run ours on plywood. Another thing inside you need to be careful of is the tires, not all are non-marking and using a diaper. Its quite a disaster if they leak on a floor and the oil stains the grout or concrete. Been there, done that. 1 man lift may work but properly installed scaffold with fall protection would be my vote.

  20. Texas_Signmaker

    Texas_Signmaker Very Active Signmaker

    3,723
    1,384
    113
    Oct 21, 2016
    Frisco, TX
    Great posts.

    Not doing ladder and plant 20' in the air.

    I vowed never to use scaffolding again but honestly that sounds like the only way... I duno about his job now....
