Serial cable?

Discussion in 'General Signmaking Topics' started by Colin, Nov 22, 2010.

  1. Colin

    Colin Major Contributor

    4,558
    20
    38
    Sep 16, 2004
    Earth

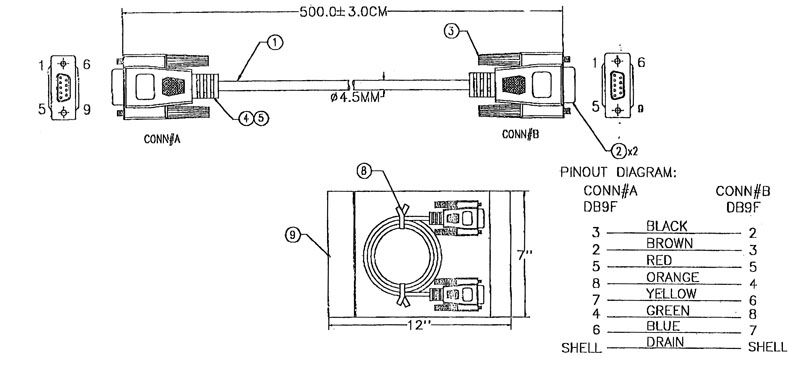

    The factory serial cable that came with my Summa D750 Pro plotter is going to be too short when I re-arrange my shop, so I need to get a longer one made (about 25'). Tech support at Summa sent me a pdf showing the special requirements.

    Does anyone know where these can be had/made?


    Attached Files:

    Tags:
  2. gabagoo

    gabagoo Major Contributor

    5,795
    118
    63
    Oct 10, 2006
    Vaughan, Ontario
    How far does the cable have to go? They probably wont be so easy to find anymore but I have a drawer with at least 3 or 4 cables. If you cant find one let me know and I will send you one gratis.

  3. ZsVinylInc

    ZsVinylInc Member

    310
    0
    0
    Mar 13, 2009
    Try a company I believe called Blackbox. At my last job we use to use a lot of serial cables that were pre made and I believe we use to get them from this company.

  4. Colin

    Colin Major Contributor

    4,558
    20
    38
    Sep 16, 2004
    Earth



    Wow, thanks! It needs to be a minimum of 25'

    The guy at Summa said that it is not a regular old serial cable. It is wired in a particular way for their cutters.


    :help

  5. cgsigns_jamie

    cgsigns_jamie Very Active Member

  6. jiarby

    jiarby Major Contributor

    4,513
    0
    0
    Feb 11, 2007
    you can also buy some db9 female connectors and a length of cable and make your own. You need a wire stripper, and a cable crimper to attach the pins on the end of the wires. The pins then attach to the db9... some are just clip on, and some are solder on.

    If you have ever made an ethernet cable you can do this one to.

    If not... blackbox is good, but there are a million custom cable companies online. Anyone with scissors and pliers can be a cable guy.

  7. Colin

    Colin Major Contributor

    4,558
    20
    38
    Sep 16, 2004
    Earth
    Thanks. I'm pretty handy in many things, but anything electronics isn't one of them. I just never learned it.

    gabagoo: After looking at my diagram, and what Summa said, do you think that yours will work?

  8. gabagoo

    gabagoo Major Contributor

    5,795
    118
    63
    Oct 10, 2006
    Vaughan, Ontario
    Mine are just your straight ordinary go in the store 'do you have any serial cable" type.
    Heck I never knew they made different ones, but amazingly over the years they all worked. Not sure whats so different about a summa that it needs a custom.
    On my Summa I use a serial cable but I think it came with the plotter and the cable is a lot thinner than the serial I use for my Graphtec so maybe they are different.

  9. insignia

    insignia Very Active Member

    +1 for Cables to Go, they've got just about anything under the sun and they'll custom make anything you need as well.

    Plus, their one of our best customers so I have to return the favor sometimes...

  10. tcorn1965

    tcorn1965 Very Active Member

    1,039
    0
    0
    Nov 3, 2009
    Colin,
    Here is an easy, no way to mess up, way to do it. You already have the cable with the correct pin outs on it with your excisting serial cable, your db9 M/F sides. All you need is a 25' chunk of cable to use, all serial cables are the same, some just pin out differently. So buy any 25' serial cable from somewhere like CDW and cut the ends off and strip the individual wires down about a 1/4 inch. Then take your existing serial cable and cut it in half, strip all those wires about 1/4 inch, then just match up all colors and wala there is your needed length. Once the wires are connected I would solder and then use electric tape to connect. You cant go wrong because you already have the correct pin out, your just matching wirecolors at this point. I have done this many times.

    Terry

  11. Colin

    Colin Major Contributor

    4,558
    20
    38
    Sep 16, 2004
    Earth
    Great - thanks for all the tips.

    Red is negative, right? :cool:

  12. J Hill Designs

    J Hill Designs Major Contributor

    15,549
    19
    0
    Sep 24, 2004
    I think the correct cable is RS-232 null modem cable...

  13. Colin

    Colin Major Contributor

    4,558
    20
    38
    Sep 16, 2004
    Earth
    Sorry to drag this up again, but one guy said to me that all I need to do is use my existing Summa cable, and buy a standard serial cable at the length I need to complete the span. He said: because I am using the Summa cable which has the proper pinning on each end, the std cable simply extends the plotter or computer end. Does that make sense?


    Thx

  14. Techman

    Techman Major Contributor

    8,520
    8
    38
    Jun 24, 2003
    michigan
    you can get long null cables..
    But there is a max usable length of about 50 ft...

  15. round man

    round man Active Member

    637
    1
    0
    Oct 16, 2005
    what you need is a null modem cable,but if you have one then all you need is a normal serial cable extention,...you don't want to hook to null modem cables together or you defeat the purpose of the null modem cable,...there are two pins swapped on a null modem cable. They are swapped so the plotter can handshake with the computer,..if you hook up two cables with the pins swapped on both of them they will cancel each other out as if the pins were never swapped,...either get yourself a 25' null modem cable or a 25' serial extention and hook it up to your existing cable. Don't ask me how I came to know this,...the research it took to come to this scientific conclusion was very very frustrating .

  16. Colin

    Colin Major Contributor

    4,558
    20
    38
    Sep 16, 2004
    Earth
    Thanks round man!

  17. Zzyzx

    Zzyzx New Member

    13
    0
    1
    Jul 11, 2010
    So Cal
    Cables to Go has them in many lengths. They also have extender cables.
    They ars called DB 9 serial cables
    Good Luck

    Chuck
